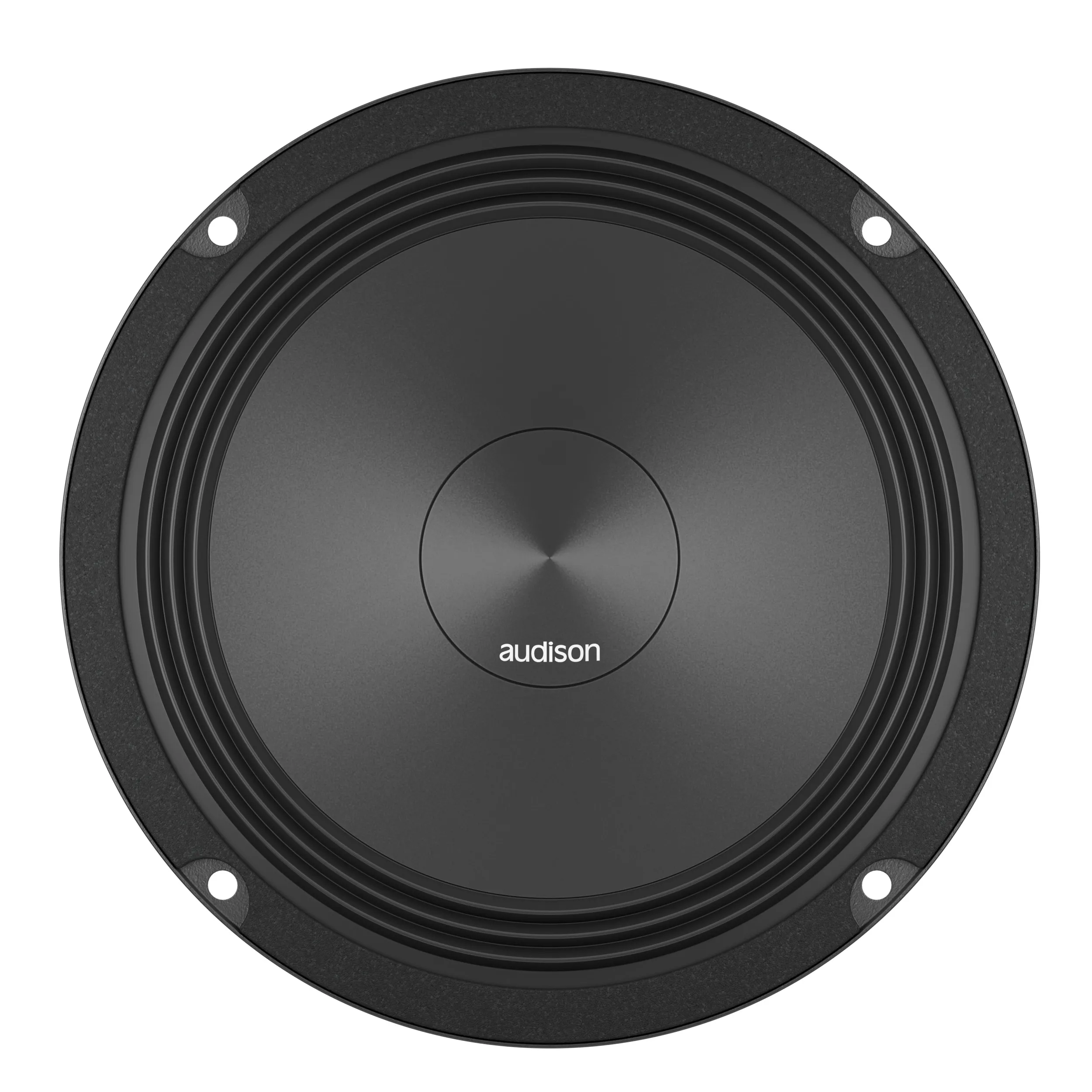

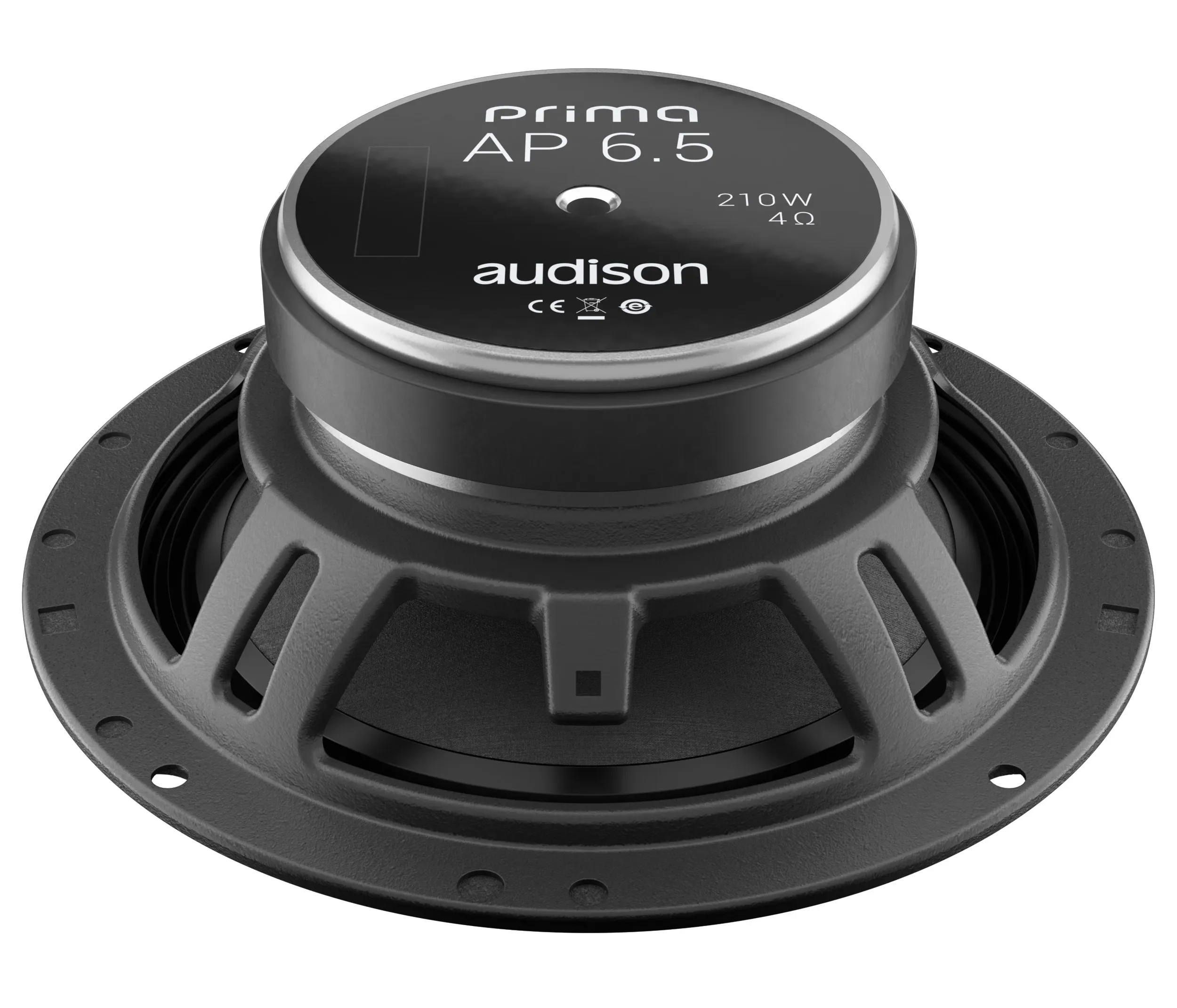

Audison AP 6.5 Prima 4 Ohm 6.5" Component Woofer

AP 6.5 feature a 32 mm pure copper voice coil, for high power handling and outstanding low frequency control. All the woofer don't employ any filter, to maximize efficiency: the dome profile has been optimized with Klippel R & D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency. The surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.

Specs

TECHNICAL SPECS
Size 165 mm
Power Handling - Peak 210 W
Power Handling - Continuous 70 W
Impedance 4 Ohm
Frequency Response 60 ÷ 5k Hz
Voice Coil Ø 32 mm
Woofer Qes 0,8
Xmax 2.5 mm
ELECTRIC-ACOUSTIC SPECS
D 129 mm
Re 3.1 Ohm
Fs 80 Hz
Vas 7.6 l
Mms 12 g
Cms 0.31 mm/N
BL 4.7 T•m
Qms 4.7
Qts 0.7
Le Standard 0.23 mH
Spl 93.5 dB
GENERAL
Weight 0.78 kg
