Audison AP 6.5P Prima High Power 6.5" Component Woofer (Pair)

Woofer | 330 W Peak Power | 165 mm | 4 ohm

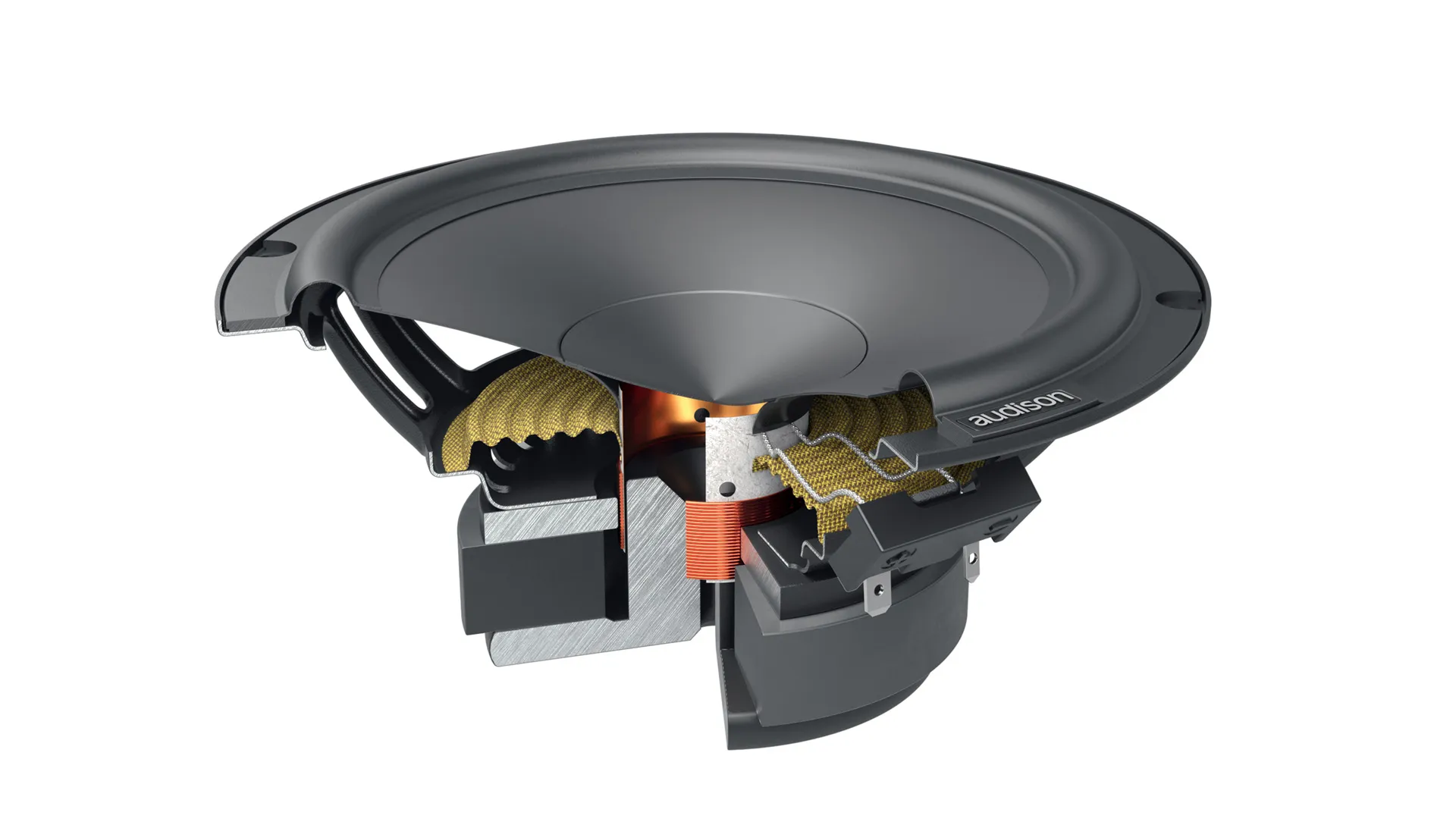

AP 6.5P woofer component has been designed to perform at its best in OEM placements, combining excellent power handling and efficiency featuring a very wide excursion to cope with the most important dynamic peaks without any compression. Its impressive magnetic assembly provides the energy needed for perfect control even during limit excursions. The CCAW (Copper Clad Aluminum Wire) voice coil (32 x 14 mm, 1.25 x 0.55 in) optimally manages the greater applied power. The basket was completely redesigned with the aid of simulations to lower the resistance of air flows, while maintaining compact sizes to facilitate the installation.

Features:

• Increased excursion of the mobile group for a superior dynamic
  response
• Optimized electro-acoustic parameters to maximize performance for
  OEM placements
• Magnetic group sized for perfect control even at maximum cone
  excursion
• CCAW (Copper-Clad Aluminium Wire) voice coil (32 x 14 mm) to
  optimally manage the greater applied power
• Compact size basket for easy OEM installations

Specs

Technical Specs
Nominal diameter    165 mm (6.5 in)
Impedance    4 Ohm
Power Handling - Peak    330 W
Power Handling - Continuous    110 W
Sensitivity    92.5 dB
Frequency Response    50 - 5k Hz
Voice Coil Ø    32 mm
Magnet size D x d x h    100 x 40 x 18 mm (in.)
Voice Coil Material    CCAW
Cone Material    WATER-REPELLENT TREATED PAPER CONE
Xmax    5.6 mm (0.22 in)

Electric-acoustic Specs
Re    3.1 Ohm
Fs    60 Hz
Le    0.29 mH
Vas    11.4 l (0.403 ft)
Mms    14.6 g (0.515 oz)
Cms    0.47 mm/N
BL    5.35 T•m
Qts    0.55
Qes    0,6
Qms    7.6

General
Weight    1.45 kg, 3.20 lbs
