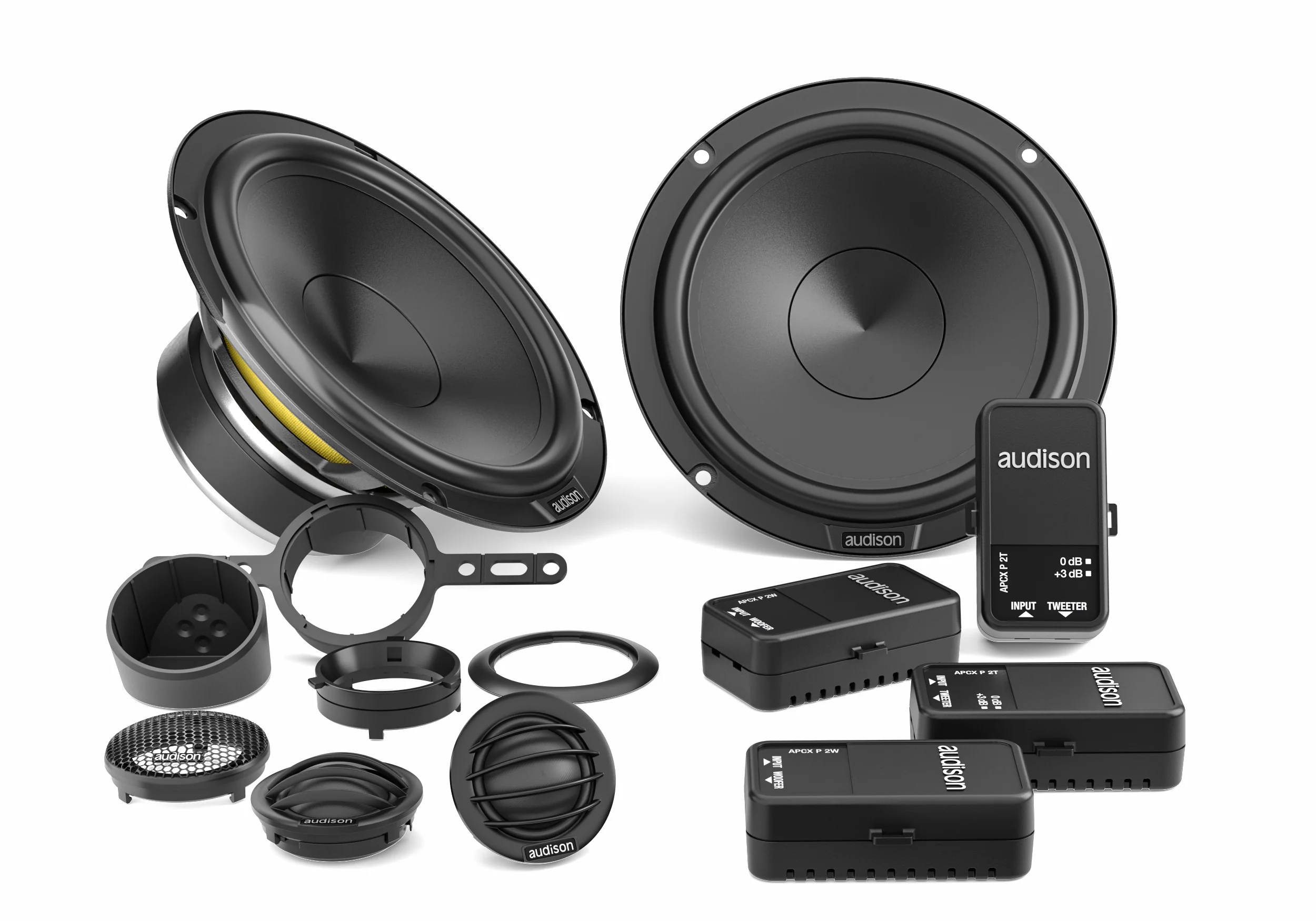

Audison APK 165P 2-Way 6.5" Component Speaker (Pair)

Kit | 345 W Peak Power | Kit 2 way 4 ohm | AP 1P + AP 6.5P + Crossover
The new Prima APK 165P two-way loudspeaker system, capable of handling up to 345 W peak, is the ideal combination to fully exploit the power of the AP F8.9 bit or all other Prima amplifiers used in high power configurations. The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter provides the installer with 3 different faceplates for total application versatility and a significant reduction in installation time. The woofer has been designed to perform at its best in OEM placements, combining excellent power handling and efficiency.

Features:

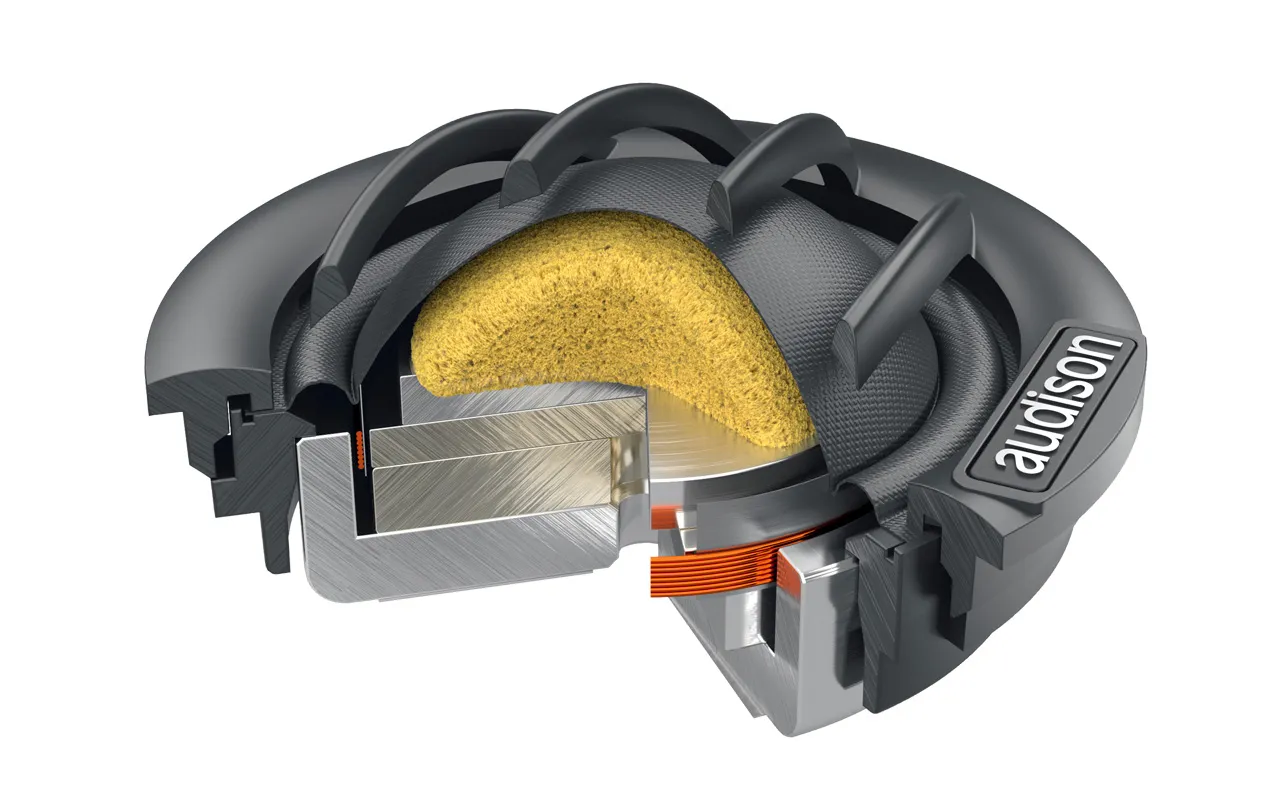

AP 1P

1. AIF technology (Any Install Faceplate) for total application versatility and a significant reduction in installation time.
2. Three mounting accessories supplied to provide a solution for any type of installation.
3. Magnetic group with double Neodymium tablet for an excellent high frequency extension.
4. 1 CCAW voice coil for superior dynamic response.
5. Dome profile optimized with FEM simulations for a wide off-axis dispersion.

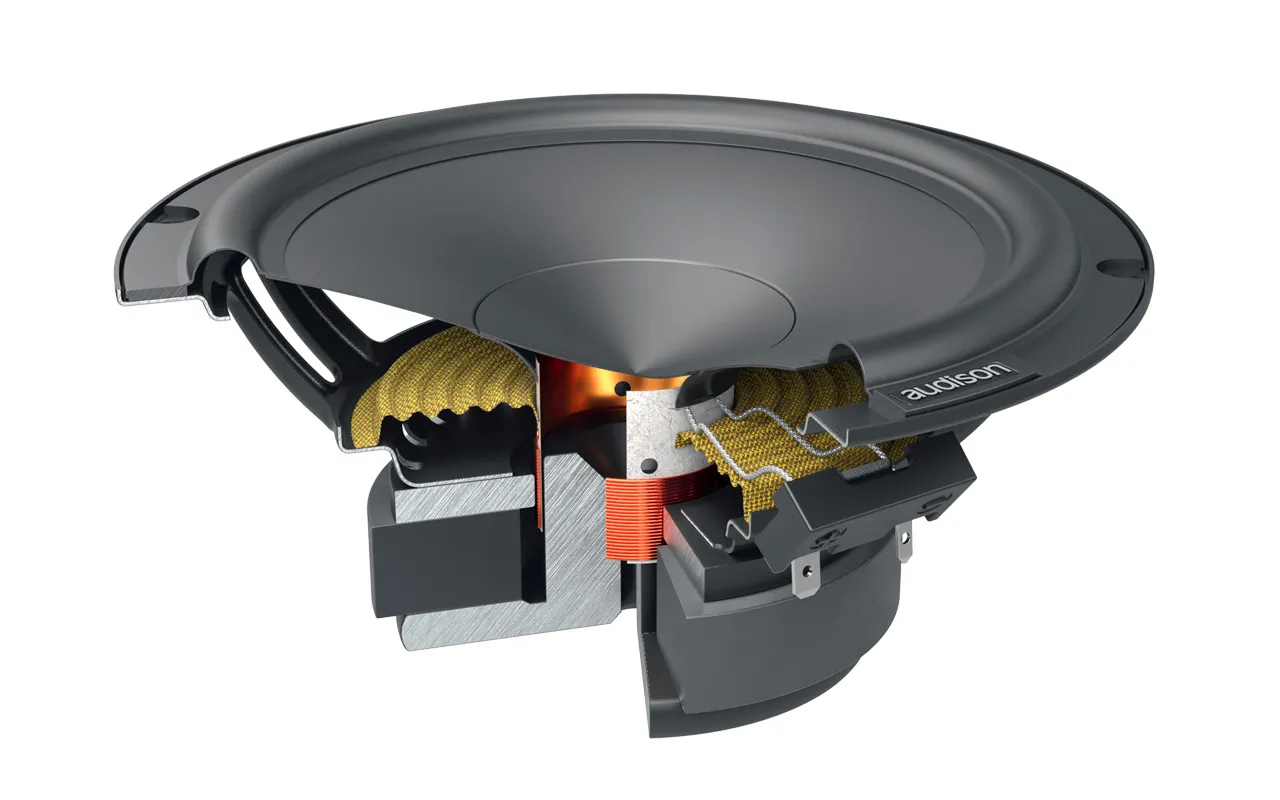

AP 6.5P

1. Increased excursion of the mobile group for a superior dynamic response.
2. Optimized electro-acoustic parameters to maximize performance for OEM placements.
3. Magnetic group sized for perfect control even at maximum cone excursion.
4. CCAW (Copper-Clad Aluminium Wire) voice coil (32 x 14 mm) to optimally manage the greater applied power.
5. Compact size basket for easy OEM installations.

APCX P 2T, APCX P 2W

1. Separate ultra-compact crossovers for tweeters and woofers to minimize space requirements and simplify cable routing, facilitating the specialist work.
2. Use of components selected and sized for the management of high power avoiding saturation.
3. Asymmetric slope filtering, 12 dB/oct on the tweeter and 6 dB/oct on the woofer for an optimal balance between the two components

Specs

Technical Specs LF
Woofer Size    165 mm (6.5 in)
Impedance    4 Ohm
Power Handling - Peak    345 W
Power Handling - Continuous    115 W
Frequency Response    50 ÷ 24k
Voice Coil Diameter    32 mm (1.26 in)
Magnet Size    100 x 40 x 18
Crossover Level Adjustment    Tweeter Level; 0 / +3

Technical Specs HF
Tweeter Size    29 mm (1.14 in)
Voice Coil Diameter    25 mm (1.26 in)
Dome Material    TETOLON FIBER

Electric-acoustic Specs LF
Re    3.1 Ohm
Fs    60 Hz
Mms    14.6 g
Cms    0.47
BL    5.35
Qms    7.6
Qes    1,74
Qts    0.55
Vas    11.4 l
Le    0.29 mH
D    132 sq mm (20.46 sq in)
Spl    89.5 dB
Xmax    5.6 mm (0.22 in)

Kit Tech Data
Crossover Low-Pass    Low-Pass: 4 kHz @ 6 dB/Oct
Crossover Hi-Pass    Hi-Pass: 4 KHz @ 12dB/Oct.
Cone Diameter    132 mm

General
Weight Woofer    1.45 kg, 3.20 lbs
Weight Tweeter    0.067 kg, .15 lbs
