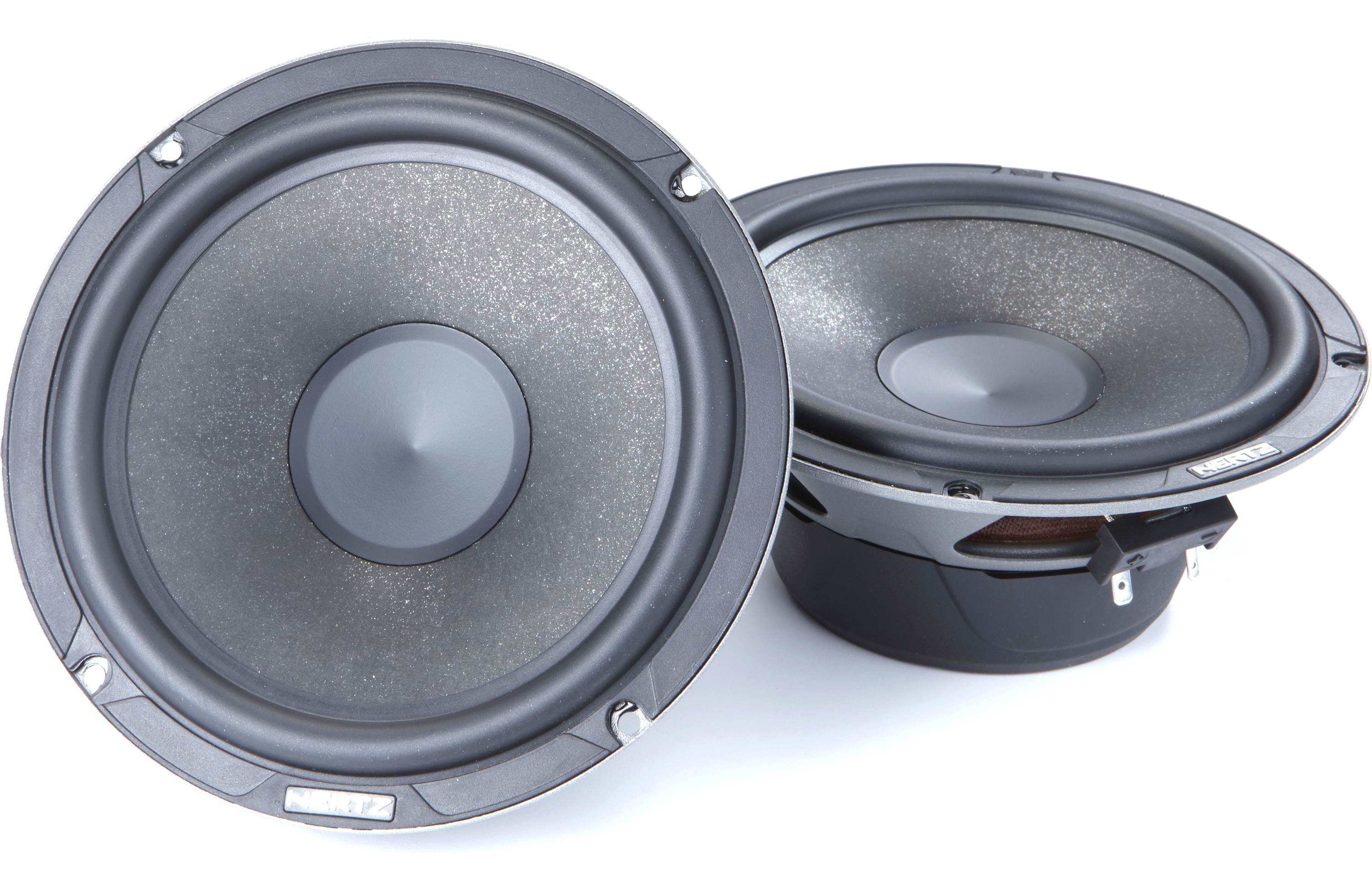

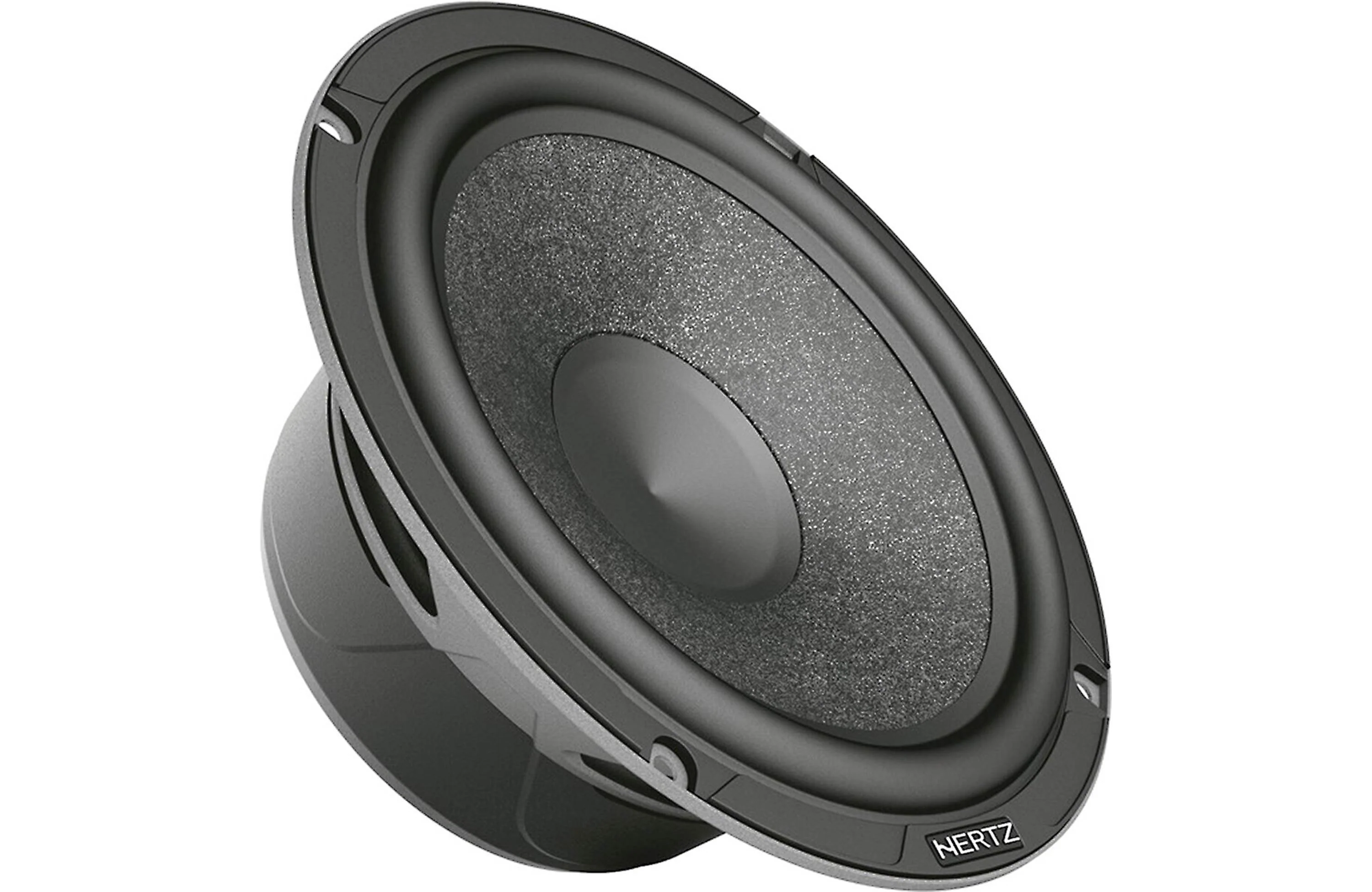

Hertz C 165 Cento Series 6.5" Component Woofer (Pair)

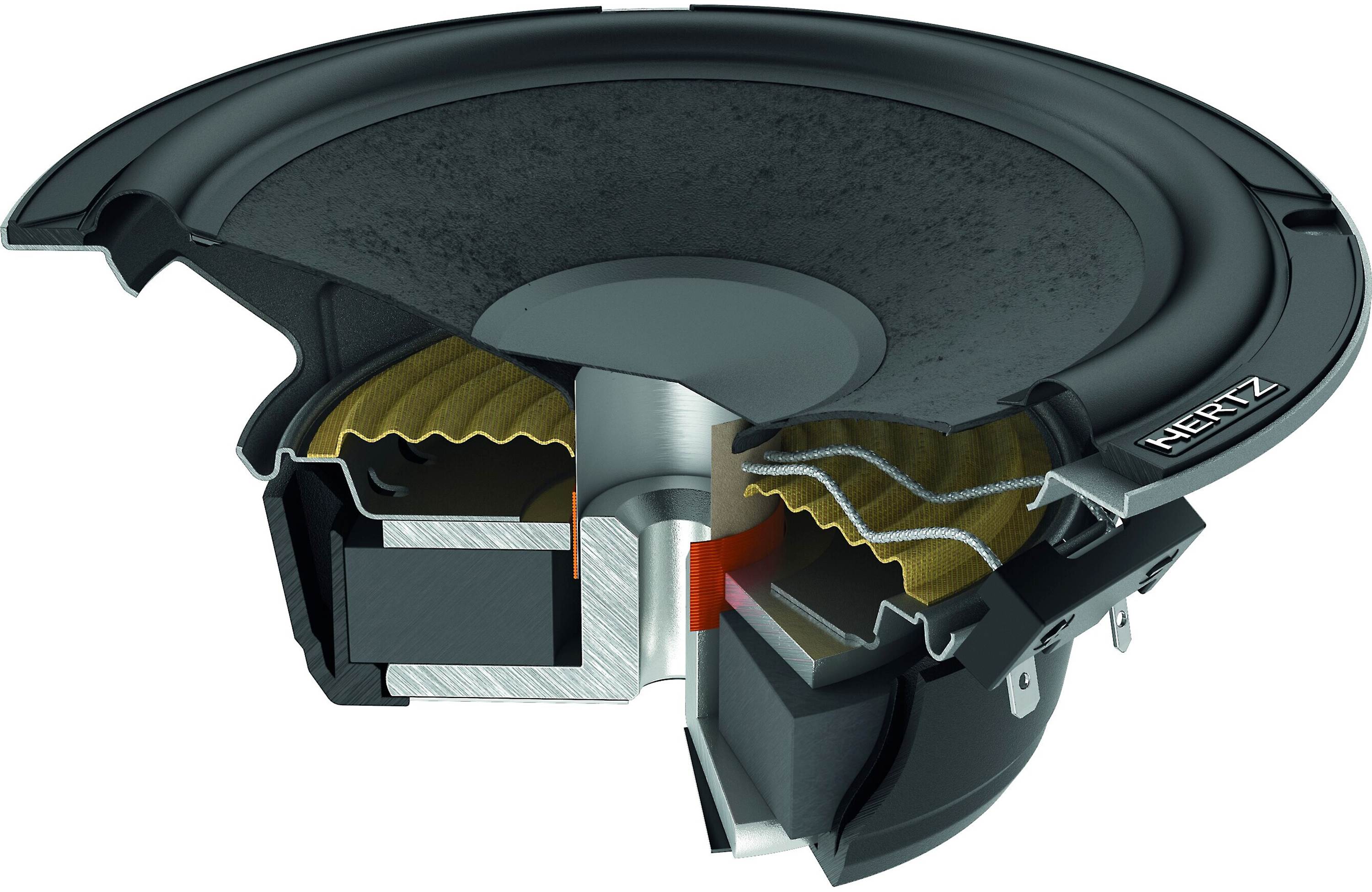

Much time was invested in the research of the perfect material for the C 165 woofer cones: through a long process of customization of the materials SPP-M was selected (Semi Pressed Paper-Mica), which preserves the natural sound of the semi-pressed paper and enhances it with Mica powder improving rigidity. The result is an excellent balance between lightness and damping, essential for a powerful and controlled emission. The oversized ferrite magnet provides excellent control even at higher excursions.

Specs

Technical Specs
Component    Woofer
Size mm (in.)    165 (6.5)
Power Handling - Continuous W    70
Power Handling - Peak W    210
Impedance Ohm    4
Voice Coil Ø    25 (1)
Frequency Response Hz    55 ÷ 7k
Magnet size D x d x h mm (in.)    85 x 32 x 15 (3.35 x 1.26 x 0.59)
Weight of one speaker kg (lb.)    0,96 (2.12)
Magnet    High density flux ferrite
Cone    Semi-pressed paper+ Mica
Xmech mm (in.)    4,9 (0.19)

Electro-acoustic Specs
D mm    131,5
Re Ohm    3,2
Fs Hz    60
Le mH    0,2
Vas I    13,24
Mms g    13,9
Cms mm/N    0,51
BL T*m    4,9
Qts    0,59
Qes    0,69
Qms    3,9
Spl dB    93
