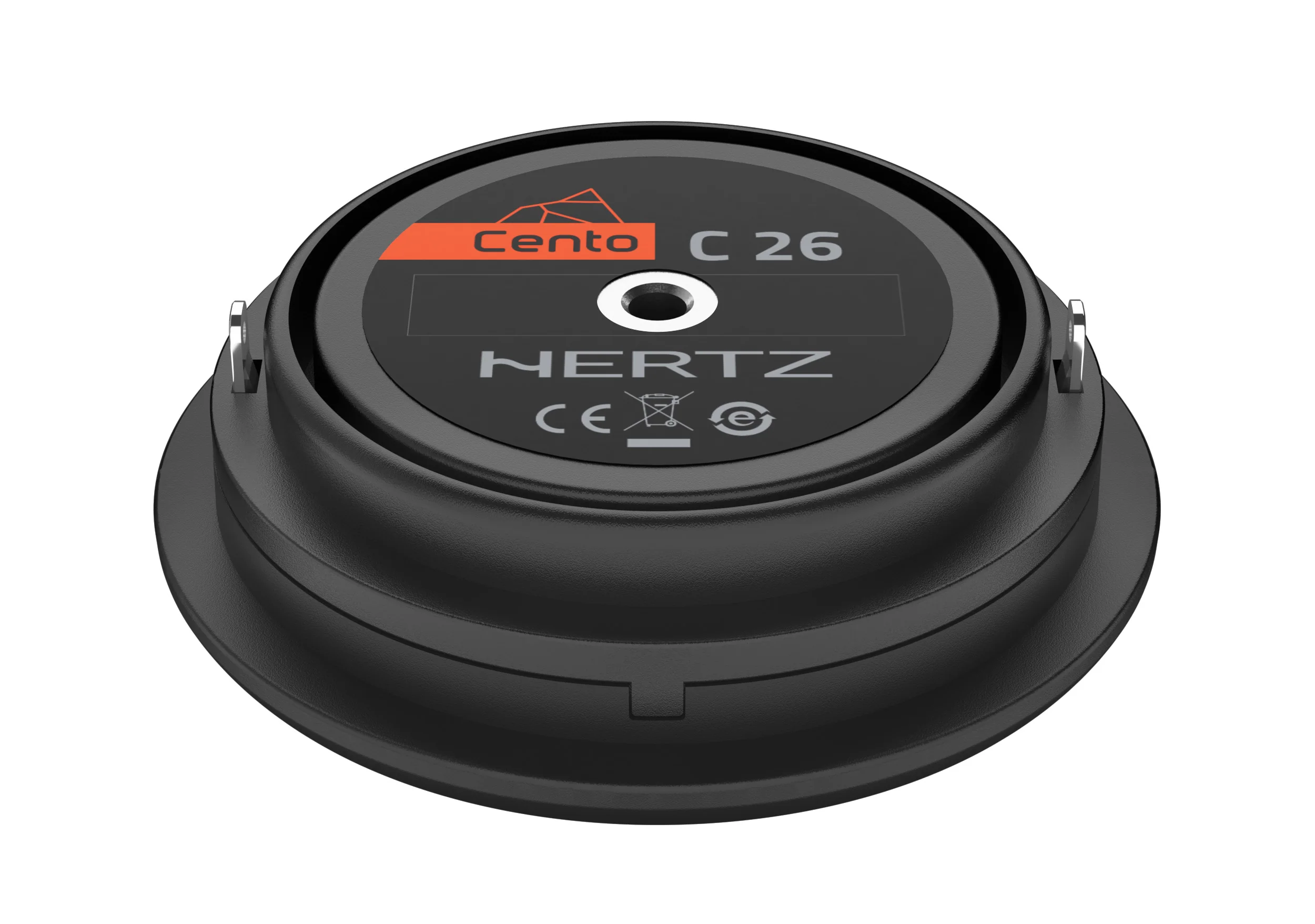

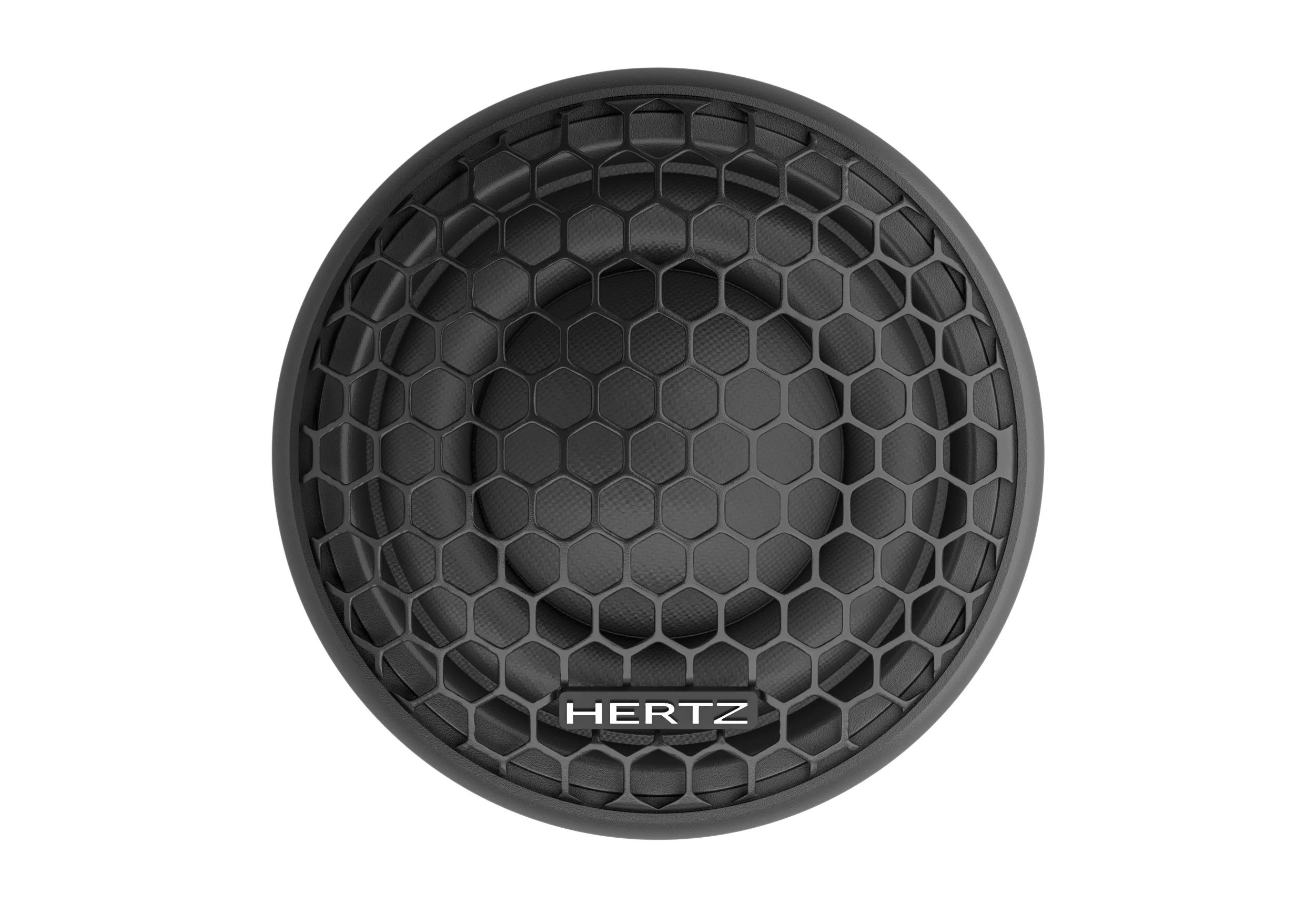

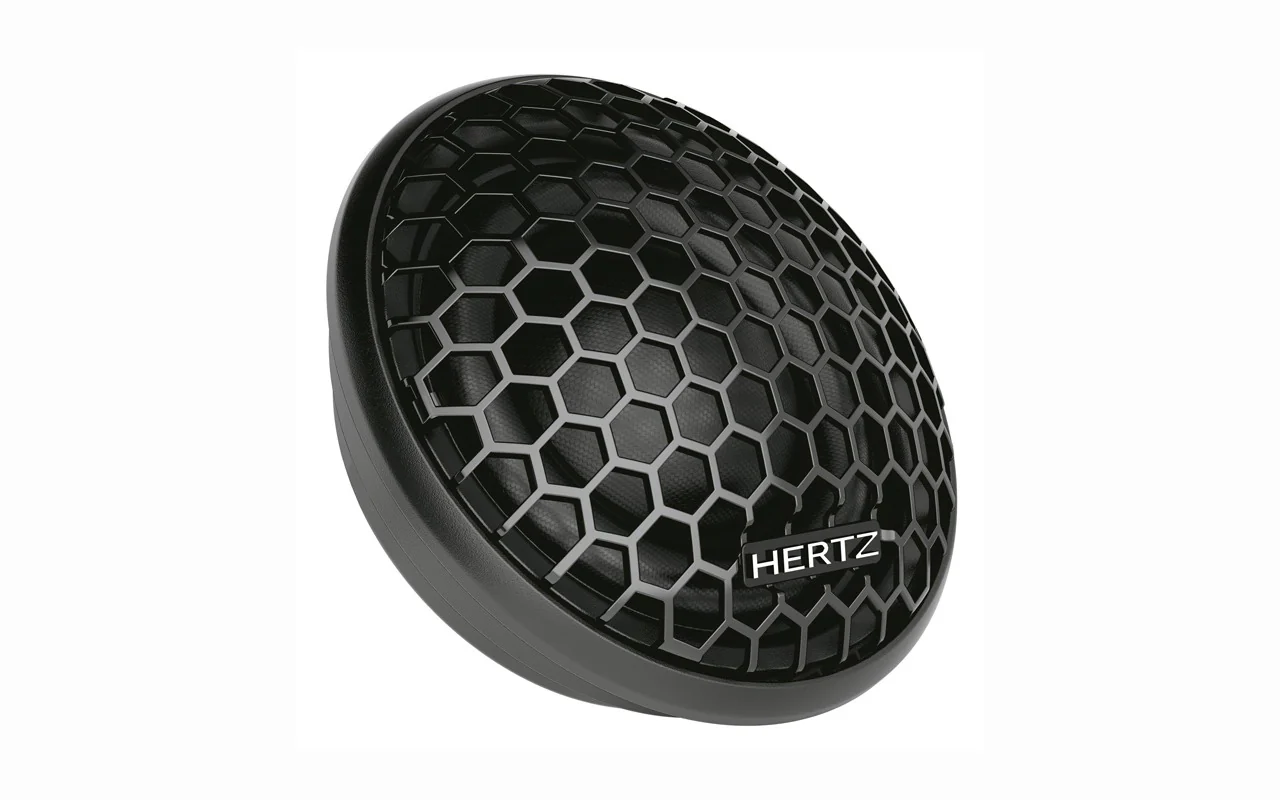

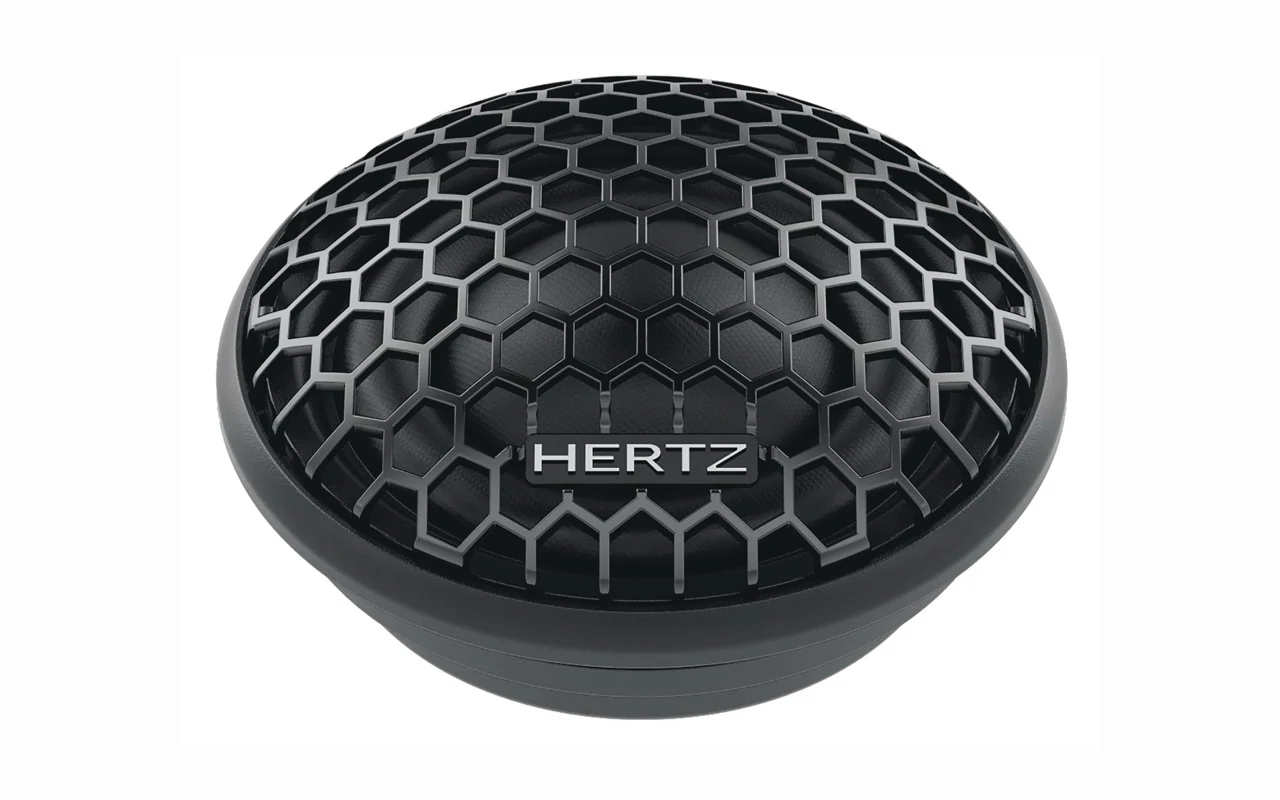

Hertz C26 Cento Series 1" Neodymium Magnet Tweeter (Pair)

C 26 tweeter features a 26 mm (1 in.) Tetolon® dome and 20 mm (0.8 in.) voice coil for a detailed and natural reproduction of medium-high frequencies. The R&D team worked extensively to optimize the C 26 dispersion characteristics to maximize performance on the listening point, with a natural and progressive roll-off and a natural timbre that favors frequency linearity.

Specs

Technical Specs
Component    Tweeter
Size mm (in.)    26 (1)
Power Handling - Peak W    120
Power Handling - Peak Note    (Hi-Pass filtered @ 2,5kHz - 12 dB Oct.)
Impedance Ohm    4
Voice Coil Ø    20(0.8)
Frequency Response Hz    1.8k ÷ 22.5k
Magnet size D x d x h mm (in.)    19 x 0 x 3 (0.75 x 0 x 0.12)
Weight of one speaker kg (lb.)    0,04 (0.08)
Magnet    Neodymium
Dome    Tetolon

Electro-acoustic Specs
D mm    26
Re Ohm    3,7
Fs Hz    1500
Le mH    0,02
Vas I    -
Mms g    0,17
Cms mm/N    0,07
BL T*m    1,3
Qts    1,6
Qes    3,5
Qms    2,9
Spl dB    92
