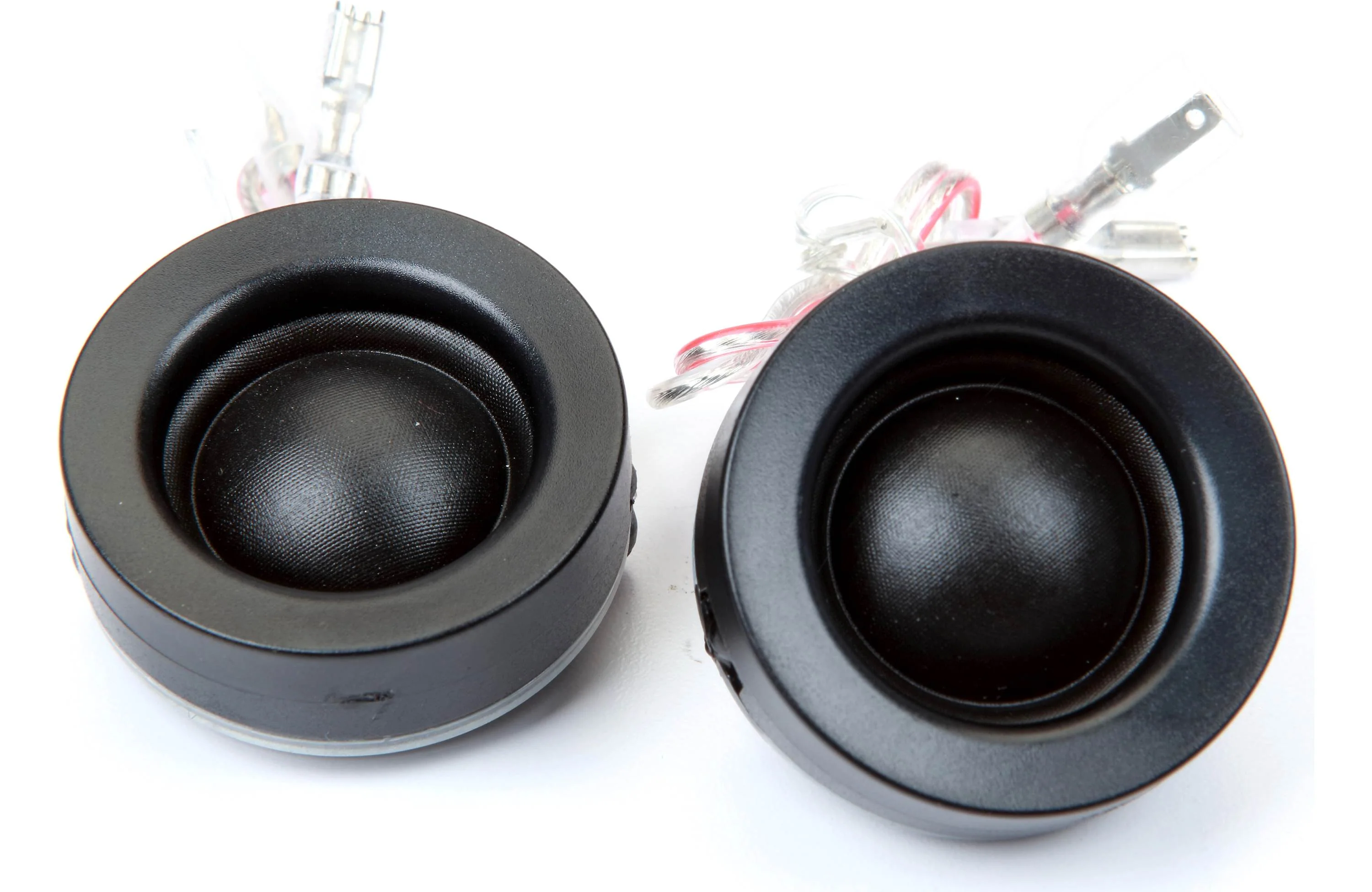

Hertz C26 OE Cento Series 1" Component Tweeter with OEM Mounting Hardware

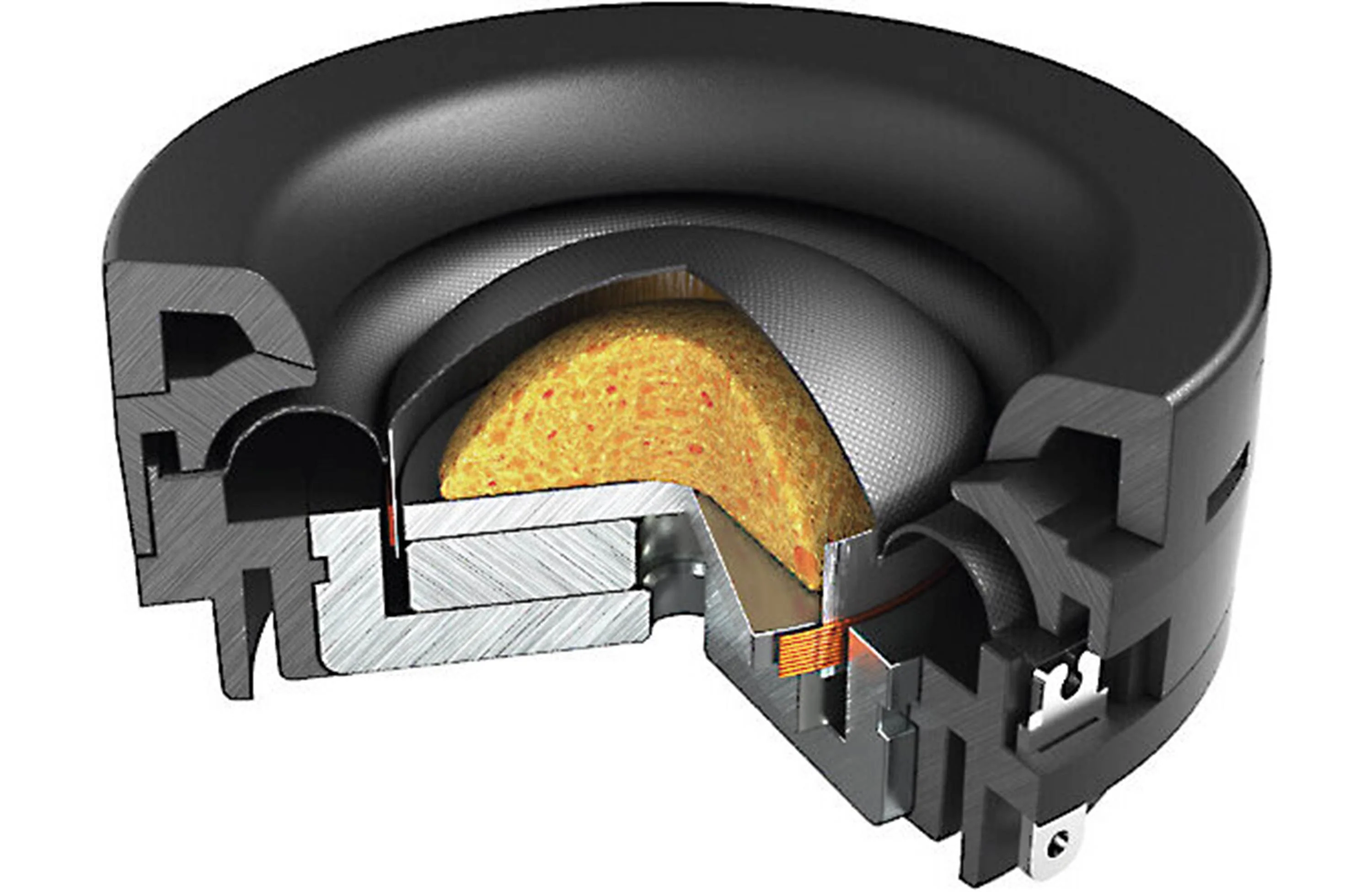

C 26 OE tweeter features a FEM (Finite Element Method) geometry designed to maximize performances when the tweeter is installed in the OEM placement.

C 26 OE includes a provided cable with built-in 6 dB/Oct. crossover designed to save space in a OEM upgrade scenario and mounting accessories.

Specs

Technical Specs
Component    Tweeter
Size mm (in.)    26 (1)
Power Handling - Peak W    120
Power Handling - Peak Note    (Hi-Pass filtered @ 2,5kHz - 12 dB Oct.)
Impedance Ohm    4
Voice Coil Ø    20 (0.8)
Frequency Response Hz    1.8k ÷ 22.5k
Magnet size D x d x h mm (in.)    19 x 0 x 3 (0.75 x 0 x 0.12)
Weight of one speaker kg (lb.)    0,04 (0.08)
Magnet    Neodymium
Dome    Tetolon

Electro-acoustic Specs
D mm    26
Re Ohm    3,7
Fs Hz    1500
Le mH    0,02
Vas I    -
Mms g    0,17
Cms mm/N    0,7
BL T*m    1,3
Qts    1,6
Qes    3,5
Qms    2,9
Spl dB    92
