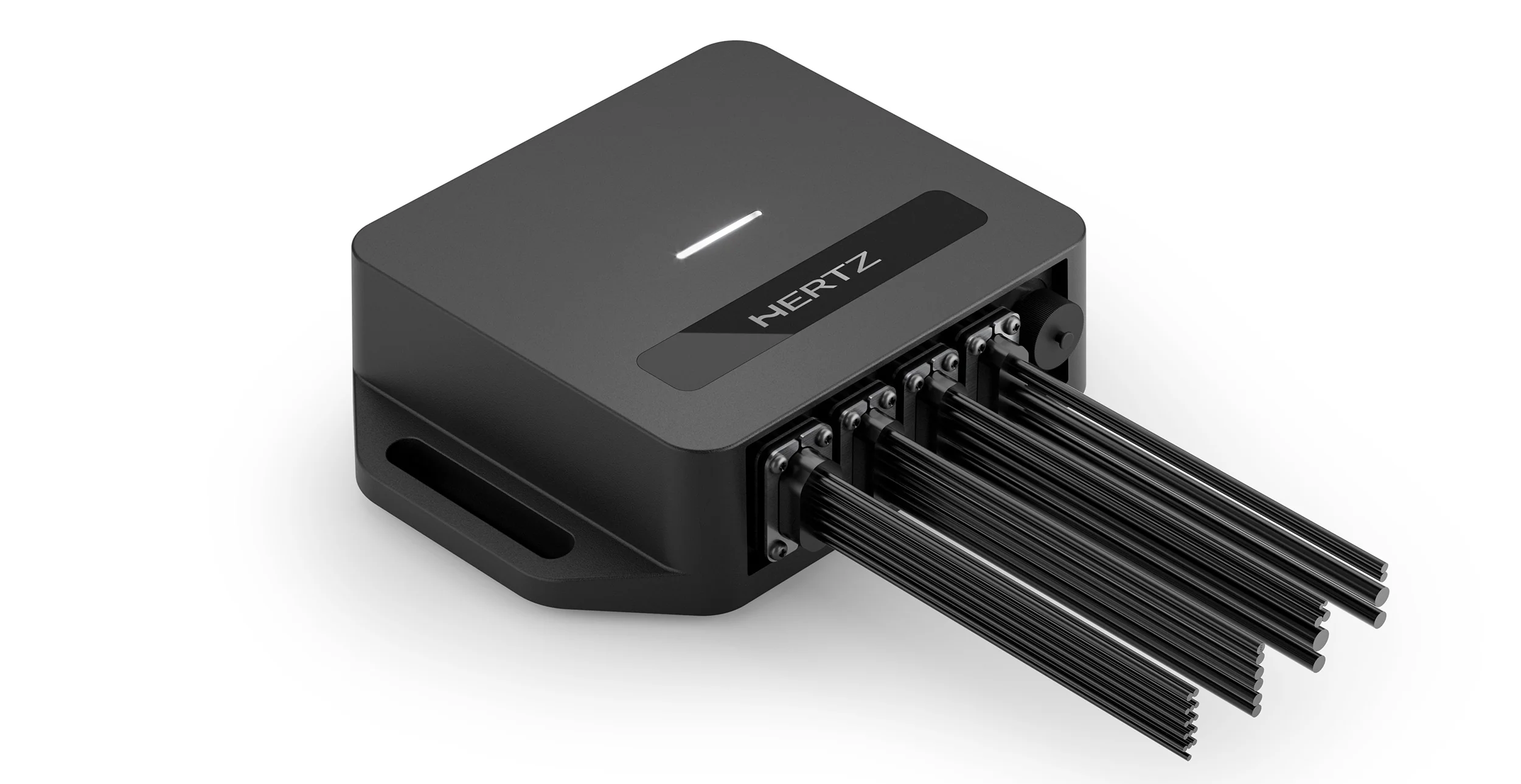

Hertz Capri HBB Digital Hidden Marine Source Unit

Source Units
The CAPRI HBB is the black box version of the renowned Hertz CAPRI marine source, delivering the same high-resolution audio performance and advanced features without an integrated display. Designed for seamless control via remote units, Bluetooth® app, or NMEA 2000®, it ensures full management of four independent zones with dedicated subwoofer outputs. Engineered to withstand harsh marine environments, the CAPRI HBB offers superior connectivity, including Bluetooth® 5.1, USB, digital inputs/outputs, and DAB+ readiness, for an audiophile-grade marine experience.

Features:

• Native DSP working at 24 bit/96 kHz and an extended audio band up to 40 kHz for hi-res audio performance.
• CAPRI BB is designed to play 24-bit/96 kHz hi-res audio for audiophile sound.
• CAPRI BB features 4 pairs of stereo outputs each with independent subwoofer output providing the ability to create 4 independently controlled listening areas to obtain the perfect sound everywhere.
• The powerful 8-band digital equalizer will support you in finding the best sound.
• Customize the sound with 8 EQ presets created by Hertz audio engineer.
• Voltage indicator to check battery status.

Specs

Specification
PEAK POWER @ 4 Ω    CLASS-D: 4 x 70 W
FRONT PANEL IP RATING    IP67
MULTI-ZONE    4
LINE OUT (RCA)    4x L+R (one per zone) - HPF: ALL, 60, 80, 100 Hz
SUBWOOFER OUT (RCA)    4x (LPF: ALL, 60, 80, 100 Hz)
AUX INPUT (RCA)    1x L+R
S/PDIF DIGITAL IN    Toslink (24 bit/96 kHz)
S/PDIF DIGITAL OUT    Coaxial (24 bit/96 kHz)
EQUALIZER    CUSTOM 8 BANDS for each zone
EQ. PRESET    8
CAMERA IN    Yes
BATTERY VOLTAGE GAUGE    Yes

Size & Mounting
Unit Size mm (in.)    W 146 (5.748) x H 105 (4.134) x D 121 (4.763)
Mounting Hole size mm (in.)    W 122 (4.8) x H 52 (2.05)
Mounting Depth mm (in.)    99 (3.89
Mounting Method    Panel mount (4 screws)

Sources
TUNER    AM/FM (RDS) (EU/US) Weather band
USB    Yes (2A)
IPOD/IPHONE    Yes
DAB+    Ready
SIRIUSXM READY    Yes
BLUETOOTH    5.1
Audio streaming with ID3 Tag Display
LDAC – AAC – APTX HD
REMOTE CONTROL    HMC HD1 (up to 4 zones) HMC U1 (up to 2 zones)
