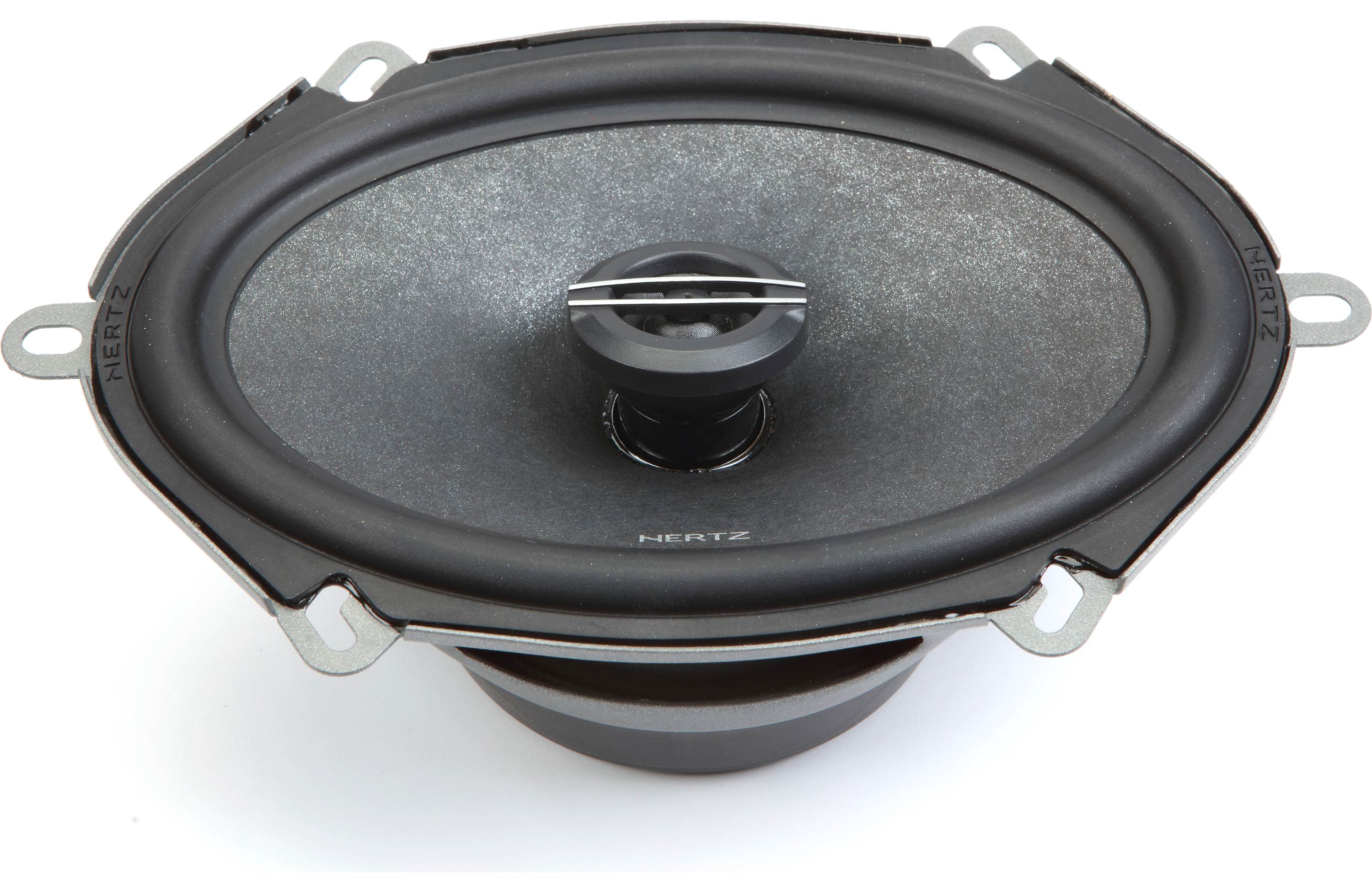

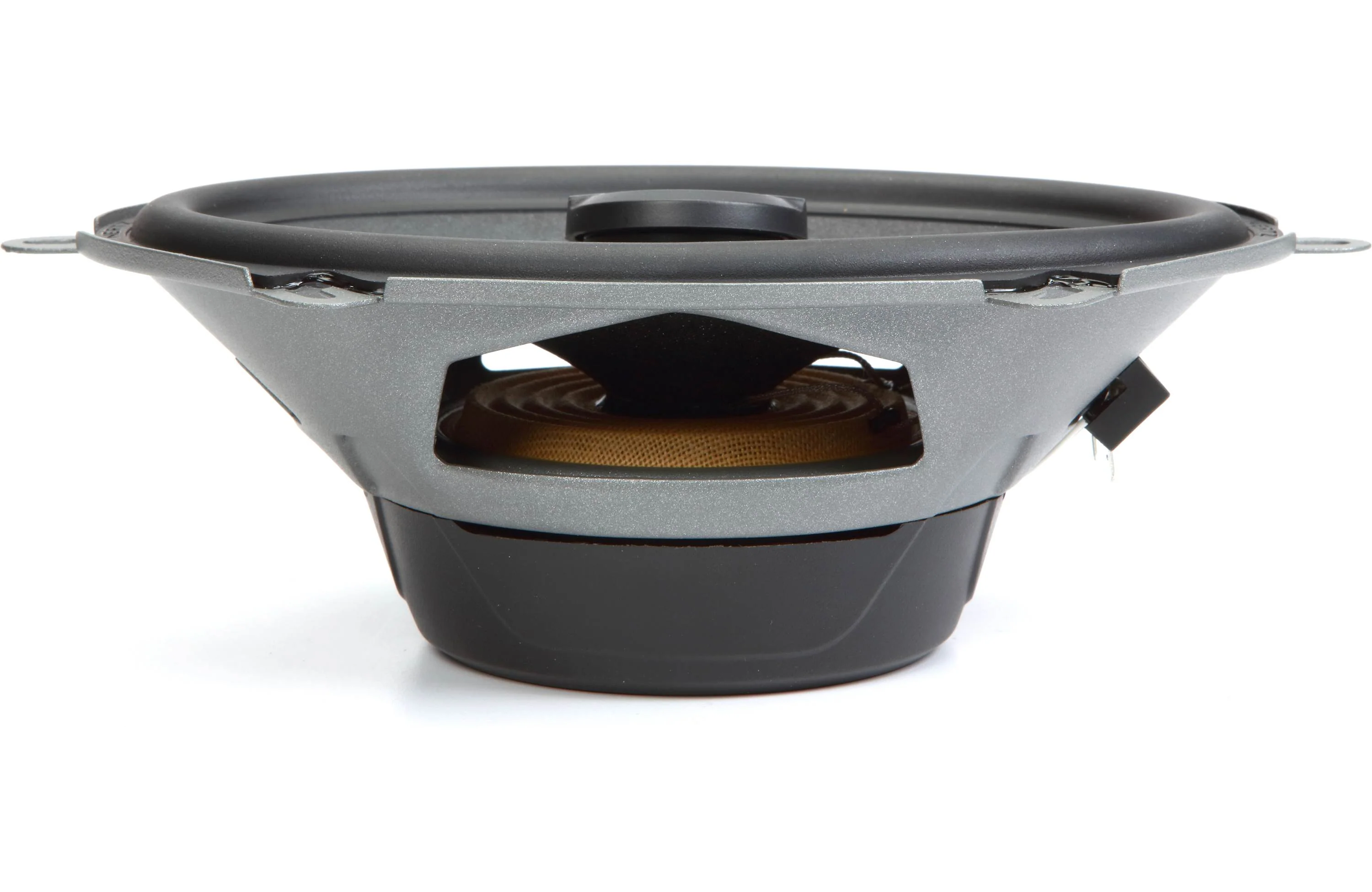

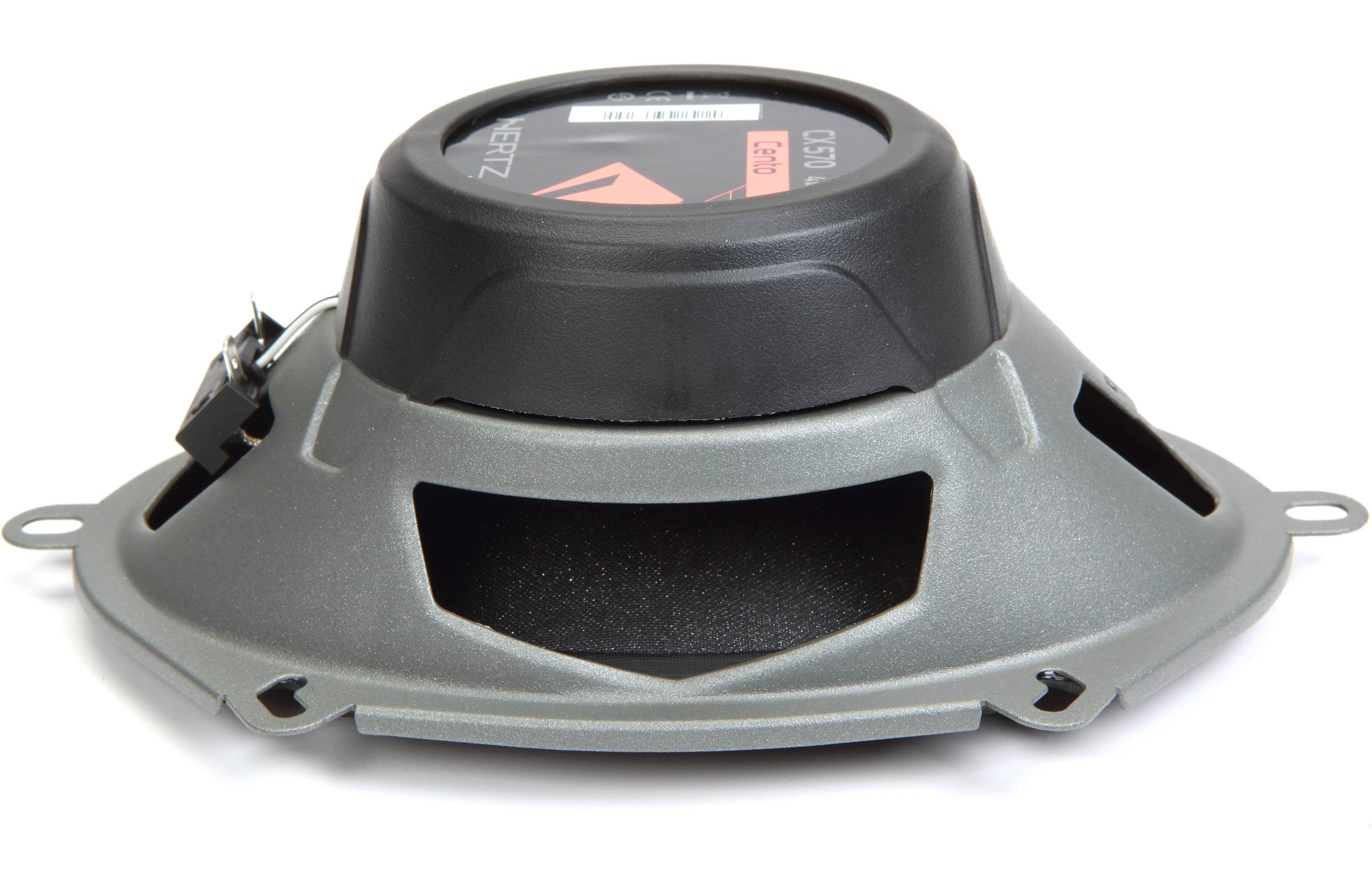

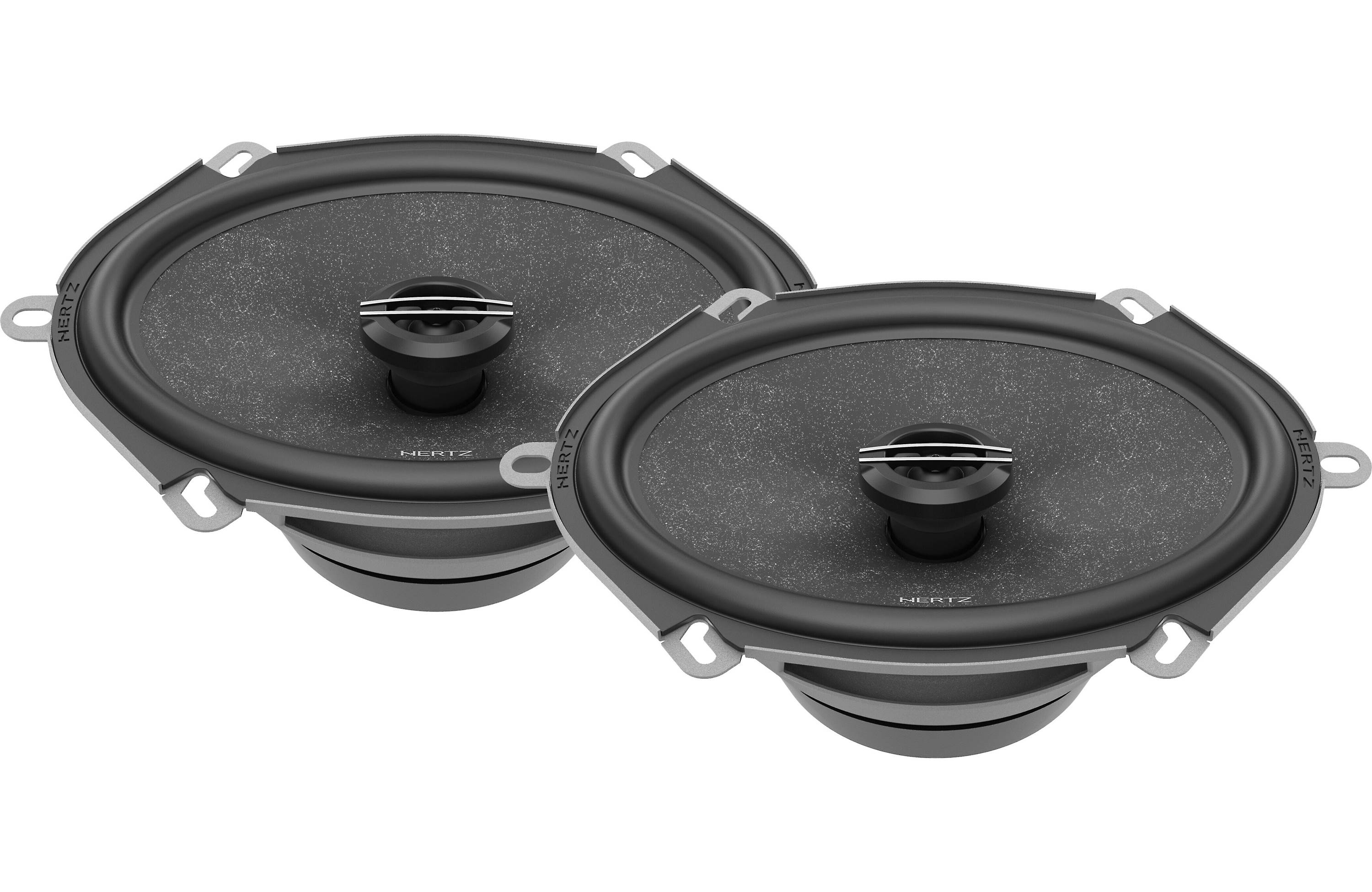

Hertz CX 570 5" x 7" Cento Series 2-Way Coaxial Speaker (Pair)

Coaxial loudspeakers represent a major design challenge due to the critical nature of their acoustic output, being installed in an OEM placement often unfavorable to reproduction. For this reason, in order to achieve high performance, a great engineering effort was put into place, promptly addressed by our R&D team. The Cento two-way coaxials CX 570 features the new 24 mm (0.9 in.) Tetolon® dome tweeter that delivers a more musical and detailed sound compared to the more traditional plastic materials. The dispersion has been optimized for off-axis listening. The  SPP-M cone (Semi Pressed Paper-Mica) ensuring superior acoustic and damping characteristics.

Specs

Technical Specs
Component    Coaxials
Size mm (in.)    (5 x 7)
Power Handling - Continuous W    70
Power Handling - Peak W    210
Impedance Ohm    4
Frequency Response Hz    55 ÷ 22k
Woofer Magnet size D x d x h mm (in.)    85 x 32 x 15 (3.35 x 1.26 x 0.59)
Tweeter Magnet size D x h mm (in.)    13 x 2 (0.51 x 0.08)
Weight of one speaker kg (lb.)    1,0 (2.2)
Woofer Magnet    High density flux ferrite
Tweeter Magnet    Neodymium
Cone    Semi-pressed paper + Mica
Dome    Tetolon
Xmech mm (in.)    4,9 (0.19)

Electro-acoustic Specs
D mm    139
Re Ohm    3,3
Fs Hz    70
Le mH    0,2
Vas I    11,1
Mms g    13
Cms mm/N    0,34
BL T*m    4,9
Qts    0,67
Qes    0,83
Qms    3,3
Spl dB    93,5
