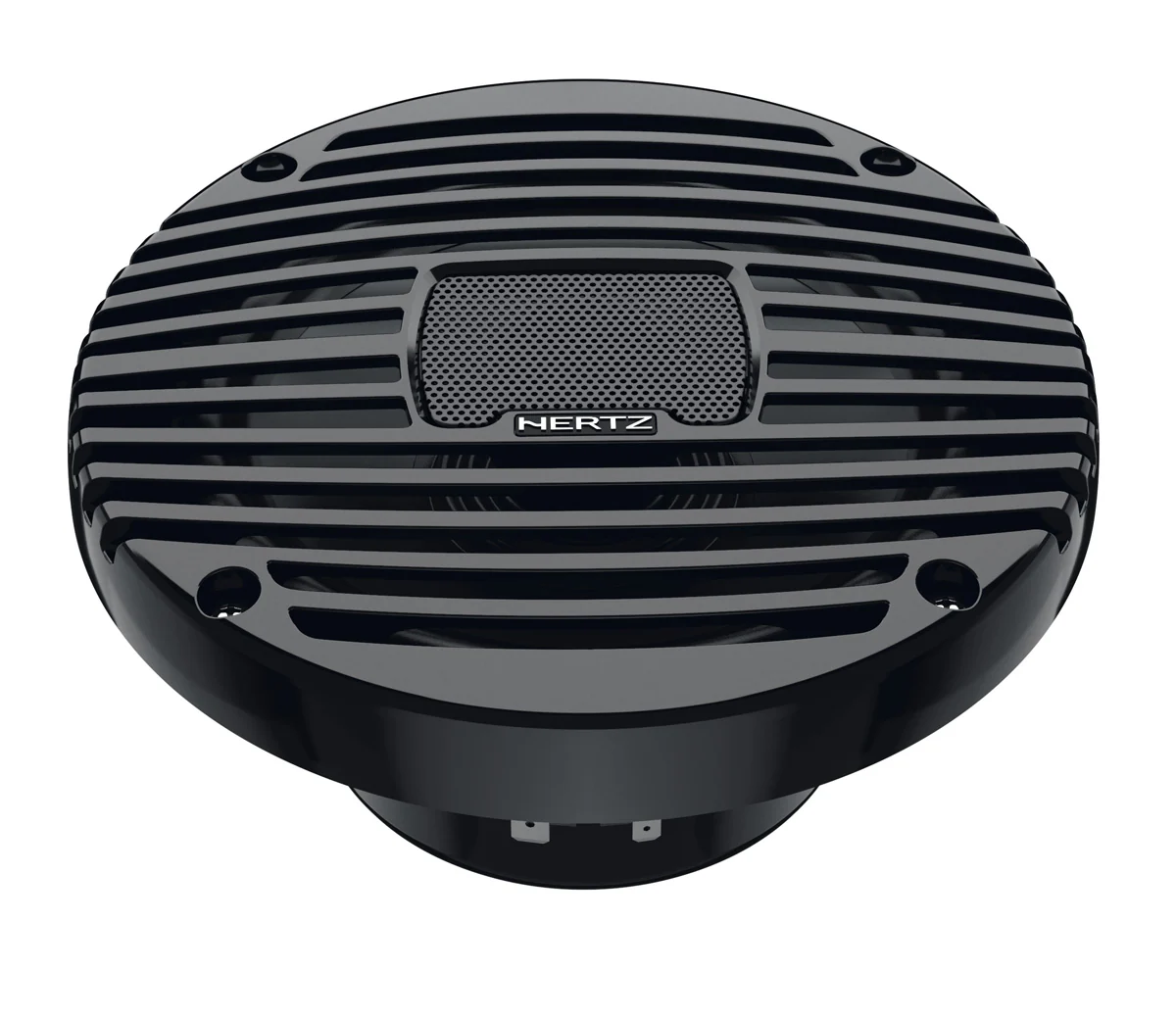

Hertz HEX 6.5 M-TC 6.5" Marine Coaxial Speaker with All Black Grill (Pair)

165 (6.5) mm (in.) | 85 (3.25) mm (in.) | Coax | 100 W | 4 Ohm
HEX 6.5 M marine coaxial, available with both total-white (TW) and total-black grilles (TC), provides the perfect style for your boat, giving you years of pure fun while cruising, being over-engineered, and tested for Marine applications.
The compact 6.5” speaker, with a depth of only 2.36 in. delivers a detailed and dynamic sound, making every outing memorable.

Features:

1. Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance, and ASTM-B117 for salt fog operability.

2. High-efficiency tweeter designed with FEM simulation to maximize off-axis emission, typical of in-boat install.

3. Sound-transparent tone-on-tone mesh grille with twist and lock locking system, providing an elegant style and rock-solid protection.

4. Woofer with 25 mm (1”) voice coil fine-tuned for infinite baffle application featuring silicone insulated lead wire for durability.

5. Sealed built-in crossover with resettable solid-state tweeter protection circuit.

6. Nickel-plated corrosion-resistant terminals.

Specs

Technical Specs
Component    COAX
Size mm (in.)    165 (6.5)
Power Handling - Continuous W    50
Power Handling - Peak W    100
Impedance Ohm    4
Depth mm (in.)    85 (3.25)
Woofer Voice Coil Ø mm (in.)    25 (1)
Tweeter Voice Coil Ø mm (in.)    13 (0.5)
Frequency Response Hz    50 ÷ 23k
Woofer Magnet size D x d x h mm (in.)    85 x 32 x 15 (3.35 x 1.26 x 0.59)
Tweeter Magnet size D x h mm (in.)    12,9 x 2 + 11 x 1,9 (0.51 x 0.08 + 0.43 x 0.07)
Weight of one speaker kg (lb.)    1 (2.2)
Woofer Magnet    High density flux ferrite
Tweeter Magnet    Neodymium
Cone    Polypropylene with UV inhibitors
Dome    PEI
Xmech mm (in.)    ±4,8 (0.19)

Electro-acoustic Specs
D mm    125
Re Ohm    3,3
Fs Hz    78
Le mH    0,109
Vas I    6,52
Mms g    13,5
Cms mm/N    0,31
BL T*m    4,8
Qts    0,82
Qes    0,95
Qms    6,1
Spl dB    88
