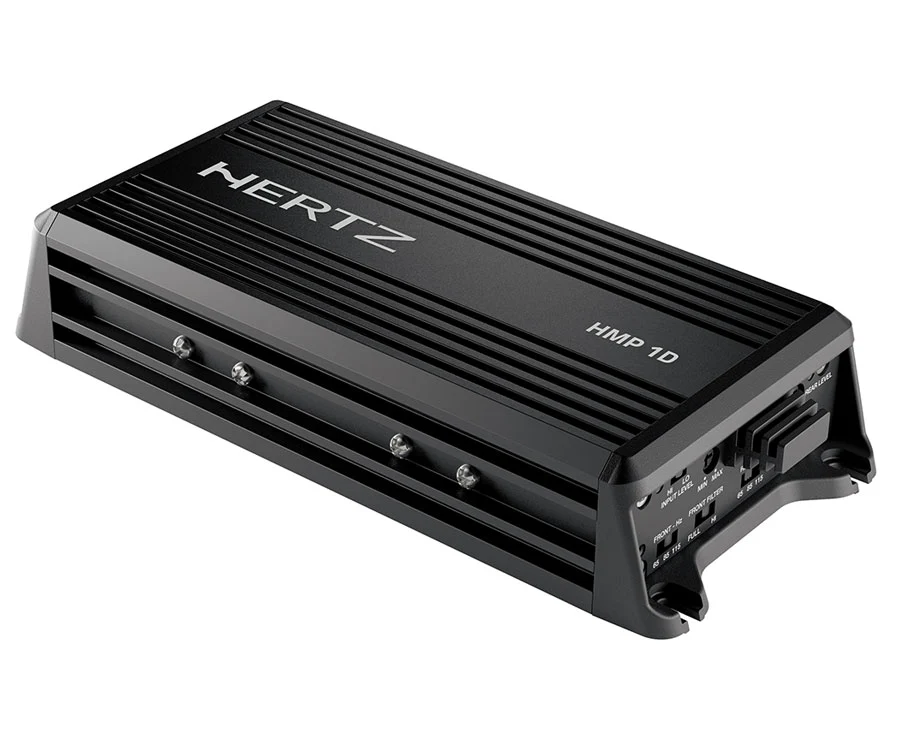

Hertz HMP 1D Class D Compact Chassis Marine and Powersports Mono Amplifier
Thanks to the ultra-compact cast-aluminum chassis (IP64 rated), the HMP 1D amplifiers is nature-proof, being the ideal choice for UTV/ATV/motorcycle installations. It features an incredible power/size ratio and an easy setup thanks to the integrated crossover filter. The Front End section features a complete and bypass-able crossover system, providing full system design flexibility with or without external processors, offering the user endless connection possibilities with any source. Inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences, for noise-free results. The level of HMP 1 D amplifiers can be remote controlled with the included HRC BM (Hertz Remote Control Bass Management). Connected to the Remote Control plug, this provides extremely precise volume level from the comfort of your seat.
Specs
General Specs
Channels 1
Power Supply
Power supply voltage / fuse: 11÷15 VDC / 1 x 15 A
Idling current (power ON/OFF): 1 A / 0.04 mA
Consumption @ 2Ω, 14.4 VDC (Max Musical Power): 15 A
Remote In: 4 ÷ 15 VDC - 1 mA
ART : Automatic Remote Turn-On/Off
Amplifier Stage
Distortion - THD (100 Hz @ 4Ω): 0.1 %
Bandwidth: 10 ÷ 500 Hz
S/N Ratio (A weighted @ 1 V): 105 dB
Damping factor (100 Hz @ 4Ω): 300
Pre-In sensitivity: LO: 0.2 ÷ 5 V
HI: 0.8 ÷ 20 V
Load impedance (MIN) @ 2 Ch: 2Ω
Max size (mm/in.): 223 x 100.5 x 43.6 / 8.77 x 3.95 x 1.70
Weight (kg/lb.): 1.35 / 2.97
Adjustable Crossovers yes
INPUTS / FILTERS
INPUTS: PRE IN
Filters FULL: Yes
Lo-Pass: 65-85-115 Hz @ 12 dB/Oct.
SUBSONIC 45 Hz: Off - 22 - 32 - Hz @ 12 dB/Oct.
BOOST 50 Hz (select): Off / + 6 / + 9 dB
Remote Volume Control
included (-50 ÷ 6) dB
Output Power
Output Power (RMS) @ 14.4 VDC, THD 1%:
1 Ch: 150 W x 1 (4Ω)
1 Ch: 250 W x 1 (2Ω)
Output Power (RMS) @ 14.4 VDC, THD 10%:
1 Ch: 180 W x 1 (4Ω)
1 Ch: 300 W x 1 (2Ω)
Total Power 300 W
Physical Specs
Height: 1.72"
Width: 3.96"
Depth: 8.78"
