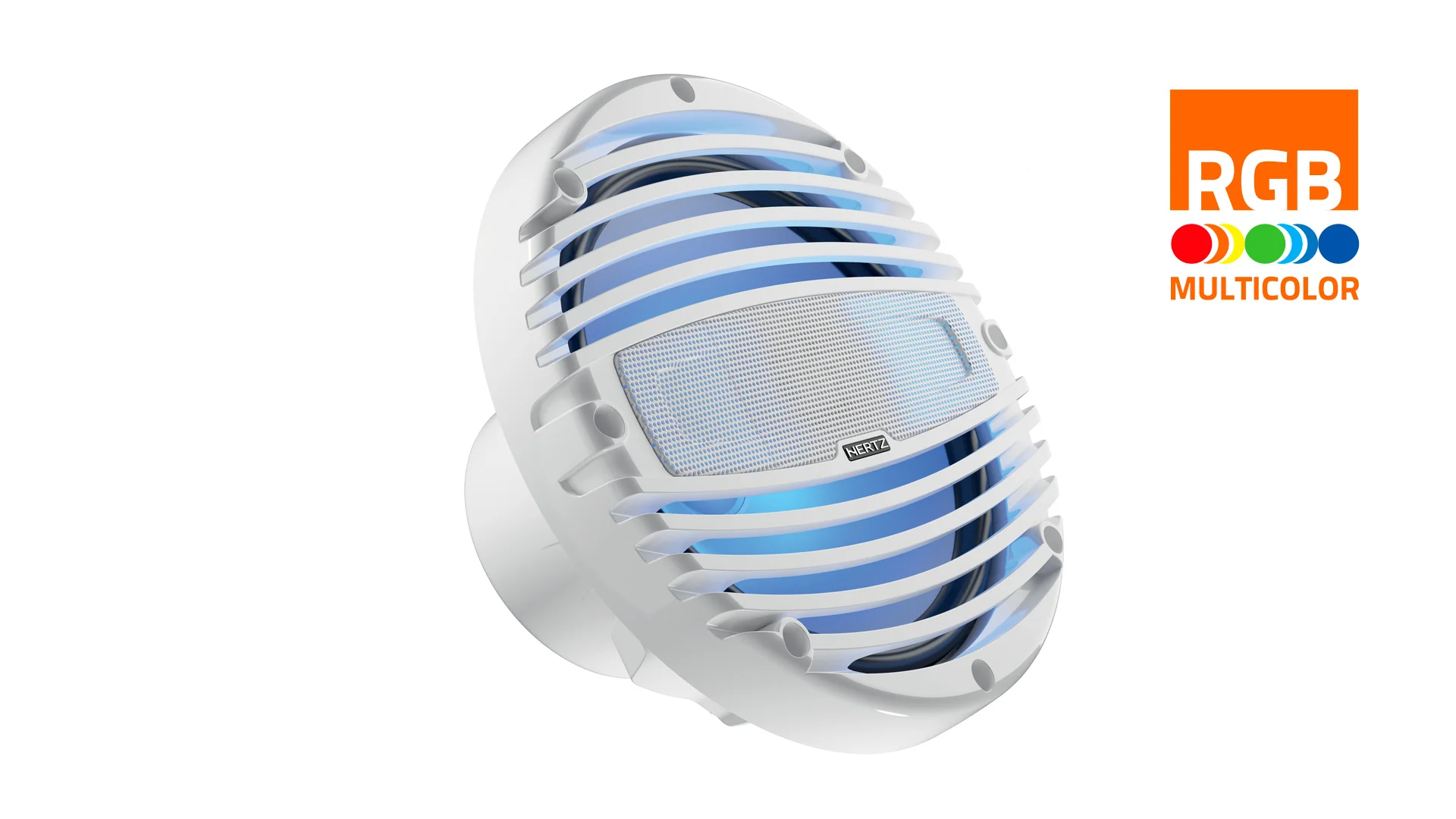

Hertz HMX 8-LD-TW 8" Marine Coaxial Speaker with RGB LED Lights with All White Grill (Pair)

224 (8.8) mm (in.) | 123 (4.84) mm (in.) | Hi-end Led Coax | 200 W | 4 Ohm
HMX 8  LD-TW hi-performance marine coaxial speakers with RGB LEDs lighting option, also available in the black option HMX 8 LD-TC,  feature a tone-on-tone front mesh matching the grille colour. The tweeter acoustic lens optimizes off-axis dispersion and maximized SPL.

The RGB LED lighting circuit is integrated below the tweeter, protected by a Polypropylene transparent cover acting as light diffusion. The UV-resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.

Features:

1. Integrated RGB LED lighting to enhance your experience in combination with the HM RGB 1 BK accessory.
2. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
3. 1.4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
4. Sound-transparent tone-on-tone stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection.
5. Long-throw 25mm (1”) voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
6. Aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.
7. FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.
8. Sealed built-in crossover with resettable solid-state tweeter protection circuit .
9. Gold-plated corrosion resistant terminals.

Specs

Technical Specs
Component    HI-END LED COAX
Size mm (in.)    224 (8.8)
Power Handling - Continuous W    100
Power Handling - Peak W    200
Impedance Ohm    4
Depth mm (in.)    123 (4.84)
Tweeter diaphragm mm (in.)    36 (1.4)
Woofer Voice Coil Ø mm (in.)    32 (1.26)
Tweeter Voice Coil Ø mm (in.)    20 (0.8)
Frequency Response Hz    45 ÷ 25k
Woofer Magnet size D x d x h mm (in.)    90 x 40 x 20 (3.54 x 1.57 x 0.79)
Tweeter Magnet size D x h mm (in.)    19,7 x 3 (0.78 x 0.12)
Weight of one speaker kg (lb.)    1,66 (3.66)
Woofer Magnet    High density flux ferrite
Tweeter Magnet    Neodymium
Cone    Polypropylene with UV inhibitors
Dome    PEI
Xmech mm (in.)    ±8,5 (0.33)

Electro-acoustic Specs
D mm    174
Re Ohm    3,1
Fs Hz    50
Le mH    0,52
Vas I    29,46
Mms g    27,3
Cms mm/N    0,37
BL T*m    6,6
Qts    0,58
Qes    0,61
Qms    11
Spl dB    91
