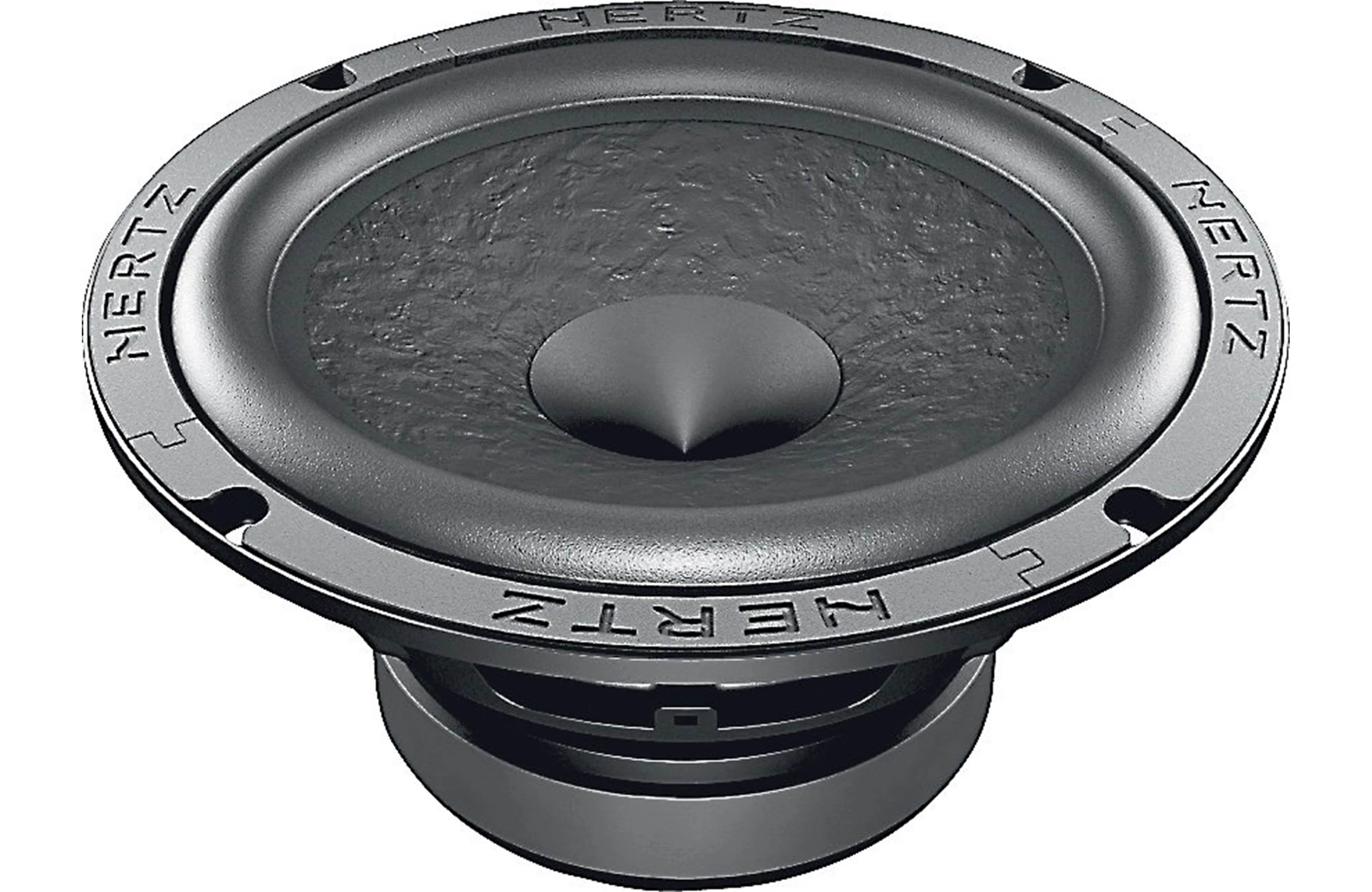

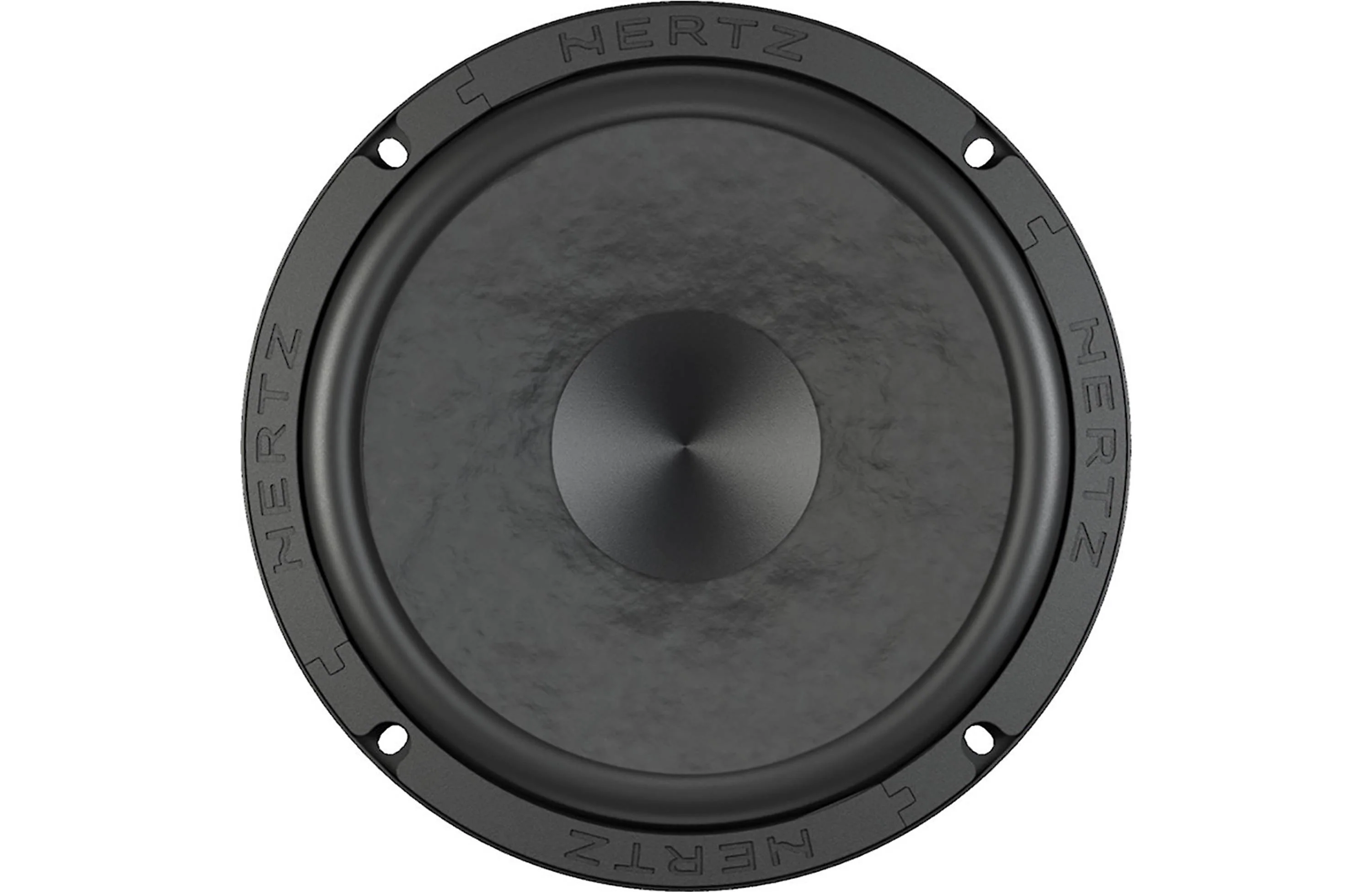

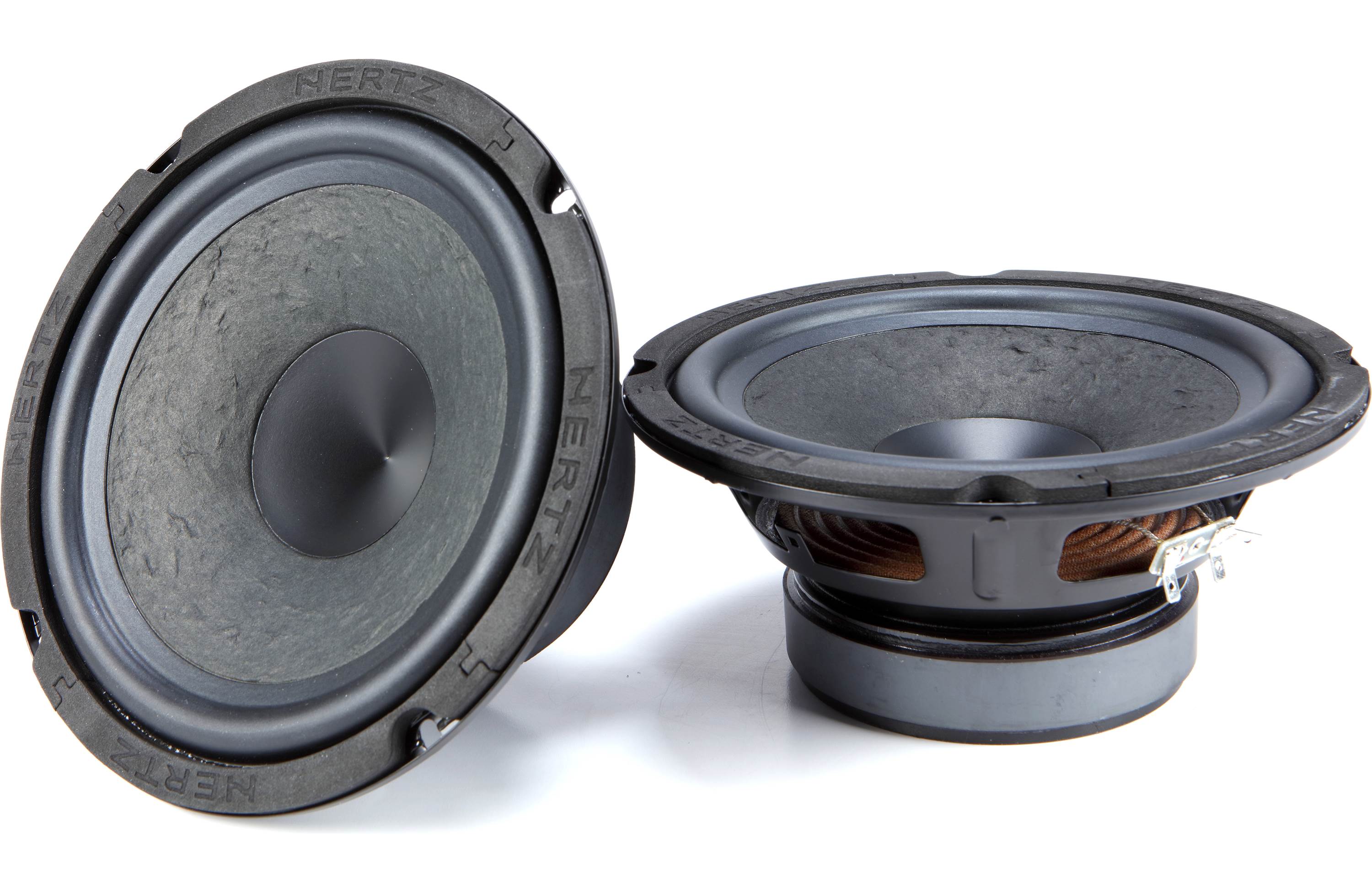

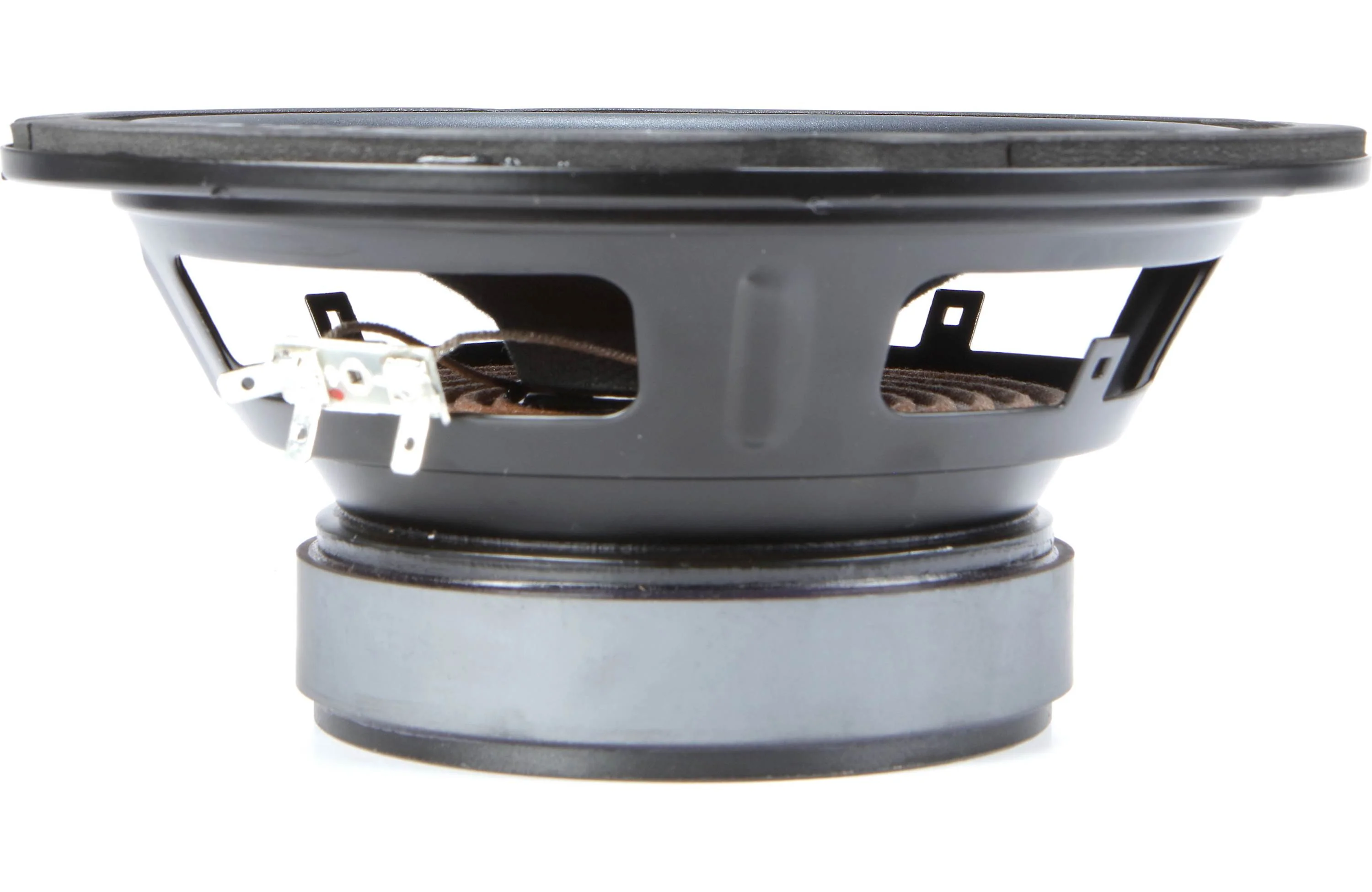

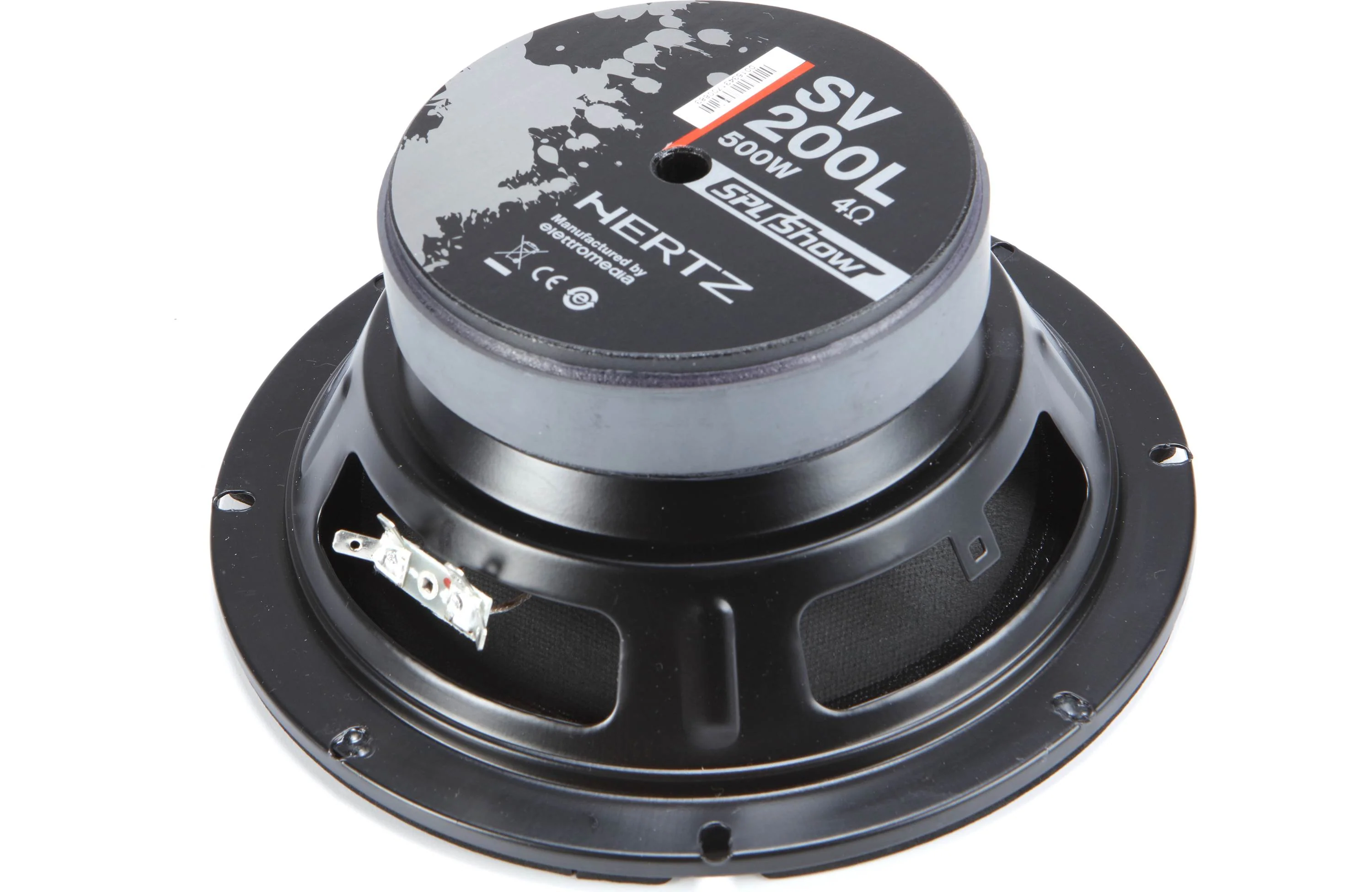

Hertz SV 200L SPL Show 8" Component Subwoofer (Pair)

200 (8) mm (in.) | Spl Woofer | 500 W | 4 Ohm
The Hertz SV 200L car audio woofers was designed to offer superior performance in terms of both thermal and mechanical capability. The target has been fully hit since the woofer features a pure copper voice coil wound on KSV former, an oversized magnet and a vented bottom plate. The SV 200L employs the proprietary V-cone technology with the cone constructed from pulp with cotton fibre as well as Lossless Polymer Rubber Surround, offering a powerful low frequency response as well as the best off-axis dispersion.

Specs

Technical Specs
Component    SPL Woofer
Size mm (in.)    200 (8)
Power Handling - Continuous W    250
Power Handling - Peak W    500
Impedance Ohm    4
Voice Coil Ø    50 (2)
Frequency Response Hz    45 ÷ 4,5k
Magnet size D x d x h mm (in.)    120 x 60 x 20 (4.7 x 2.4 x 0.8)
Weight of one speaker kg (lb.)    2,32 (5.1)
Magnet    High density flux ferrite
Cone    Ultra light, non pressed paper

Electro-acoustic Specs
D mm    168
Re Ohm    3
Fs Hz    44
Le mH    0,75
Vas I    29
Mms g    31,5
Cms mm/N    0,42
BL T*m    8,6
Qts    0,33
Qes    0,36
Qms    3,32
Spl dB    94,5
