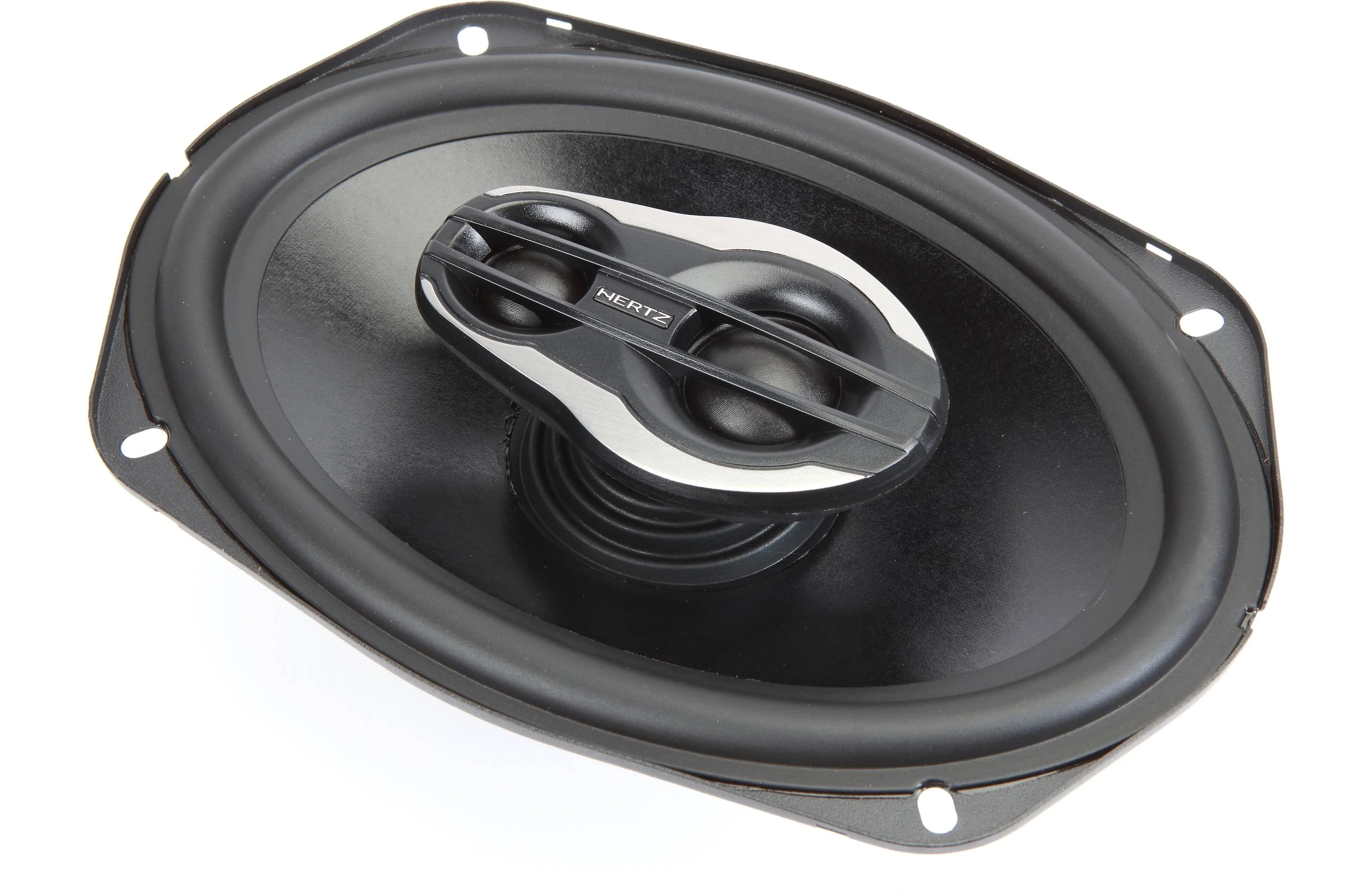

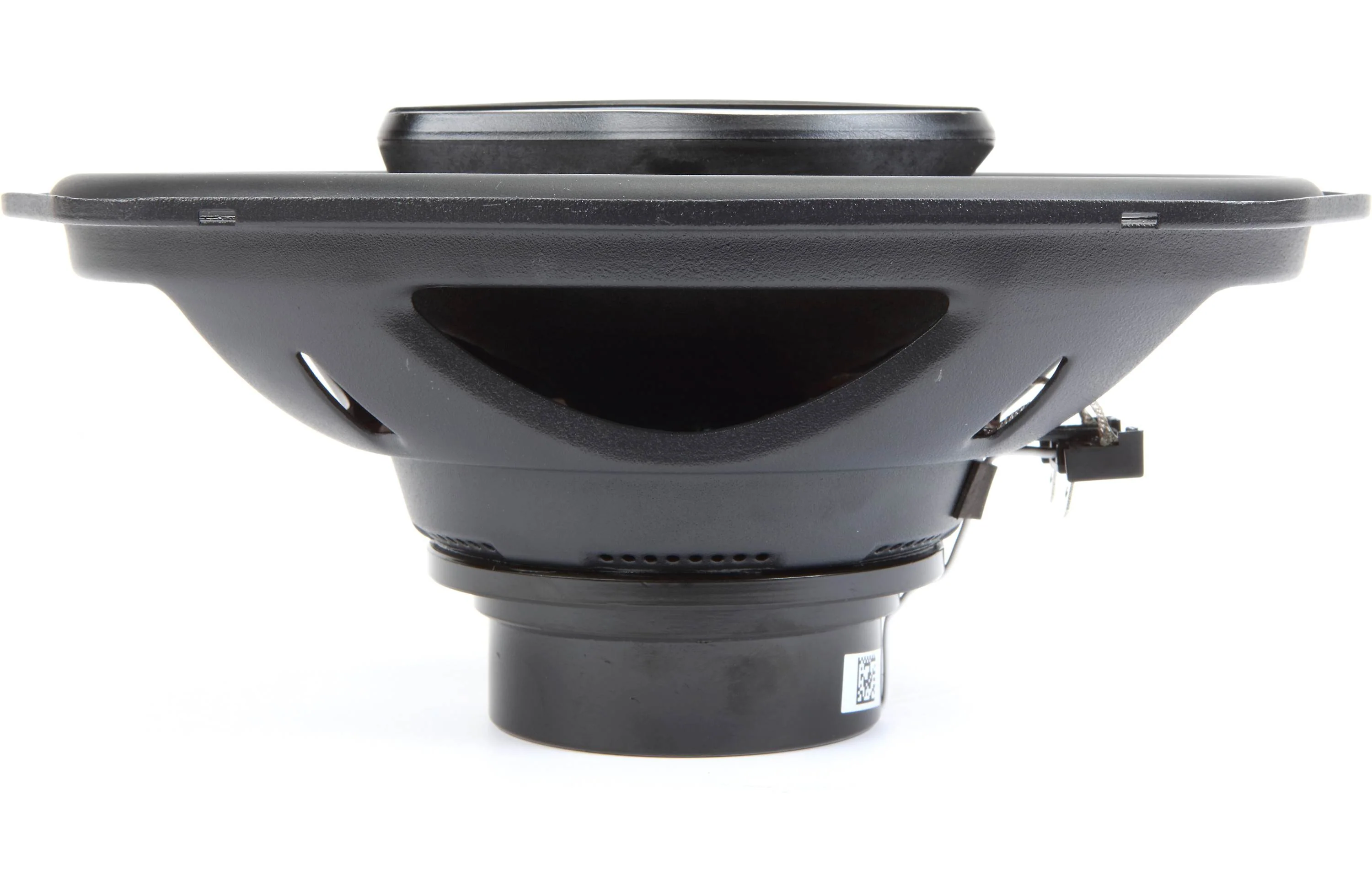

Hertz SX 690 NEO SPL Show 6" x 9" 3-Way Weather-Resistant Coaxial Midrange Speaker and Grill (Pair)

6 x 9 (in.) | Spl Coaxial | 260 W | 4 Ohm

SX 690 NEO.1 is a real beast with a Hi-SPL Mid-Hi unit based on a 1.4” dome tweeter and a 1” dome super tweeter with a resettable solid-state protection circuit. The cone is made with nature-proof high-stiffness pressed paper featuring innovative water/humidity resistance and anti-UV treatments. The double-layer copper voice coil wound on a polyimide former ensures unparalleled power handling. New motor units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance.

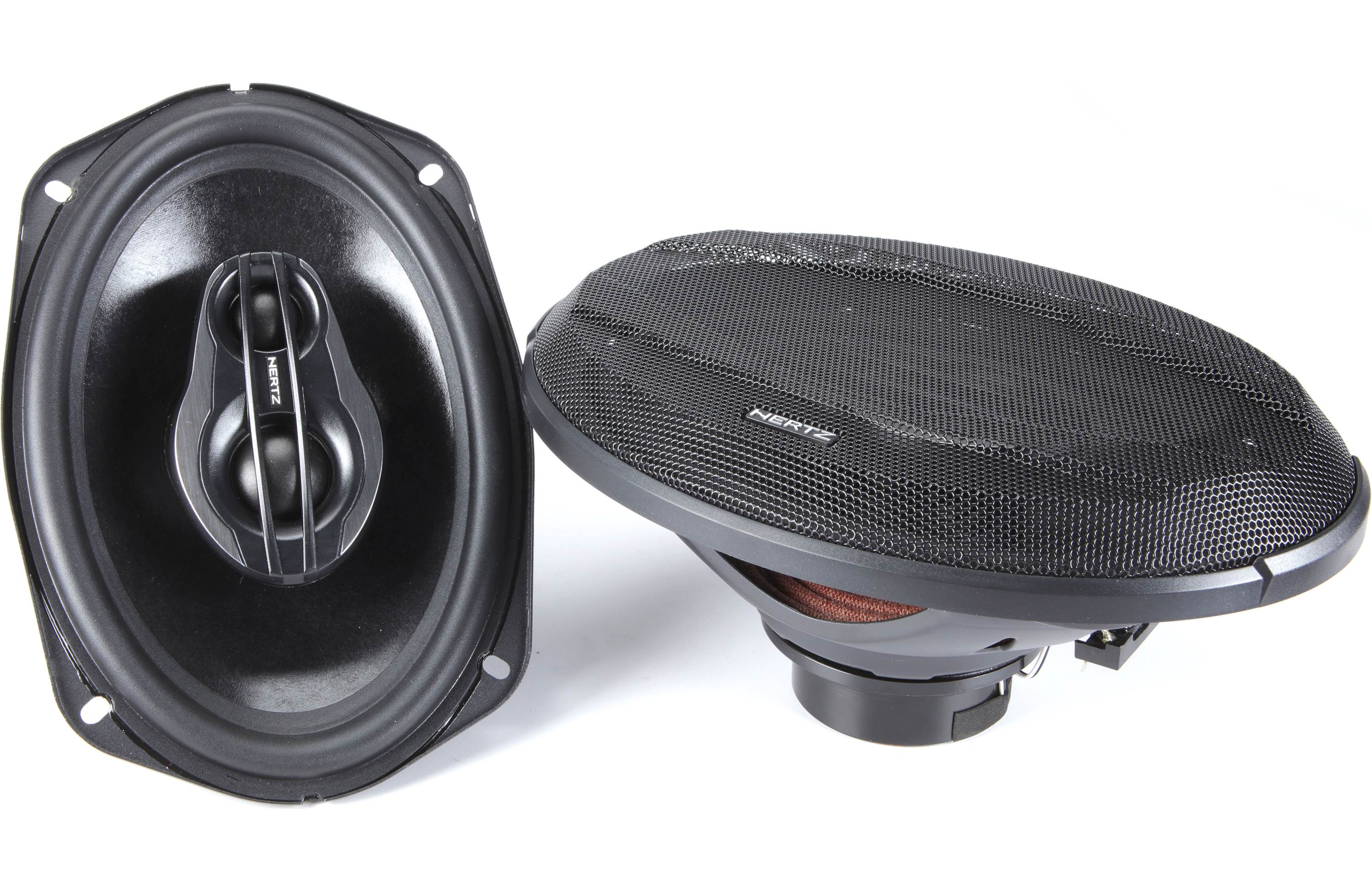

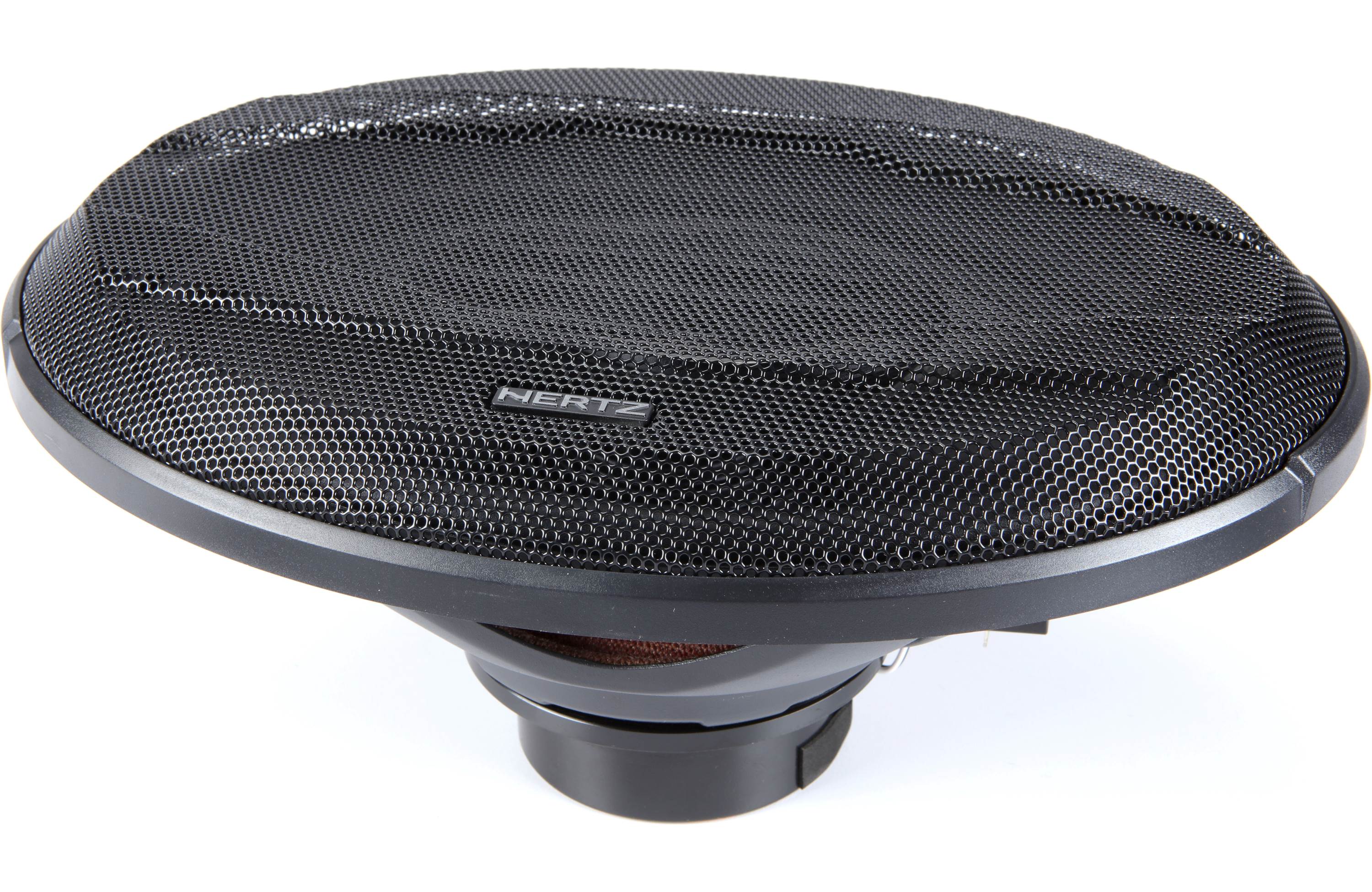

The provided MPG 690 grille is made of a high-resistance ABS plastic structure with a metallic finish and a protective metal mesh.

Features:

1. Nature-proof high stiffness pressed-paper cone featuring innovative water/ humidity resistant and anti-UV treatments.

2. Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.

3. Unparalleled power handling delivered by the double-layer copper voice coil, wound on polyimide former.

4. Hi-SPL Mid-Hi unit based on 1.4” dome tweeter and 1” dome super tweeter with resettable solid-state tweeter protection circuit.

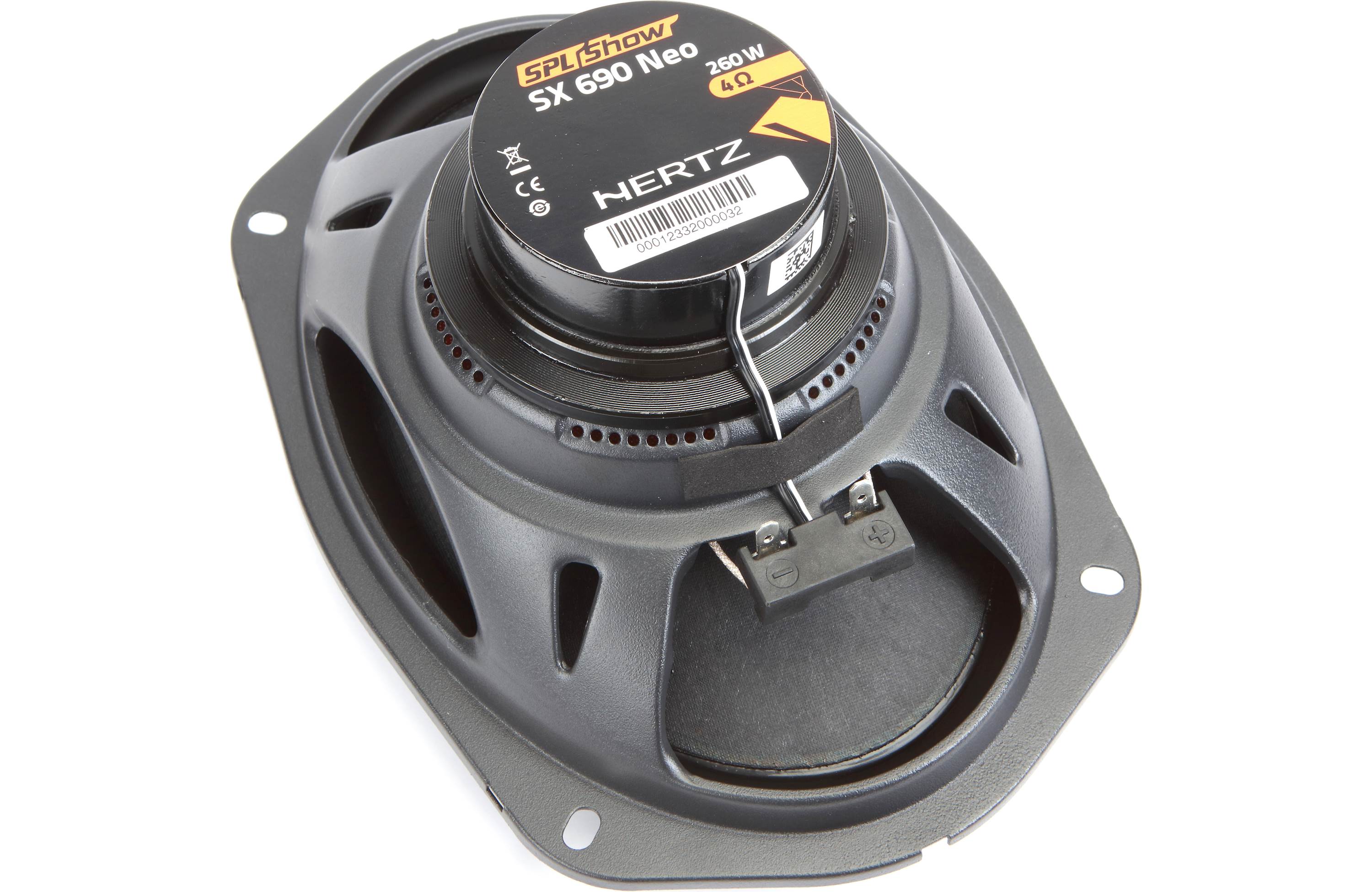

5. Double faston terminals allow daisy-chaining of multiple units and provide compatibility with the most common motorcycle connections.

6. Provided elegant grille made with a high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.

Specs

Technical Specs
Component    SPL COAXIAL
Size mm (in.)    in. 6 x 9
Power Handling - Continuous W    130
Power Handling - Peak W    260
Impedance Ohm    4
Tweeter diaphragm mm (in.)    29 (1.14)
Woofer Voice Coil Ø mm (in.)    38 (1.5)
Tweeter Voice Coil Ø mm (in.)    25 (1)
Frequency Response Hz    65 ÷ 24k
Woofer Magnet size D x d x h mm (in.)    110 x 45 x 20 (4.33 x 1.77 x 0.79)
Tweeter Magnet size D x h mm (in.)    24,5 x 6 x 3,5 (0.96 x 0.24 x 0.14)
Weight of one speaker kg (lb.)    1,69 (3.73)
Woofer Magnet    Special Neodymium N38 H
Tweeter Magnet    Special Neodymium N38 H
Cone    Water repellent pressed paper
Dome    Tetolon

Electro-acoustic Specs
D mm    169
Xmax mm    5,5
Re Ohm    3
Fs Hz    65
Le mH    0,4
Vas I    11,29
Mms g    36,1
Cms mm/N    0,16
BL T*m    7,665
Qts    0,62
Qes    0,78
Qms    2,9
Spl dB    94
