Hertz Venezia V5 5 Channel Marine Amplifier

Ch: 5 - 3 | 1700 W
Venezia V5 is the most-powerful five-channel Hertz marine amplifier ever, featuring 130 W x 4 (4Ω) plus 490 W (4Ω) for the subwoofer! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V5 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V5 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting...

Features:

• Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
• ADC (Advanced D-Class) Technology 2Ω stable output stage providing Hi-Res certified audio performance with superior efficiency.

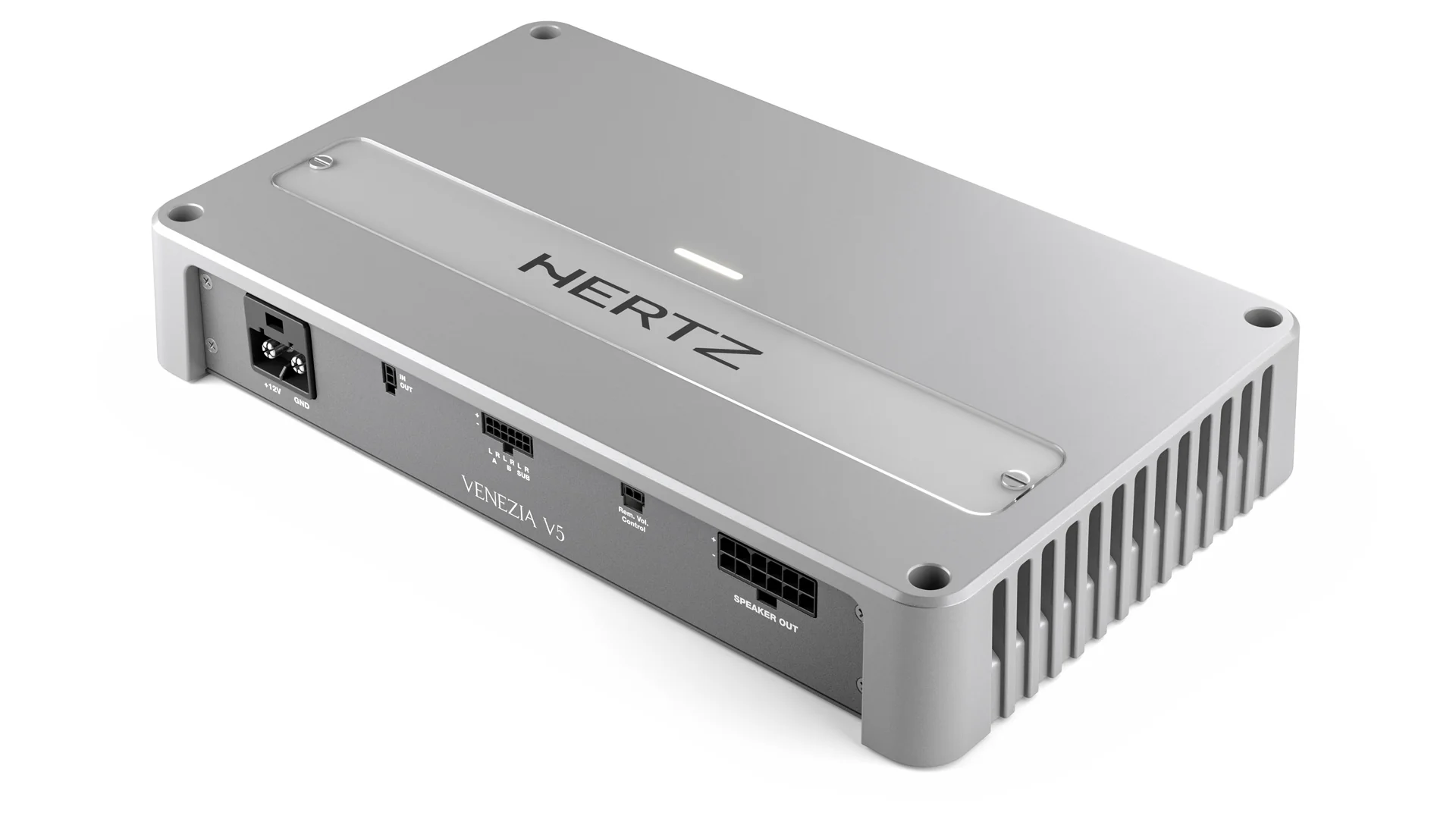

• Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
• Balanced fully-differential input circuitry to reject electromagnetic disturbances.
• Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.

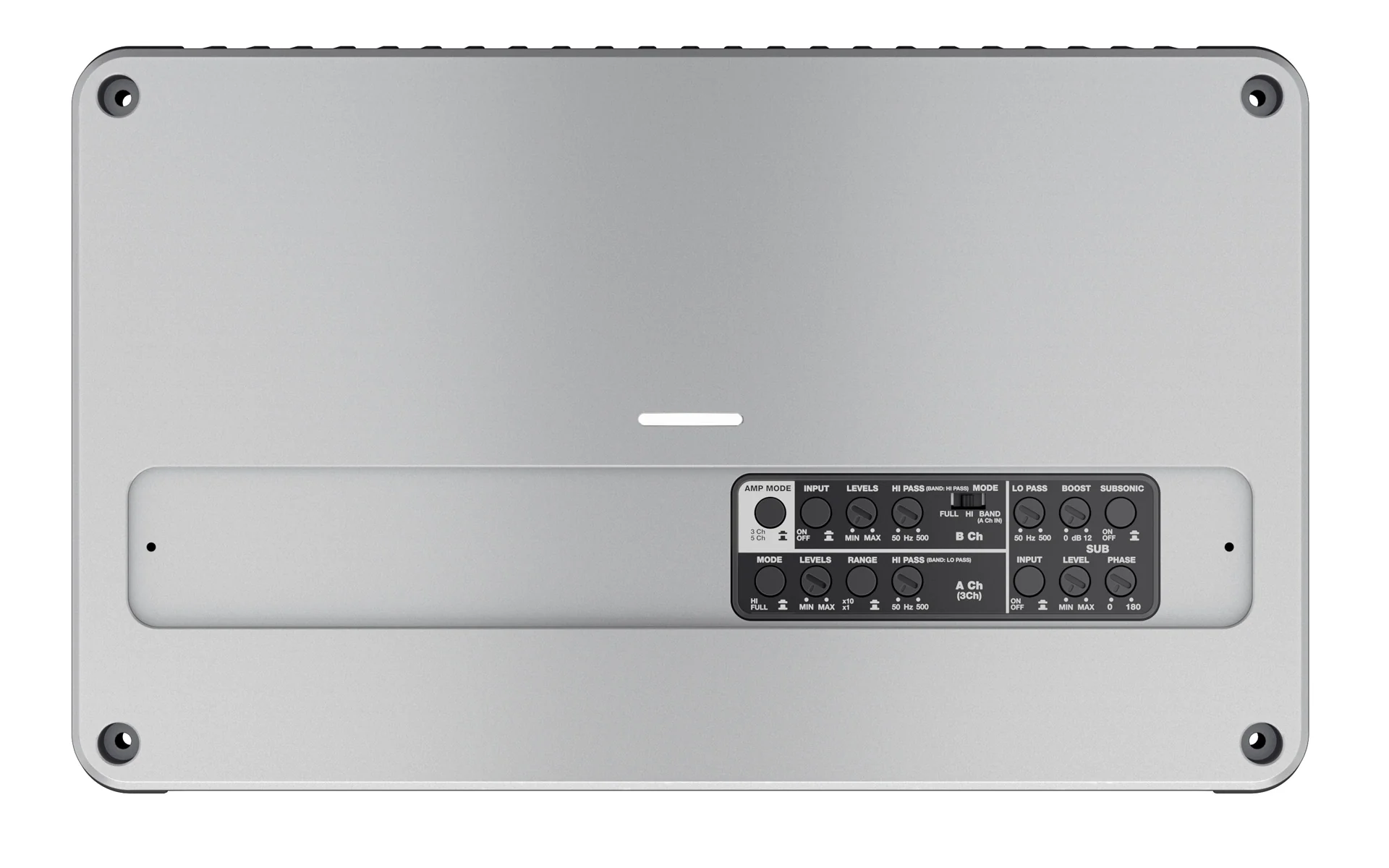

• Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
• Short-circuit, overload, and thermal protections with auto-resetting.

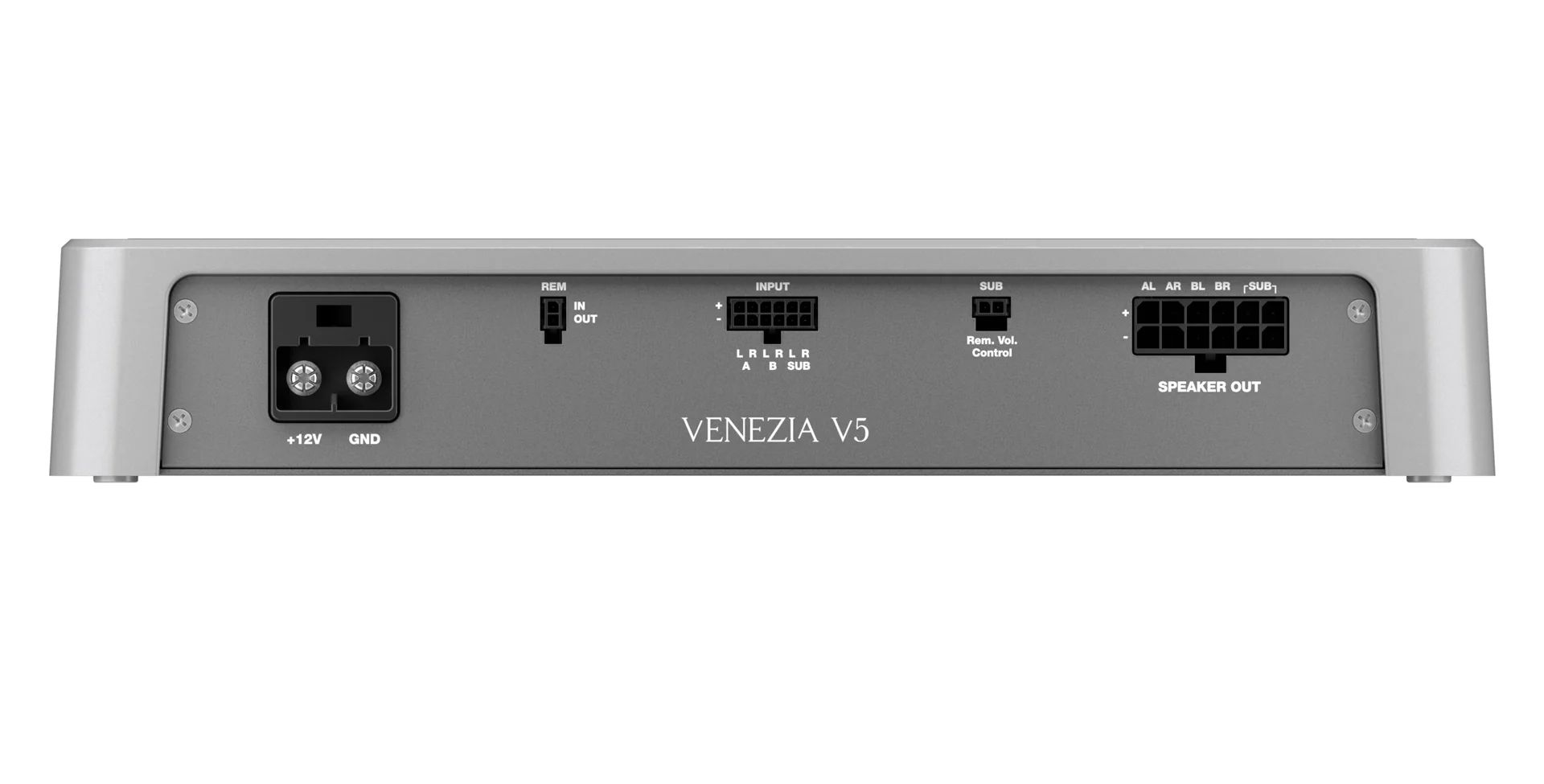

• Plug&Play Input and Output connections with safe-lock.
• Proprietary Plug&Play Power Supply Connector with safe-lock.

Specs

General Specs
Channels    5 - 3
POWER SUPPLY
Power supply voltage    9 ÷ 16 VDC
ldling current (power ON/OFF):    1.8 A / 0.04 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power):    70 A
Remote In:    7 ÷ 15 VDC - 1 mA
AMPLIFIER STAGE
Distortion - THD (100Hz @ 4Ω):    <0,05%
Bandwidth:    10 ÷ 42 kHz
S/N Ratlo (A welghted @ 1 V):    102 dB
Damping factor (100Hz @ 4Ω)    130
Pre-ln sensitivity:    0.2 ÷ 5 VRMS
Pre-ln impedance:    10 kΩ
Load impedance (MIN)
@5Ch: 2Ω
@3Ch: 4Ω + 4Ω + 2Ω
Weight (kg/lb):    3.72 / 8.2
Adjustable Crossovers    yes

INPUTS / FILTERS
lnputs:    A Ch. Pre in
B Ch. Pre in
Sub Ch. Pre in
Pre Out:    No
A Ch. filters:    Yes
By-Pass    Yes
Hi-Pass :    50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
B Ch. filters:
By-pass:    Yes
Hi-Pass:    50 ÷ 500 Hz @ 12 dB/Oct
Band-Pass:    50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
Sub Ch. filters:
By-pass:    No
Low-Pass:    50 ÷ 250 Hz @ 24 dB/Oct
Phase (adjust°):    (0 ÷ 180°)
Subsonic:    25 Hz @ 24 dB/Oct
Boost 50 Hz (adjust):    (0 ÷ 12) dB

Output Power
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
5Ch    130 W x 4 (4Ω) + 490 x 1 (4Ω)
5Ch    220 W x 4 (2Ω) + 820 W x 1 (2Ω)
3Ch    440 W x 2 (4Ω) + 490 W x 1 (4Ω)
3Ch    440 W x 2 (4Ω) + 820 W x 1 (2Ω)
Total Power    1700 W

Physical Specs
Weight:    3.72kg    8.2lbs
