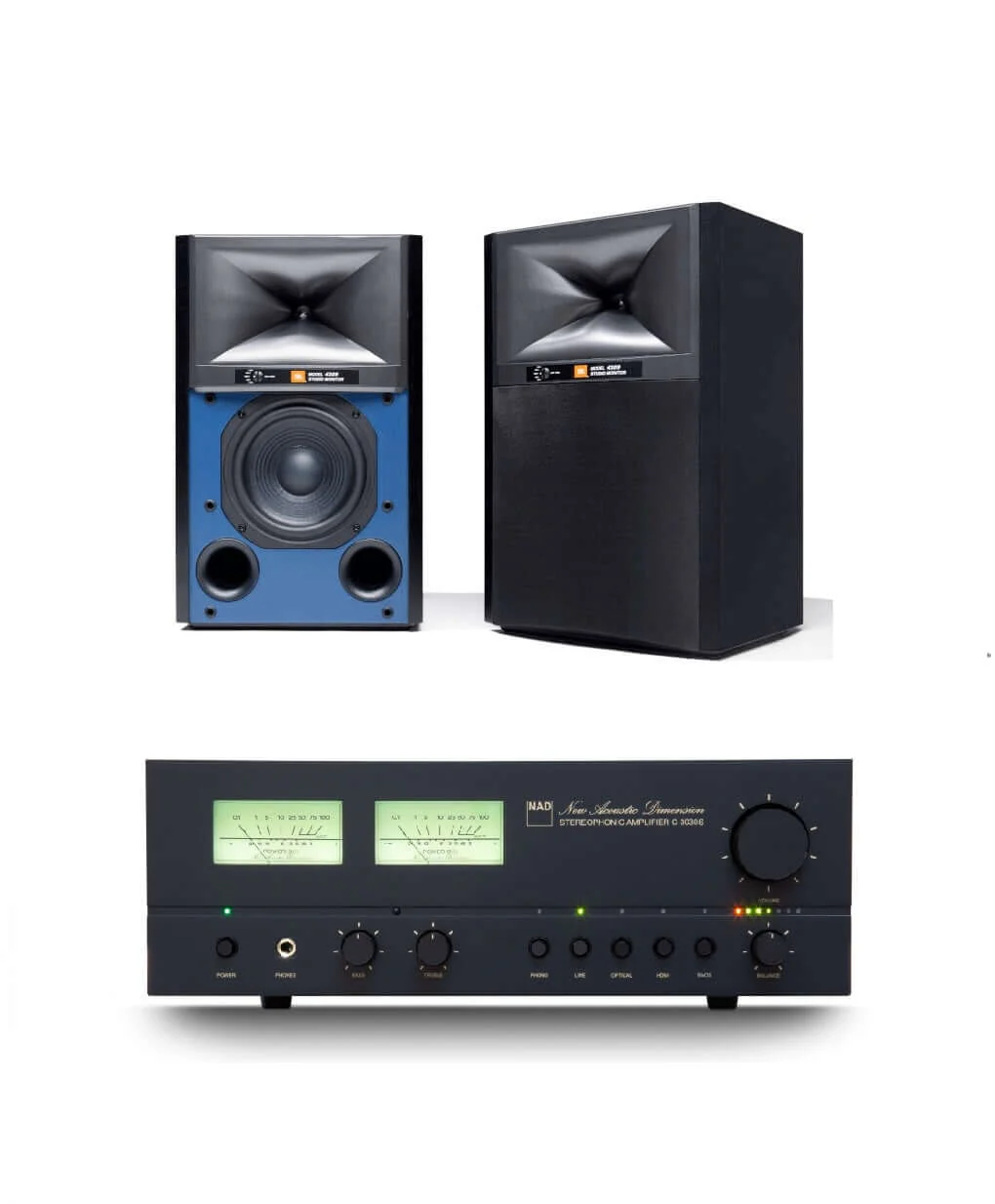

JBL 4309 6.5-inch 2-way Bookshelf Loudspeaker Pair with NAD C 3030S BluOS Integrated Amplifier Bundle
STANDS NOT INCLUDED
THIS BUNDLE INCLUDES:
1 PAIR JBL 4309 6.5" 2-Way Bookshelf Speakers Black Walnut with Black Grills
1 NAD Electronics C 3030S Stereophonic Integrated Amplifier with Built-in BluOS Streaming
JBL 4309 Details:
The JBL 4309 Studio Monitor is a compact, high-performance bookshelf loudspeaker built around the patented JBL 2410H-2 1-inch compression driver mated to patented High-Definition Imaging (HDI™) horn, paired with a 6.5-inch, cast-frame Pure-pulp cone woofer. This combination delivers music with authority and accuracy not possible with traditional loudspeaker designs. The cabinet features a classic JBL studio monitor design with a blue baffle and is finished in a choice of Walnut or Black Walnut furniture-grade satin wood veneers.
4309 Highlights
-
Patented High-Definition Imaging (HDI™) horn
-
Patented 2410H-2 1-inch (25mm) high-frequency compression driver
-
6.5-inch (165mm) cast frame, Pure-pulp cone woofer with 1.5-inch voice coil
-
Classic Studio Monitor design with premium finishes including satin Walnut wood veneer with blue grille or satin Black Walnut wood veneer with black grille
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the 4309 Studio Monitor is a showcase of patented JBL acoustics technologies. This bookshelf loudspeaker features a 2-way design with patented High-Definition Imaging (HDI™) horn technology, the patented 2410H-2 1-inch (25mm) compression driver, and a 6.5-inch (165mm) cast-frame, Pure-pulp cone woofer for powerful dynamics and incredibly accurate sound reproduction.
JBL’s revolutionary High-Definition Imaging horn geometry is the result of intense research into the nuances of horn design. In search of exceptional high-frequency detail and uniform directivity for smooth in-room response, JBL engineers pioneered a design that delivers neutral frequency response both on- and off-axis and provides a seamless transition between the high and low frequency drivers.
The JBL 2410H-2 compression driver benefits from the advanced research and applications derived from JBL Professional’s “D2” range of transducers. At the core of the 2410H-2 device is a lightweight polymer, annular diaphragm that improve high-frequency extension by reducing diaphragm mass. The V-shaped geometry of the annular diaphragm reduces breakup modes, eliminating time smear and reducing distortion. The result is incredible dynamics with accurate reproduction and a lack of power compression.
An Ultra High-frequency tonal adjuster is located on the front panel below the horn and allows the sound to be tailored to the specific environment and listener preference. This control works in conjunction with an advanced crossover network design that features air-core inductors, cast wire-wound resistors and low-ESR metallized film capacitors to optimize the performance of the 4309 drive components.
The 4309’s powerful 6.5-inch (165mm) woofer takes advantage of core JBL engineering techniques to ensure very high output with low distortion. The long-throw voice coil in conjunction with the symmetrical field motor design, flux stabilization ring, and copper shorting ring guarantee maximum output with low distortion. A Pure-pulp cone provides a lightweight, rigid diaphragm and helps to eliminate breakup modes ensuring proper pistonic motion throughout the operating band.
The 4309 enclosure is heavily braced with 3/4-inch (18mm) thick walls to provide a solid acoustic foundation and incorporates a bass reflex design with dual front-firing, computer-optimized flared ports. The cabinet features a classic JBL studio monitor design with a blue baffle and is finished in a choice of Walnut or Black Walnut furniture-grade satin wood veneers. A blue (Walnut) or black (Black Walnut) cloth grille completes the elegant appearance. Dual sets of gold-plated binding posts provide a secure connection and offer a choice of single-ended or bi-wire/bi-amplified connections.
NAD Electronics C 3030S BluOS Stereophonic Integrated Amplifier Details:
The NAD C 3030S is a modern HiFi amplifier designed for music lovers who appreciate
classic design and honest performance. Inspired by the original NAD 3030 from the
1970s, this new model combines classic HiFi aesthetics with modern NAD engineering
and the convenience of BluOS hi-res streaming. Its compact chassis, black faceplate,
illuminated dual VU meters, and tactile push-buttons pay tribute to the original while
offering a fresh and purposeful look that fits effortlessly into modern living spaces.
At the heart of the C 3030S is NAD’s proven HybridDigital amplifier platform, known
for delivering clean, dynamic sound with minimal distortion and noise. Rated at 50 watts
per channel, with over 100 watts of dynamic power when needed, it’s designed to handle
real-world speakers with ease and musicality, true to NAD’s tradition of delivering more
than expected at the price.
With BluOS built-in, the C 3030S transforms into a modern function amplifier with
support from all major music services, local libraries and multi-room capabilities. Beyond
streaming, the C 3030S supports a wide range of everyday sources. A dedicated MM
phono input is ready for vinyl playback, HDMI eARC makes TV sound integration easy,
Bluetooth with aptX HD for easy wireless streaming from mobile devices, and standard
analog input support components like CD players or streamers. A subwoofer output with
an optional high-pass filter allows for a simple 2.1 setup.
The C 3030S isn’t just an amplifier, it’s a statement. A fusion of NAD’s legacy and
forward-thinking design, it delivers authentic HiFi for today’s listener. Whether you're
rediscovering your vinyl collection or streaming music from your phone, the C 3030S
brings music to life with clarity, power, and character. It proves that great sound never
goes out of style.
The Vinyl Enthusiast
For the music lover rediscovering the joy of records, the C 3030S is an ideal centerpiece.
With its dedicated MM phono stage, precise RIAA equalization, and careful noise
suppression, it brings vinyl collections to life with warmth and accuracy. The retro-styled design with illuminated VU meters resonates with the analog spirit, while compact
dimensions ensure it fits easily into modern homes. It’s the perfect blend of nostalgia and
modern NAD engineering, giving vinyl enthusiasts an authentic HiFi experience without
the complexity or cost of separates.
The Design-Driven Music Fan
The C 3030S appeals to listeners who want their HiFi to look as good as it sounds. Its
heritage-inspired design, dark front panel, and dual VU meters give it personality and
presence without overwhelming a room. Compact proportions make it easy to place on
shelves or in media units, while understated detailing ensures it blends seamlessly into
modern interiors. For the design-driven customer who still values performance, the C 3030S delivers the right balance of visual character, ease of use, and NAD’s trusted HiFi sound.
The Everyday Listener
Not every customer is chasing reference-grade specs, many just want music that feels
alive, whether it’s streaming playlists, watching TV, or playing old CDs. The C 3030S
is built for them. With HDMI eARC for simple TV integration, BluOS music streaming,
and straightforward analog and digital inputs, it connects to the sources people use
every day. Add a subwoofer for extra bass, or just enjoy the clean, powerful 50-watt
amplification on its own. For everyday use, it’s an approachable, flexible amplifier that
never compromises core sound quality.
The Budget-Conscious Audiophile
For those who want true HiFi performance without stretching to flagship models, the
C 3030S hits the sweet spot. Built on NAD’s HybridDigital technology, it delivers clean
power, low distortion, and real-world drive for demanding speakers, the qualities that
define NAD amplification. By focusing on essentials and adding modern features like
BluOS streaming and HDMI eARC, NAD offers a product that stays affordable while
carrying the brand’s legacy of musical honesty. For new audiophiles or those returning to
the hobby, the C 3030S provides a solid, reliable foundation to build a system around.
VINTAGE SOUL
The NAD C 3030S captures the spirit of classic HiFi with a design that nods to the
legendary NAD 3030 amplifier from the 1970s. With its dual illuminated VU meters,
tactile push-button controls, and a distinctive dark grey front panel bearing the original
New Acoustic Dimension logo, the C 3030S blends retro charm with modern simplicity
and performance. Its compact chassis, just 35,6 cm wide, offers a smaller footprint while
preserving the authentic aesthetic of vintage stereo gear. Designed to look like what it
is, an amplifier, the C 3030S isn’t about flash or gimmicks. It’s about purpose, heritage,
and a timeless connection to the music. A modern classic, built for those who appreciate
the roots of great sound.
MODERN AMPLIFICATION
At the heart of the NAD C 3030S is our acclaimed HybridDigital amplifier technology,
an advanced, ultra-efficient design known for delivering clean, dynamic power with
near-zero distortion or noise across the entire audioband. True to NAD’s longstanding
philosophy of honest performance, the C 3030S is rated at 50 watts per channel
using our Full Disclosure Power method, measured with all channels driven across the
full frequency range, into real-world speaker loads. When the music demands it, the C
3030S delivers over 100 watts of dynamic power on tap, ensuring precise control, even
with demanding loudspeakers. The custom-designed power supply provides rock-solid
voltage regulation and a noise-free foundation. Quiet or loud, the C 3030S delivers
deep detail, wide soundstage, and smooth dynamics. It’s the kind of modern engineering
that turns a vintage-inspired amp into a serious performer, for true HiFi, today and
tomorrow.
ANALOG AND DIGITAL PERFORMANCE
The C 3030S is designed to connect seamlessly with both analog and digital sources.
For analog, ultra-low-noise buffer amplifiers ensure ideal input impedance and linearity,
preserving every nuance of your music. A dedicated MM phono stage features precise
RIAA equalization, high overload margins, and an innovative circuit to suppress
infrasonic noise, without affecting low-end performance, making it perfect for turntable
enthusiasts. Whether you're spinning vinyl or playing CDs, the analog inputs deliver pure,
unaltered signal integrity. On the digital side, a high-performance Texas Instruments
PCM5242 differential DAC ensures exceptional dynamic range, jitter resistance, and
lifelike detail. This preamp design gives the C 3030S rich, engaging sound, no matter
where your music comes from.
BLUOS HI-RES STREAMING
With BluOS built-in, the C 3030S transforms into a complete network music system.
Stream lossless, hi-res audio up to 24-bit/192 kHz from over 20+ popular services
including TIDAL, Qobuz, Spotify, Deezer, and Amazon Music or play from your own
local library. Create a wireless multi-room setup with other BluOS-enabled players and
control everything through the intuitive BluOS app for iOS, Android, macOS, or Windows.
Combining classic NAD performance with BluOS convenience, the C 3030S delivers true
HiFi sound, anywhere, anytime, from any source.
CONNECT TO EVERYTHING
The C 3030 is equipped with a wide range of connection options to suit both classic
and modern music sources. True to its vintage-inspired design, it naturally supports
analog components. A built-in MM phono stage lets you connect any turntable, old or
new, without the need for an external preamp. A standard line input accommodates
CD players, music streamers, or other analog devices. On the digital side, HDMI eARC
ensures easy TV sound integration, while an optical input handles common digital
sources like media boxes and network streamers. For wireless playback, BluOS offers hires multi-room streaming and app-based control, while Bluetooth with aptX HD delivers
quick and easy playback from mobile devices. The C 3030S also includes a subwoofer
output with an optional 80Hz high-pass filter, ideal for building a simple and powerful 2.1
setup.
THE NAD LEGACY
NAD was founded on the idea: great sound should be for everyone. In the 1970s,
audio engineer Bjorn Erik Edvardsen and visionary Marty Borish set out to build high-performance HiFi without the high price. Their first hit, the NAD 3020, redefined what
an affordable amplifier could do, and became the world’s best-selling HiFi amplifier.
Since then, NAD has remained true to its founding principles: focus on performance,
cutting the unnecessary, and push boundaries through innovation. Today, NAD is
proudly engineered in Canada, led by Edvardsen’s protégés, and still driven by one belief:
authentic sound should be accessible to music lovers everywhere. The C 3030S is a
prime example of this philosophy with a visual nod to NAD’s heritage.
Specs
JBL 4309 Specifications:
Type 2-way bookshelf loudspeaker
Low Frequency Driver 6.5" (165mm) Pure Pulp cone woofer
High Frequency Driver 2410H-2 1-inch (25mm) annular ring, Teonex® diaphragm compression driver with advanced HDI™ geometry horn
Recommended Amplifier Power 25 - 150 WRMS
Impedance 4 Ohm
Loudspeaker Sensitivity 87 dB/2.83V/1m
Frequency Response 42 Hz - 30 kHz (-6 dB)
Coverage Angle, -6 dB 100 Degrees Hor. x 80 Degrees Ver., from 2kHz to 17kHz
Crossover Frequency 1.6 kHz
Enclosure Type H-braced front-ported bookshelf
Grille Feature Monitor style to match horn mating features, supplied in dark blue (with walnut cabinet) and black (with black cabinet)
Dimensions with grille 16.5” H x 10.25” W x 9” D (419 mm H x 260 mm W x 227 mm D)
Controls UHF tone control
Input Type Dual sets of gold-plated binding posts with shorting straps
Product Weight (Each) 24.2 lbs. (10.98 kg)
Shipping Weight 56.2 lbs. (25.5 kg)
Shipping Units of Measure Pair
Warranty 5 Years
Recommended stand height 24” (609 mm)
NAD C 3030S Stereophonic BluOS Integrated Amplifier Specifications:
LINE INPUT, PRE-OUT (ANALOG BYPASS ON) DATA COLUMN
THD (20 Hz – 20 kHz) <0.005 % at 4V out
Signal-to-Noise Ratio >90 dB (IHF; A-weighted, 500 mV out, unity gain)
Input impedance (R and C) 28 kohms + 360 pF
Maximum input signal >5.7 Vrms (0.1 % THD)
Output impedance 345 ohms
Input sensitivity 100 mV (500 mV out, Volume maximum)
Frequency response 20 Hz - 20 kHz (±0.3 dB)
Maximum voltage output >5 V (0.1 % THD)
LINE IN, HEADPHONE OUT DATA COLUMN
THD (20 Hz – 20 kHz) <0.005 % at 1V out
Signal-to-Noise Ratio >90 dB (32 ohms load; A-weighted, 1V out, unity gain)
Frequency response 20 Hz - 20 kHz (±0.3 dB)
Channel separation >60 dB at 1kHz
Output impedance 2.2 ohms
LINE IN, SPEAKER OUT
Continuous output power into 8 ohms and 4 ohms 50W (20 Hz-20 kHz at rated THD, both channels driven)
THD (20 Hz – 20 kHz) <0.03 % (250 mW to 50 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio >90 dB (A-weighted, 500 mV input, 1 W out in 8 ohms)
Clipping power >70W (1 kHz 0.1 % THD, 4 ohms)
>55W (1 kHz 0.1 % THD, 8 ohms)
IHF dynamic power 8 ohms: 120 W
4 ohms: 250W
2 ohms: 390 W
Peak output current >16A (1 ohm, 1 ms)
Damping factor >52 (20Hz to 6.5kHz, 50W 8 ohms)
Frequency response 20 Hz - 20 kHz (±0.3 dB)
Channel separation >75 dB (1 kHz)
>70 dB (10 kHz)
Input sensitivity (50 W in 8 ohms) 750 mV
Frequency band 2.402 G- 2.480 G
Maximum transmit power 7 dBm ± 2 dBm
Power consumption, standby mode* 0.5 W
LINE IN, SPEAKER OUT
THD (20 Hz – 20 kHz) <0.05 % at 50W out
Signal-to-Noise Ratio >82 dB (10 mV in; A-weighted, 1W out)
Input impedance (R and C) 46 kohms/100 pF
Input sensitivity 1.6 mV (20 Hz 50W out, Volume maximum)
Frequency response 20 Hz - 20 kHz (±0.3 dB)
>16A (1 ohm, 1 ms)
Note: The RIAA response is consistent with a pre-emphasis that is rolled off
at 50 kHz by a second order filter, such as used in Neumann cutting lathes.
Maximum input signal at 1 kHz >15 mVrms (0.1 % THD)
DIMENSION AND WEIGHT
Gross dimensions (W x H x D) ** 356 x 129 x 329 mm
14 1/8 x 5 1/8 x 13 inches
Net weight 5.8 kg (12.8 lbs)
Shipping weight 7.2 kg (15.9 lbs)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
STANDS NOT INCLUDED
THIS BUNDLE INCLUDES:
1 PAIR JBL 4309 6.5" 2-Way Bookshelf Speakers Black Walnut with Black Grills
1 NAD Electronics C 3030S Stereophonic Integrated Amplifier with Built-in BluOS Streaming
JBL 4309 Details:
The JBL 4309 Studio Monitor is a compact, high-performance bookshelf loudspeaker built around the patented JBL 2410H-2 1-inch compression driver mated to patented High-Definition Imaging (HDI™) horn, paired with a 6.5-inch, cast-frame Pure-pulp cone woofer. This combination delivers music with authority and accuracy not possible with traditional loudspeaker designs. The cabinet features a classic JBL studio monitor design with a blue baffle and is finished in a choice of Walnut or Black Walnut furniture-grade satin wood veneers.
4309 Highlights
-
Patented High-Definition Imaging (HDI™) horn
-
Patented 2410H-2 1-inch (25mm) high-frequency compression driver
-
6.5-inch (165mm) cast frame, Pure-pulp cone woofer with 1.5-inch voice coil
-
Classic Studio Monitor design with premium finishes including satin Walnut wood veneer with blue grille or satin Black Walnut wood veneer with black grille
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the 4309 Studio Monitor is a showcase of patented JBL acoustics technologies. This bookshelf loudspeaker features a 2-way design with patented High-Definition Imaging (HDI™) horn technology, the patented 2410H-2 1-inch (25mm) compression driver, and a 6.5-inch (165mm) cast-frame, Pure-pulp cone woofer for powerful dynamics and incredibly accurate sound reproduction.
JBL’s revolutionary High-Definition Imaging horn geometry is the result of intense research into the nuances of horn design. In search of exceptional high-frequency detail and uniform directivity for smooth in-room response, JBL engineers pioneered a design that delivers neutral frequency response both on- and off-axis and provides a seamless transition between the high and low frequency drivers.
The JBL 2410H-2 compression driver benefits from the advanced research and applications derived from JBL Professional’s “D2” range of transducers. At the core of the 2410H-2 device is a lightweight polymer, annular diaphragm that improve high-frequency extension by reducing diaphragm mass. The V-shaped geometry of the annular diaphragm reduces breakup modes, eliminating time smear and reducing distortion. The result is incredible dynamics with accurate reproduction and a lack of power compression.
An Ultra High-frequency tonal adjuster is located on the front panel below the horn and allows the sound to be tailored to the specific environment and listener preference. This control works in conjunction with an advanced crossover network design that features air-core inductors, cast wire-wound resistors and low-ESR metallized film capacitors to optimize the performance of the 4309 drive components.
The 4309’s powerful 6.5-inch (165mm) woofer takes advantage of core JBL engineering techniques to ensure very high output with low distortion. The long-throw voice coil in conjunction with the symmetrical field motor design, flux stabilization ring, and copper shorting ring guarantee maximum output with low distortion. A Pure-pulp cone provides a lightweight, rigid diaphragm and helps to eliminate breakup modes ensuring proper pistonic motion throughout the operating band.
The 4309 enclosure is heavily braced with 3/4-inch (18mm) thick walls to provide a solid acoustic foundation and incorporates a bass reflex design with dual front-firing, computer-optimized flared ports. The cabinet features a classic JBL studio monitor design with a blue baffle and is finished in a choice of Walnut or Black Walnut furniture-grade satin wood veneers. A blue (Walnut) or black (Black Walnut) cloth grille completes the elegant appearance. Dual sets of gold-plated binding posts provide a secure connection and offer a choice of single-ended or bi-wire/bi-amplified connections.
NAD Electronics C 3030S BluOS Stereophonic Integrated Amplifier Details:
The NAD C 3030S is a modern HiFi amplifier designed for music lovers who appreciate
classic design and honest performance. Inspired by the original NAD 3030 from the
1970s, this new model combines classic HiFi aesthetics with modern NAD engineering
and the convenience of BluOS hi-res streaming. Its compact chassis, black faceplate,
illuminated dual VU meters, and tactile push-buttons pay tribute to the original while
offering a fresh and purposeful look that fits effortlessly into modern living spaces.
At the heart of the C 3030S is NAD’s proven HybridDigital amplifier platform, known
for delivering clean, dynamic sound with minimal distortion and noise. Rated at 50 watts
per channel, with over 100 watts of dynamic power when needed, it’s designed to handle
real-world speakers with ease and musicality, true to NAD’s tradition of delivering more
than expected at the price.
With BluOS built-in, the C 3030S transforms into a modern function amplifier with
support from all major music services, local libraries and multi-room capabilities. Beyond
streaming, the C 3030S supports a wide range of everyday sources. A dedicated MM
phono input is ready for vinyl playback, HDMI eARC makes TV sound integration easy,
Bluetooth with aptX HD for easy wireless streaming from mobile devices, and standard
analog input support components like CD players or streamers. A subwoofer output with
an optional high-pass filter allows for a simple 2.1 setup.
The C 3030S isn’t just an amplifier, it’s a statement. A fusion of NAD’s legacy and
forward-thinking design, it delivers authentic HiFi for today’s listener. Whether you're
rediscovering your vinyl collection or streaming music from your phone, the C 3030S
brings music to life with clarity, power, and character. It proves that great sound never
goes out of style.
The Vinyl Enthusiast
For the music lover rediscovering the joy of records, the C 3030S is an ideal centerpiece.
With its dedicated MM phono stage, precise RIAA equalization, and careful noise
suppression, it brings vinyl collections to life with warmth and accuracy. The retro-styled design with illuminated VU meters resonates with the analog spirit, while compact
dimensions ensure it fits easily into modern homes. It’s the perfect blend of nostalgia and
modern NAD engineering, giving vinyl enthusiasts an authentic HiFi experience without
the complexity or cost of separates.
The Design-Driven Music Fan
The C 3030S appeals to listeners who want their HiFi to look as good as it sounds. Its
heritage-inspired design, dark front panel, and dual VU meters give it personality and
presence without overwhelming a room. Compact proportions make it easy to place on
shelves or in media units, while understated detailing ensures it blends seamlessly into
modern interiors. For the design-driven customer who still values performance, the C 3030S delivers the right balance of visual character, ease of use, and NAD’s trusted HiFi sound.
The Everyday Listener
Not every customer is chasing reference-grade specs, many just want music that feels
alive, whether it’s streaming playlists, watching TV, or playing old CDs. The C 3030S
is built for them. With HDMI eARC for simple TV integration, BluOS music streaming,
and straightforward analog and digital inputs, it connects to the sources people use
every day. Add a subwoofer for extra bass, or just enjoy the clean, powerful 50-watt
amplification on its own. For everyday use, it’s an approachable, flexible amplifier that
never compromises core sound quality.
The Budget-Conscious Audiophile
For those who want true HiFi performance without stretching to flagship models, the
C 3030S hits the sweet spot. Built on NAD’s HybridDigital technology, it delivers clean
power, low distortion, and real-world drive for demanding speakers, the qualities that
define NAD amplification. By focusing on essentials and adding modern features like
BluOS streaming and HDMI eARC, NAD offers a product that stays affordable while
carrying the brand’s legacy of musical honesty. For new audiophiles or those returning to
the hobby, the C 3030S provides a solid, reliable foundation to build a system around.
VINTAGE SOUL
The NAD C 3030S captures the spirit of classic HiFi with a design that nods to the
legendary NAD 3030 amplifier from the 1970s. With its dual illuminated VU meters,
tactile push-button controls, and a distinctive dark grey front panel bearing the original
New Acoustic Dimension logo, the C 3030S blends retro charm with modern simplicity
and performance. Its compact chassis, just 35,6 cm wide, offers a smaller footprint while
preserving the authentic aesthetic of vintage stereo gear. Designed to look like what it
is, an amplifier, the C 3030S isn’t about flash or gimmicks. It’s about purpose, heritage,
and a timeless connection to the music. A modern classic, built for those who appreciate
the roots of great sound.
MODERN AMPLIFICATION
At the heart of the NAD C 3030S is our acclaimed HybridDigital amplifier technology,
an advanced, ultra-efficient design known for delivering clean, dynamic power with
near-zero distortion or noise across the entire audioband. True to NAD’s longstanding
philosophy of honest performance, the C 3030S is rated at 50 watts per channel
using our Full Disclosure Power method, measured with all channels driven across the
full frequency range, into real-world speaker loads. When the music demands it, the C
3030S delivers over 100 watts of dynamic power on tap, ensuring precise control, even
with demanding loudspeakers. The custom-designed power supply provides rock-solid
voltage regulation and a noise-free foundation. Quiet or loud, the C 3030S delivers
deep detail, wide soundstage, and smooth dynamics. It’s the kind of modern engineering
that turns a vintage-inspired amp into a serious performer, for true HiFi, today and
tomorrow.
ANALOG AND DIGITAL PERFORMANCE
The C 3030S is designed to connect seamlessly with both analog and digital sources.
For analog, ultra-low-noise buffer amplifiers ensure ideal input impedance and linearity,
preserving every nuance of your music. A dedicated MM phono stage features precise
RIAA equalization, high overload margins, and an innovative circuit to suppress
infrasonic noise, without affecting low-end performance, making it perfect for turntable
enthusiasts. Whether you're spinning vinyl or playing CDs, the analog inputs deliver pure,
unaltered signal integrity. On the digital side, a high-performance Texas Instruments
PCM5242 differential DAC ensures exceptional dynamic range, jitter resistance, and
lifelike detail. This preamp design gives the C 3030S rich, engaging sound, no matter
where your music comes from.
BLUOS HI-RES STREAMING
With BluOS built-in, the C 3030S transforms into a complete network music system.
Stream lossless, hi-res audio up to 24-bit/192 kHz from over 20+ popular services
including TIDAL, Qobuz, Spotify, Deezer, and Amazon Music or play from your own
local library. Create a wireless multi-room setup with other BluOS-enabled players and
control everything through the intuitive BluOS app for iOS, Android, macOS, or Windows.
Combining classic NAD performance with BluOS convenience, the C 3030S delivers true
HiFi sound, anywhere, anytime, from any source.
CONNECT TO EVERYTHING
The C 3030 is equipped with a wide range of connection options to suit both classic
and modern music sources. True to its vintage-inspired design, it naturally supports
analog components. A built-in MM phono stage lets you connect any turntable, old or
new, without the need for an external preamp. A standard line input accommodates
CD players, music streamers, or other analog devices. On the digital side, HDMI eARC
ensures easy TV sound integration, while an optical input handles common digital
sources like media boxes and network streamers. For wireless playback, BluOS offers hires multi-room streaming and app-based control, while Bluetooth with aptX HD delivers
quick and easy playback from mobile devices. The C 3030S also includes a subwoofer
output with an optional 80Hz high-pass filter, ideal for building a simple and powerful 2.1
setup.
THE NAD LEGACY
NAD was founded on the idea: great sound should be for everyone. In the 1970s,
audio engineer Bjorn Erik Edvardsen and visionary Marty Borish set out to build high-performance HiFi without the high price. Their first hit, the NAD 3020, redefined what
an affordable amplifier could do, and became the world’s best-selling HiFi amplifier.
Since then, NAD has remained true to its founding principles: focus on performance,
cutting the unnecessary, and push boundaries through innovation. Today, NAD is
proudly engineered in Canada, led by Edvardsen’s protégés, and still driven by one belief:
authentic sound should be accessible to music lovers everywhere. The C 3030S is a
prime example of this philosophy with a visual nod to NAD’s heritage.
Specs
JBL 4309 Specifications:
Type 2-way bookshelf loudspeaker
Low Frequency Driver 6.5" (165mm) Pure Pulp cone woofer
High Frequency Driver 2410H-2 1-inch (25mm) annular ring, Teonex® diaphragm compression driver with advanced HDI™ geometry horn
Recommended Amplifier Power 25 - 150 WRMS
Impedance 4 Ohm
Loudspeaker Sensitivity 87 dB/2.83V/1m
Frequency Response 42 Hz - 30 kHz (-6 dB)
Coverage Angle, -6 dB 100 Degrees Hor. x 80 Degrees Ver., from 2kHz to 17kHz
Crossover Frequency 1.6 kHz
Enclosure Type H-braced front-ported bookshelf
Grille Feature Monitor style to match horn mating features, supplied in dark blue (with walnut cabinet) and black (with black cabinet)
Dimensions with grille 16.5” H x 10.25” W x 9” D (419 mm H x 260 mm W x 227 mm D)
Controls UHF tone control
Input Type Dual sets of gold-plated binding posts with shorting straps
Product Weight (Each) 24.2 lbs. (10.98 kg)
Shipping Weight 56.2 lbs. (25.5 kg)
Shipping Units of Measure Pair
Warranty 5 Years
Recommended stand height 24” (609 mm)
NAD C 3030S Stereophonic BluOS Integrated Amplifier Specifications:
LINE INPUT, PRE-OUT (ANALOG BYPASS ON) DATA COLUMN
THD (20 Hz – 20 kHz) <0.005 % at 4V out
Signal-to-Noise Ratio >90 dB (IHF; A-weighted, 500 mV out, unity gain)
Input impedance (R and C) 28 kohms + 360 pF
Maximum input signal >5.7 Vrms (0.1 % THD)
Output impedance 345 ohms
Input sensitivity 100 mV (500 mV out, Volume maximum)
Frequency response 20 Hz - 20 kHz (±0.3 dB)
Maximum voltage output >5 V (0.1 % THD)
LINE IN, HEADPHONE OUT DATA COLUMN
THD (20 Hz – 20 kHz) <0.005 % at 1V out
Signal-to-Noise Ratio >90 dB (32 ohms load; A-weighted, 1V out, unity gain)
Frequency response 20 Hz - 20 kHz (±0.3 dB)
Channel separation >60 dB at 1kHz
Output impedance 2.2 ohms
LINE IN, SPEAKER OUT
Continuous output power into 8 ohms and 4 ohms 50W (20 Hz-20 kHz at rated THD, both channels driven)
THD (20 Hz – 20 kHz) <0.03 % (250 mW to 50 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio >90 dB (A-weighted, 500 mV input, 1 W out in 8 ohms)
Clipping power >70W (1 kHz 0.1 % THD, 4 ohms)
>55W (1 kHz 0.1 % THD, 8 ohms)
IHF dynamic power 8 ohms: 120 W
4 ohms: 250W
2 ohms: 390 W
Peak output current >16A (1 ohm, 1 ms)
Damping factor >52 (20Hz to 6.5kHz, 50W 8 ohms)
Frequency response 20 Hz - 20 kHz (±0.3 dB)
Channel separation >75 dB (1 kHz)
>70 dB (10 kHz)
Input sensitivity (50 W in 8 ohms) 750 mV
Frequency band 2.402 G- 2.480 G
Maximum transmit power 7 dBm ± 2 dBm
Power consumption, standby mode* 0.5 W
LINE IN, SPEAKER OUT
THD (20 Hz – 20 kHz) <0.05 % at 50W out
Signal-to-Noise Ratio >82 dB (10 mV in; A-weighted, 1W out)
Input impedance (R and C) 46 kohms/100 pF
Input sensitivity 1.6 mV (20 Hz 50W out, Volume maximum)
Frequency response 20 Hz - 20 kHz (±0.3 dB)
>16A (1 ohm, 1 ms)
Note: The RIAA response is consistent with a pre-emphasis that is rolled off
at 50 kHz by a second order filter, such as used in Neumann cutting lathes.
Maximum input signal at 1 kHz >15 mVrms (0.1 % THD)
DIMENSION AND WEIGHT
Gross dimensions (W x H x D) ** 356 x 129 x 329 mm
14 1/8 x 5 1/8 x 13 inches
Net weight 5.8 kg (12.8 lbs)
Shipping weight 7.2 kg (15.9 lbs)
