JBL 4309 6.5-inch 2-way Bookshelf Loudspeaker Pair with NAD C 3050 Integrated Amplifier Bundle
STANDS NOT INCLUDED

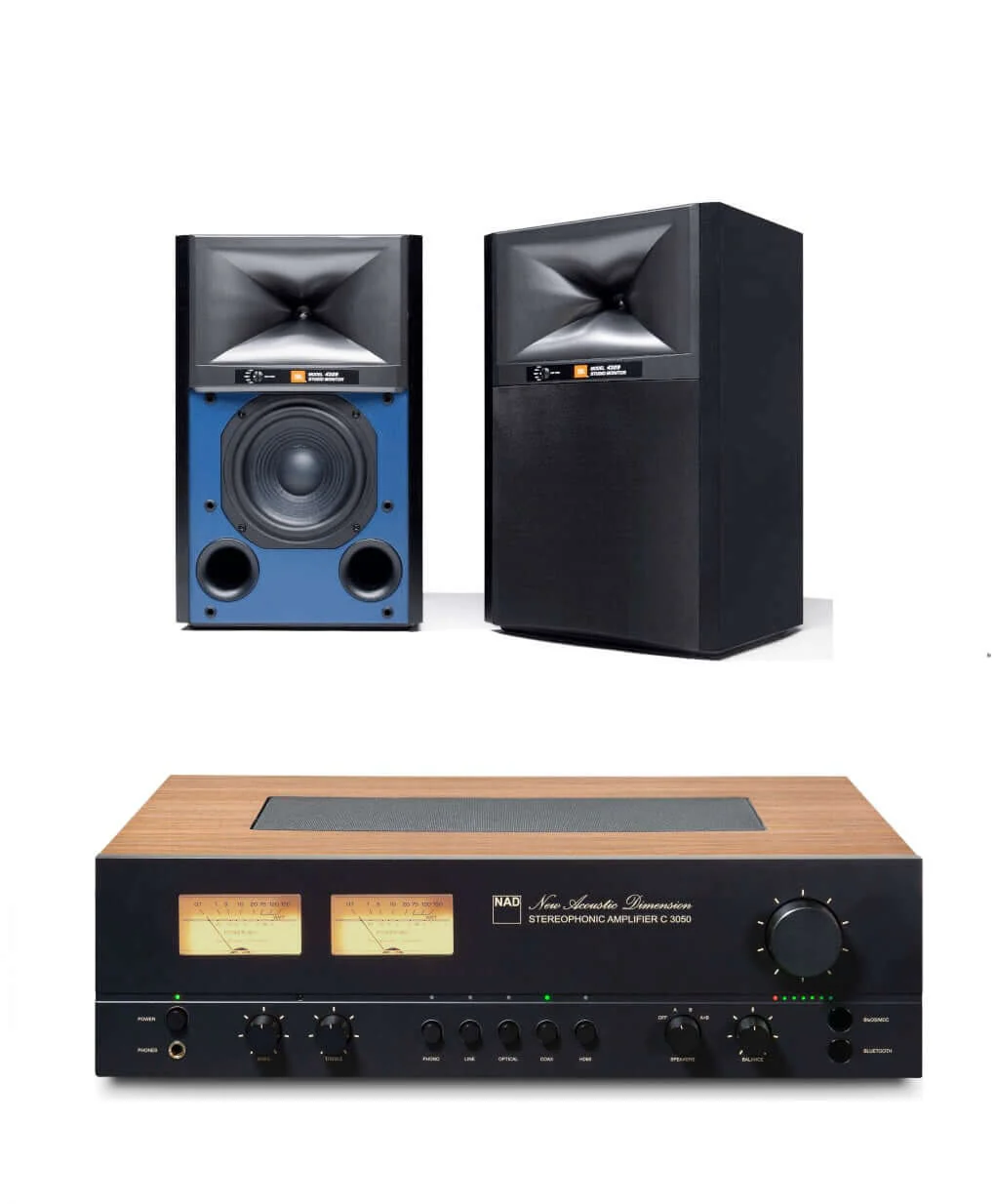

THIS BUNDLE INCLUDES:
1 PAIR JBL 4309 6.5" 2-Way Bookshelf Speakers Black Walnut with Black Grills
1 NAD Electronics C 3050 Stereophonic Integrated Amplifier
JBL 4309 Details:
The JBL 4309 Studio Monitor is a compact, high-performance bookshelf loudspeaker built around the patented JBL 2410H-2 1-inch compression driver mated to patented High-Definition Imaging (HDI™) horn, paired with a 6.5-inch, cast-frame Pure-pulp cone woofer. This combination delivers music with authority and accuracy not possible with traditional loudspeaker designs. The cabinet features a classic JBL studio monitor design with a blue baffle and is finished in a choice of Walnut or Black Walnut furniture-grade satin wood veneers.
4309 Highlights
-
Patented High-Definition Imaging (HDI™) horn
-
Patented 2410H-2 1-inch (25mm) high-frequency compression driver
-
6.5-inch (165mm) cast frame, Pure-pulp cone woofer with 1.5-inch voice coil
-
Classic Studio Monitor design with premium finishes including satin Walnut wood veneer with blue grille or satin Black Walnut wood veneer with black grille
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the 4309 Studio Monitor is a showcase of patented JBL acoustics technologies. This bookshelf loudspeaker features a 2-way design with patented High-Definition Imaging (HDI™) horn technology, the patented 2410H-2 1-inch (25mm) compression driver, and a 6.5-inch (165mm) cast-frame, Pure-pulp cone woofer for powerful dynamics and incredibly accurate sound reproduction.
JBL’s revolutionary High-Definition Imaging horn geometry is the result of intense research into the nuances of horn design. In search of exceptional high-frequency detail and uniform directivity for smooth in-room response, JBL engineers pioneered a design that delivers neutral frequency response both on- and off-axis and provides a seamless transition between the high and low frequency drivers.
The JBL 2410H-2 compression driver benefits from the advanced research and applications derived from JBL Professional’s “D2” range of transducers. At the core of the 2410H-2 device is a lightweight polymer, annular diaphragm that improve high-frequency extension by reducing diaphragm mass. The V-shaped geometry of the annular diaphragm reduces breakup modes, eliminating time smear and reducing distortion. The result is incredible dynamics with accurate reproduction and a lack of power compression.
An Ultra High-frequency tonal adjuster is located on the front panel below the horn and allows the sound to be tailored to the specific environment and listener preference. This control works in conjunction with an advanced crossover network design that features air-core inductors, cast wire-wound resistors and low-ESR metallized film capacitors to optimize the performance of the 4309 drive components.
The 4309’s powerful 6.5-inch (165mm) woofer takes advantage of core JBL engineering techniques to ensure very high output with low distortion. The long-throw voice coil in conjunction with the symmetrical field motor design, flux stabilization ring, and copper shorting ring guarantee maximum output with low distortion. A Pure-pulp cone provides a lightweight, rigid diaphragm and helps to eliminate breakup modes ensuring proper pistonic motion throughout the operating band.
The 4309 enclosure is heavily braced with 3/4-inch (18mm) thick walls to provide a solid acoustic foundation and incorporates a bass reflex design with dual front-firing, computer-optimized flared ports. The cabinet features a classic JBL studio monitor design with a blue baffle and is finished in a choice of Walnut or Black Walnut furniture-grade satin wood veneers. A blue (Walnut) or black (Black Walnut) cloth grille completes the elegant appearance. Dual sets of gold-plated binding posts provide a secure connection and offer a choice of single-ended or bi-wire/bi-amplified connections.
NAD Electronics C 3050 Stereophonic Integrated Amplifier Details:
NAD C 3050 Stereophonic Amplifier
In the C 3050 Stereophonic Amplifier, NAD’s 50-year history of innovation meets the future of hi-fi. With its dual VU meters, push-button input selectors, walnut-finished vinyl-clad cabinet, and 1970s cursive-style branding, the C 3050 recalls the components that helped a generation of music-lovers discover the joys of great audio. With its 100-watt-per-channel HybridDigital UcD amplifier and Texas Instruments high-resolution differential DAC, the C 3050 delivers sound that will thrill today’s discerning listeners. And thanks to NAD’s MDC2 future-proofing technology, C 3050 owners can add leading-edge capabilities like BluOS high-resolution multi-room streaming and Dirac Live room correction.
Vintage Inspired
The C 3050’s industrial design was inspired by the NAD 3030 Stereophonic Amplifier, a 1970s classic. Vintage styling elements include dual illuminated VU meters, push-button controls for source selection, a walnut-finished vinyl-clad cabinet, and a dark grey front panel with the original New Acoustic Dimension logo in its 1970s cursive typeface.
Thoroughly Modern
Employing NAD’s renowned HybridDigital UcD amplifier technology, the C 3050 has a Full Disclosure Power rating of 100 watts per channel continuous and 135wpc instantaneous, for effortless reproduction of musical transients. Noise and distortion are virtually unmeasurable through the entire audioband. The result is neutral, inviting sound through any loudspeaker load—even at high listening levels. The
C 3050 will reproduce the music you love with wonderful detail, immersive three-dimensionality, and thrilling dynamics.
The digital section employs Texas Instruments’ PCM5242 high-resolution differential DAC, a design known for its excellent dynamic performance and immunity to clock jitter. This enables the C 3050 to deliver amazing musicality, stunning clarity, and pinpoint soundstaging from all your digital sources.
Future Friendly
The C 3050 features the latest generation of NAD’s Modular Design Construction future-proofing technology, MDC2, which lets users add new functions and features by inserting an add-on module into the MDC2 slot on the back panel. MDC2 is an all-new design that enables two-way communications between the expansion module and host component. The optional MDC2 BluOS-D module delivers two highly desirable capabilities: BluOS high-resolution music streaming and Dirac Live room correction.
A World of Music
Featuring dual-band Wi-Fi and Gigabit Ethernet, the MDC2 BluOS-D connects you to almost all the music ever recorded through BluOS, the award-winning wireless music-management system. Using the intuitive BluOS Controller app, listeners can access more than 20 popular streaming services, including several that offer lossless and high-resolution audio, such as Amazon Music Ultra HD, Deezer, Qobuz, and Tidal. BluOS supports high-resolution audio to 24-bit/192kHz, and has MQA decoding and rendering capability, for studio-quality streaming. The MDC2 BluOS-D also lets you play music from your personal library and thousands of internet radio stations through the C 3050 Stereophonic Amplifier.
The MDC2 BluOS-D supports Spotify Connect and Tidal Connect, so you can cue up music in the apps for those services, then transfer playback to the C 3050. Also supported is Apple AirPlay 2, so you can stream audio to the MDC2 BluOS-D from any app on an iPhone, iPad, or Macintosh computer. You can also control playback by voice using Amazon Alexa, Google Assistant, or Apple Siri.
With the MDC2 BluOS-D installed, the C 3050 can be part of a whole-home music system with as many as 64 zones. You can have different music playing in different rooms, each with independent volume control, or play the same music in different rooms simultaneously. Thanks to MDC2’s bidirectional architecture, music from any source connected to the C 3050 can be streamed to BluOS-enabled components in other rooms.
Work the Room
The MDC2 BluOS-D lets C 3050 owners address the weakest link in most music systems—the listening environment. Connect the supplied microphone to the MDC2 BluOS-D’s USB port, and then follow instructions in the easy-to-use Dirac Live app. Dirac will play test tones through your speakers, analyze the results, and then create correction filters that counteract common acoustic problems like standing waves and unwanted reflections. The results are transformative. With Dirac Live***** enabled, you’ll experience vastly improved bass definition, greater tonal accuracy, and more precise imaging. With MDC2’s two-way communications capability, you’ll enjoy these benefits with all sources connected to the C 3050. You can create up to five Dirac settings for different listener positions or room conditions, for example whether the drapes are open or closed.
Well Connected
With its full suite of digital and analogue inputs, the C 3050 can accommodate all your source components. Vinyl fans will appreciate the C 3050’s ultra-low-noise MM phono stage. For movie and TV viewing, the C 3050 has an HDMI eARC port for connecting an HDTV, enabling the C 3050 to serve as the hub of a high-performance two- or 2.1-channel home-theatre setup. The C 3050 also has line-level analogue coaxial digital, and optical digital inputs.
Listeners can connect two pairs of speakers with Speaker A/B switching, as well as a subwoofer. Bidirectional aptX HD Bluetooth connectivity lets you stream audio to the C 3050 from a smart device and stream audio from the C 3050 to a pair of wireless headphones. The C 3050 also has a dedicated headphone amplifier, and pre-out/main-in jacks that let you connect a more powerful amplifier and use the C 3050 as a preamp only. The C 3050 includes an IR remote control and has installer-friendly features like 12V trigger and IR input.
Truly Timeless
The C 3050 is a fitting tribute to NAD’s 50-year history of amplifier innovation. With its vintage-inspired design, the NAD C 3050 Stereophonic Amplifier is a feast for the eyes. With its innovative technology, the C 3050 is a feast for the ears. The C 3050’s MDC2 port makes it easy to add compelling features like BluOS multi-room streaming and Dirac Live room correction—not to mention new capabilities that have yet to be developed.
Specs
JBL 4309 Specifications:
Type 2-way bookshelf loudspeaker
Low Frequency Driver 6.5" (165mm) Pure Pulp cone woofer
High Frequency Driver 2410H-2 1-inch (25mm) annular ring, Teonex® diaphragm compression driver with advanced HDI™ geometry horn
Recommended Amplifier Power 25 - 150 WRMS
Impedance 4 Ohm
Loudspeaker Sensitivity 87 dB/2.83V/1m
Frequency Response 42 Hz - 30 kHz (-6 dB)
Coverage Angle, -6 dB 100 Degrees Hor. x 80 Degrees Ver., from 2kHz to 17kHz
Crossover Frequency 1.6 kHz
Enclosure Type H-braced front-ported bookshelf
Grille Feature Monitor style to match horn mating features, supplied in dark blue (with walnut cabinet) and black (with black cabinet)
Dimensions with grille 16.5” H x 10.25” W x 9” D (419 mm H x 260 mm W x 227 mm D)
Controls UHF tone control
Input Type Dual sets of gold-plated binding posts with shorting straps
Product Weight (Each) 24.2 lbs. (10.98 kg)
Shipping Weight 56.2 lbs. (25.5 kg)
Shipping Units of Measure Pair
Warranty 5 Years
Recommended stand height 24” (609 mm)
NAD C 3050 Stereophonic Integrated Amplifier Specifications:
LINE INPUT, PRE-OUT (ANALOG BYPASS ON) >100 dB (1 kHz), >90 dB (10 kHz)
THD+N (20 Hz – 20 kHz) <0.005 % at 2V out
Signal-to-Noise Ratio >95 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
Channel separation >86W(at 1KHz 0.1% THD 8Rx2CH) >102W(at 1KHz 0.1% THD)
Input impedance (R and C) 28 kohms + 360 pF
Maximum input signal >4.5 Vrms (ref. 0.1 % THD)
Output impedance 440 ohms
Input sensitivity 270 mV (ref. 500 mV out, Volume maximum)
Frequency response ±0.3 dB (20 Hz - 20 kHz)
Maximum voltage output -IHF load >2 V (ref. 0.1 % THD)
PHONO INPUT, PRE-OUT (ANALOG BYPASS ON)
THD (20 Hz – 20 kHz) <0.03% at 2 V out
Signal-to-Noise ratio >79 dB (200 ohms source; A-weighted, ref. 500 mV out)
Input Impedance (R and C) 46 kohms/100 pF
Input sensitivity 5.5 mV (ref. 500 mV out, Volume maximum)
Frequency response ±0.3 dB (20 Hz - 20 kHz)
Maximum input signal at 1kHz >80 mVrms (ref. 0.1 % THD)
LINE INPUT, HEADPHONE OUT (ANALOG BYPASS ON)
THD (20 Hz – 20 kHz) <0.005% at 1V out
Signal-to-Noise Ratio >96 dB (32 ohms loads; A-WTD, ref. 2 V out, unity gain
Frequency response ±0.3 dB (20 Hz - 20 kHz)
Channel separation >60 dB at 1kHz
Output impedance 2.2 ohms
CONNECTIVITY
Bluetooth quality aptX HD 5.0
Bluetooth connectivity One-Way
USER INTERFACE
Supported operating system Music playback from network shares on the following desktop operating systems: Microsoft
Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and macOS versions
Mobile Application Free BluOS Controller App available for download from the respective App stores of Apple iOS
devices (iPad, iPhone and iPod), Android devices, Kindle Fire and Windows or macOS desktops
GENERAL SPECIFICATIONS
MAIN IN, SPEAKER OUT
Continuous output power into 8 ohms and 4 ohms 100W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
THD (20 Hz – 20 kHz) <0.03% (250 mW to 100 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio >95dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
Clipping power >115 W (at 1 kHz 0.1 % THD)
IHF dynamic power 8 ohms: 180 W, 4 ohms: 250 W, 2 ohms: 300 W
Peak output current >20A (in 1 ohm, 1 ms)
Frequency response ±0.3 dB (20 Hz - 20 kHz)
Channel separation >75dB (1 kHz)
>70dB (10 kHz)
Input sensitivity (for 100 W in 8 ohms) 540 mV
Digital: -6dBFS
Power consumption
at Auto Standby ON 0.5 W*
DIMENSIONS AND WEIGHT
Gross dimensions (W x H x D)*** 447 x 127 (height, including feet) x 335mm (depth, including rear speaker terminal and front knob)
(17 5/8 x 5 x 13 3/16 inches)
Net weight 10 kg (22 lbs)
Shipping weight 12.6 kg (27.8 lbs)
Original: $2,749.99
-65%$2,749.99
$962.50Product Information
