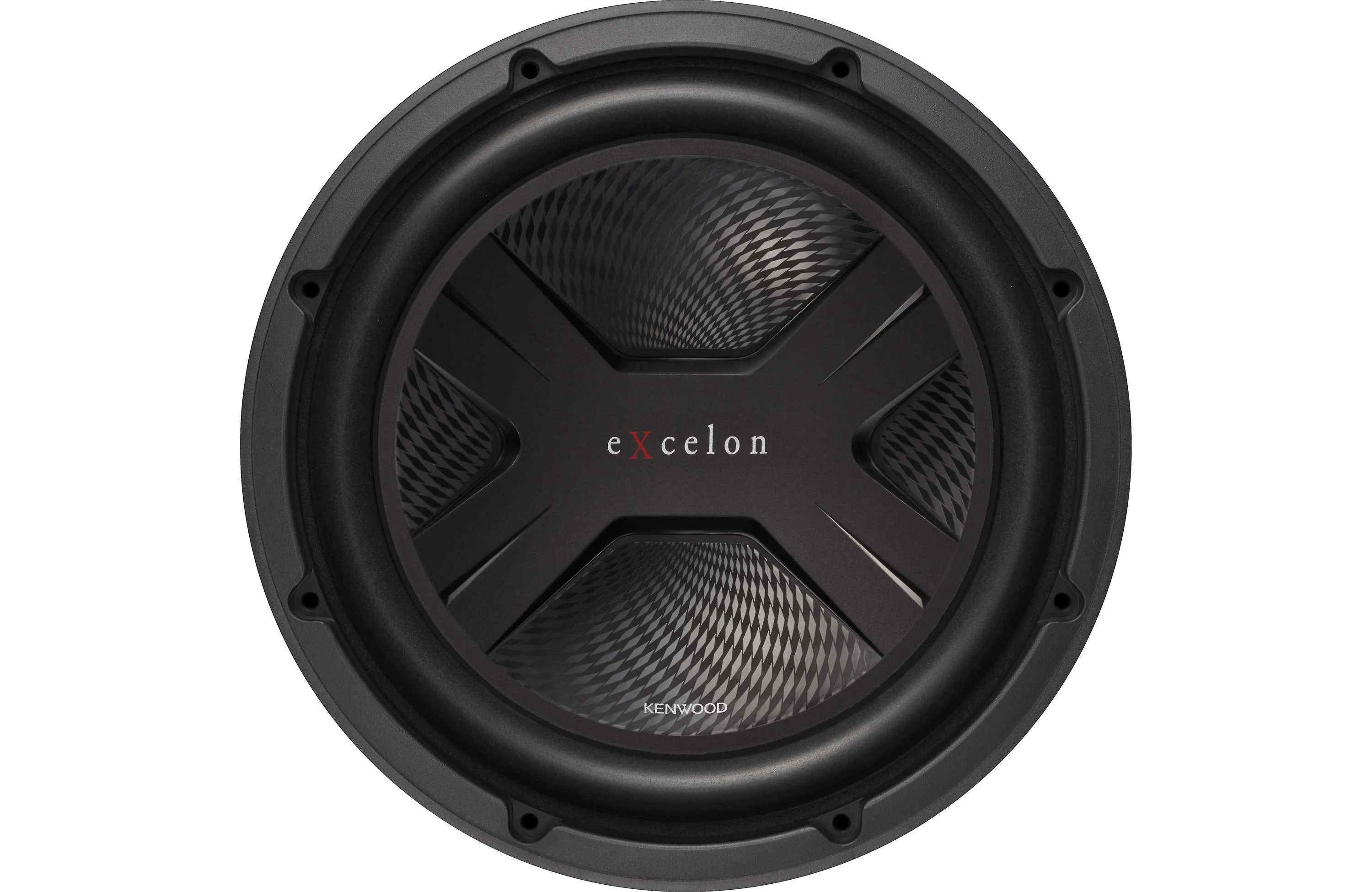

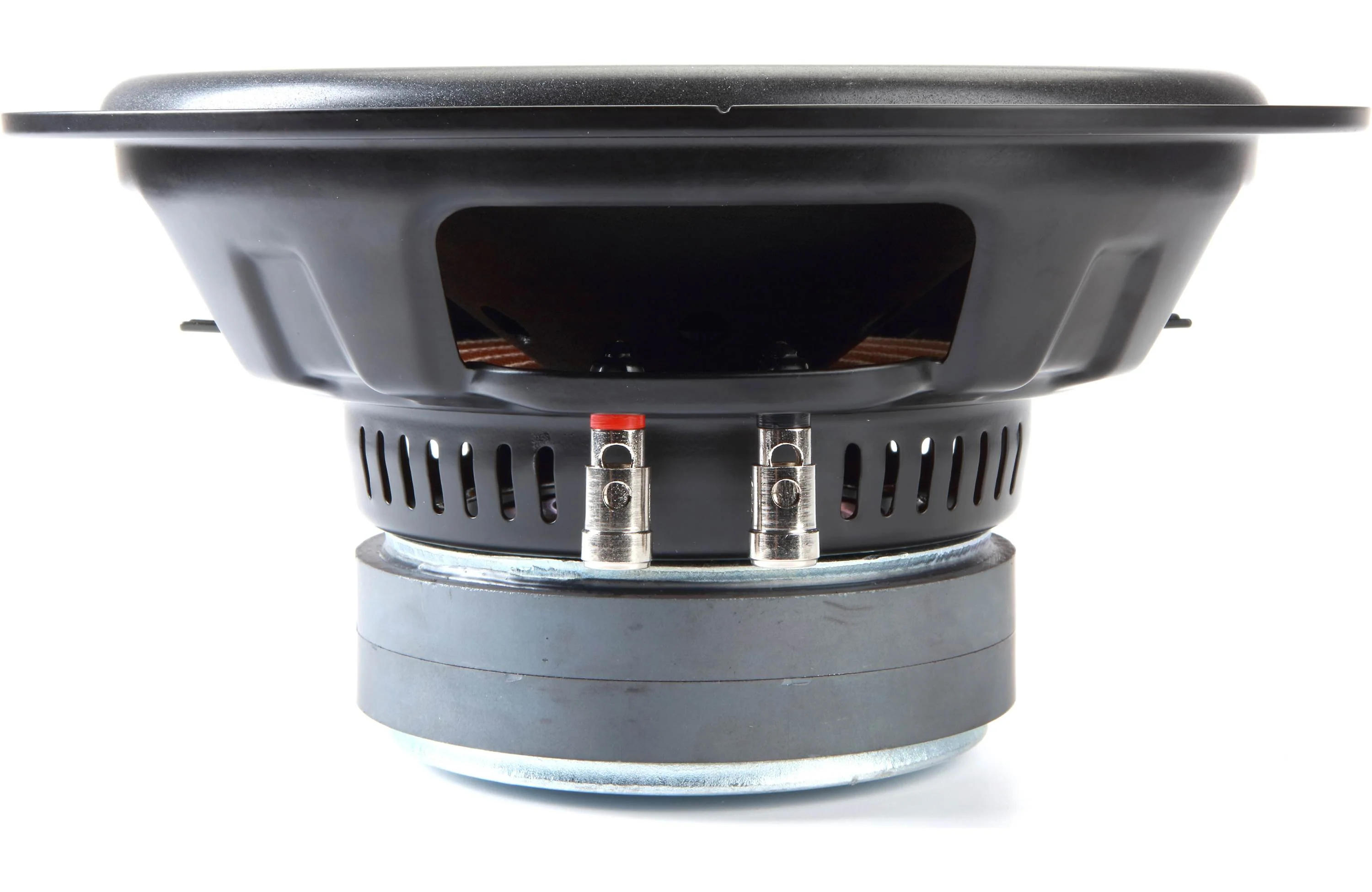

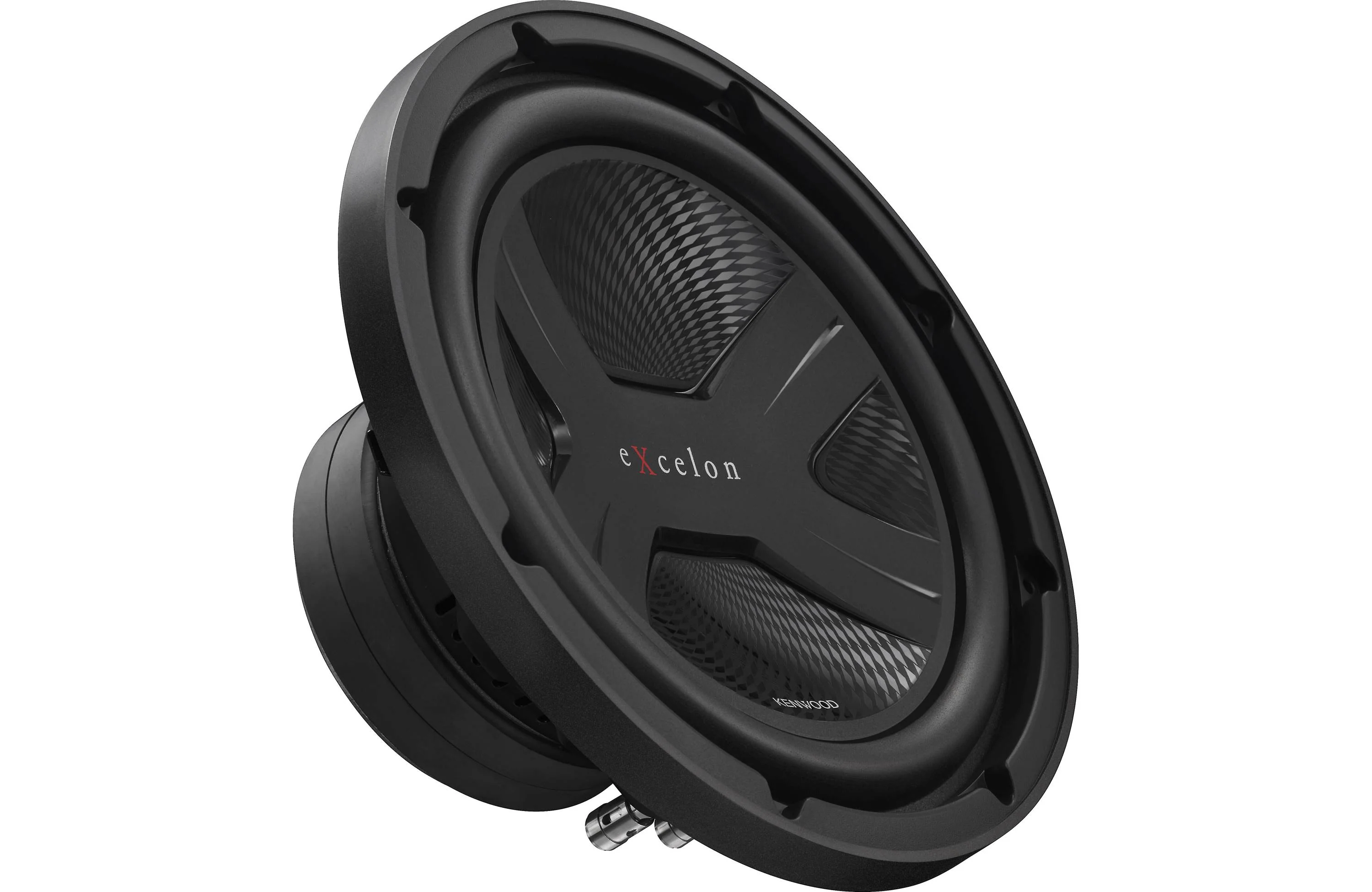

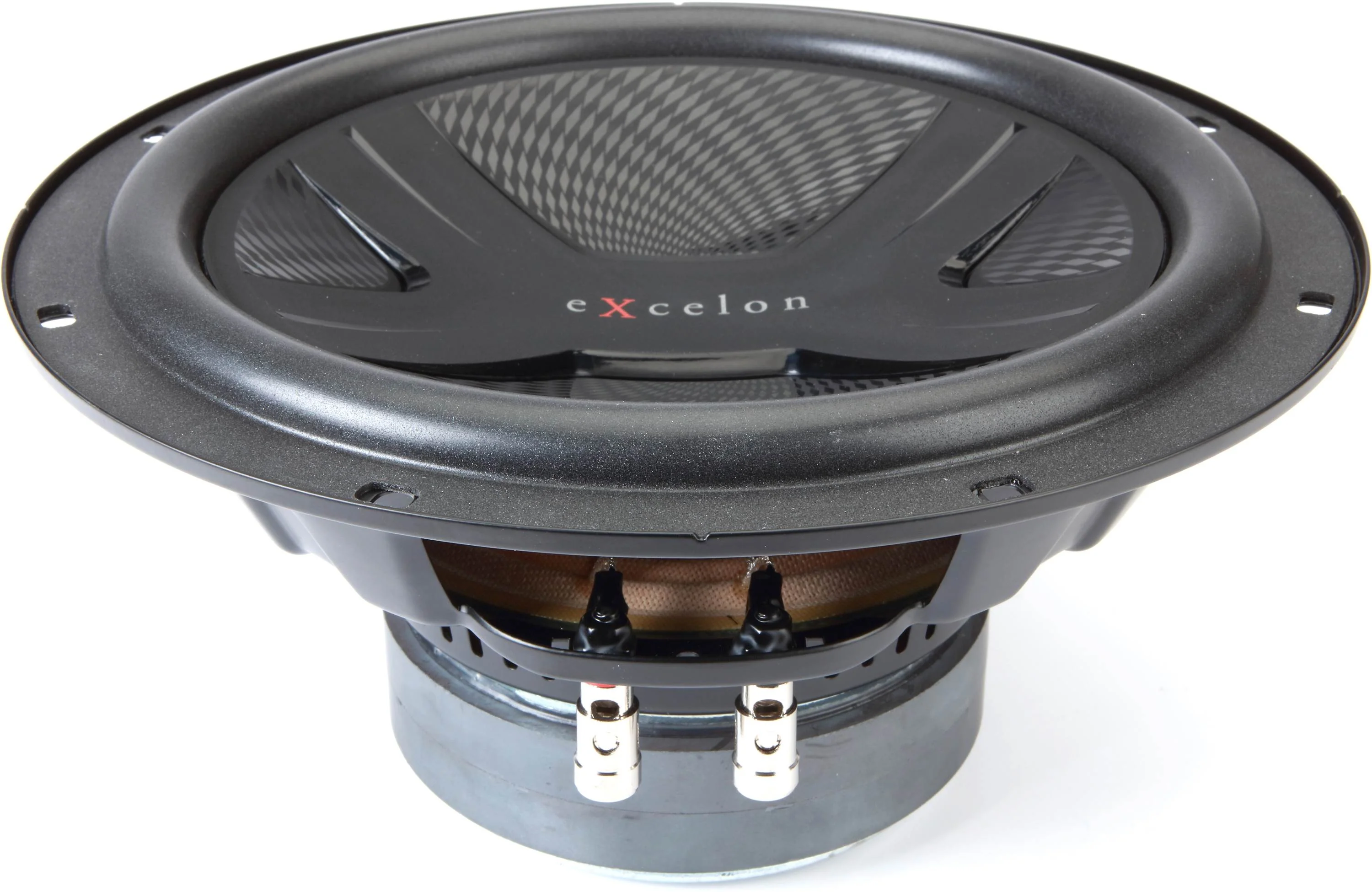

Kenwood Excelon KFC-XW1041 10" 4-ohm Component Subwoofer (Each)

・Peak Power 1300W
・PP X-motif Cone with Diamond Array Pattern
・Closed Yoke with Advanced Airflow Control
・Stress Controlled Spider
・Robust Thermal Management System

X-Motif Cone with Diamond Array Pattern
X-Motif Cone controls resonance frequency and cuts unnecessary frequency, delivering powerful and solid bass response.

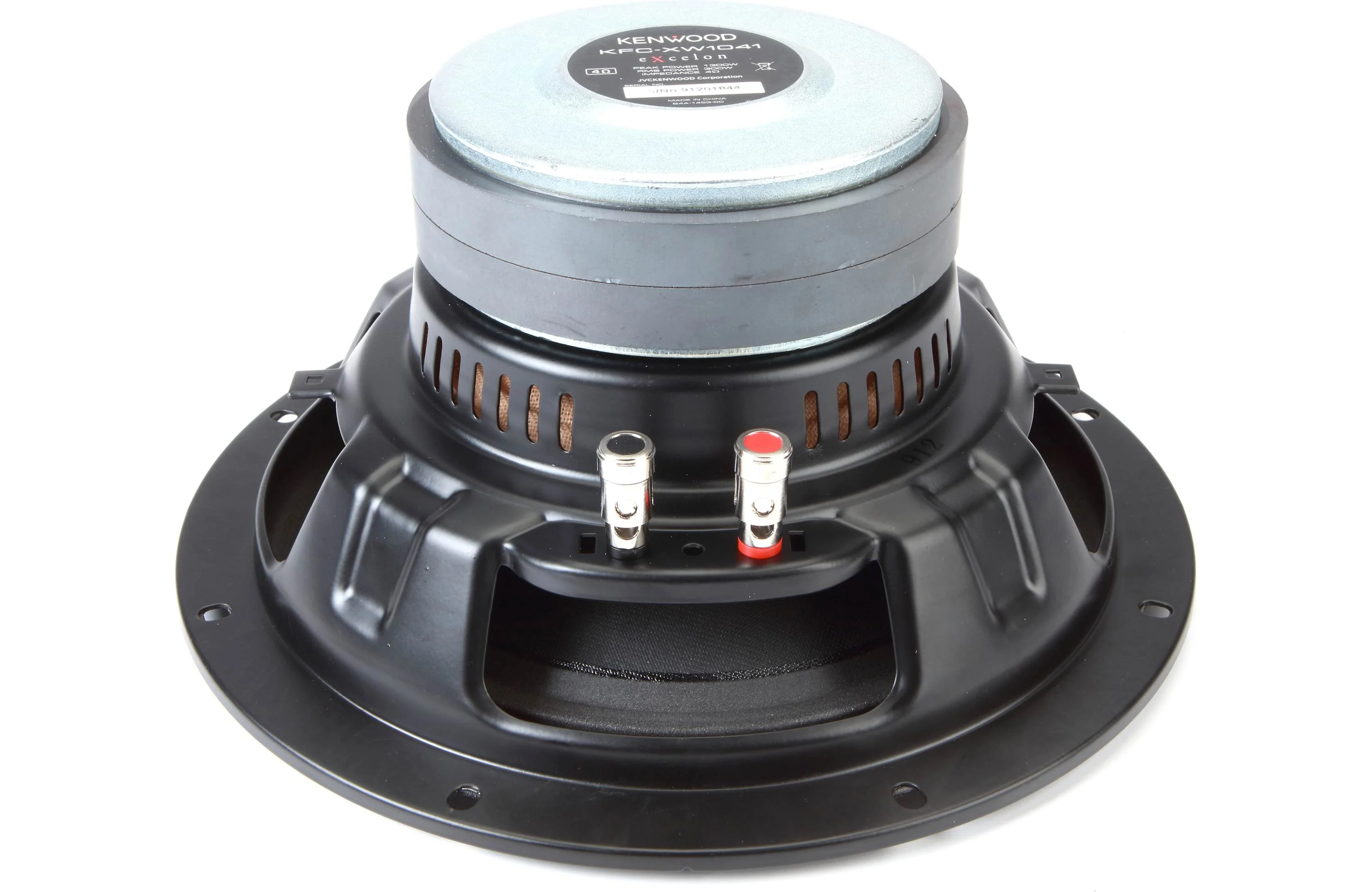

Closed Yoke with Advanced Airflow Control
The KFC-XW1041 has a robust thermal management system implemented. with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control.

Stress Controlled Spider
Computer-optimized damper controls stress and increases mechanical durability.

The Best Match
KFC-XW1041 Subwoofer is precisely power matched with the eXcelon X502-1 amplifier

Specs

Impedance (Ω) 4
Peak Input Power (W) 1300
RMS Power (W) 300
Sensitivity (dB at 1m) 84
Frequency Response (Hz) 33 ~ 300

MOUNTED SPEAKER
Size 250mm 10 inch
Diaphragm Paper
Cap Injection PP
Surround Urethane
Basket Steel
Gasket ABS
Magnet Ferrite φ134-φ70-t30

DIMENSION
Width 275mm 10 - 13/16 inch
Height 275mm 10 - 13/16 inch
Cut-out Diameter 230mm 9 1/16 inch
Depth 142.2mm 5 - 5/8 inch
Mounting Depth 124mm 4 - 7/8 inch

WEIGHT
Woofer without Gasket 4.0 kg 8.8 lb
Gross Weight 4.6 kg 10.1 lb
Weight of Magnet 1560 g 54.9 oz

ACCESSORY Instruction Manual
Warranty Card
SPECIAL FEATURE Injection PP X-motif Cone with
Diamond Array Pattern
Closed Yoke with Advanced
Airflow Control
Aluminum Bobbin
