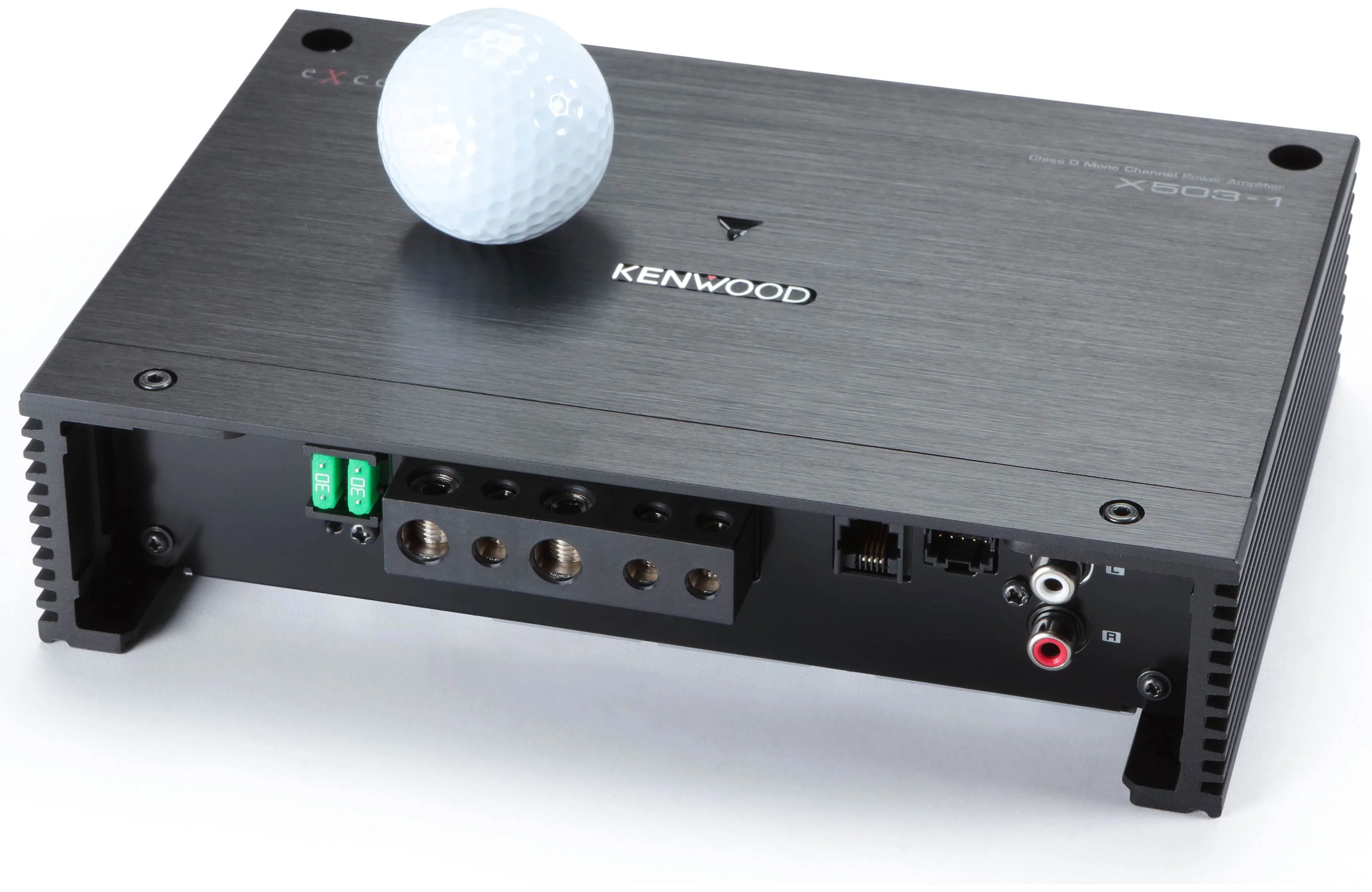

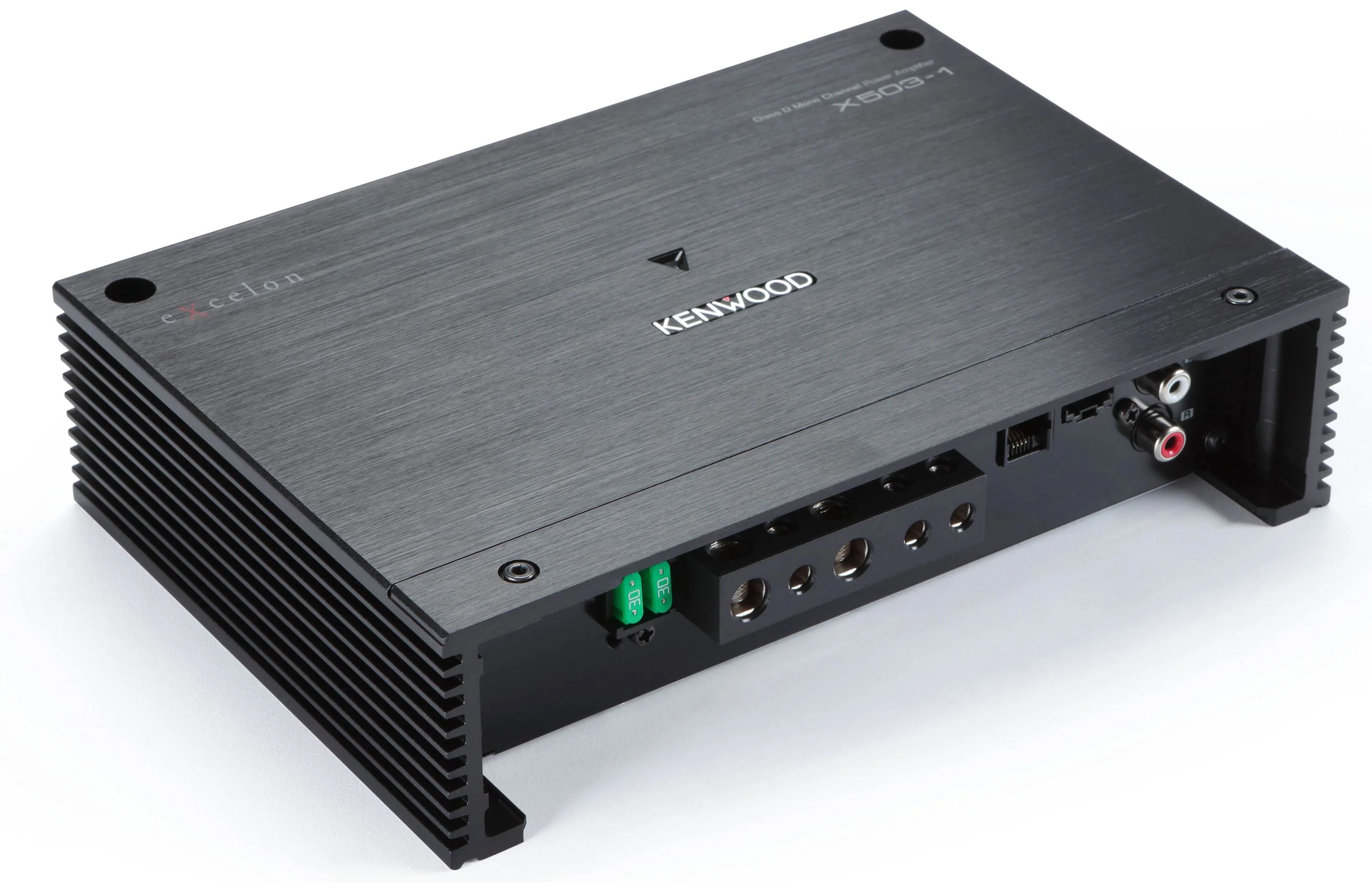

Kenwood Excelon X503-1 Class D Mono Power Amplifier

• Max Power 1000W
• RMS 300W (4Ω)
• RMS 500W (2Ω)
• Size (inch) (W) 8-3/8" x (H) 2-1/16" x (D) 5-7/8"
• Variable Low Pass Filter
• Bass Boost
• Infrasonic Filter
• Wired Remote Included

Output Coil with Magnetic Shield

Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.

High Quality Capacitors

PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.

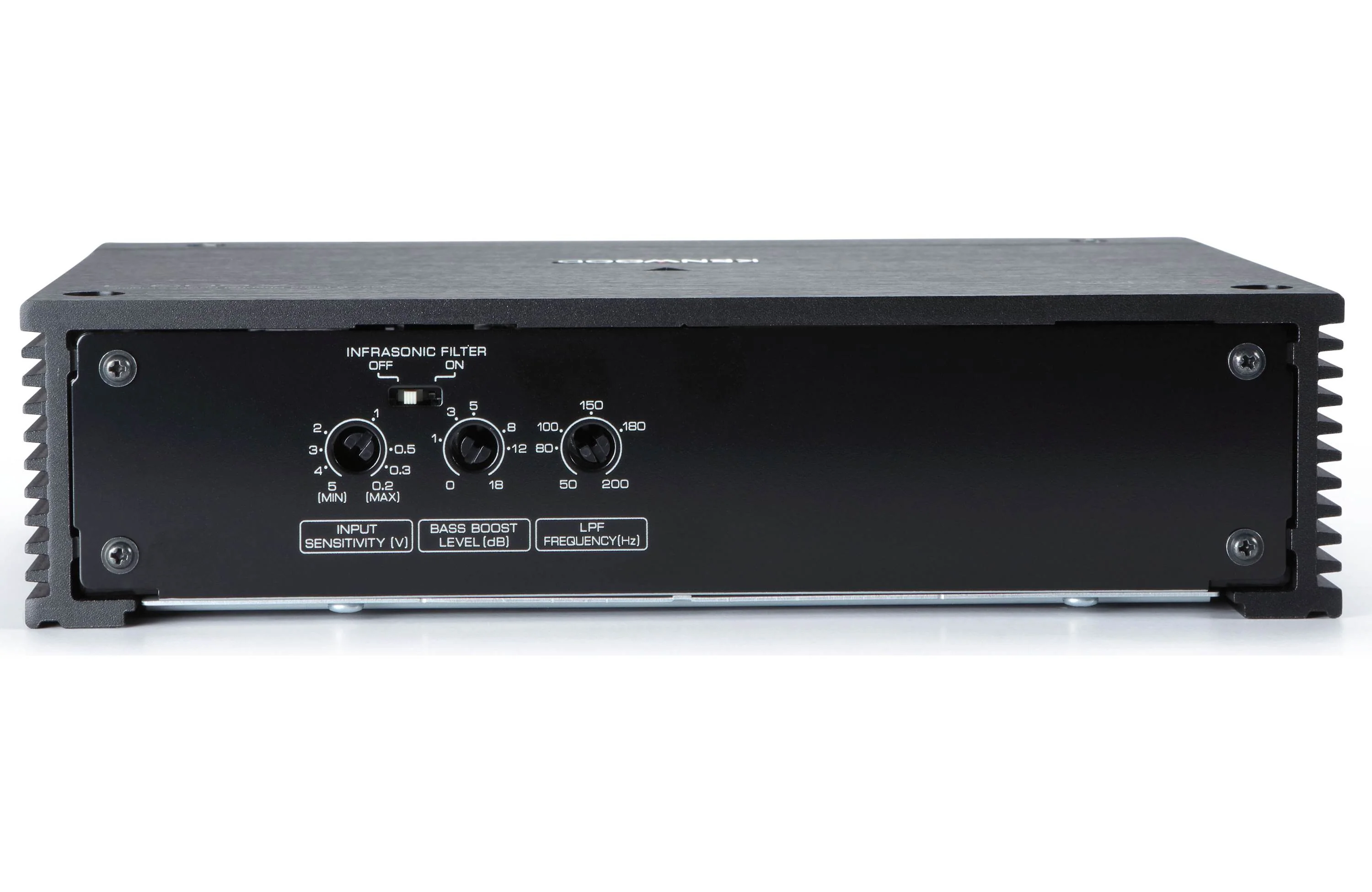

Infrasonic Filter (ISF)

When the Infrasonic Filter Switch is turned on, the amplifier cuts off the low frequencies below 25Hz, which makes the amplifier’s power supply and output devices more efficient, providing clear bass output

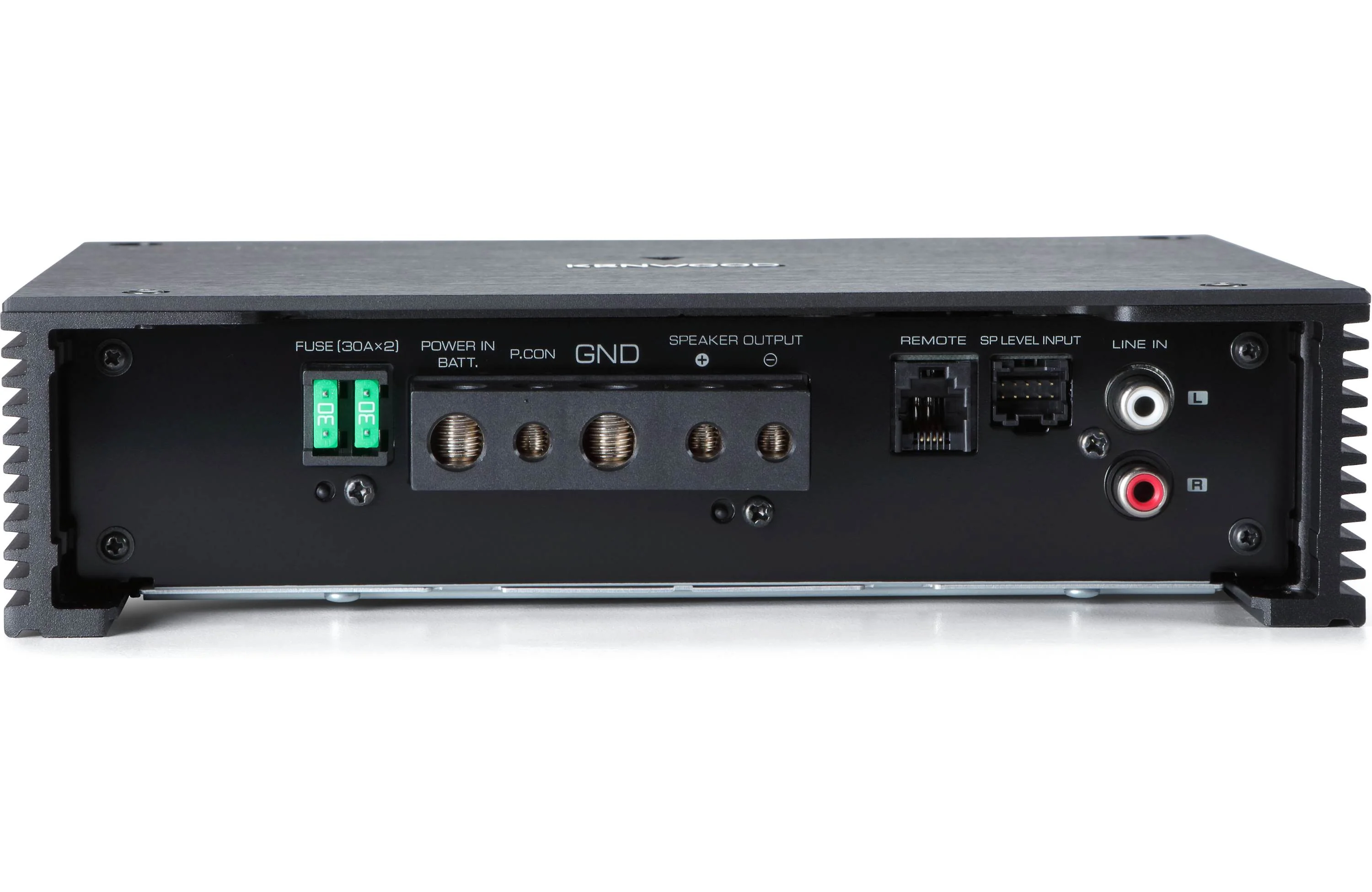

One-side Connection

All terminals and connections are on one side for easier installation and a cleaner look.

Speaker Level Input Harness

Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.

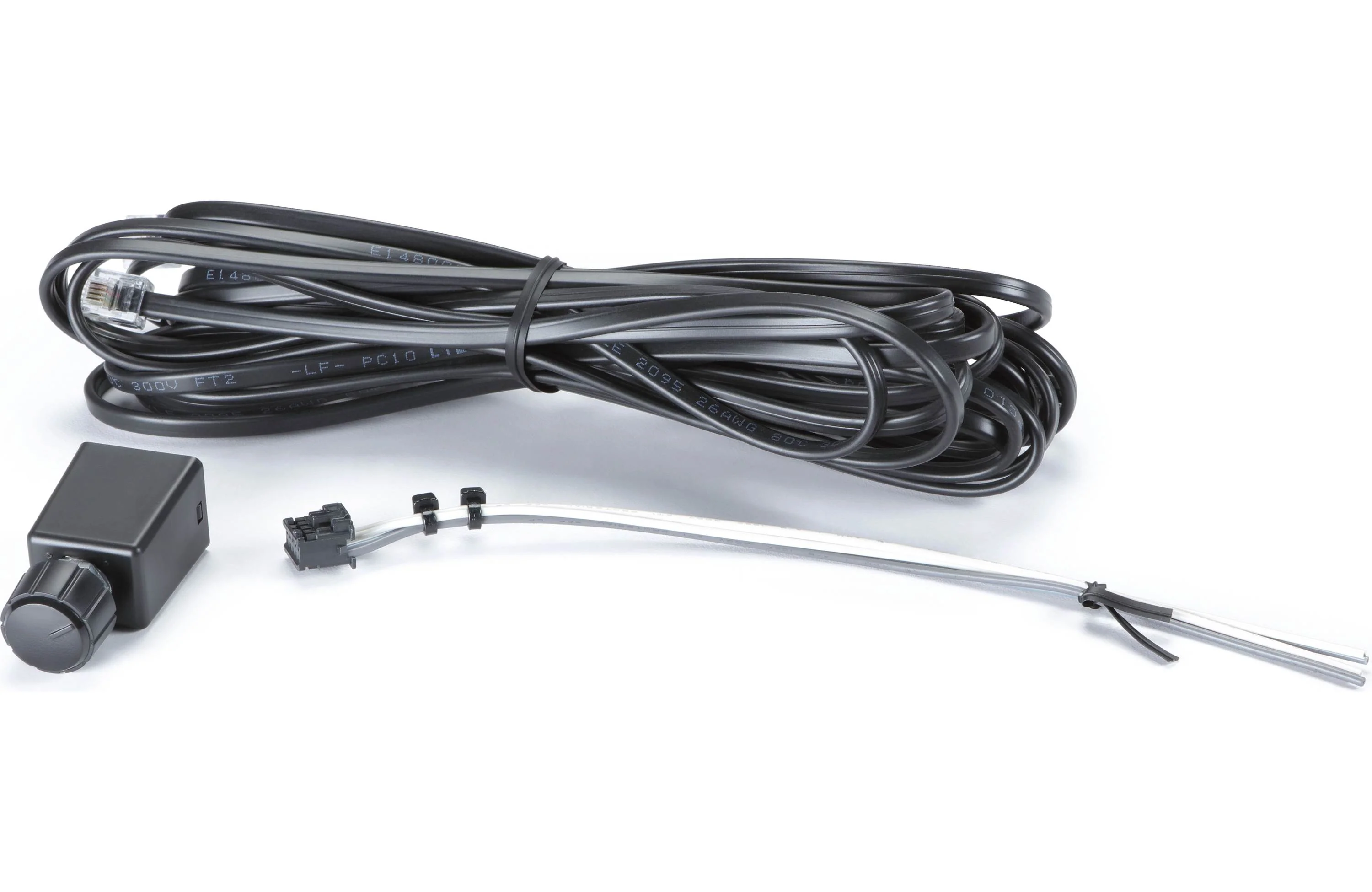

Wired Level Control Included

The wired remote level control allows you to easily adjust the subwoofer volume.

Specs

MAX POWER 1000W
RMS POWER OUTPUT (4Ω) 300W
RMS POWER OUTPUT (2Ω) 500W
RMS POWER OUTPUT Bridged -

Features:
Speaker Level Input
Signal Sensing Turn-On
Variable High Pass Filter
Variable Low Pass Filter
Bass Boost
Wired Remote Included

Dimensions: (W)8-3/8” x (H)2-1/16” x (D)5-7/8”
Weight: 3.3lbs (1.5kg)
