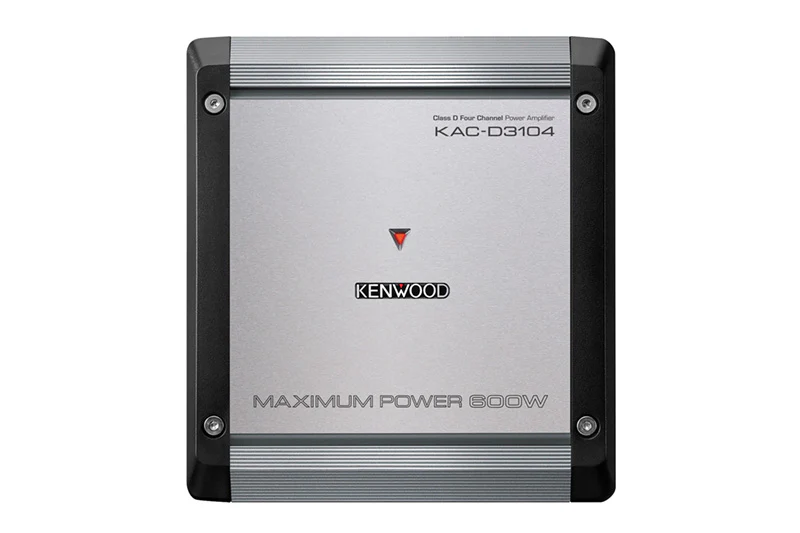

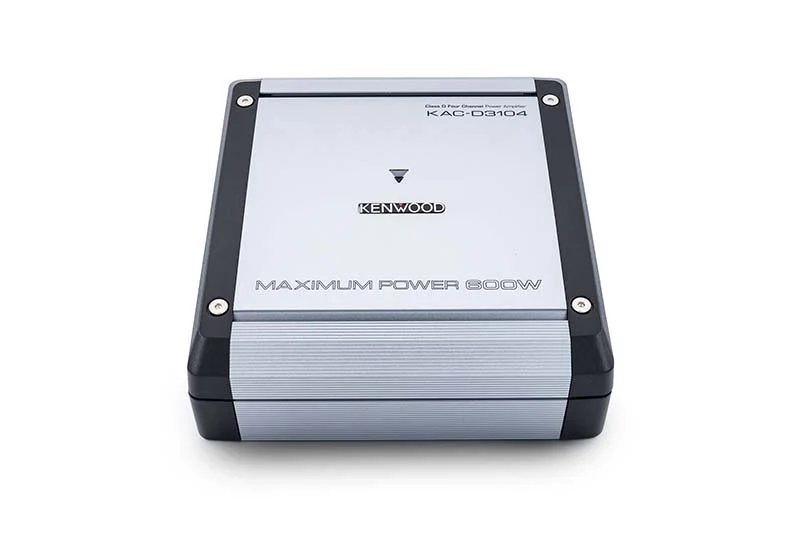

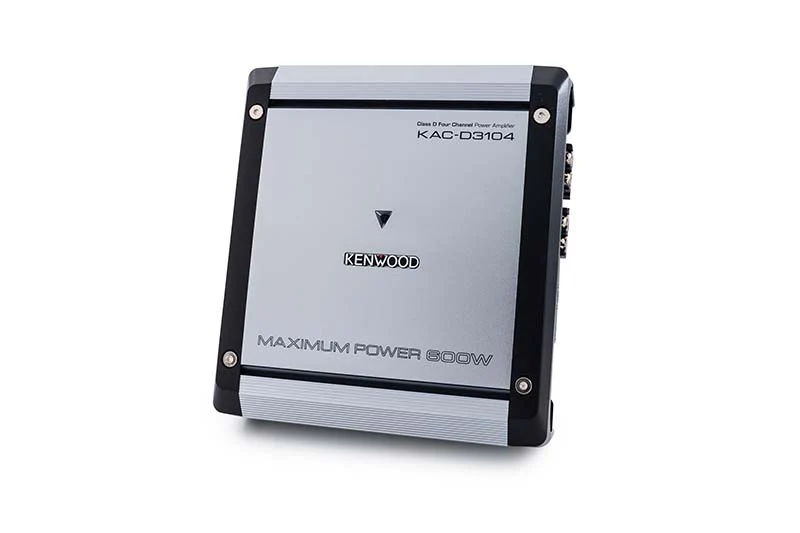

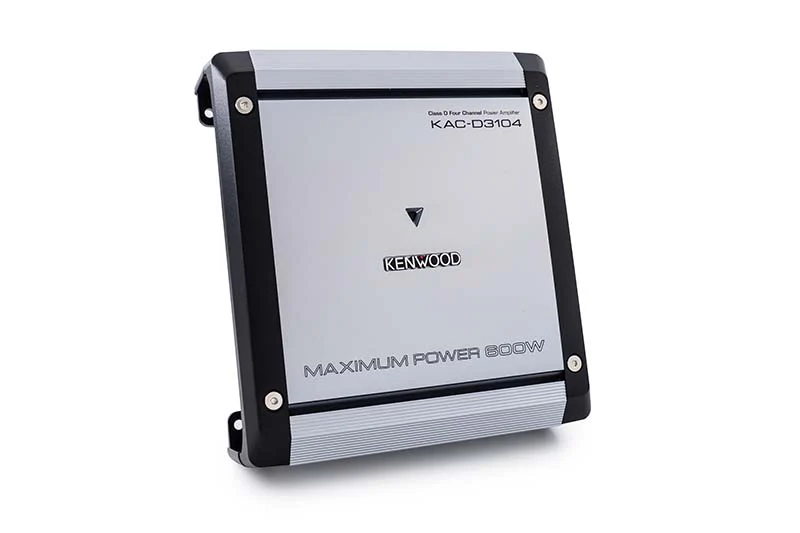

Kenwood KAC-D3104 Class D 4 Channel Power Amplifier

• Max Power 600W
• RMS 50W x4 (4Ω)
• RMS 75W x4 (2Ω)
• Size (inch) (W) 6-11/16" x (H) 2-3/16" x (D) 7-3/8"
• Variable High & Low Pass Filter
• Bass Boost

Expanded Frequency Response
Supporting Hi-Res Audio, KAC-D3104 is ideal for high resolution audio playback as it features a frequency response that extends to 50kHz.

Dual Sigma Drive
This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.

Small Size Big Power
The KAC-D3104 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don't want to sacrifice cargo room or who prefer hidden installations.

Specs

MAX POWER    600W
RMS POWER OUTPUT (4Ω)    50W x 4
RMS POWER OUTPUT (2Ω)    75W x 4
RMS POWER OUTPUT Bridged    150W x 2 (Bridged)
Features    Speaker Level Input Signal Sensing Turn-On    Variable High Pass Filter  Variable Low Pass Filter Bass Boost
Dimensions    (W)6-11/16” x (H)2-3/16” x (D)7-3/8”
Weight        2.9 lbs ( 1.3kg)
