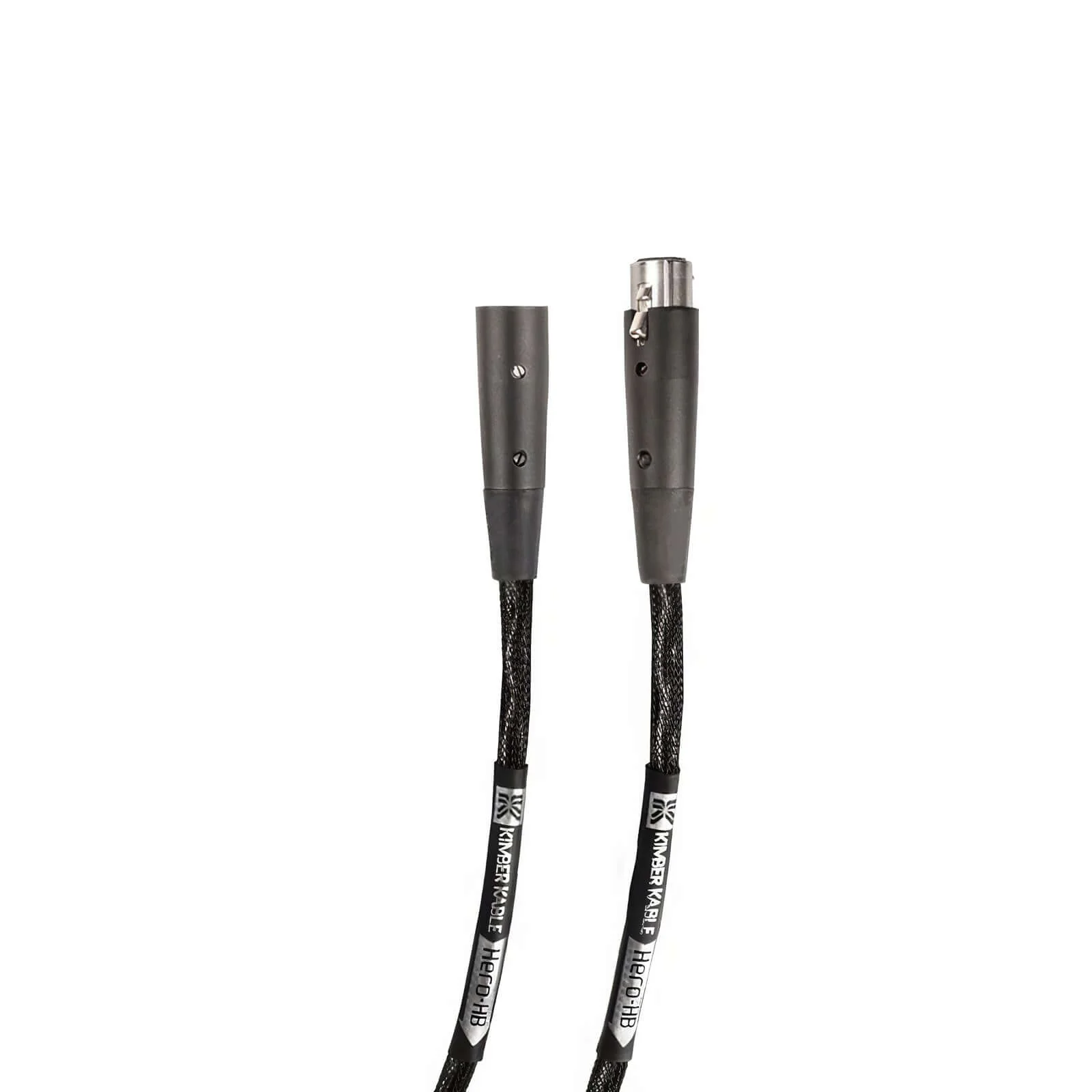

Kimber Kable Hero Interconnect Cable with Balanced XLR Connector

Kimber Kable Hero Interconnect Cable with Balanced XLR Connector

Kimber Kable Hero Interconnect Cable with Balanced XLR Connector

Made up of four 19AWG conductors insulated with virgin FEP dielectric. The HERO's four wire quadratic braid provides wide bandwidth and noise reduction without the use of shielding. The four-wire braided geometry also produces ideal results when used in a balanced system with XLR connections for additional immunity to noise and signal degradation. A balance between low capacitance and low to moderate series induction make HERO an ideal solution for low-level signals i.e interconnects.

Features



Single & dual layer low loss fluorocarbon dielectric
4 wire braid
VariStrand copper conductors
Nitrogen assisted hand soldered termination
Specs

Connector Options


 Ultraplate Black
 WBT 0114 CU
 XLR

Electrical Specifications


Single Ended

(Cp) parallel capacitance: 78 pF / meter
(Ls) series inductance: 0.385 uH / meter
(Rdc) dc loop resistance: 0.037 Ohm / meter

Balanced

(Cp) parallel capacitance: 33.1 pF / meter
(Ls) series inductance: 1.13 uH / meter
(Rdc) dc loop resistance: 0.081 Ohm / meter

Select Size
From $44.27

Original: $126.50

-65%
Kimber Kable Hero Interconnect Cable with Balanced XLR Connector

$126.50

$44.27

Product Information

Shipping & Returns

Description

Kimber Kable Hero Interconnect Cable with Balanced XLR Connector

Made up of four 19AWG conductors insulated with virgin FEP dielectric. The HERO's four wire quadratic braid provides wide bandwidth and noise reduction without the use of shielding. The four-wire braided geometry also produces ideal results when used in a balanced system with XLR connections for additional immunity to noise and signal degradation. A balance between low capacitance and low to moderate series induction make HERO an ideal solution for low-level signals i.e interconnects.

Features



Single & dual layer low loss fluorocarbon dielectric
4 wire braid
VariStrand copper conductors
Nitrogen assisted hand soldered termination
Specs

Connector Options


 Ultraplate Black
 WBT 0114 CU
 XLR

Electrical Specifications


Single Ended

(Cp) parallel capacitance: 78 pF / meter
(Ls) series inductance: 0.385 uH / meter
(Rdc) dc loop resistance: 0.037 Ohm / meter

Balanced

(Cp) parallel capacitance: 33.1 pF / meter
(Ls) series inductance: 1.13 uH / meter
(Rdc) dc loop resistance: 0.081 Ohm / meter
