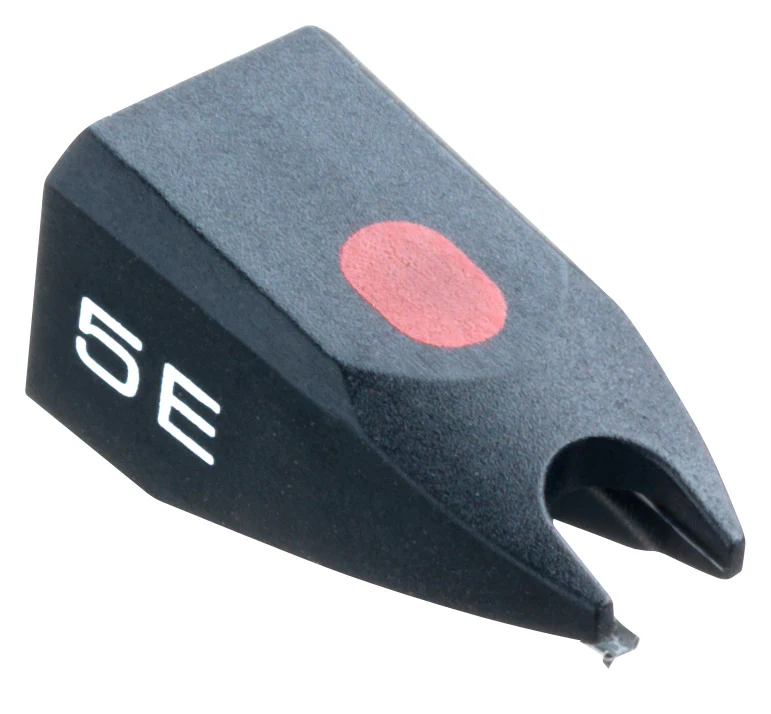

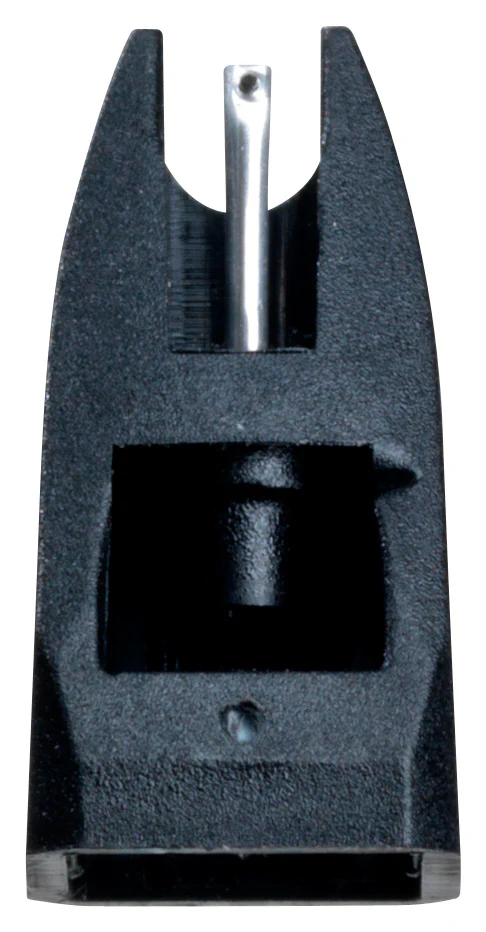

Ortofon Stylus 5E Replacement stylus for Super OM-5E
Technical specifications
Frequency range - 20-25.000 Hz
Frequency response - 20-25.000 Hz
Tracking ability at 315Hz at recommended tracking force *) - 65 m
Compliance, dynamic, lateral - 20 m/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 m
*) Typical value
Equivalent stylus tip mass - 0.5 mg
Tracking force range - 1.5-2.0 g (15-20 mN)
Tracking force, recommended - 1.75 g (17.5 mN)
Tracking angle - 20
Stylus colour - Black
Recommended for OM 5E, Super OM 5, OMP 5E, OMB 5E, OMT 5E
