Rockford Fosgate HD14-SBSUB Subwoofer Kit for Select 2014 and Up Harley Davidson Motorcycles

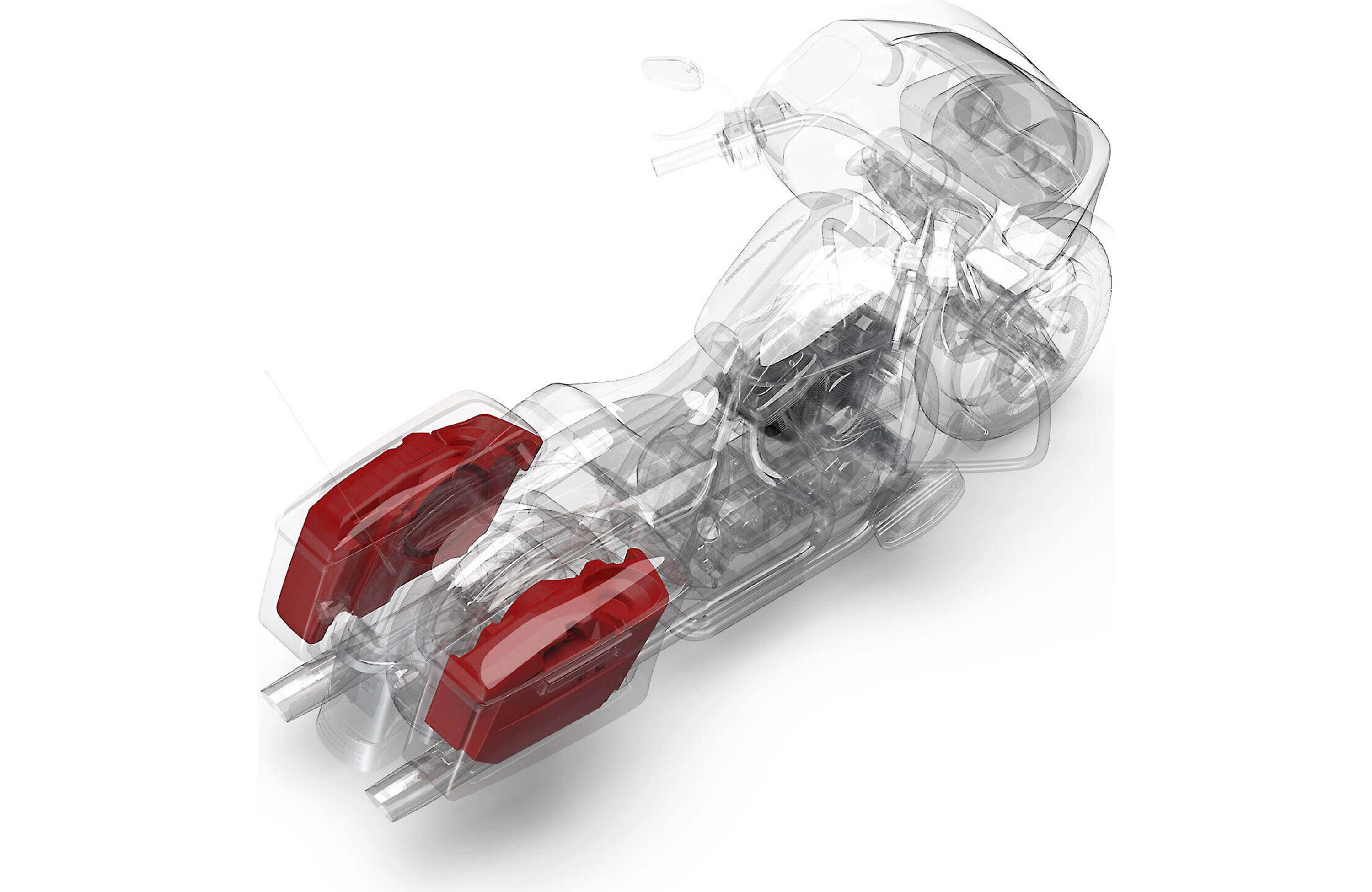

Next level performance with Rockford Fosgate's 800 Watt Dual 10" subwoofer system, purpose-built for 2014+ Harley-Davidson touring models.

Plug-and-Play Design: Designed to work right out of the box. The included wiring and cutting template make for easy installation, all to ensure less time in the garage and more time out riding.

Full Throttle Bass Output: Finally, bass for your bike. The dual 10” subwoofers and enclosures were purpose built for the motorcycle environment and deliver that on-road audio experience you’ve been waiting for, even at freeway speeds.

Flexible Bass System: Sound when you want it, space when you need it. This patent pending design allows you to remove one or both subwoofers easily with no tools. So, if you need your bags for a long ride, this flexible system allows for just that.

Rockford Motorcycle Ecosystem: Everything was purpose-built to seamlessly work with your existing Rockford Fosgate Harley-Davidson system. With a few simple connections this dual bass system integrates flawlessly.

Compatibility Chart: Refer to our compatibility chart to verify system requirements and fitment before purchasing.

Specs

Woofer Qty 2
Woofer Size 10"
Woofer Series 1465-73499-C1
Nominal Impedance 4Ω (2Ω DVC wired in series)
(creates 4Ω bridged amp load)
Power Handling 300 Watts RMS
1200 Watts Peak
Enclosure Type Sealed
Enclosure Material Rotomolded HDPE
Speaker Connector 2-pin Deutsch™/Amphenol™
Frequency Response 20 Hz – 750 Hz
Total Power 800 Watts
Amplifier Type Class-AD
Grille/Trim Ring Included Yes
Fuse Type ATC
Fuse 40 A
Mounting Hardware Yes

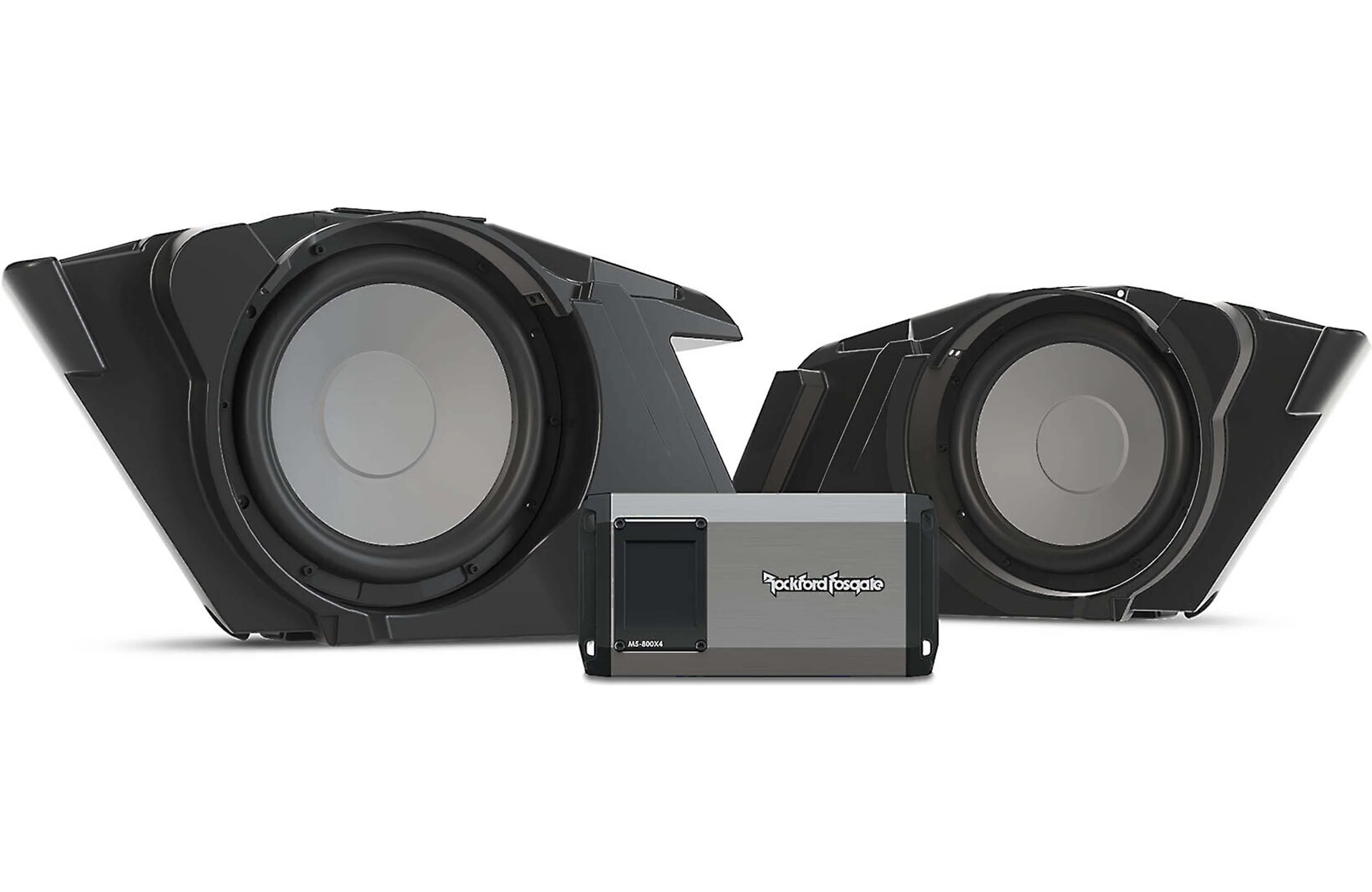

Included In The Box(2) M1D2-10B subwoofers

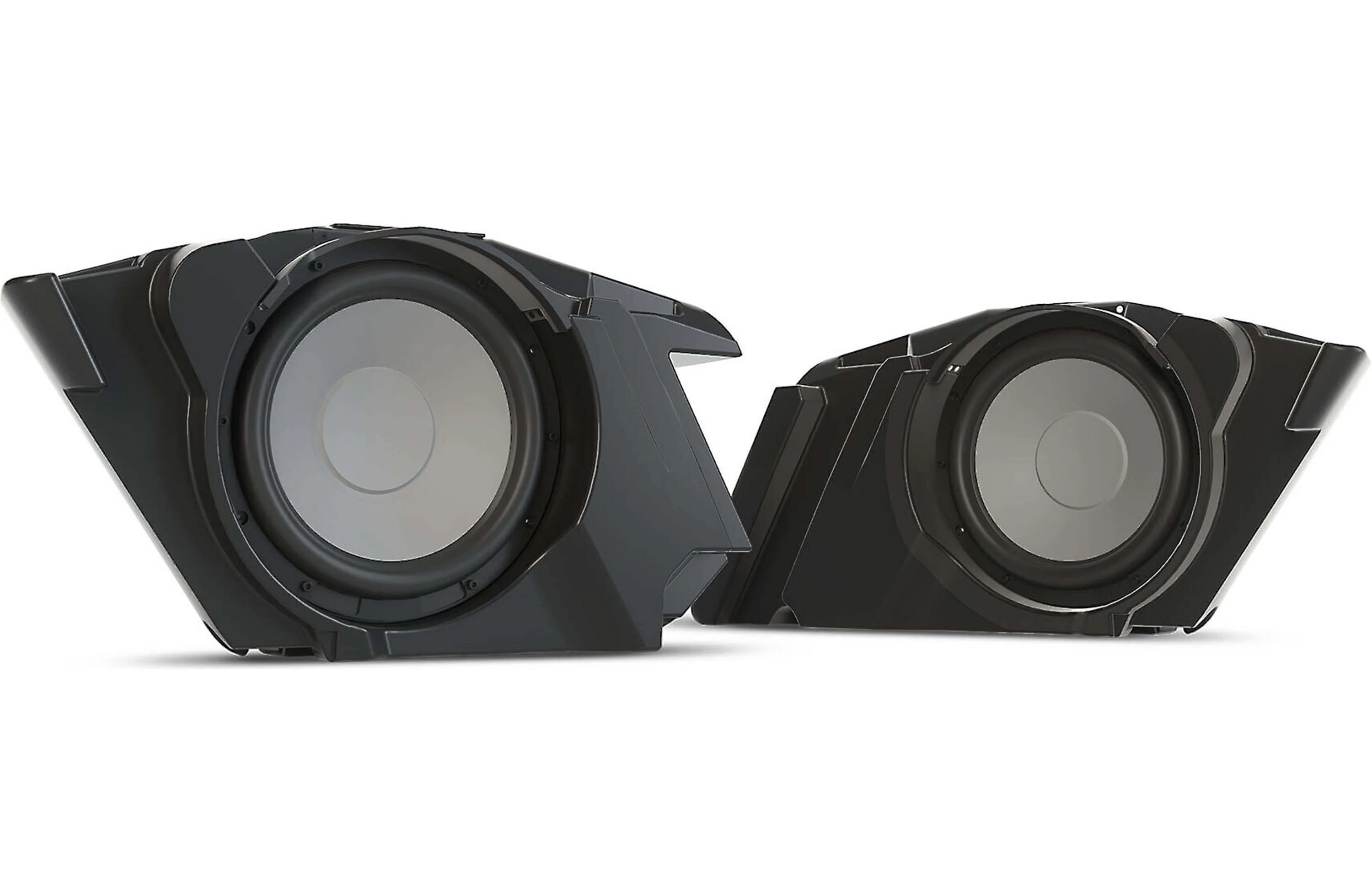

(2) Subwoofer enclosures

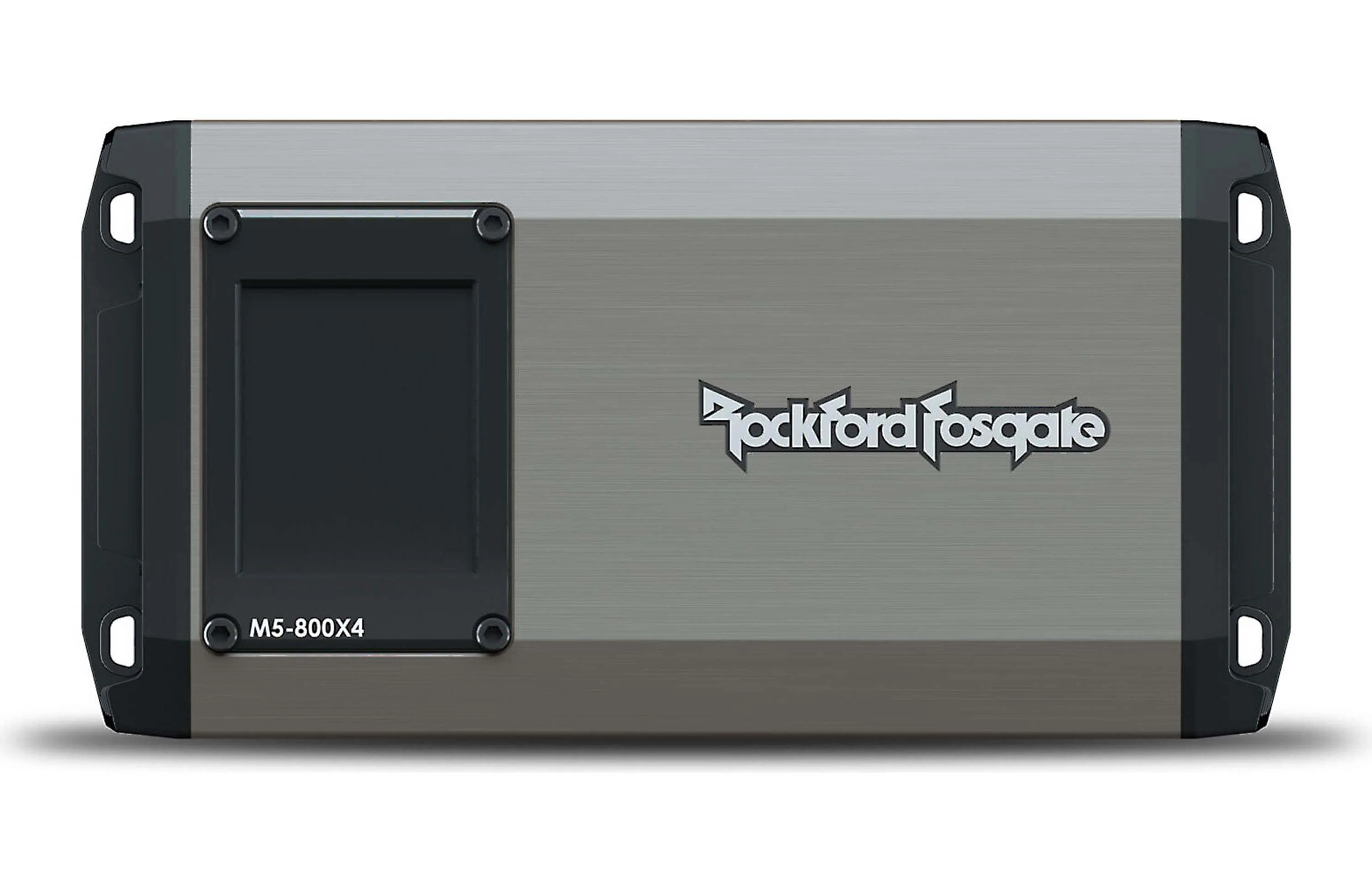

(1) M5-800X4 amplifier
(1) Wiring kit
(2) Cutting templates
(1) Amp mounting plate
(1) 1130-75394-C1 AP Pack (details below):

- (12) Nylon zip ties 8 in
- (8) Phillips screws M3 x 0.5 x 12 mm
- (1) Hole saw OD 45 mm
- (4) Washers OD 9 x ID 3.2 x T0.8
- (4) Hex screws 3/16 in, 5/16-18 thread, 1.25 in
- (4) Clip 5/16-18 thread
- (2) Screw M3 x 0.5, 5 mm
- (8) Screw thread cutting ST3.0, 6 mm
- (2) Nylon plug ID 0.75 in
- (2) Hex nut M3 x 0.5
- (8) Phillips screw #8 x 0.75 in.
- (1) Hex wrench 3/16 in
- (2) Alcohol wipe

Dimensions H 15.5 x W 21.5 x D 30 (shipping dims)
Shipping Weight 46 Lbs. (20.87 Kg)
