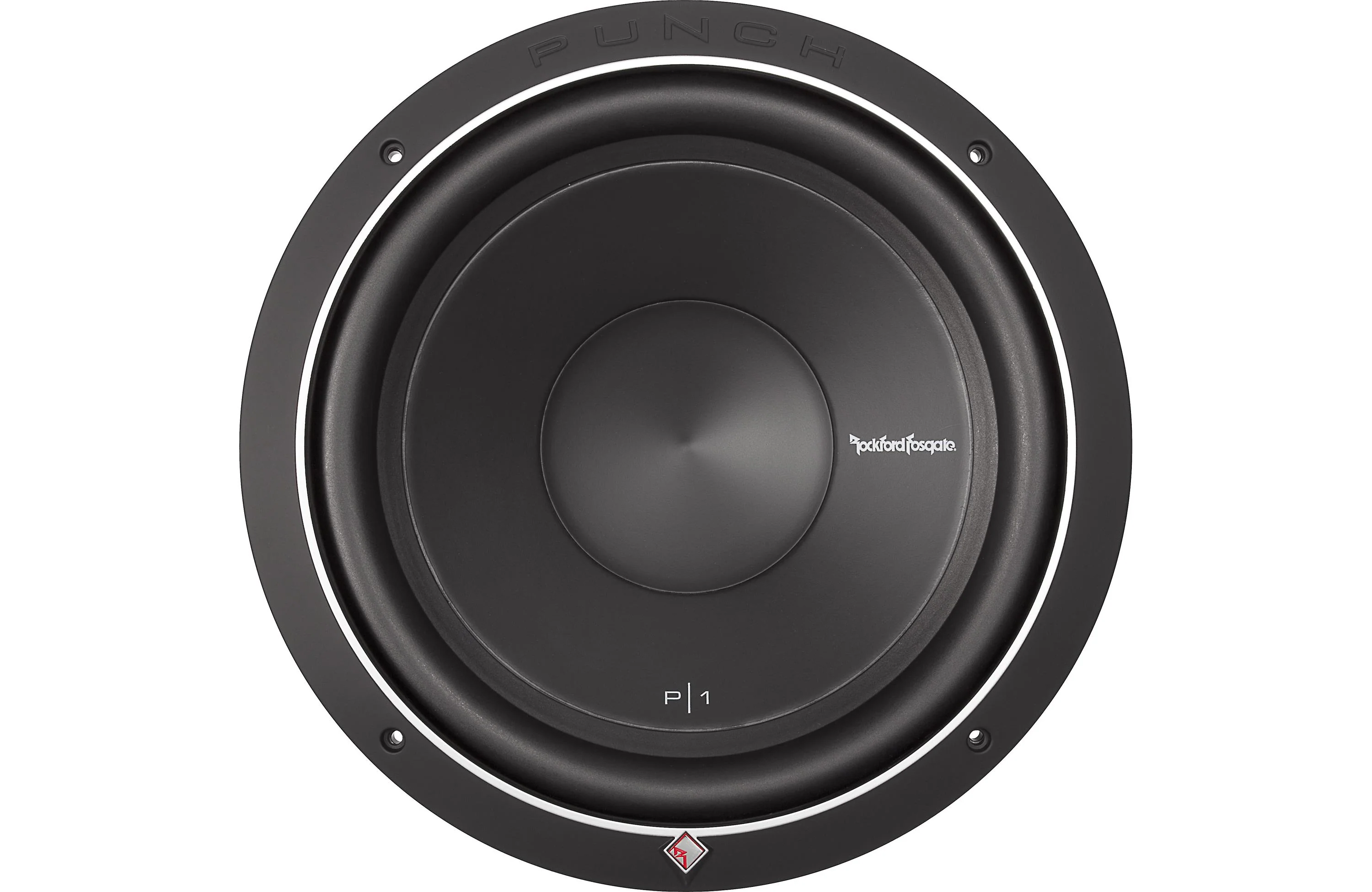

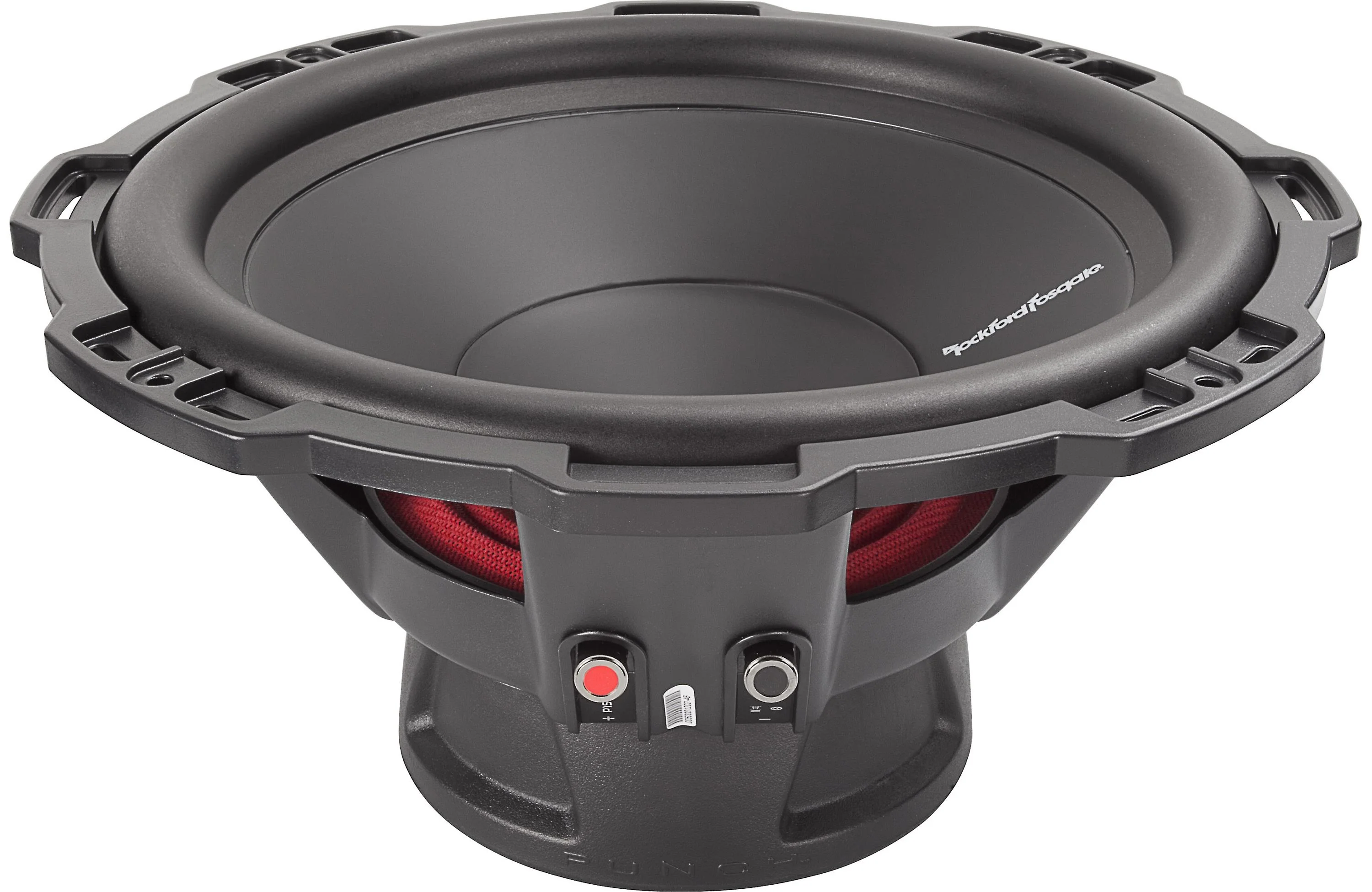

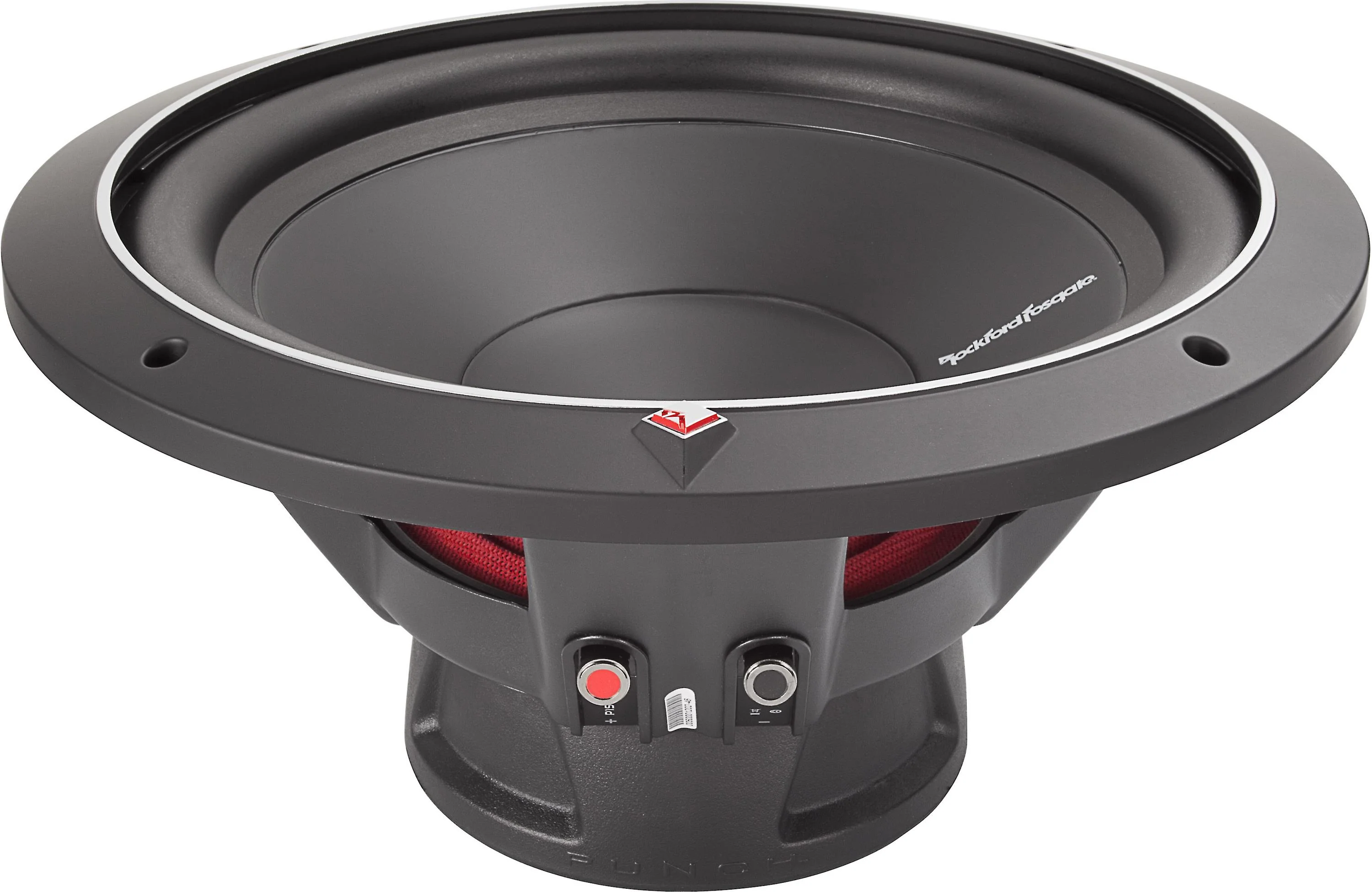

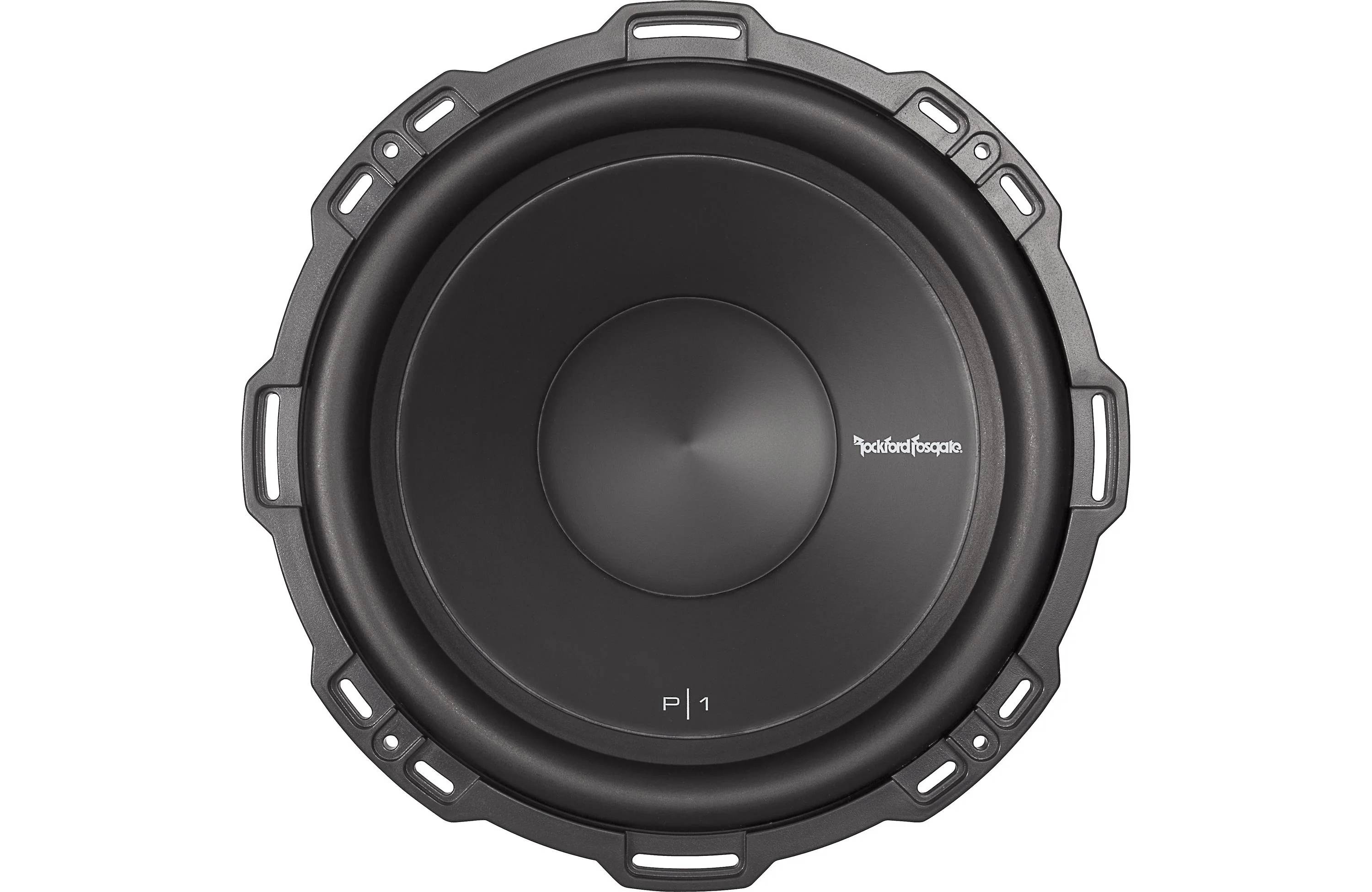

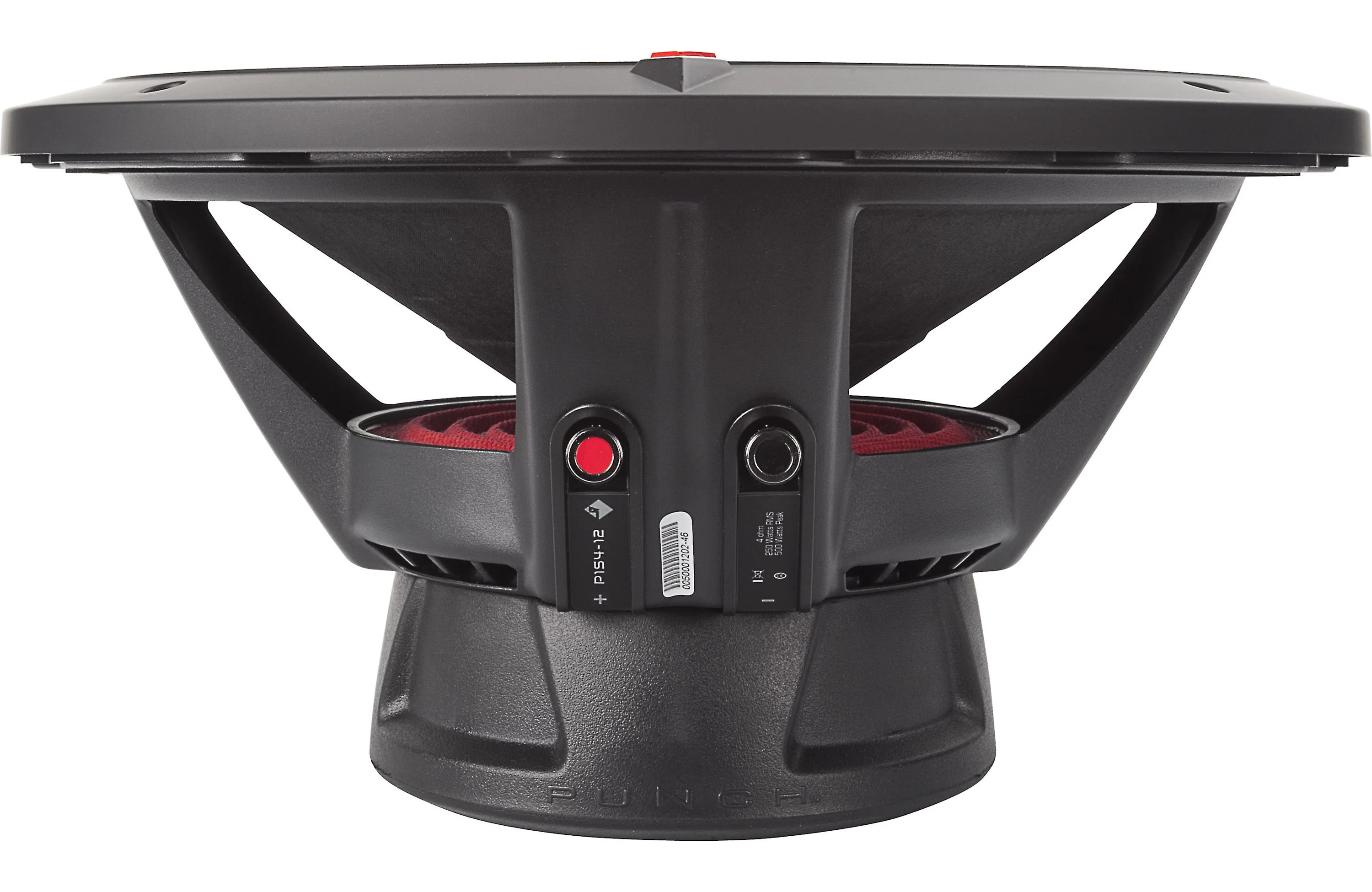

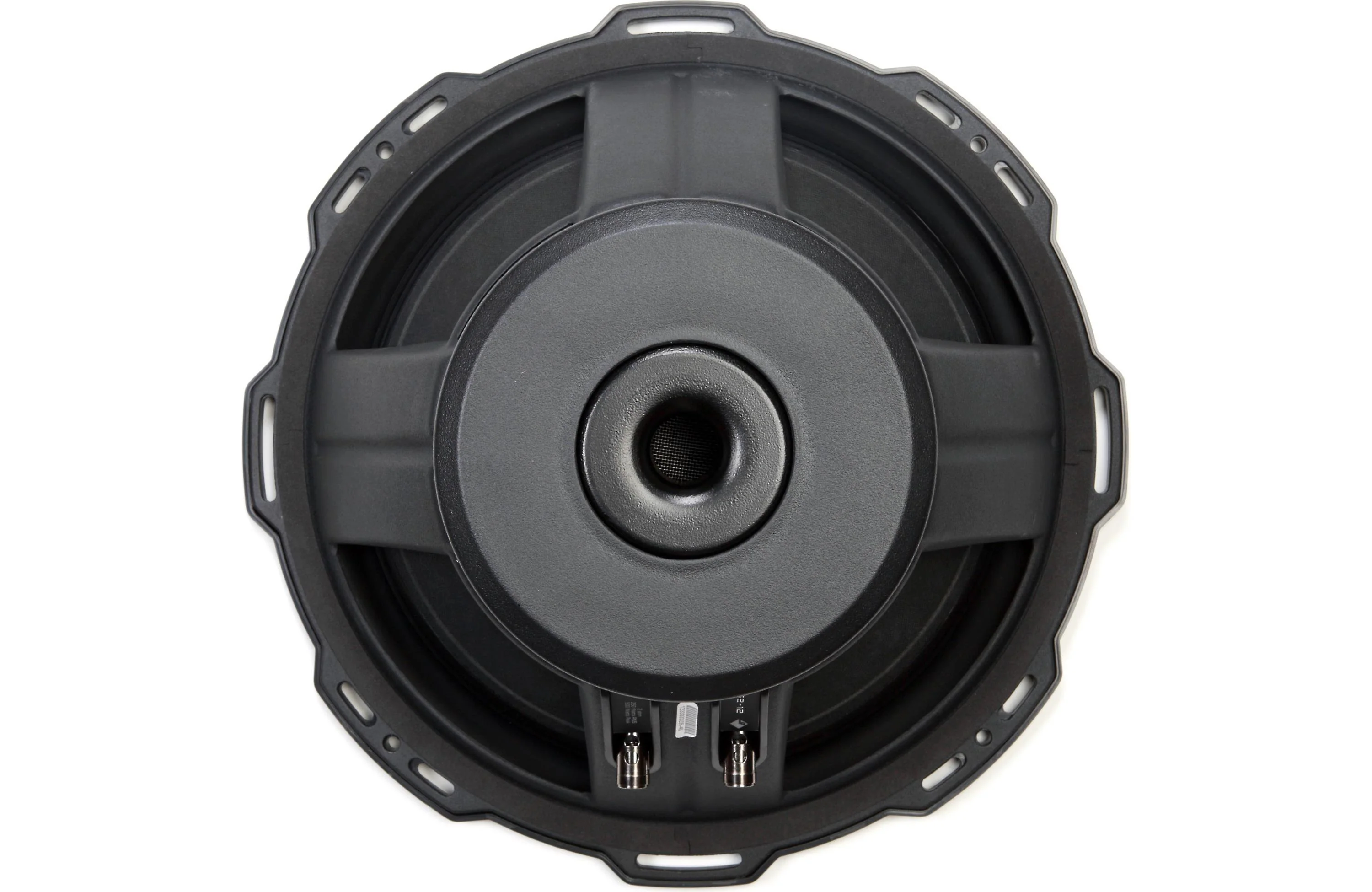

Rockford Fosgate P1S2-12 Punch P1 12" SVC 2 Ohm Subwoofer
Rockford Fosgate P1 12" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.
FEATURES AT A GLANCE
- 1 Year Warranty
- Kevlar fiber reinforced paper cone
- StampCast basket with integrated spider venting
- Rubberized ABS trim ring with optional grille
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Linear spider with embedded 16 AWG tinsel leads
- Extended pole piece and bumped vented backplate
- Custom 10-AWG nickel plated push terminals
- Protective PVC textured magnet cover
Specs
Size 12-inch
Impedance (Ohms) 2
Cone Material Kevlar reinforced paper
Surround Material NBR
Basket Material Steel
Grille None included
Free-Air No
Dual Voice Coil No
Sensitivity 86 dB at 1 watt
Frequency Response 20 - 250 Hz
Max RMS Power Handling 250
Peak Power Handling (Watts) 500
Top Mount Depth (inches) 6
Bottom Mount Depth (inches) N/A
Cutout Diameter or Length (inches) 11 1/16
Frame Width 13.052
Frame Length 13.052
Vas (liters) 88.3
Fs (Hz) 25
Qts 0.55
Xmax (millimeters) 9
