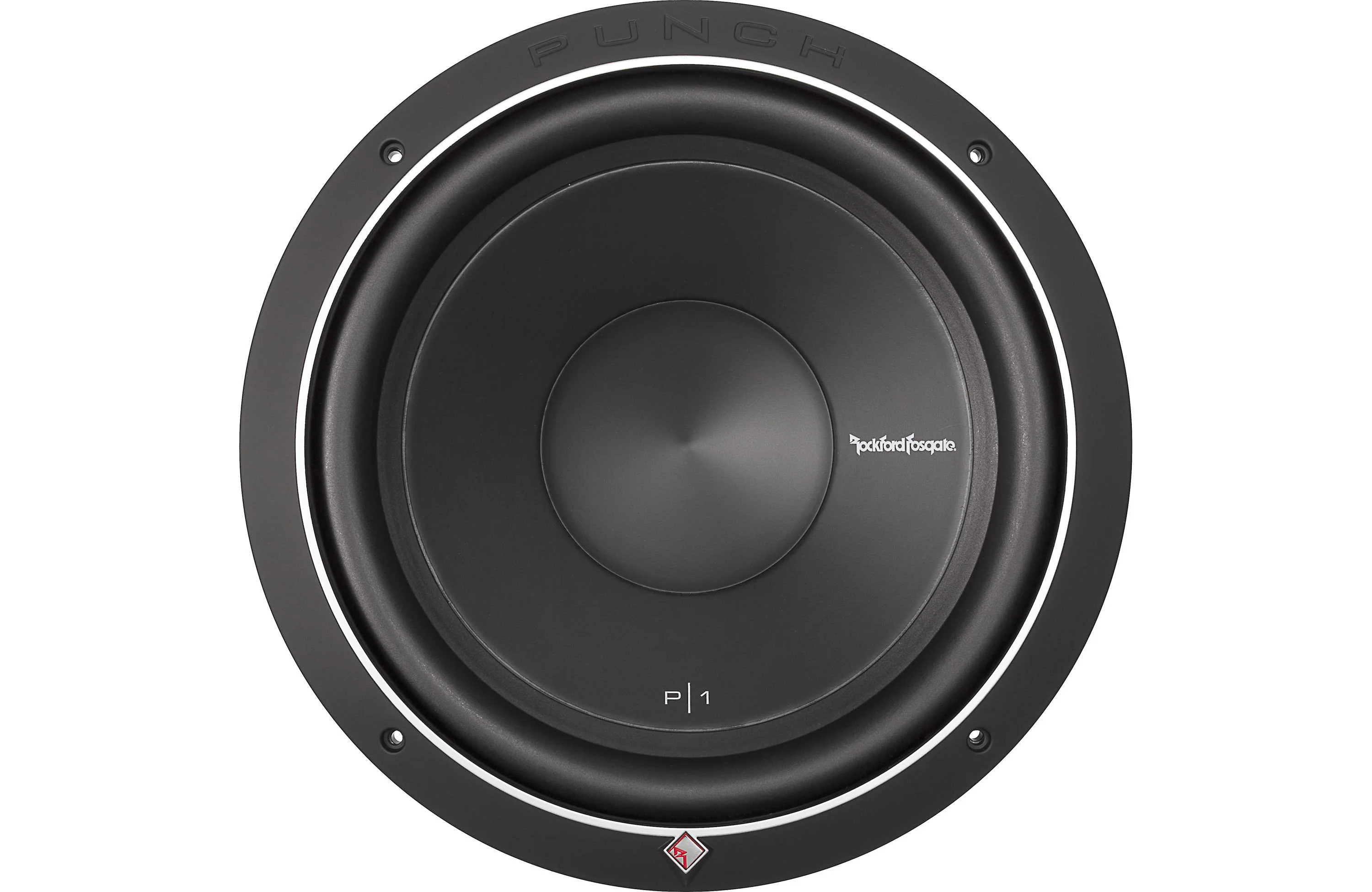

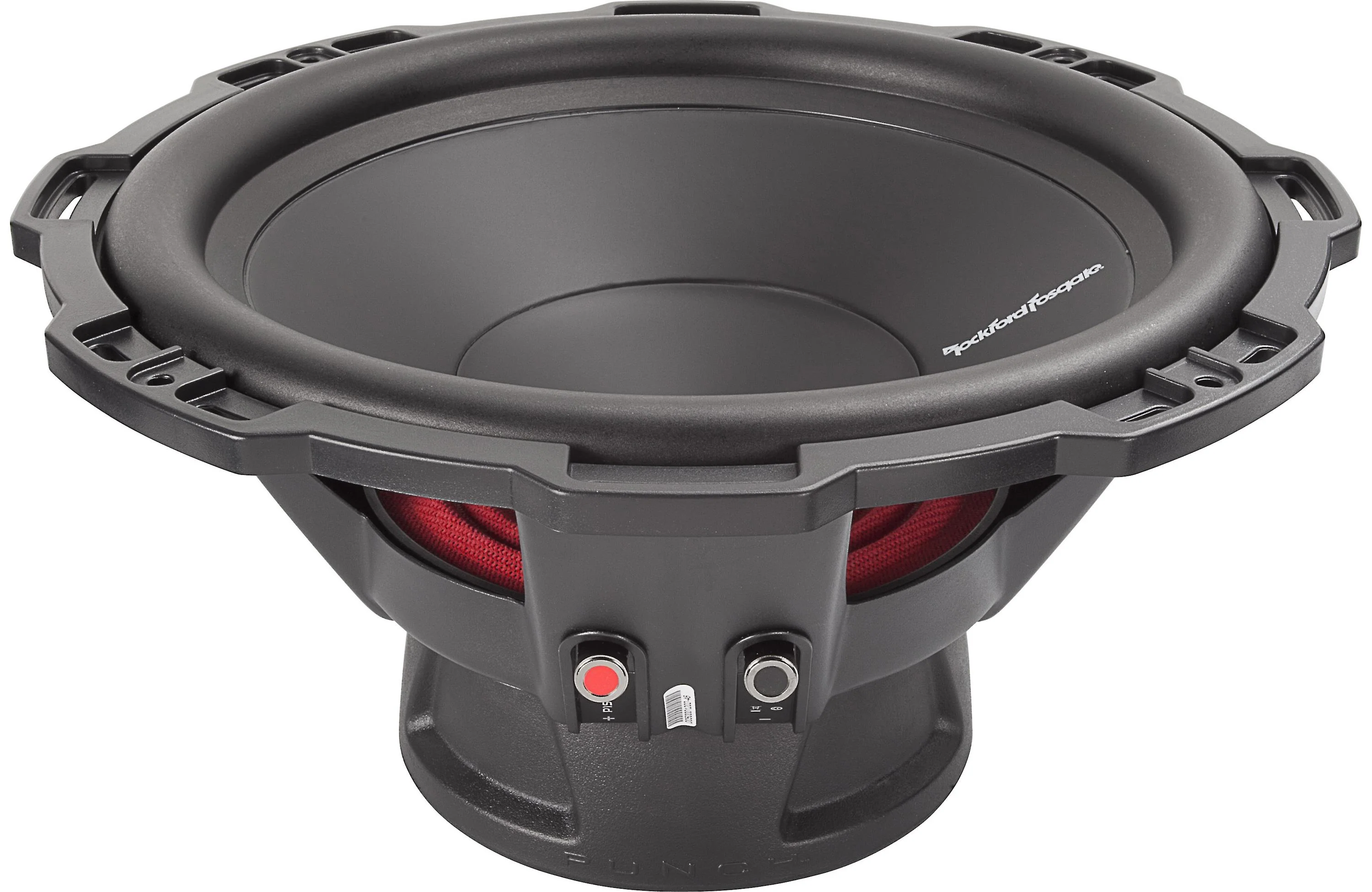

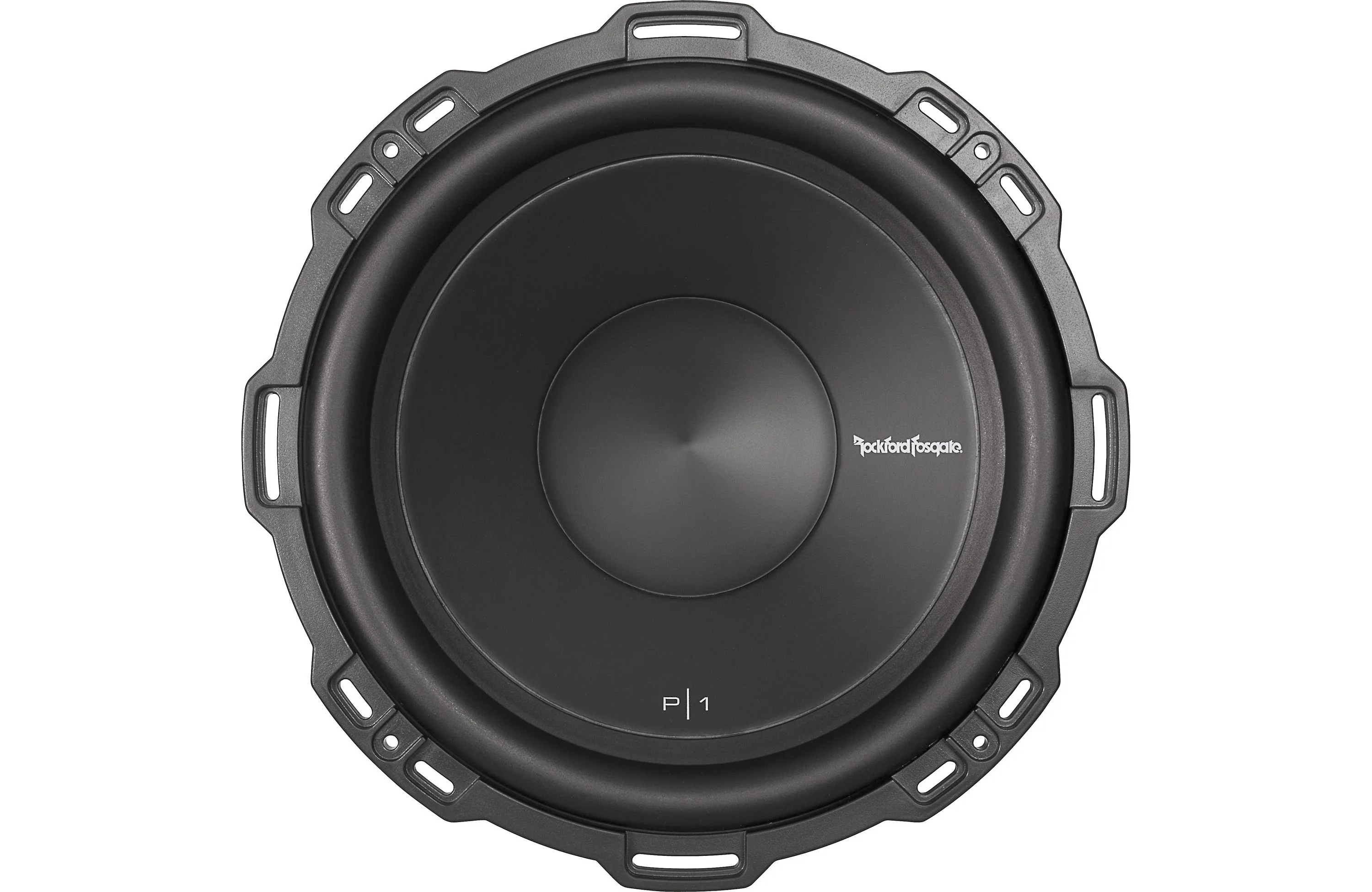

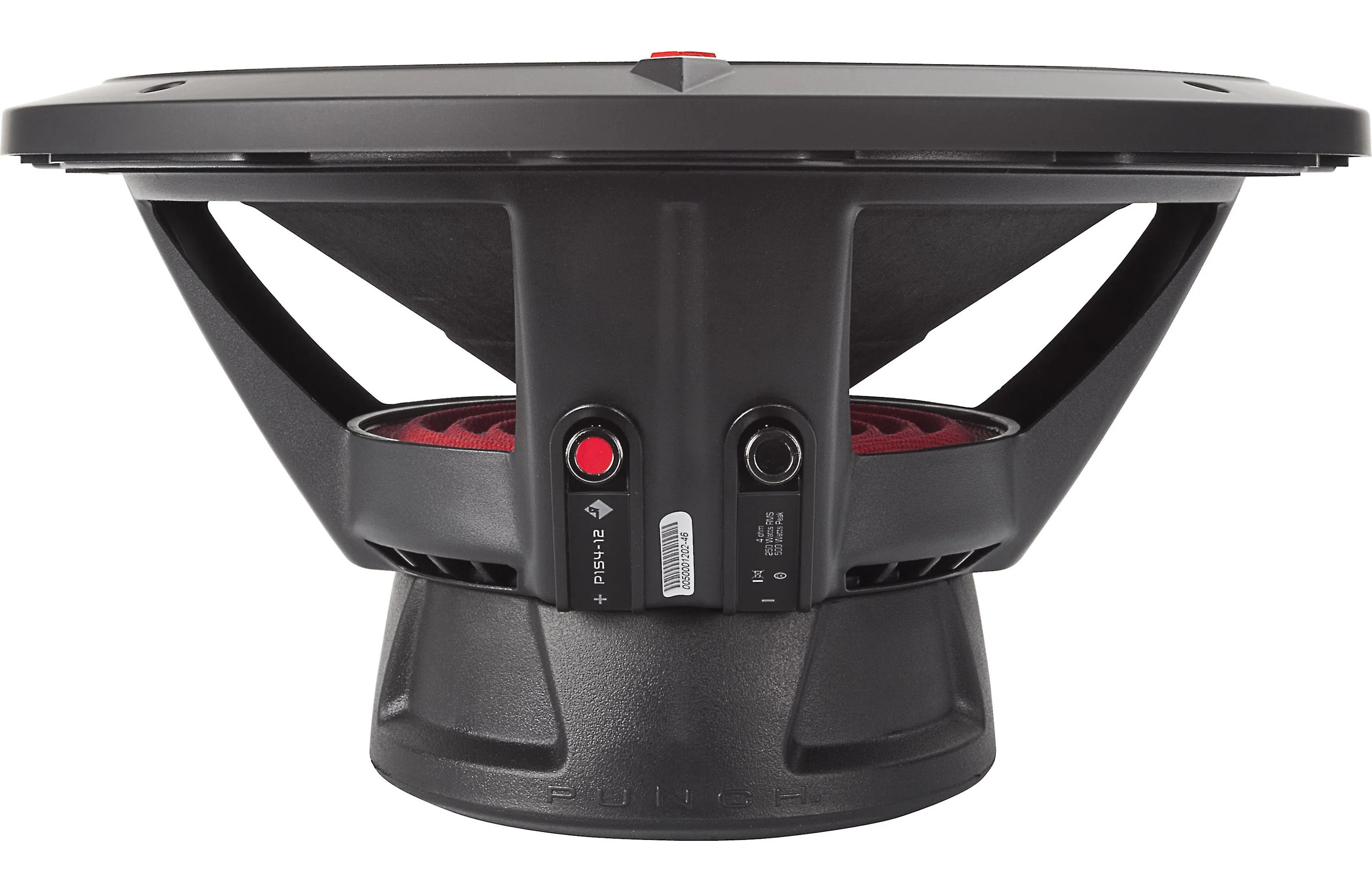

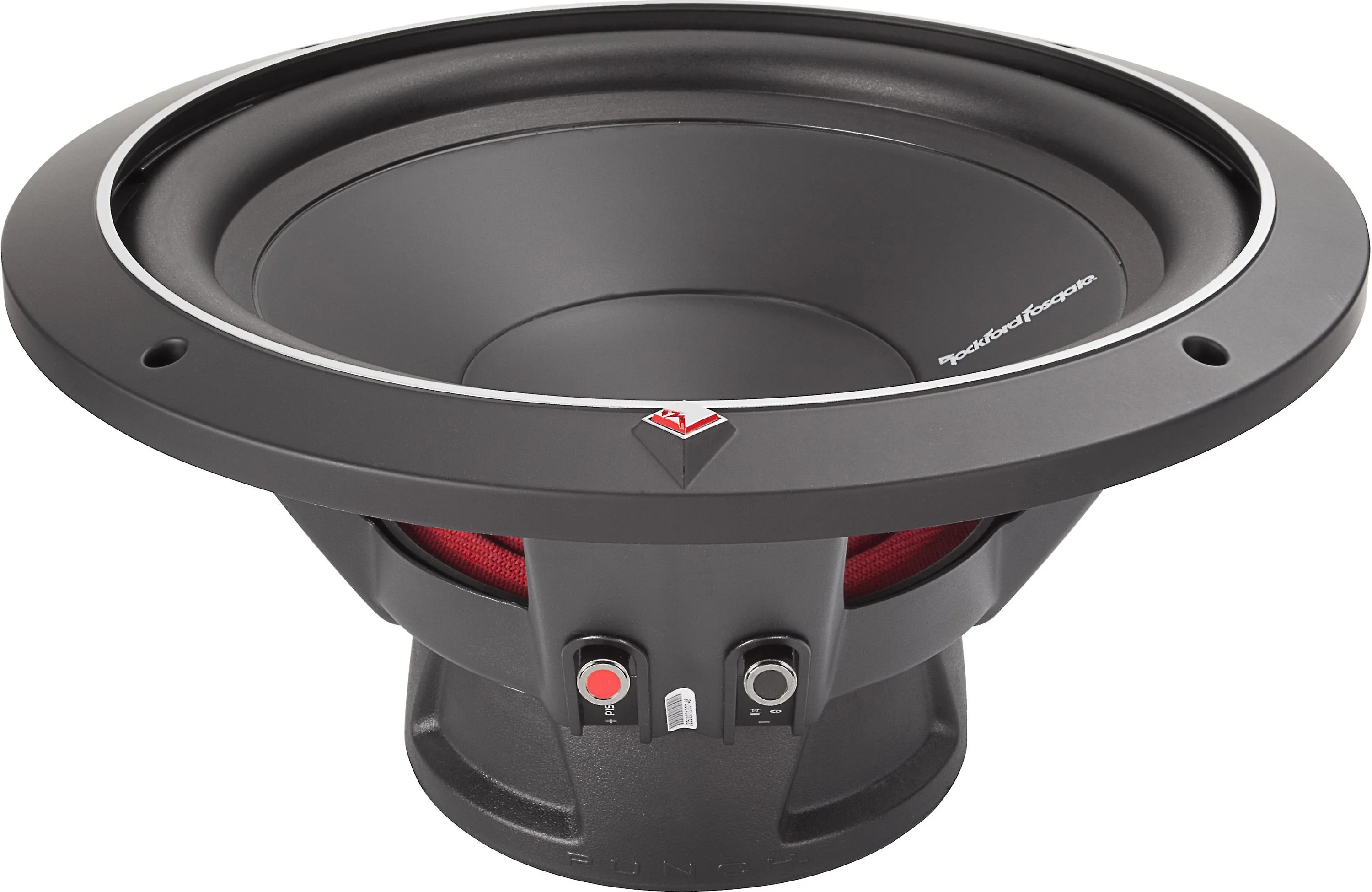

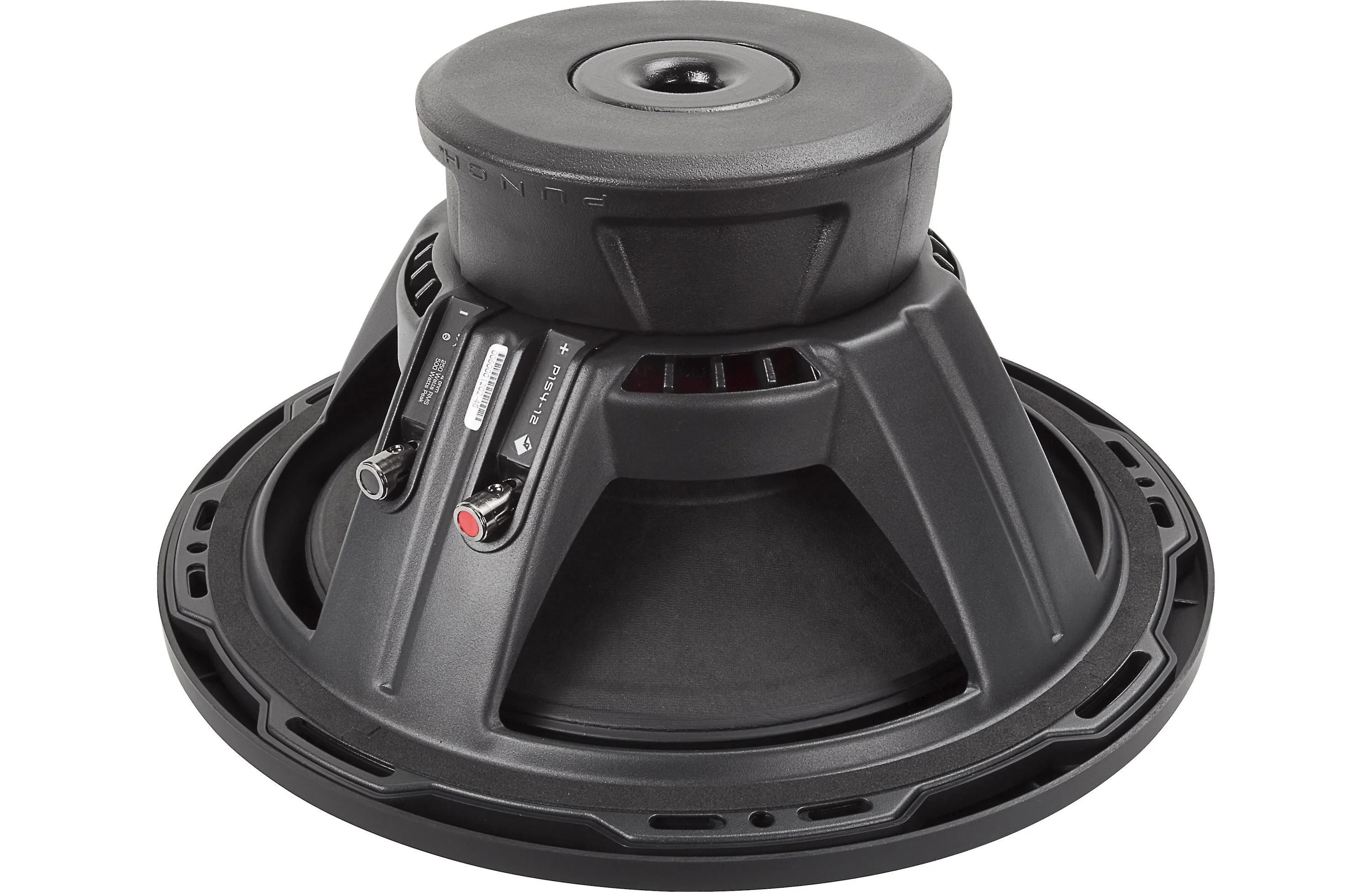

Rockford Fosgate P1S4-10 Punch P1 10" SVC 4 Ohm Subwoofer
Rockford Fosgate P1 10" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.
FEATURES AT A GLANCE
- Kevlar fiber reinforced paper cone
- StampCast basket with integrated spider venting
- Rubberized ABS trim ring with optional grille
- Custom 10-AWG nickel plated push terminals
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Linear spider with embedded 16 AWG tinsel leads
- Extended pole piece and bumped vented backplate
- 1 Year Warranty
- Protective PVC textured magnet cover
Specs
Size 10-inch
Impedance (Ohms) 4
Cone Material Kevlar reinforced paper
Surround Material NBR
Basket Material Steel
Grille None included
Free-Air No
Dual Voice Coil No
Sensitivity 85 dB at 1 watt
Frequency Response 30 - 250 Hz
Max RMS Power Handling 250
Peak Power Handling (Watts) 500
Top Mount Depth (inches) 5 5/16
Bottom Mount Depth (inches) N/A
Cutout Diameter or Length (inches) 8 15/16
Frame Width 11.06
Frame Length 11.06
Vas (liters) 40
Fs (Hz) 30
Qts 0.51
Xmax (millimeters) 7
Original: $119.99
-65%$119.99
$42.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Rockford Fosgate P1 10" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.
FEATURES AT A GLANCE
- Kevlar fiber reinforced paper cone
- StampCast basket with integrated spider venting
- Rubberized ABS trim ring with optional grille
- Custom 10-AWG nickel plated push terminals
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Linear spider with embedded 16 AWG tinsel leads
- Extended pole piece and bumped vented backplate
- 1 Year Warranty
- Protective PVC textured magnet cover
Specs
Size 10-inch
Impedance (Ohms) 4
Cone Material Kevlar reinforced paper
Surround Material NBR
Basket Material Steel
Grille None included
Free-Air No
Dual Voice Coil No
Sensitivity 85 dB at 1 watt
Frequency Response 30 - 250 Hz
Max RMS Power Handling 250
Peak Power Handling (Watts) 500
Top Mount Depth (inches) 5 5/16
Bottom Mount Depth (inches) N/A
Cutout Diameter or Length (inches) 8 15/16
Frame Width 11.06
Frame Length 11.06
Vas (liters) 40
Fs (Hz) 30
Qts 0.51
Xmax (millimeters) 7
