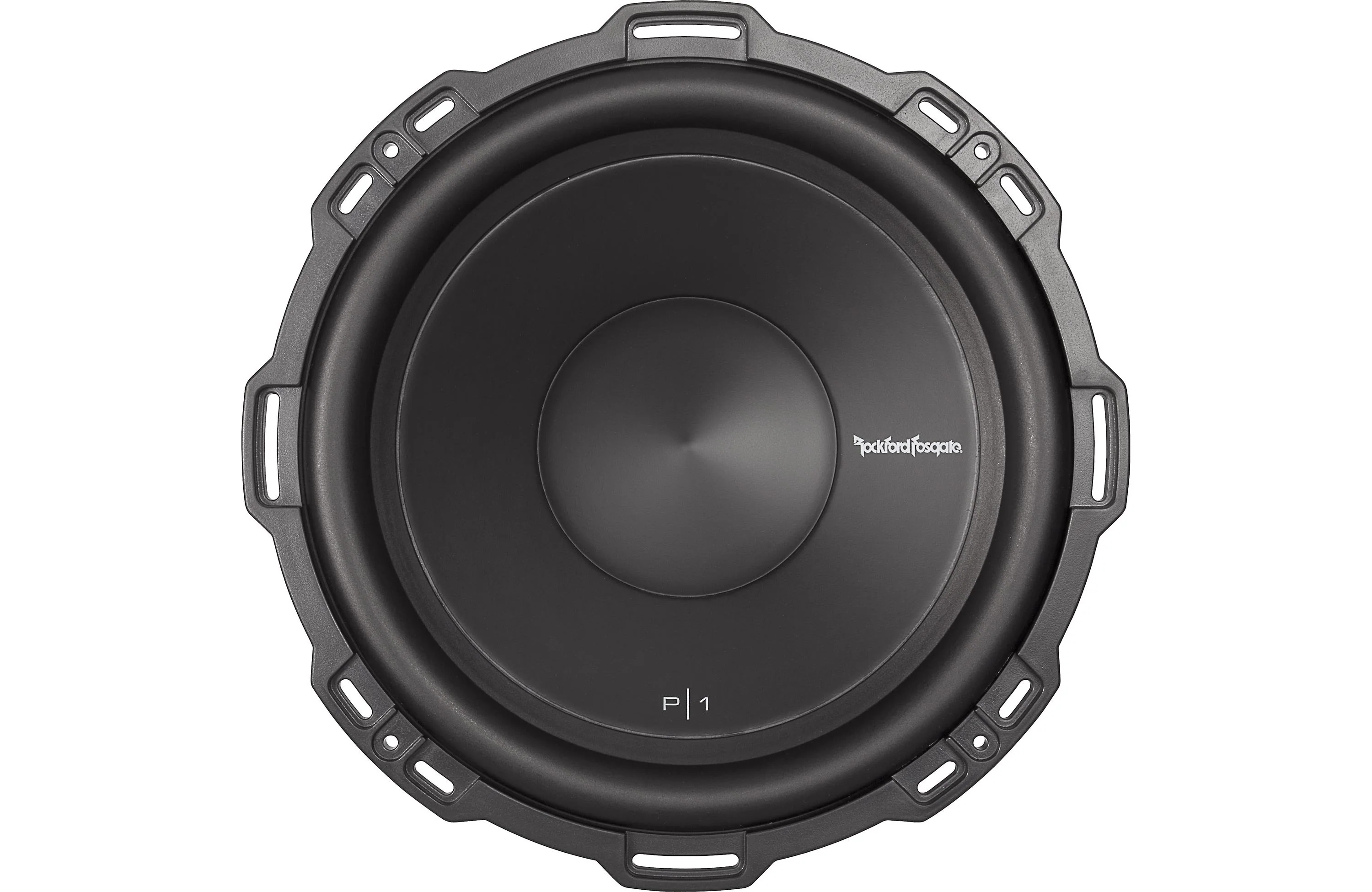

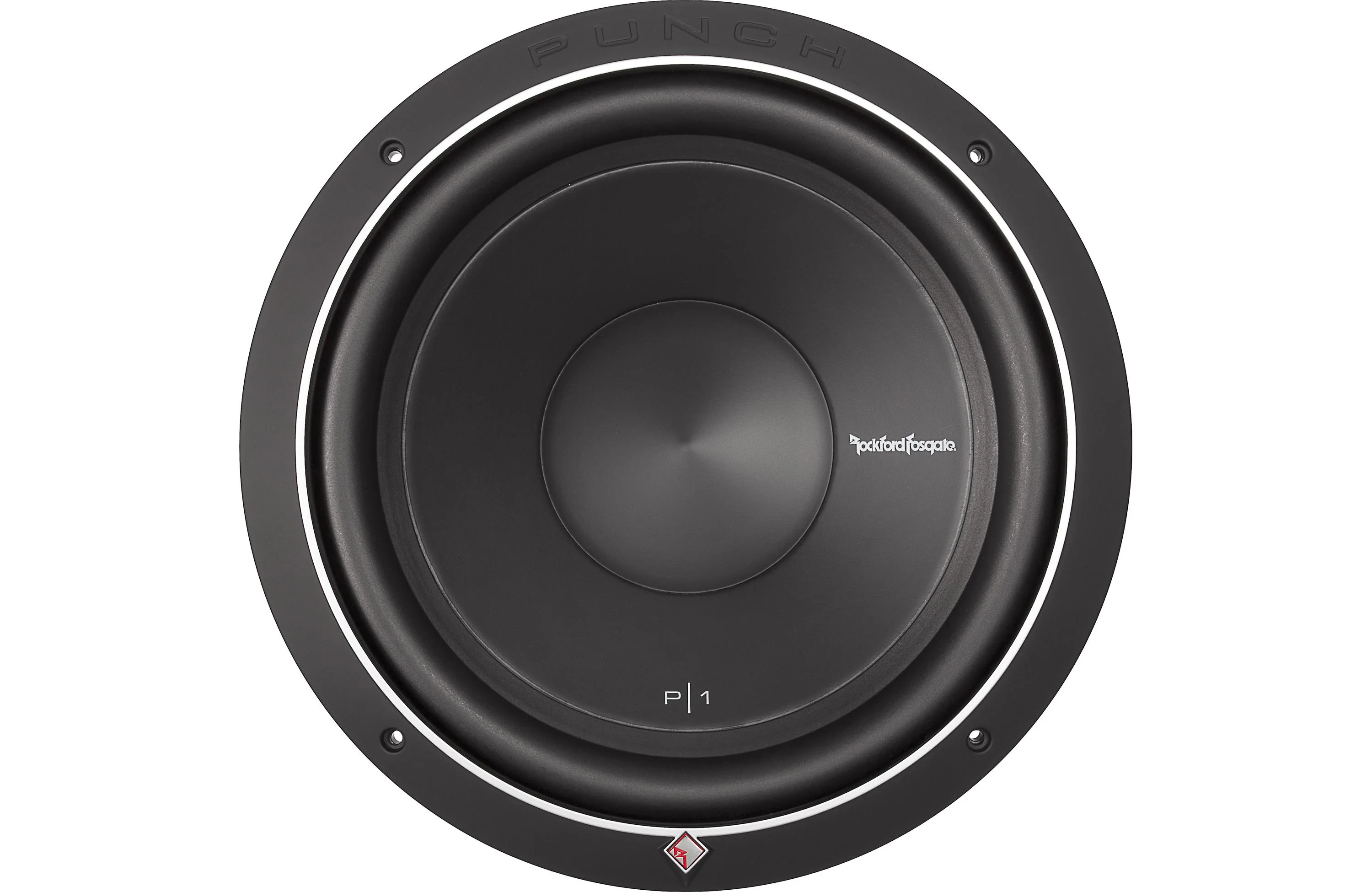

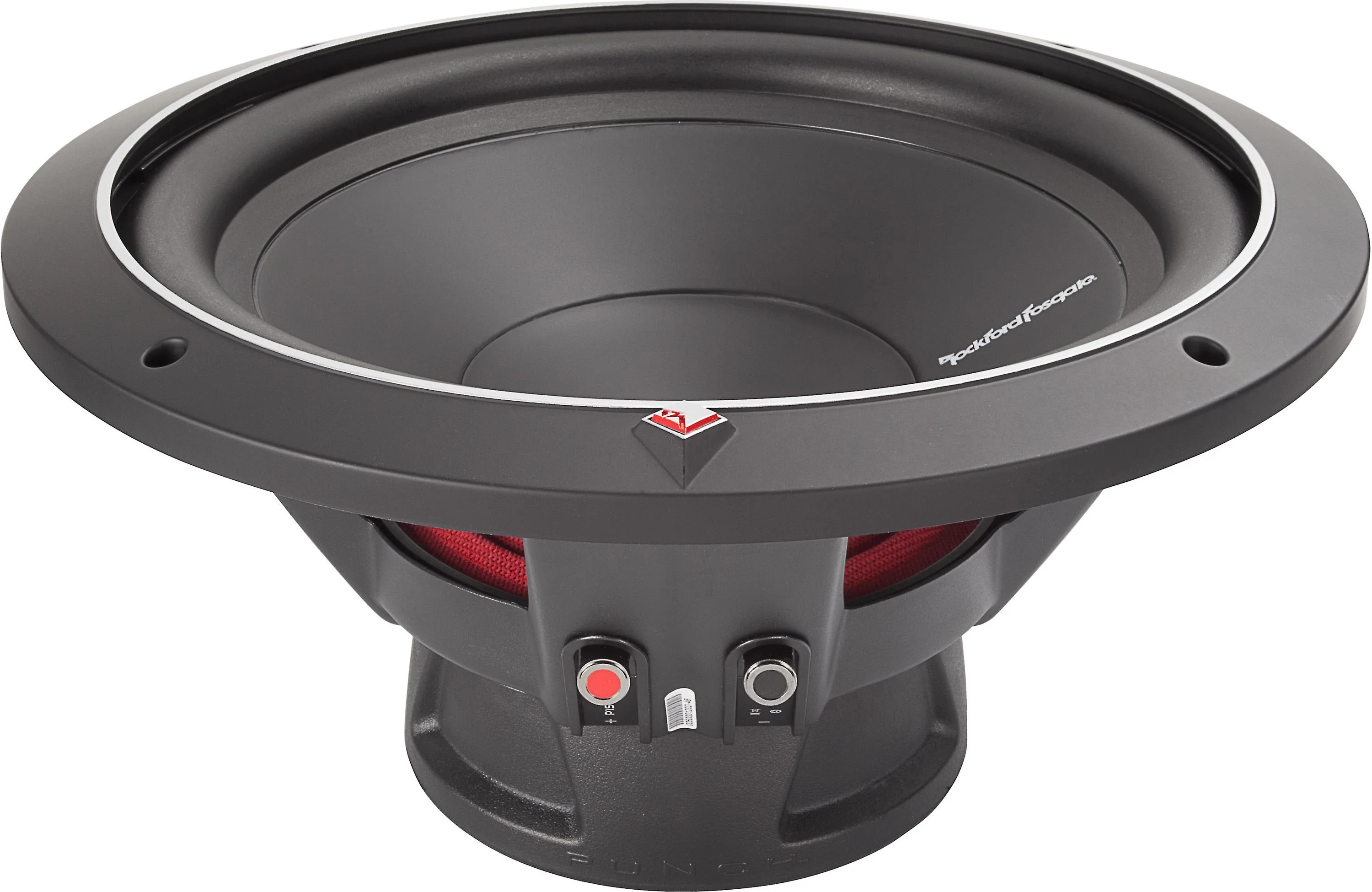

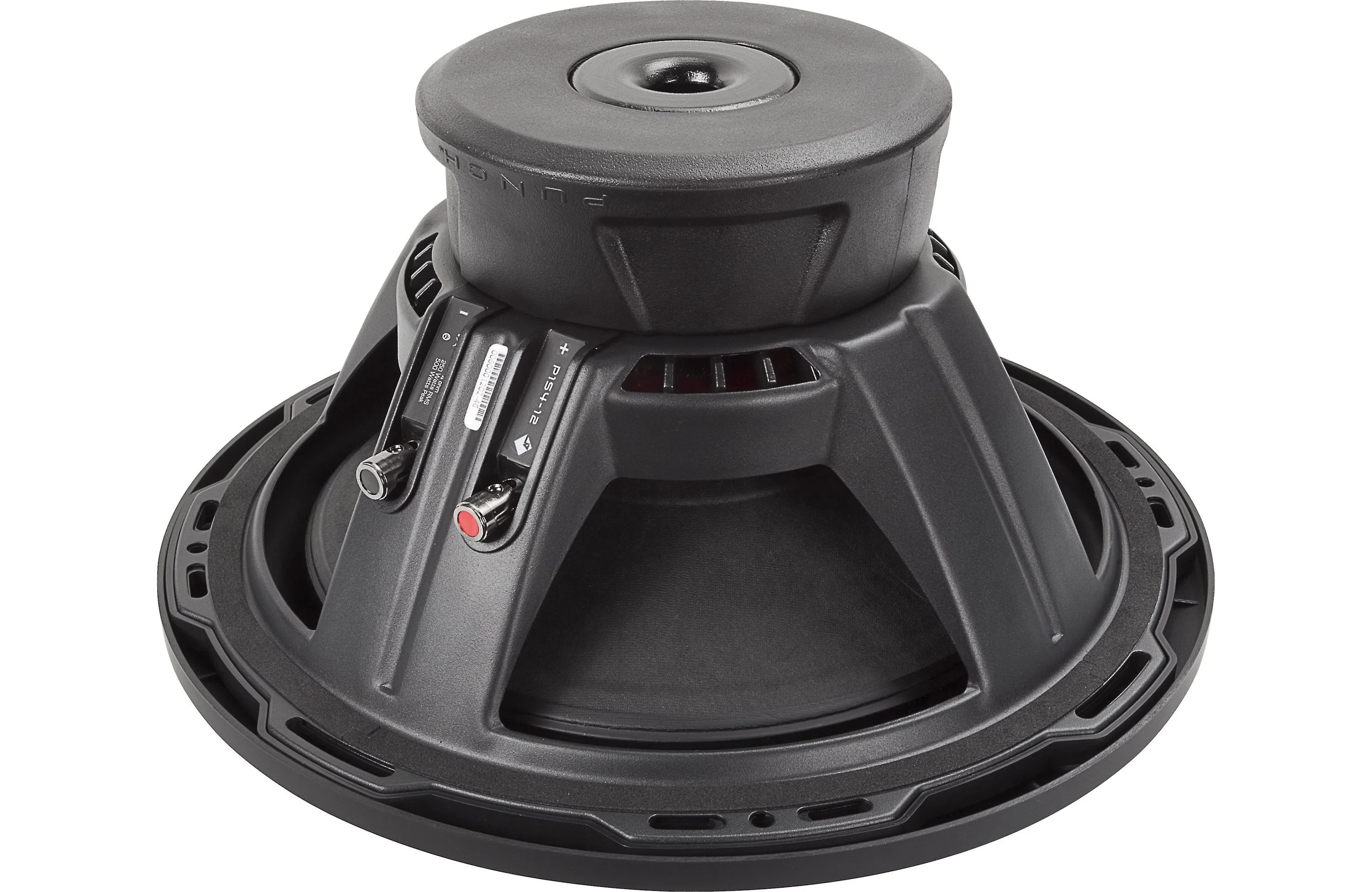

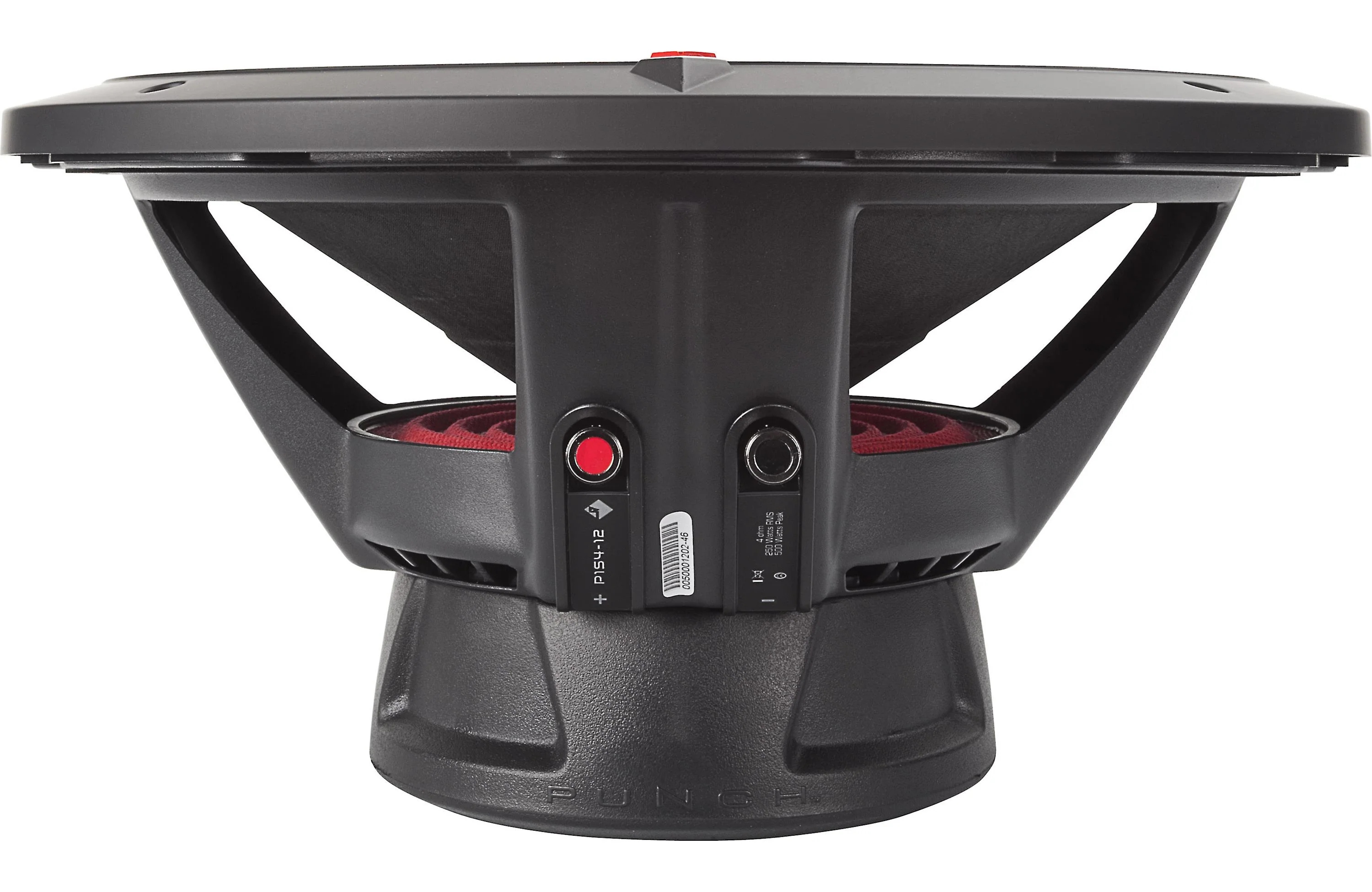

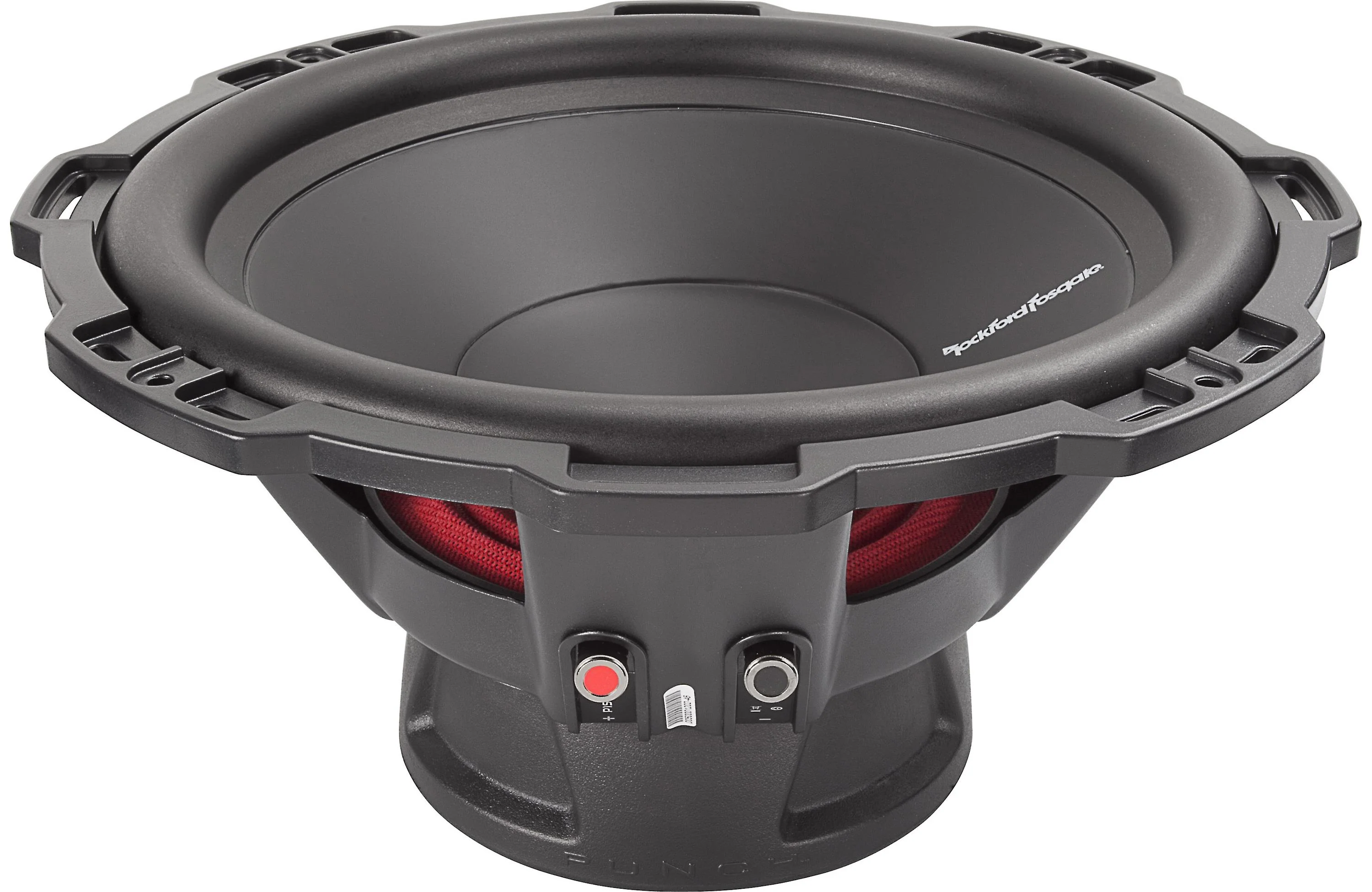

Rockford Fosgate P1S4-12 Punch P1 12" SVC 4 Ohm Subwoofer
Rockford Fosgate P1 12" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology in the Punch P1 woofer increases woofer surface cone area by up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.
FEATURES AT A GLANCE
- Kevlar fiber reinforced paper cone
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Linear spider with embedded 16 AWG tinsel leads
- Custom 10-AWG nickel plated push terminals
- StampCast basket with integrated spider venting
- Rubberized ABS trim ring with optional grille
- Extended pole piece and bumped vented backplate
- 1 Year Warranty
- Protective PVC textured magnet cover
Specs
Size 12-inch
Impedance (Ohms) 4
Cone Material Kevlar reinforced paper
Surround Material NBR
Basket Material Steel
Grille None included
Free-Air No
Dual Voice Coil No
Sensitivity 86 dB at 1 watt
Frequency Response 25 - 250 Hz
Max RMS Power Handling 250
Peak Power Handling (Watts) 500
Top Mount Depth (inches) 6
Bottom Mount Depth (inches) N/A
Cutout Diameter or Length (inches) 11 1/16
Frame Width 13.003
Frame Length 13.003
Vas (liters) 88.3
Fs (Hz) 25
Qts 0.48
Xmax (millimeters) 7
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Rockford Fosgate P1 12" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology in the Punch P1 woofer increases woofer surface cone area by up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.
FEATURES AT A GLANCE
- Kevlar fiber reinforced paper cone
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Linear spider with embedded 16 AWG tinsel leads
- Custom 10-AWG nickel plated push terminals
- StampCast basket with integrated spider venting
- Rubberized ABS trim ring with optional grille
- Extended pole piece and bumped vented backplate
- 1 Year Warranty
- Protective PVC textured magnet cover
Specs
Size 12-inch
Impedance (Ohms) 4
Cone Material Kevlar reinforced paper
Surround Material NBR
Basket Material Steel
Grille None included
Free-Air No
Dual Voice Coil No
Sensitivity 86 dB at 1 watt
Frequency Response 25 - 250 Hz
Max RMS Power Handling 250
Peak Power Handling (Watts) 500
Top Mount Depth (inches) 6
Bottom Mount Depth (inches) N/A
Cutout Diameter or Length (inches) 11 1/16
Frame Width 13.003
Frame Length 13.003
Vas (liters) 88.3
Fs (Hz) 25
Qts 0.48
Xmax (millimeters) 7
