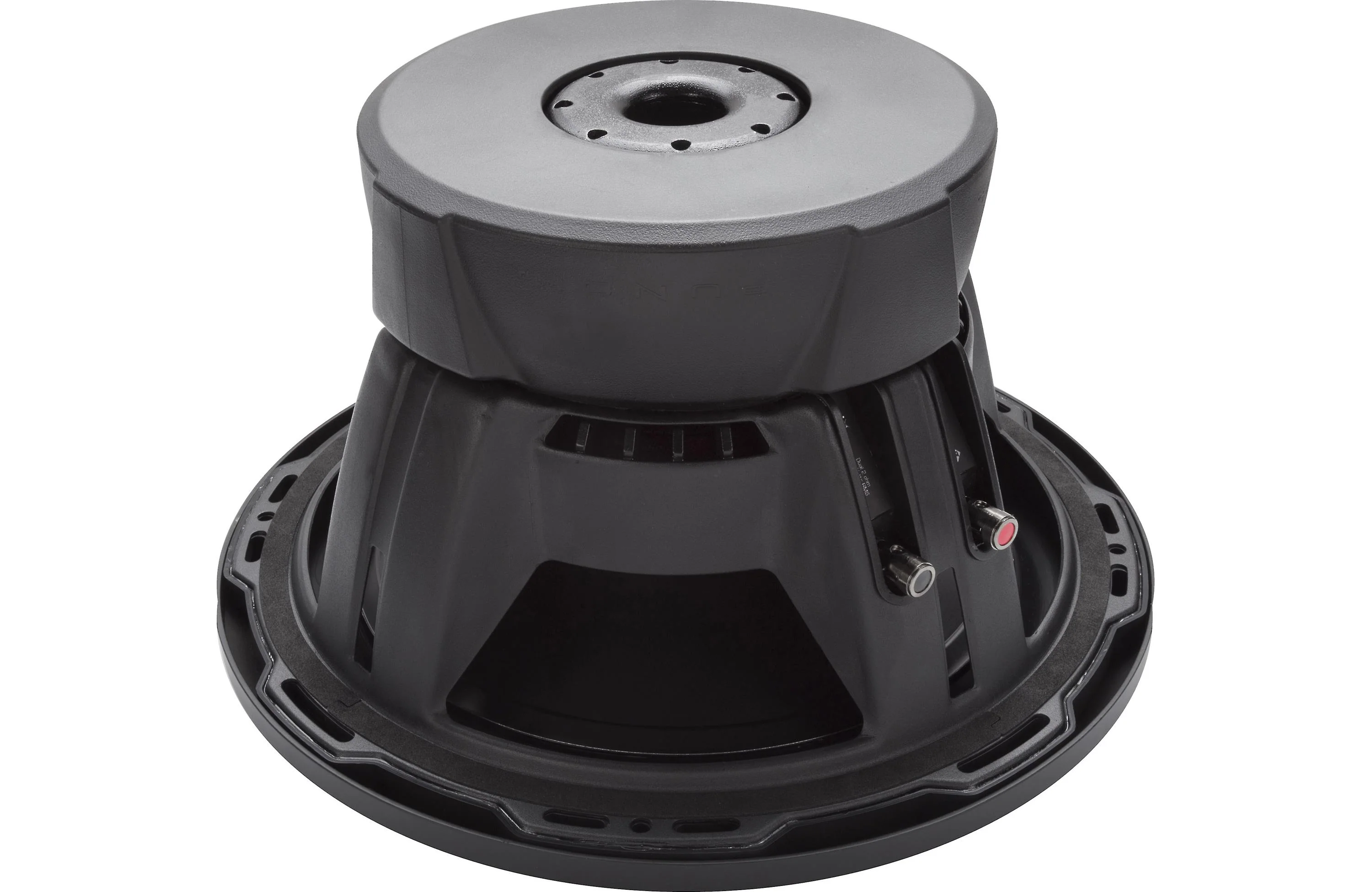

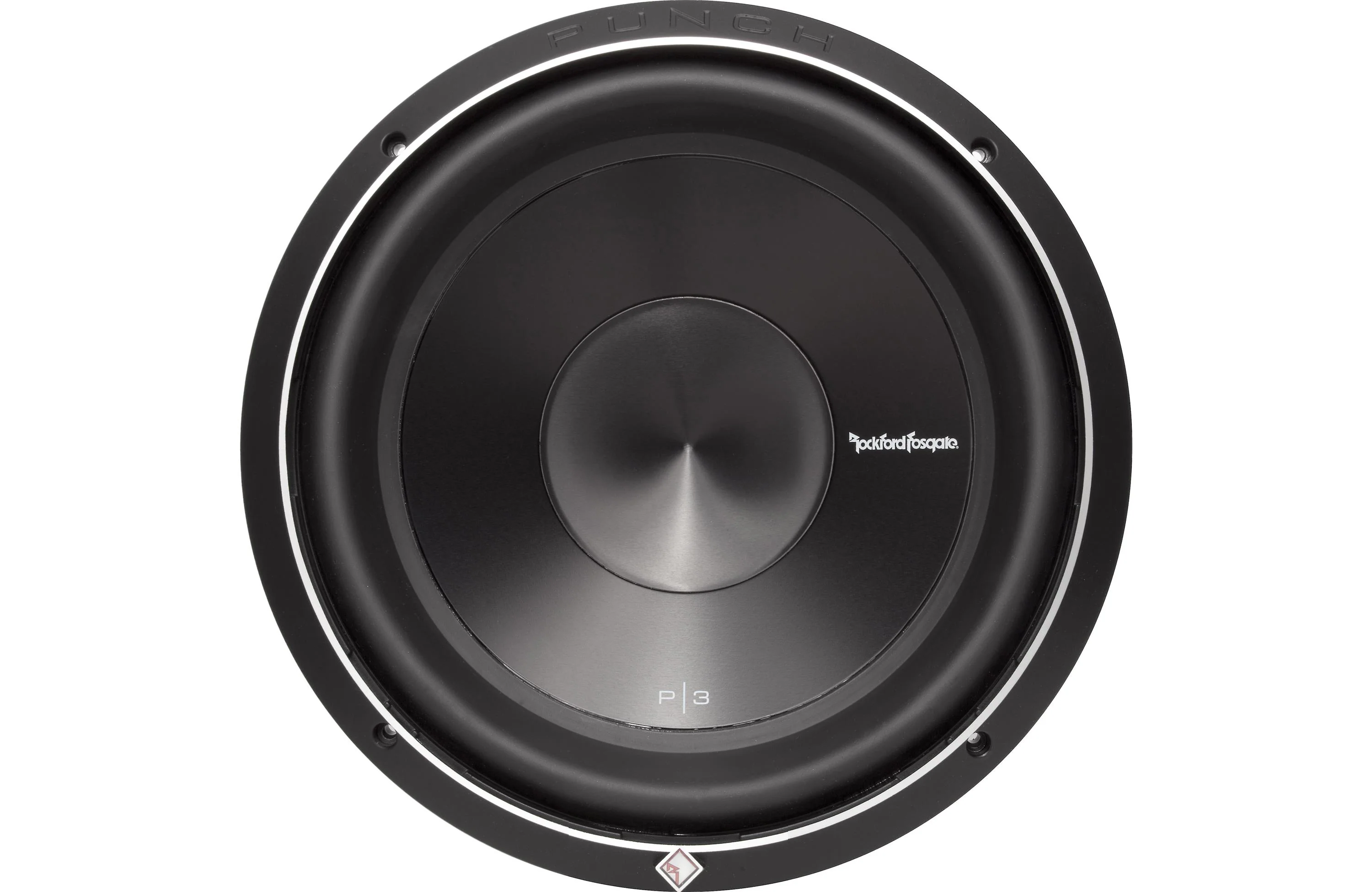

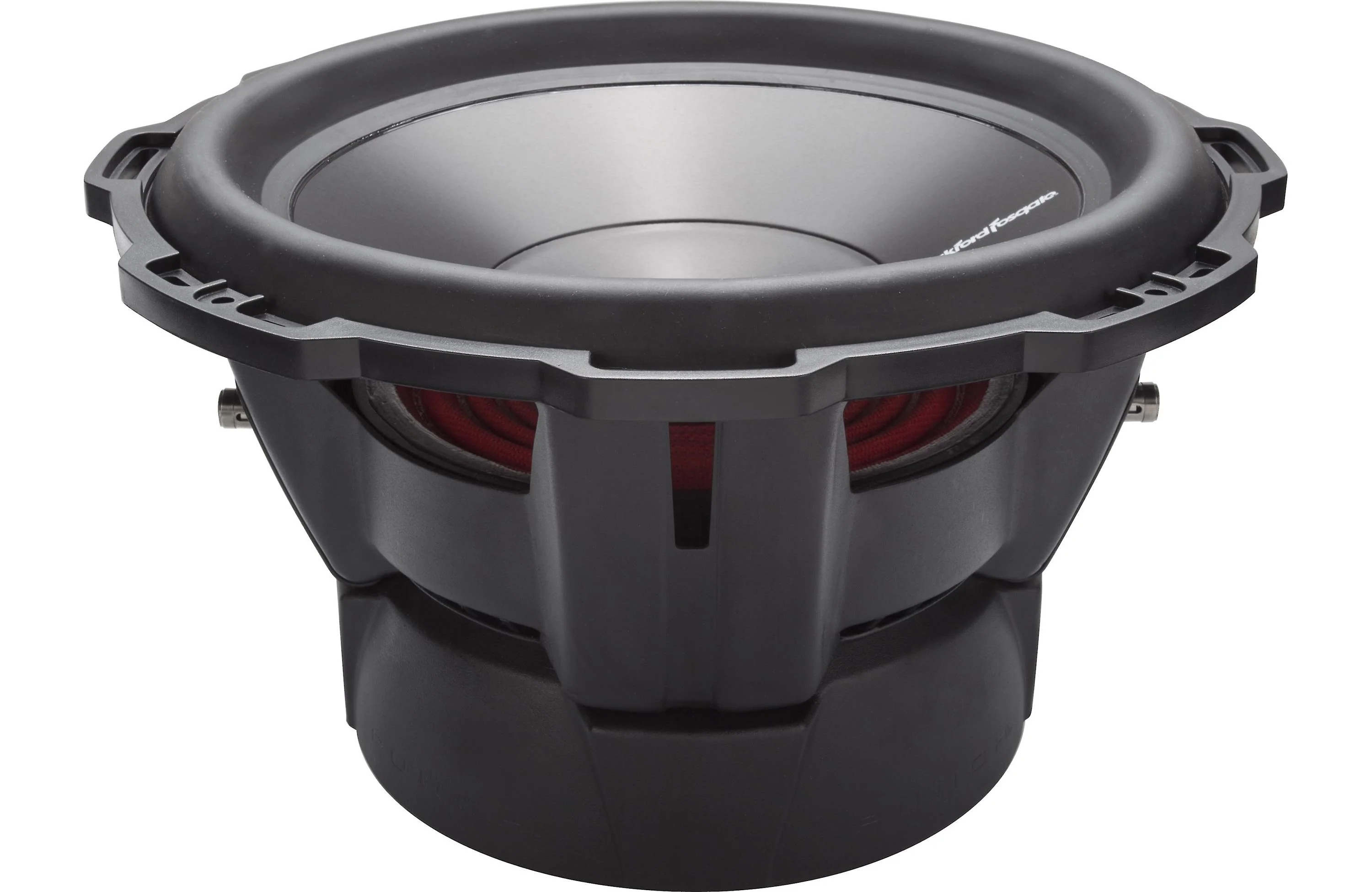

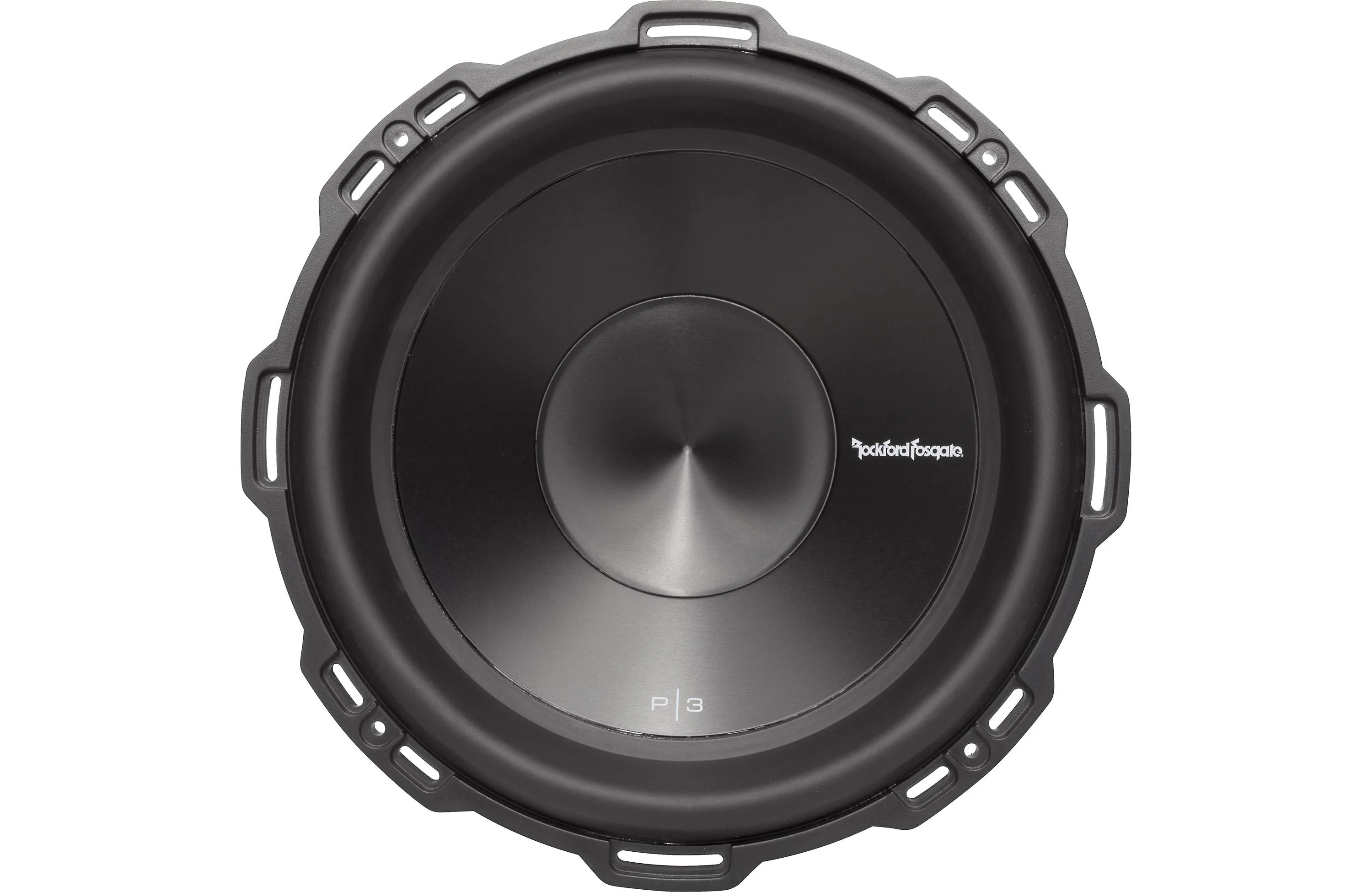

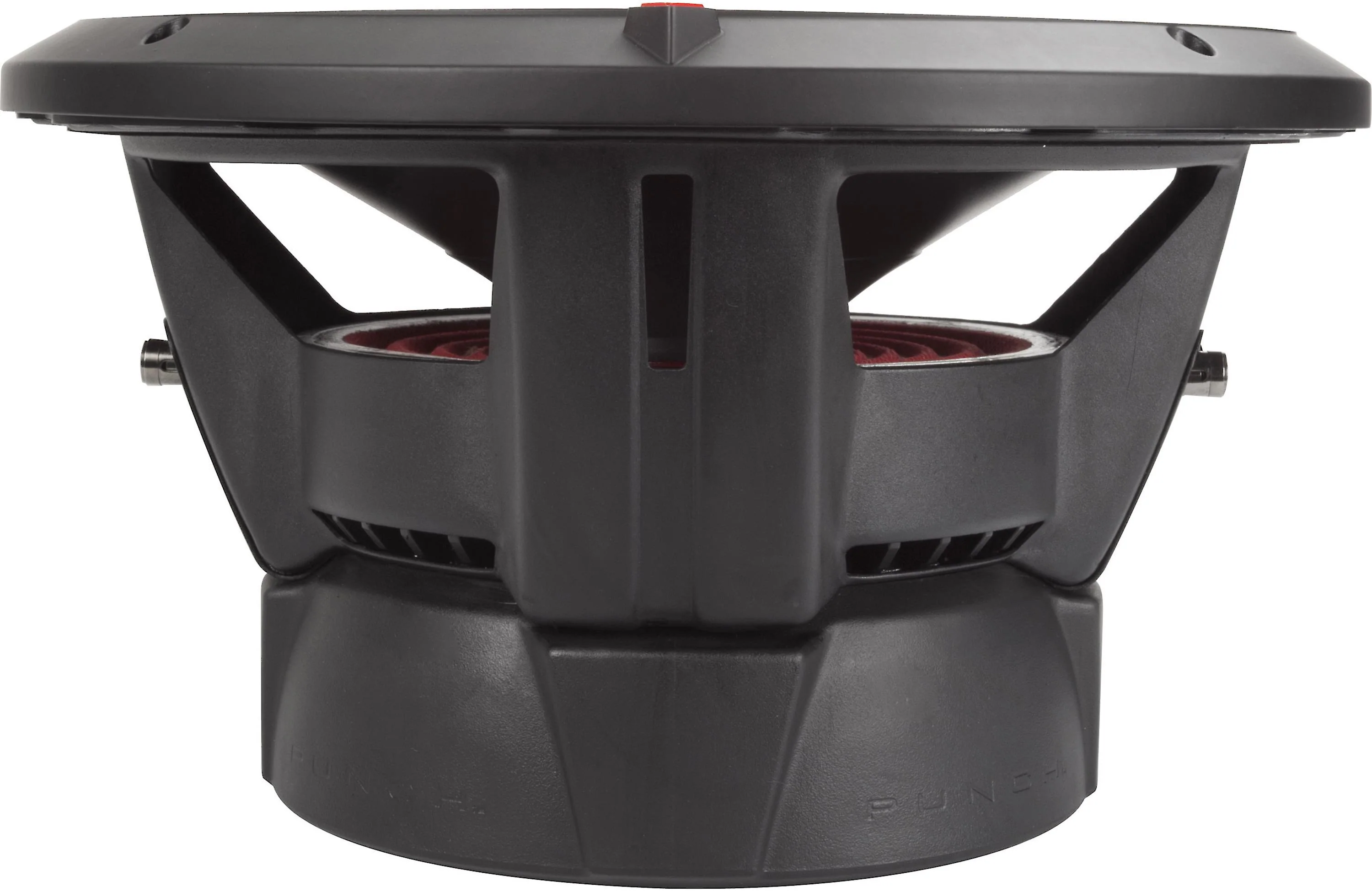

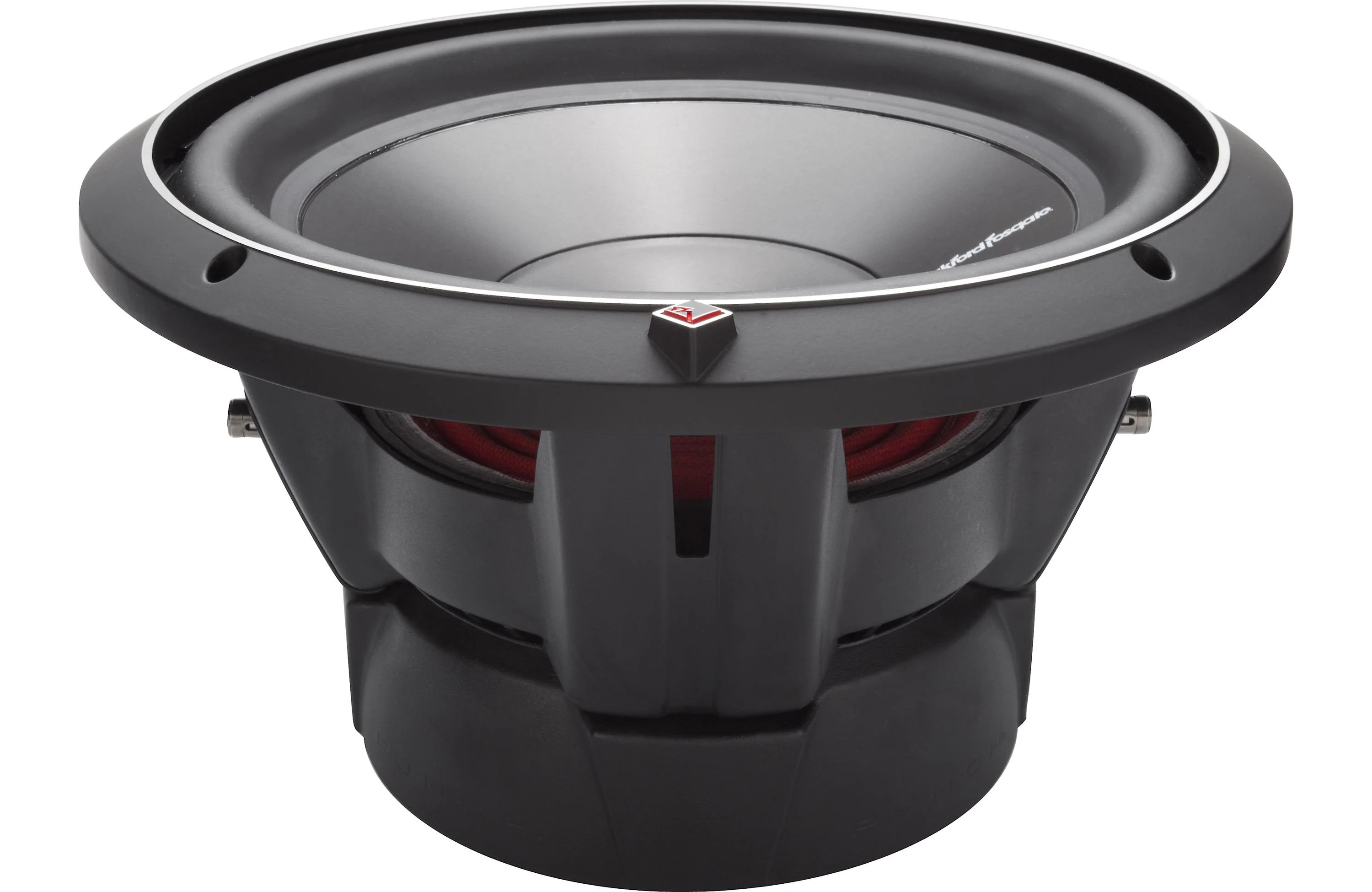

Rockford Fosgate P3D2-15 Punch P3 15" DVC Dual 2 Ohm Subwoofer
The P3D2-15 is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.
FEATURES AT A GLANCE
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Dual linear spider with embedded 16 AWG tinsel leads
- Custom 10-AWG nickel plated push terminals
- StampCast basket with integrated spider venting
- Extended pole piece and bumped vented backplate
- Diamond cut cast aluminum trim ring with optional grille
- Anodized aluminum cone and dustcap
- Protective PVC textured magnet cover
- 1 Year Warranty
Specs
Size 15-inch
Impedance (Ohms) 1, 4
Cone Material Anodized Aluminum
Surround Material Santoprene
Basket Material Aluminum
Grille None included
Free-Air No
Dual Voice Coil Yes
Sensitivity 86 dB at 1 watt
Frequency Response 22 - 250 Hz
Max RMS Power Handling 600
Peak Power Handling (Watts) 1200
Top Mount Depth (inches) 7 11/16
Bottom Mount Depth (inches) N/A
Cutout Diameter or Length (inches) 13 11/16
Frame Width 16.115
Frame Length 16.115
Vas (liters) 155.8
Fs (Hz) 21.7
Qts 0.54
Xmax (millimeters) 13.3
Original: $339.99
-65%$339.99
$119.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The P3D2-15 is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.
FEATURES AT A GLANCE
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Dual linear spider with embedded 16 AWG tinsel leads
- Custom 10-AWG nickel plated push terminals
- StampCast basket with integrated spider venting
- Extended pole piece and bumped vented backplate
- Diamond cut cast aluminum trim ring with optional grille
- Anodized aluminum cone and dustcap
- Protective PVC textured magnet cover
- 1 Year Warranty
Specs
Size 15-inch
Impedance (Ohms) 1, 4
Cone Material Anodized Aluminum
Surround Material Santoprene
Basket Material Aluminum
Grille None included
Free-Air No
Dual Voice Coil Yes
Sensitivity 86 dB at 1 watt
Frequency Response 22 - 250 Hz
Max RMS Power Handling 600
Peak Power Handling (Watts) 1200
Top Mount Depth (inches) 7 11/16
Bottom Mount Depth (inches) N/A
Cutout Diameter or Length (inches) 13 11/16
Frame Width 16.115
Frame Length 16.115
Vas (liters) 155.8
Fs (Hz) 21.7
Qts 0.54
Xmax (millimeters) 13.3
