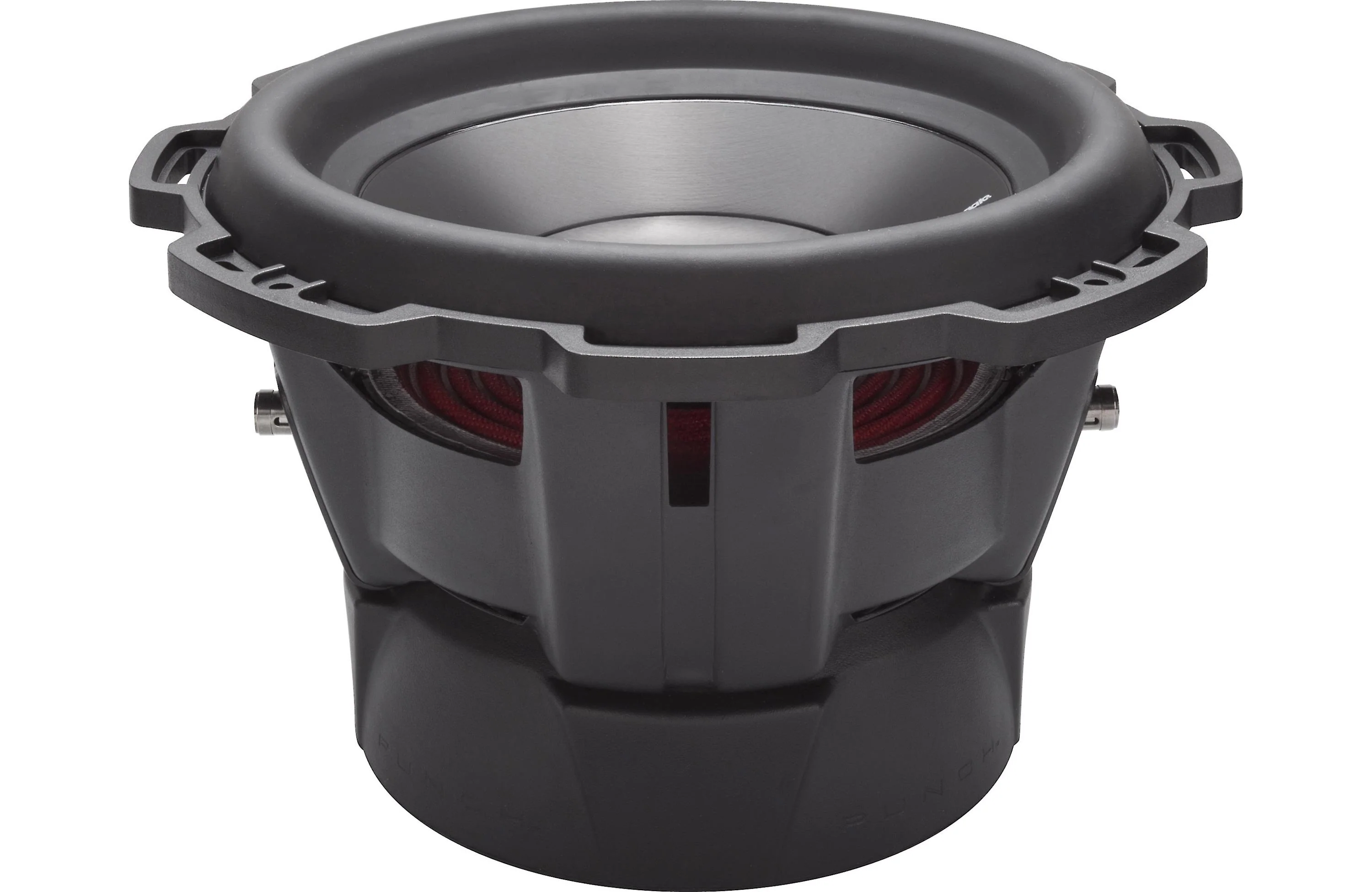

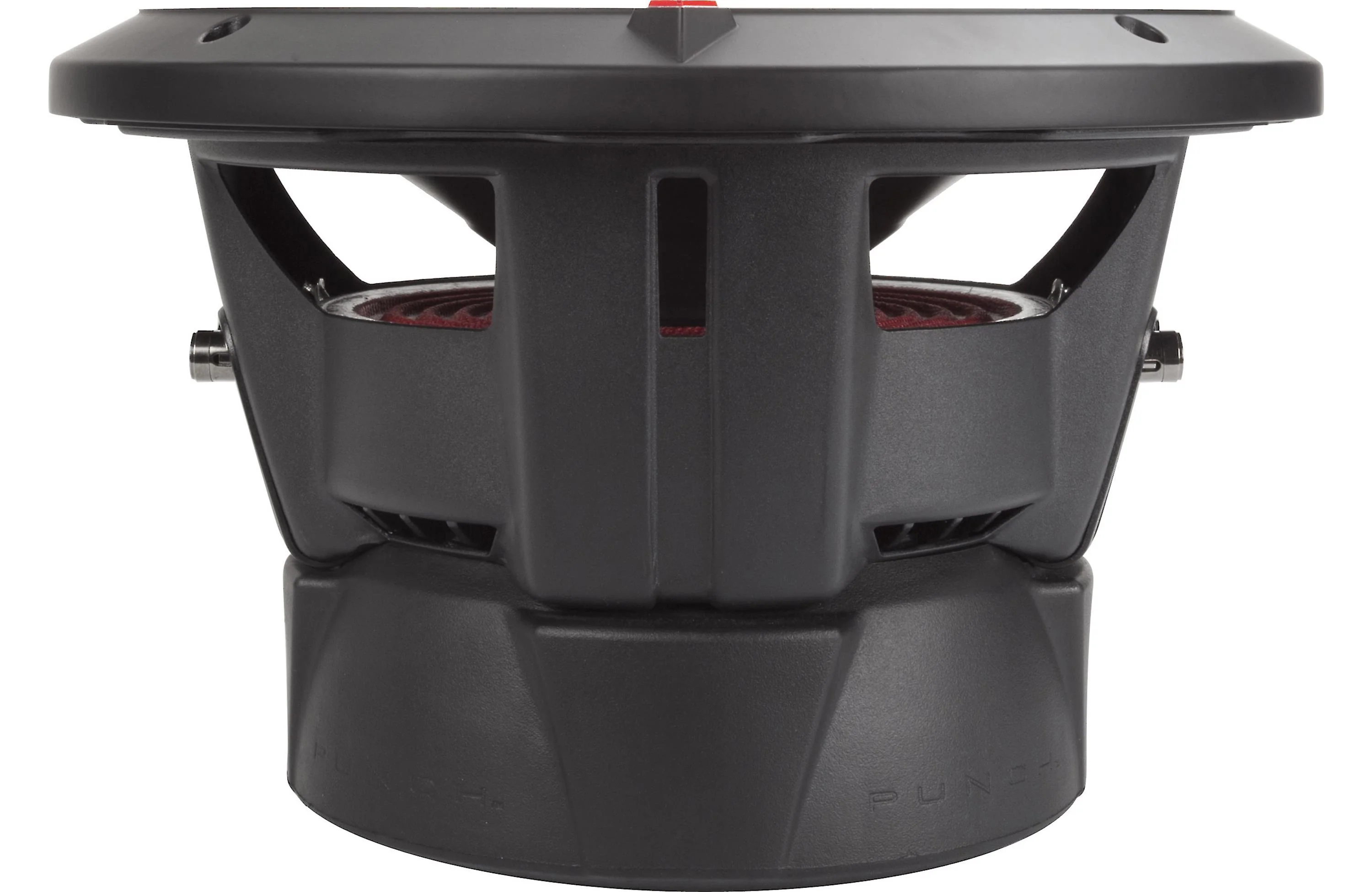

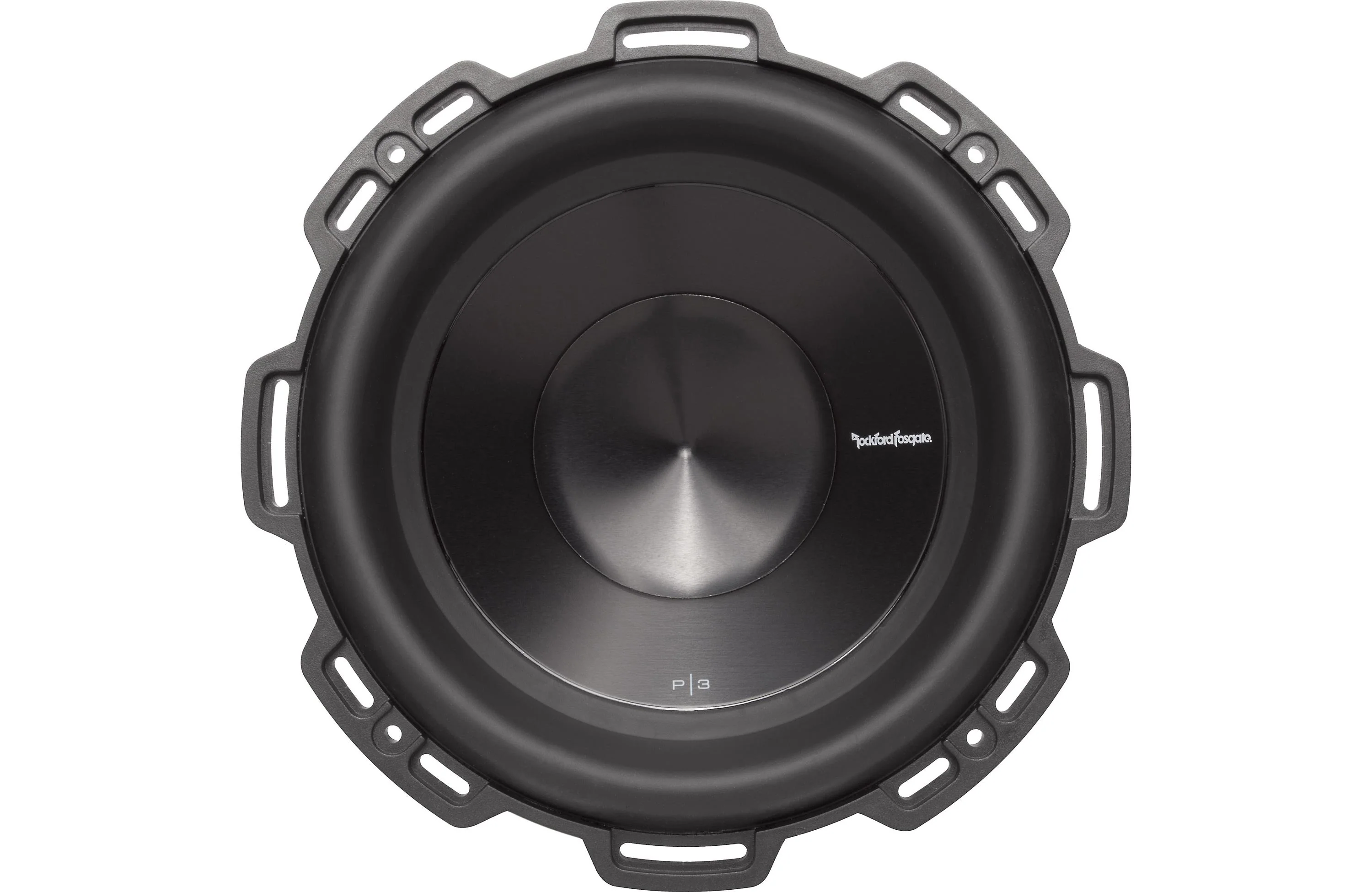

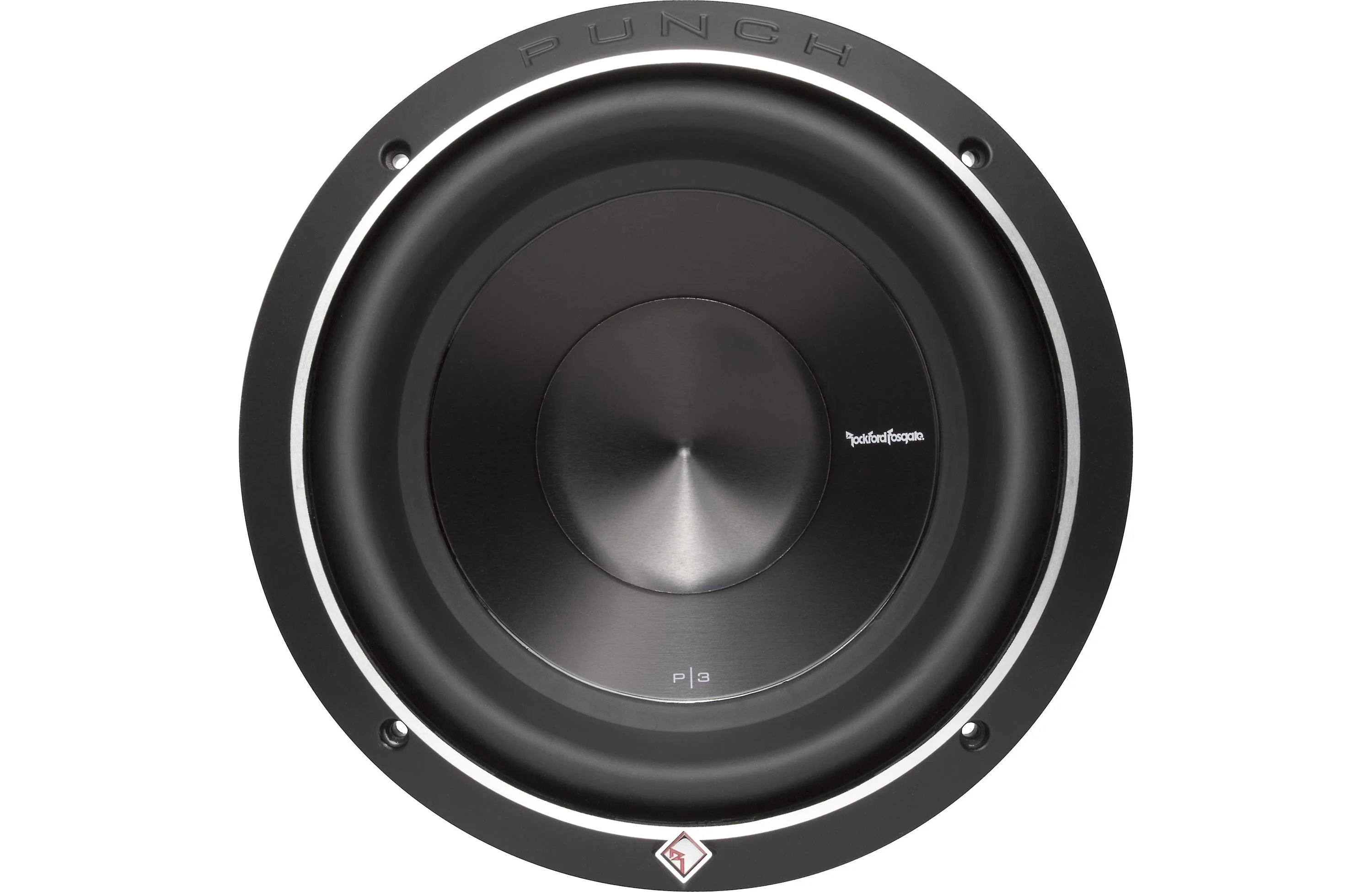

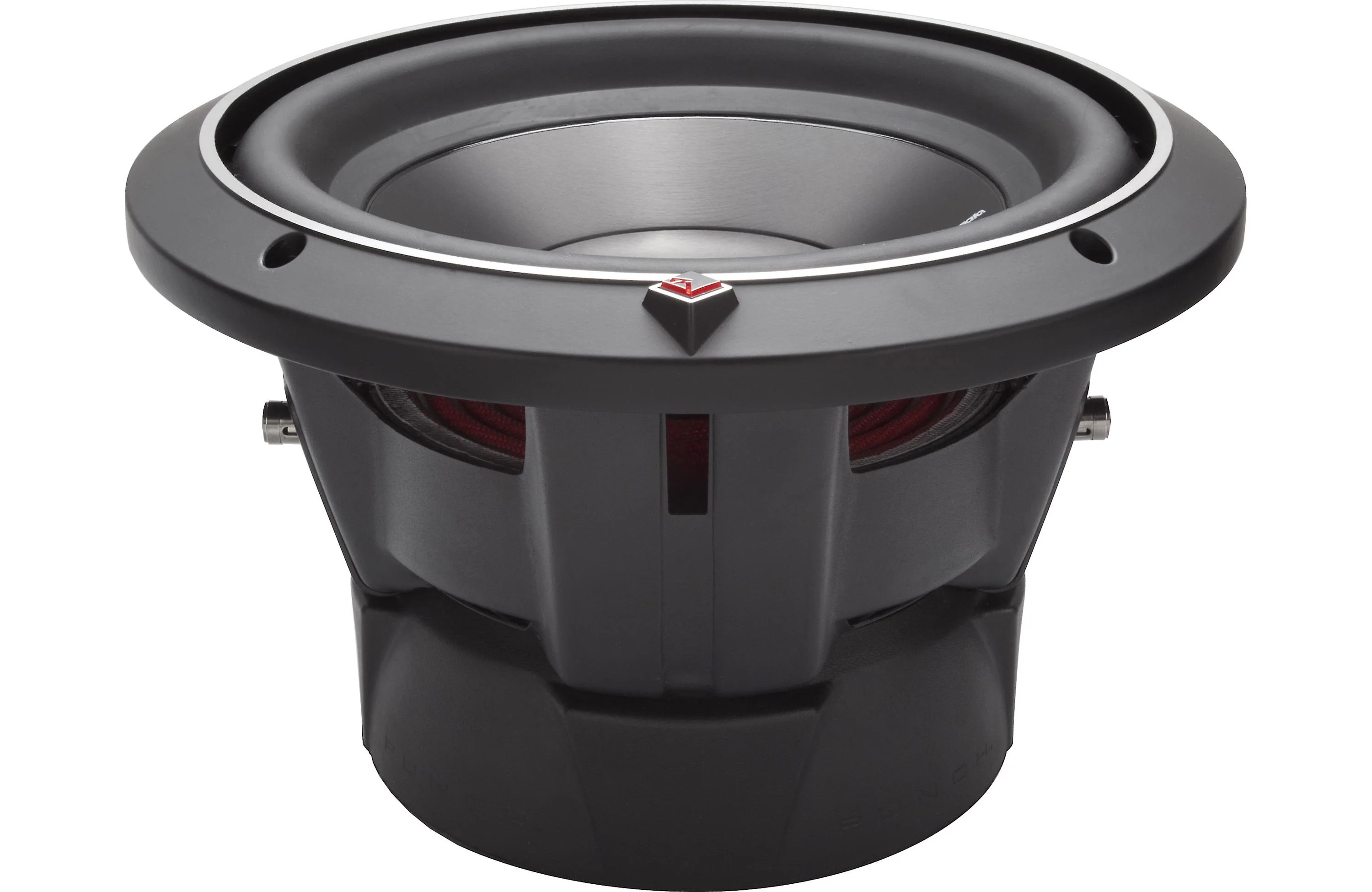

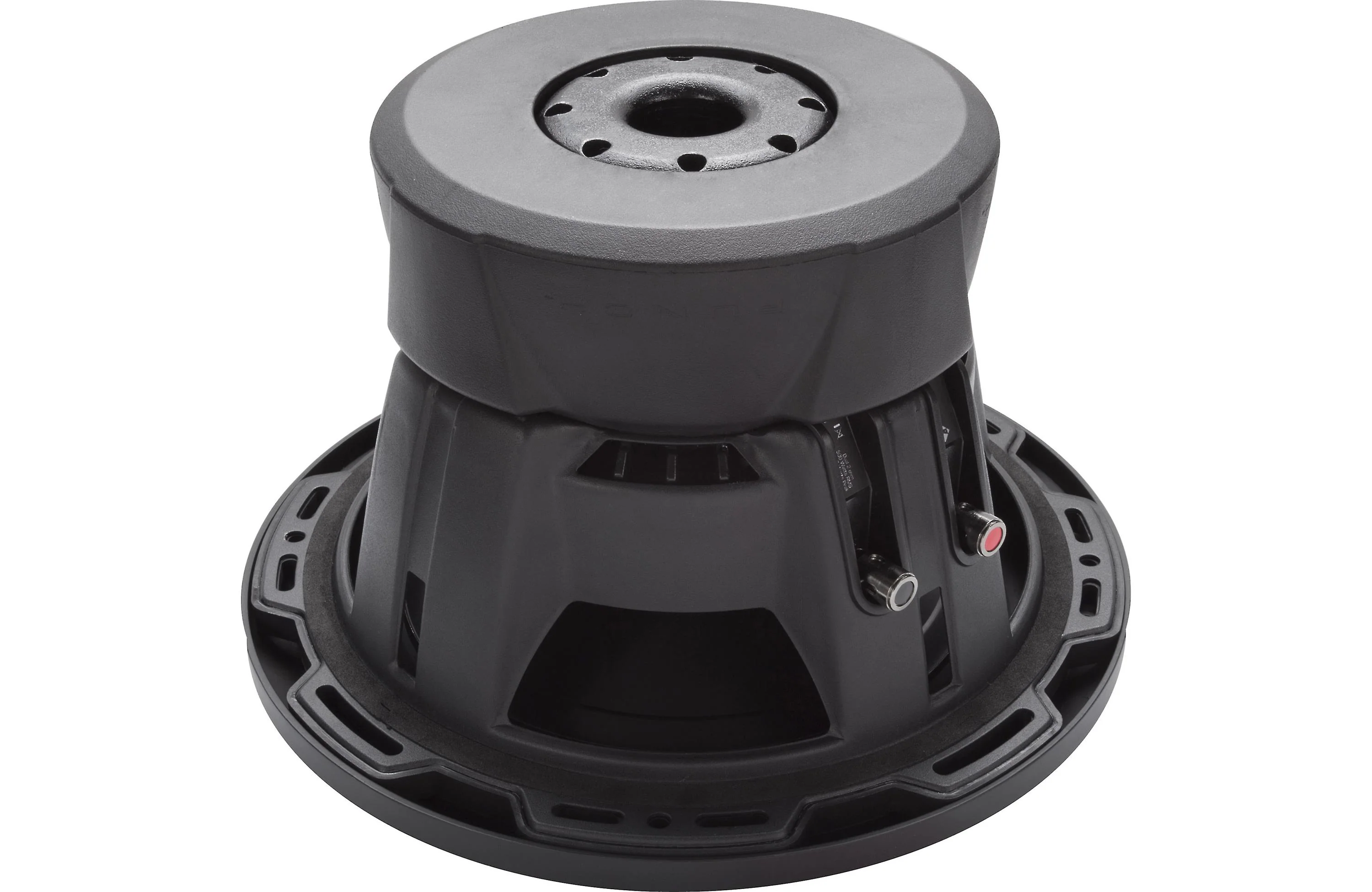

Rockford Fosgate P3D4-10 Punch P3 10" DVC Dual 4 Ohm Subwoofer
The P3D4-10 is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.
FEATURES AT A GLANCE
- 1 Year Warranty
- Anodized aluminum cone and dustcap
- Diamond cut cast aluminum trim ring with optional grille
- StampCast basket with integrated spider venting
- Custom 10-AWG nickel plated push terminals
- Protective PVC textured magnet cover
- Extended pole piece and bumped vented backplate
- Dual linear spider with embedded 16 AWG tinsel leads
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
Specs
Size 10-inch
Impedance (Ohms) 2, 8
Cone Material Anodized Aluminum
Surround Material Santoprene
Basket Material Hybrid
Grille None included
Free-Air No
Dual Voice Coil Yes
Sensitivity 82 dB at 1 watt
Frequency Response 28 - 250 Hz
Max RMS Power Handling 500
Peak Power Handling (Watts) 1000
Top Mount Depth (inches) 6 3/16
Bottom Mount Depth (inches) N/A
Cutout Diameter or Length (inches) 9
Frame Width 11.016
Frame Length 11.016
Vas (liters) 27
Fs (Hz) 28
Qts 0.56
Xmax (millimeters) 13.9
Original: $239.99
-65%$239.99
$84.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The P3D4-10 is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.
FEATURES AT A GLANCE
- 1 Year Warranty
- Anodized aluminum cone and dustcap
- Diamond cut cast aluminum trim ring with optional grille
- StampCast basket with integrated spider venting
- Custom 10-AWG nickel plated push terminals
- Protective PVC textured magnet cover
- Extended pole piece and bumped vented backplate
- Dual linear spider with embedded 16 AWG tinsel leads
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
Specs
Size 10-inch
Impedance (Ohms) 2, 8
Cone Material Anodized Aluminum
Surround Material Santoprene
Basket Material Hybrid
Grille None included
Free-Air No
Dual Voice Coil Yes
Sensitivity 82 dB at 1 watt
Frequency Response 28 - 250 Hz
Max RMS Power Handling 500
Peak Power Handling (Watts) 1000
Top Mount Depth (inches) 6 3/16
Bottom Mount Depth (inches) N/A
Cutout Diameter or Length (inches) 9
Frame Width 11.016
Frame Length 11.016
Vas (liters) 27
Fs (Hz) 28
Qts 0.56
Xmax (millimeters) 13.9
