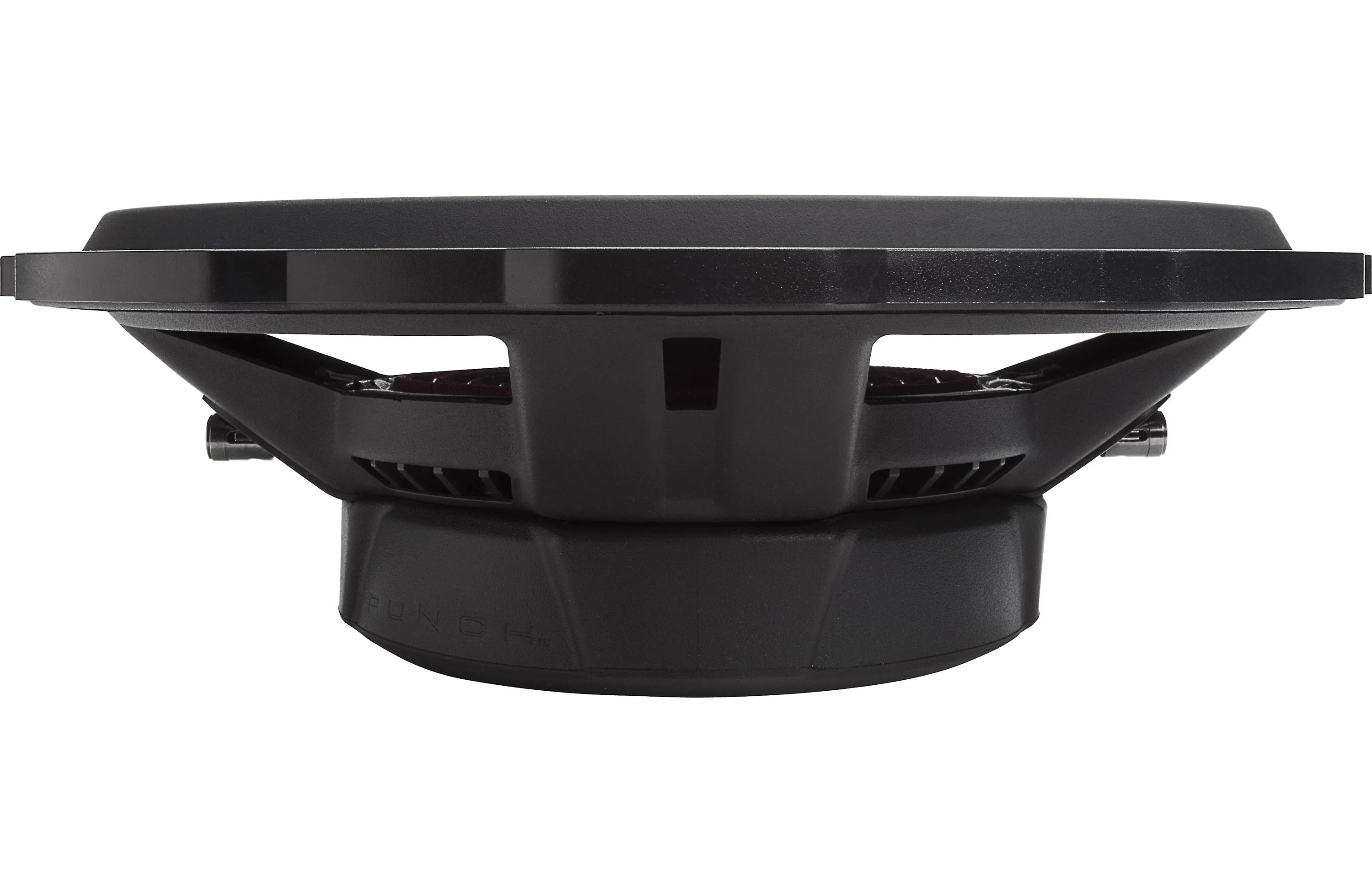

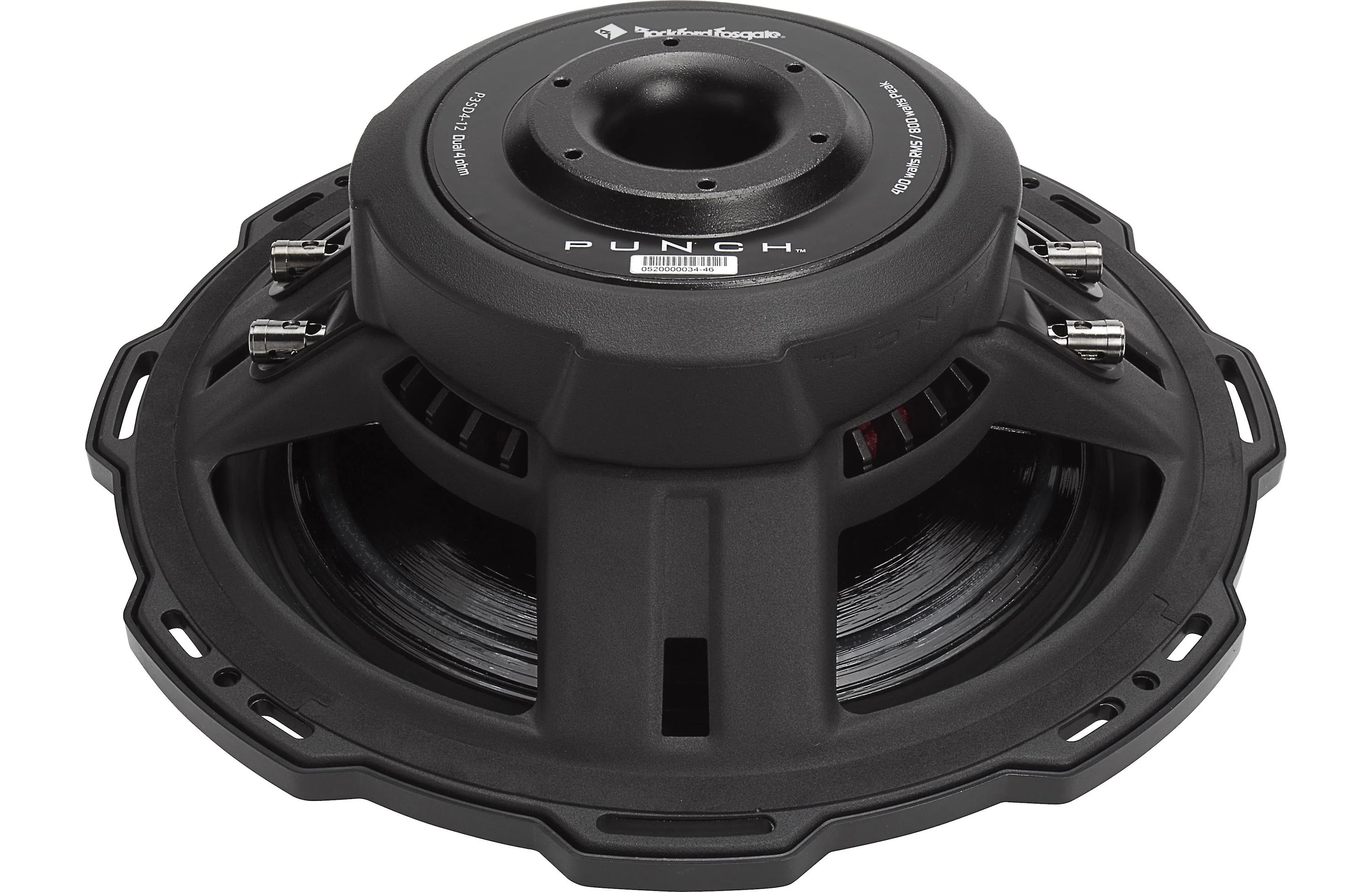

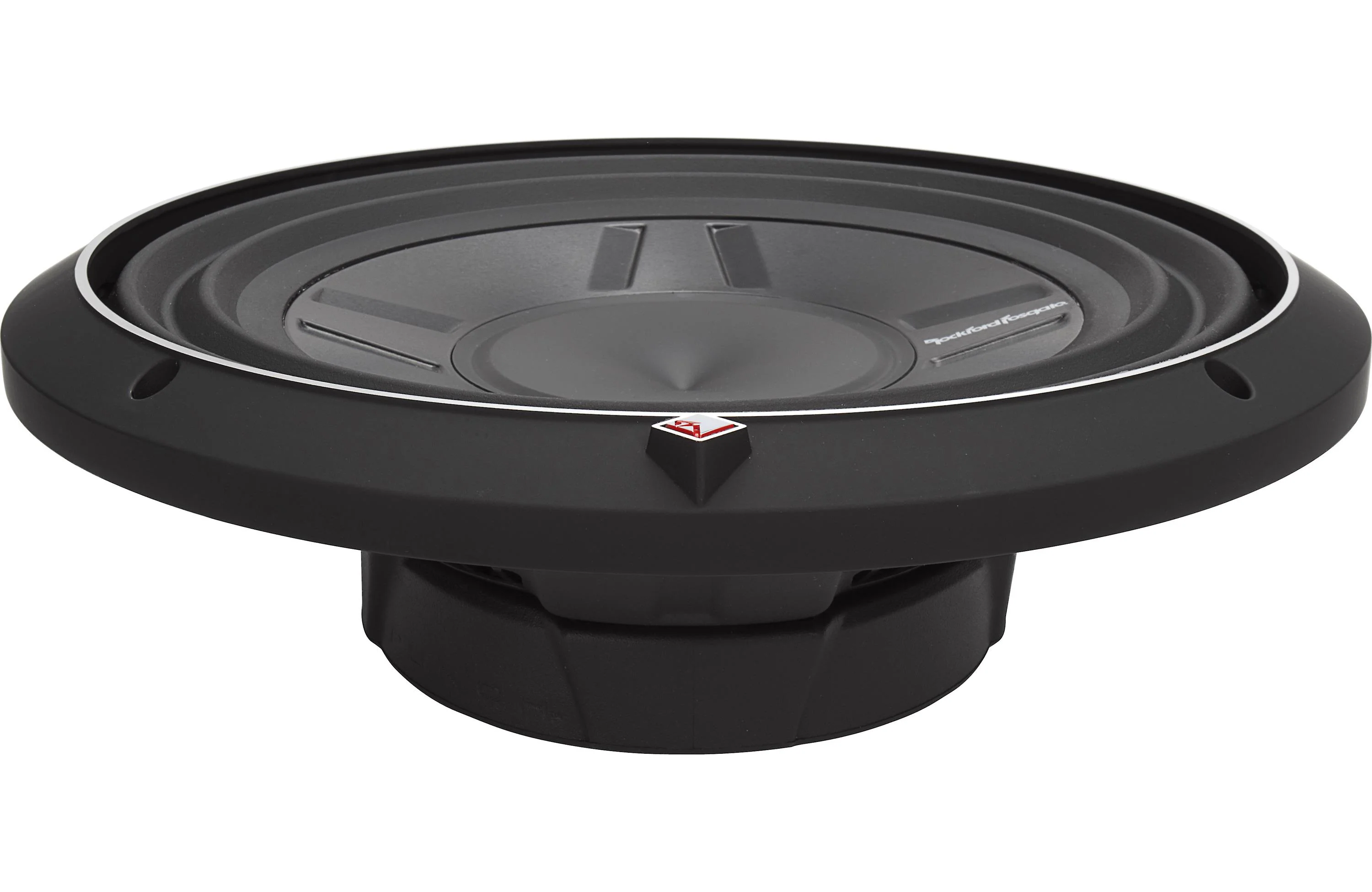

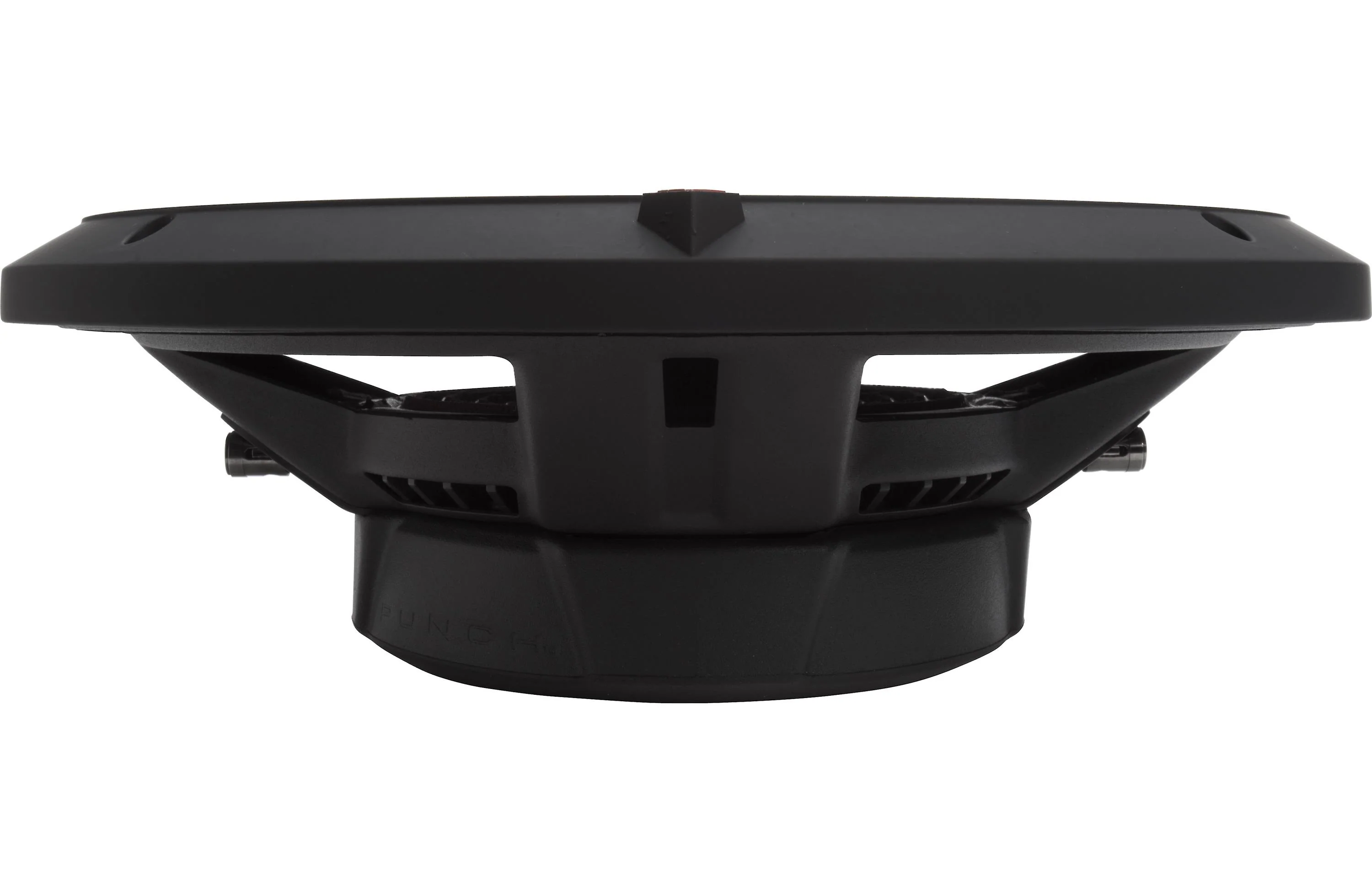

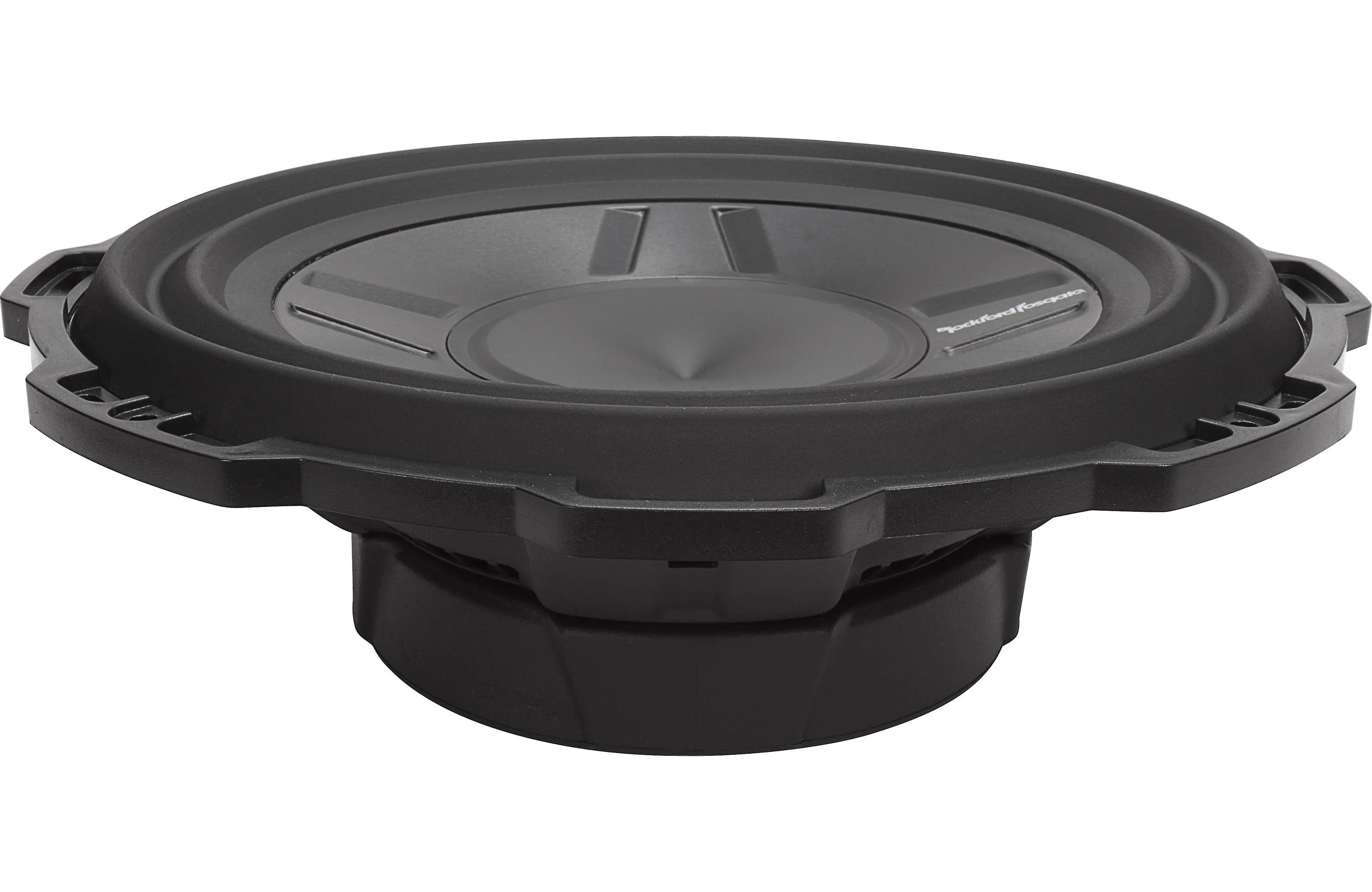

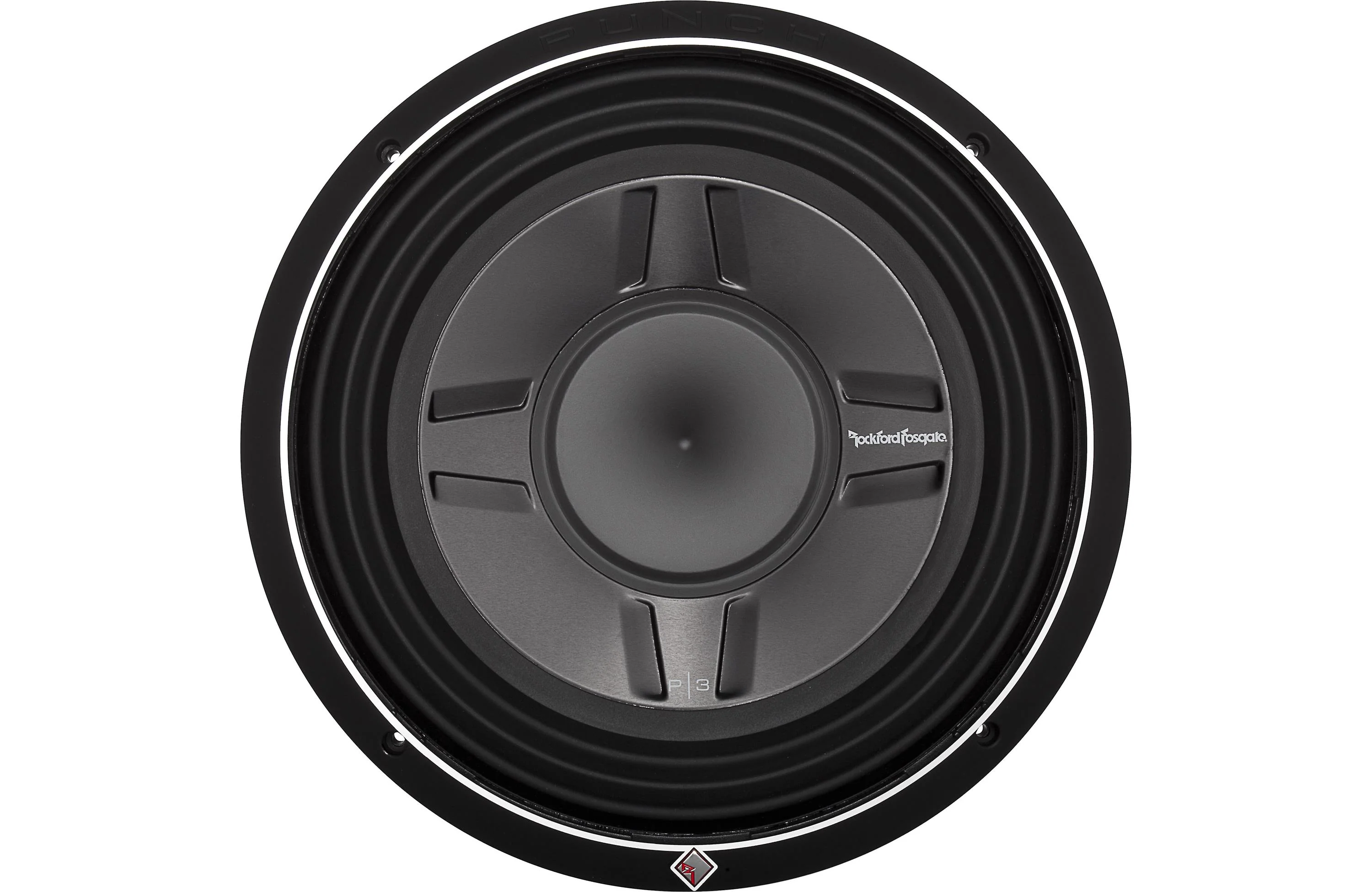

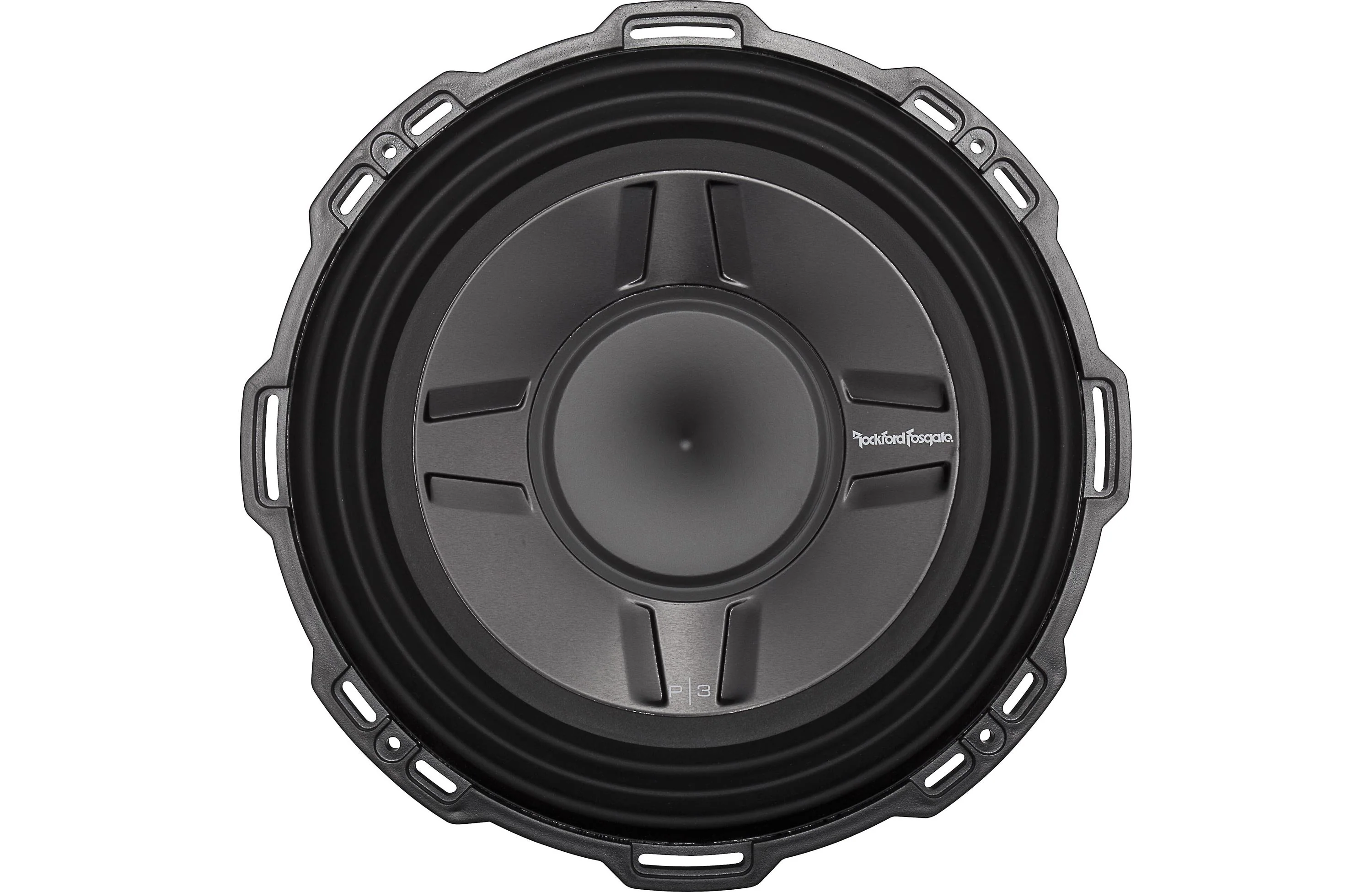

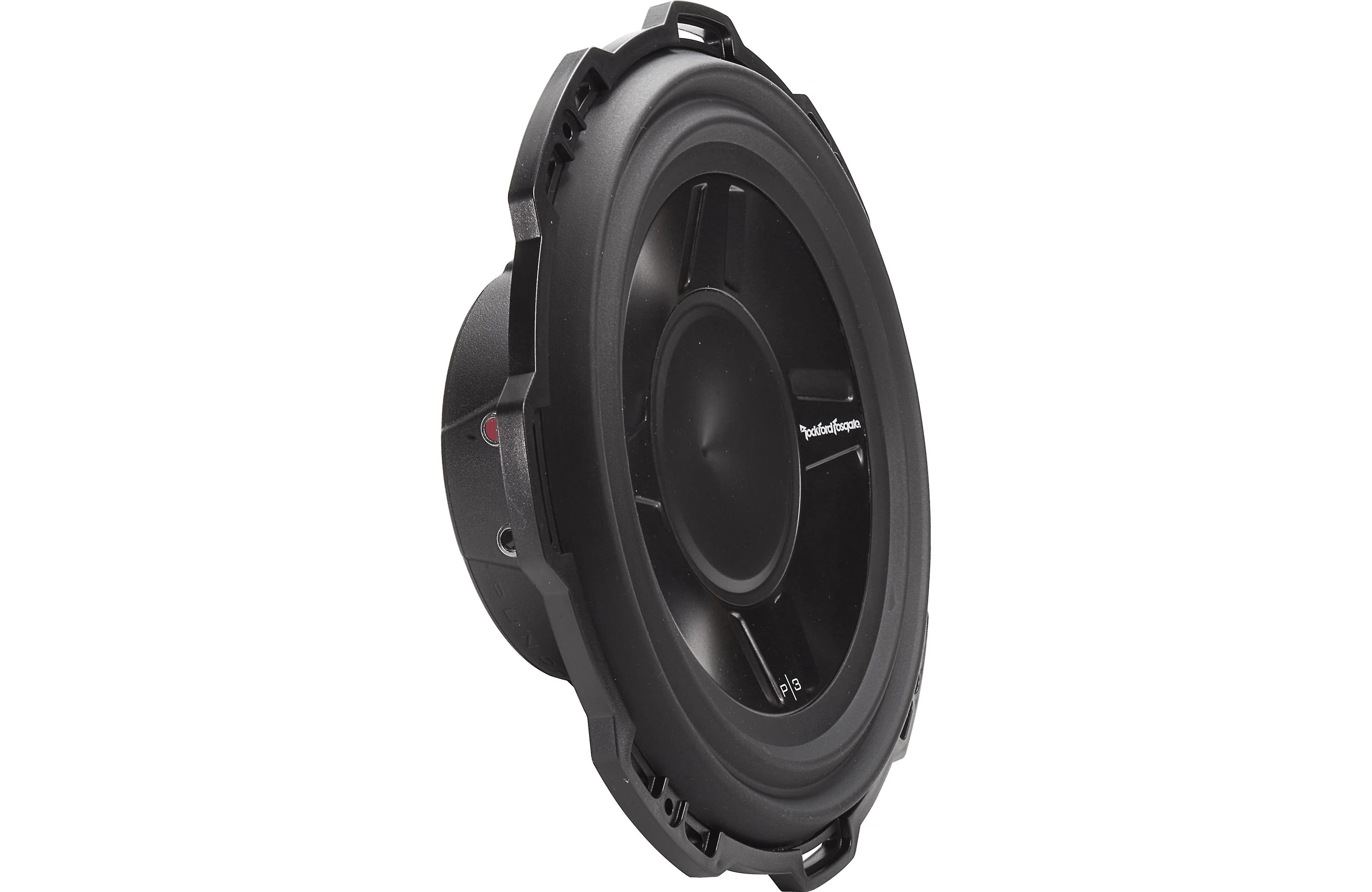

Rockford Fosgate P3SD4-12 Punch P3 Slim 12" DVC Dual 4 Ohm Subwoofer
The Rockford Fosgate P3S 12" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.
FEATURES AT A GLANCE
- 1 Year Warranty
- M-Roll Santoprene™ surround
- Anodized aluminum cone and dustcap
- Shallow Motor Assembly
- StampCast basket with integrated spider venting
- Optimized for both sealed and vented enclosures
- Dual linear spider with embedded 16 AWG tinsel leads
- Diamond cut cast aluminum trim ring with optional grille
Specs
Size 12-inch
Impedance (Ohms) 2, 8
Cone Material Anodized Aluminum
Surround Material Santoprene
Basket Material ---
Grille None included
Free-Air No
Dual Voice Coil Yes
Sensitivity 85 dB at 1 watt
Frequency Response 34 - 250 Hz
Max RMS Power Handling 400
Peak Power Handling (Watts) 800
Top Mount Depth (inches) 3 11/16
Bottom Mount Depth (inches) N/A
Cutout Diameter or Length (inches) 11 1/16
Frame Width 13.086
Frame Length 13.086
Vas (liters) 35.3
Fs (Hz) 34
Qts 0.72
Xmax (millimeters) 8.4
Original: $239.99
-65%$239.99
$84.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Rockford Fosgate P3S 12" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.
FEATURES AT A GLANCE
- 1 Year Warranty
- M-Roll Santoprene™ surround
- Anodized aluminum cone and dustcap
- Shallow Motor Assembly
- StampCast basket with integrated spider venting
- Optimized for both sealed and vented enclosures
- Dual linear spider with embedded 16 AWG tinsel leads
- Diamond cut cast aluminum trim ring with optional grille
Specs
Size 12-inch
Impedance (Ohms) 2, 8
Cone Material Anodized Aluminum
Surround Material Santoprene
Basket Material ---
Grille None included
Free-Air No
Dual Voice Coil Yes
Sensitivity 85 dB at 1 watt
Frequency Response 34 - 250 Hz
Max RMS Power Handling 400
Peak Power Handling (Watts) 800
Top Mount Depth (inches) 3 11/16
Bottom Mount Depth (inches) N/A
Cutout Diameter or Length (inches) 11 1/16
Frame Width 13.086
Frame Length 13.086
Vas (liters) 35.3
Fs (Hz) 34
Qts 0.72
Xmax (millimeters) 8.4
