Shanling SM90 High-Resolution Music Streamer and DAC

All-in-One Hi-Fi Center
In-House Developed System

Combining years of development, SM90 comes with our most advanced streaming system, previously thoroughly tested on Shanling SM1.3 and SMT1.3 streamers. Built over time with rich feedback from our international audience and designed for dedicated audiophiles, SM90 delivers a mature and smooth system that you can rely on.

Direct Access to Streaming Apps

Enjoy streaming apps directly on the touch screen, currently supporting Spotify, Tidal, Qobuz, Apple Music, Apple Classical, Amazon Music, Presto Music and KKBox.

Easy Streaming from Phones & Tablets

Start playing immediately with the full support of Tidal Connect,
Qobuz Connect and Roon Ready*. And be always ready for simpler
wireless playback with DLNA and Airplay 2.

• Roon Certification Ongoing

Dual AKM AK4493S DACs - Classic Rich Sound Tuning

Utilizing two AKM AK4493S DACs, a well-proven solution favoured by both audio fans and our engineers, bringing in a unique balance of refined clarity and smooth natural presentation. Pushed to high-fidelity levels thanks to the expertly constructed power supply and enhanced by OPA1612-based audio output.

Modern Streaming Platform - Reliable System Components

Following in the line of the modern generation of Shanling streamers, SM90 comes with our most advanced 64-bit ARM Cortex CPU, supported by 4GB RAM and 64GB of internal memory for streaming apps. Providing a stable and balanced performance of our closed Android platform.

CPU: ARM Cortex-A55
Memory: 4GB RAM + 64GB ROM
OS: Closed Android 12

Convenient Menu Structure

Our UI focuses on simpler and faster access to all levels of the system, with further optimized main menu, settings and playback controls. Reduced number of elements and clear labelling lead to a cleaner-looking system that's swift to navigate through.

Instant Music Access

Main menu provides immediate playback control and direct access to the music library, with additional customizability for your preference between Local files and streaming.

Cross-Platform Unification

Interface was unified between SM90 and the Eddict Player companion app, providing a friction-free transition between the device and its remote operation.

Multi-Functional Hi-Fi Source Ready for All the Roles

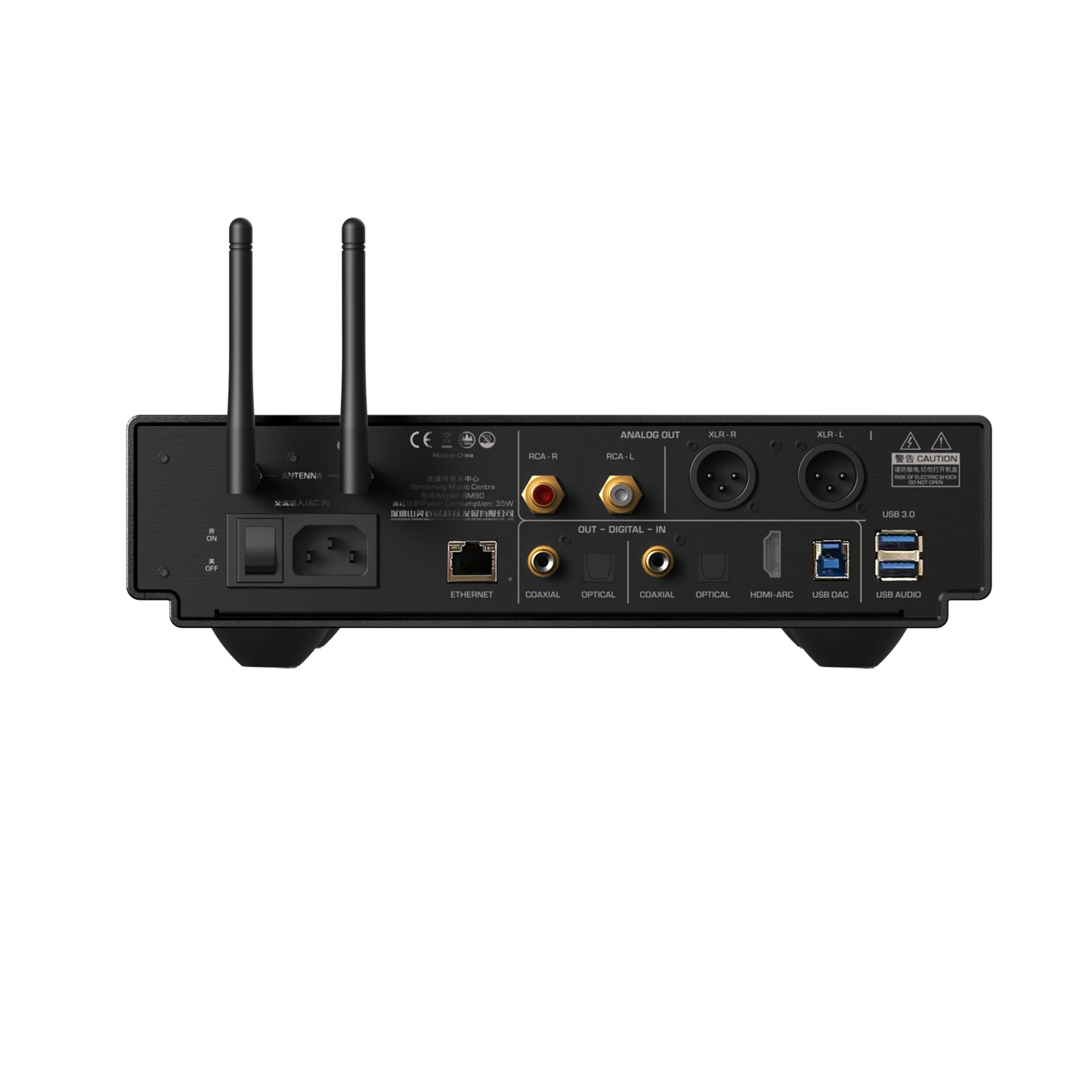

Designed as a versatile music center for any Hi-Fi rig, SM90 comes packing a range of analog inputs in combination with digital inputs and outputs. Combine SM90 with external amplifiers, DACs or CD players for a perfectly assembled setup.

To further enhance interconnectivity with modern living room systems, SM90 becomes the first Shanling device to feature HDMI ARC support.

Digital Input: Coaxial / Optical / USB DAC / HDMI ARC
Digital outputs: Coaxial / Optical / USB Audio
Analog Outputs: RCA / XLR

New Compact Body

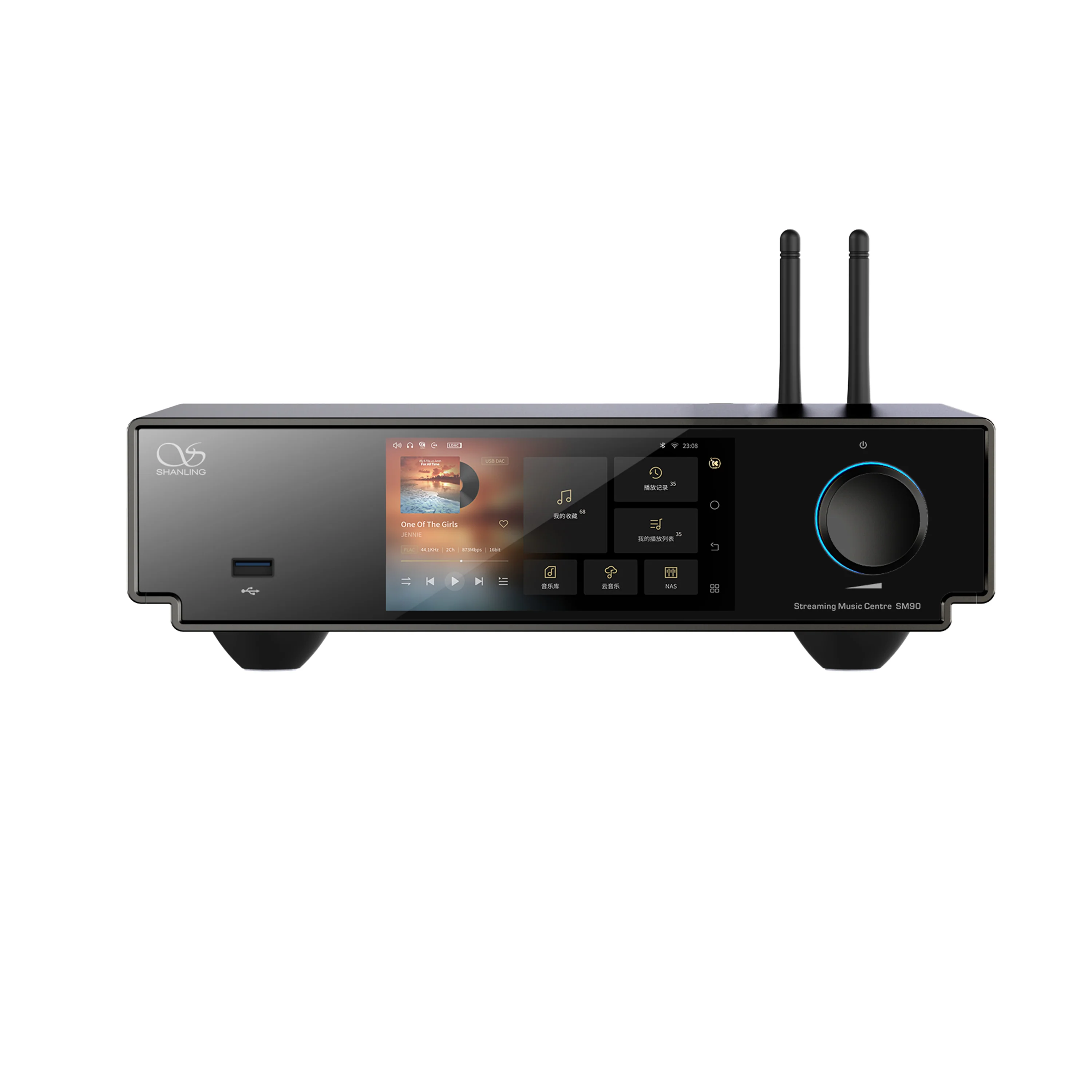

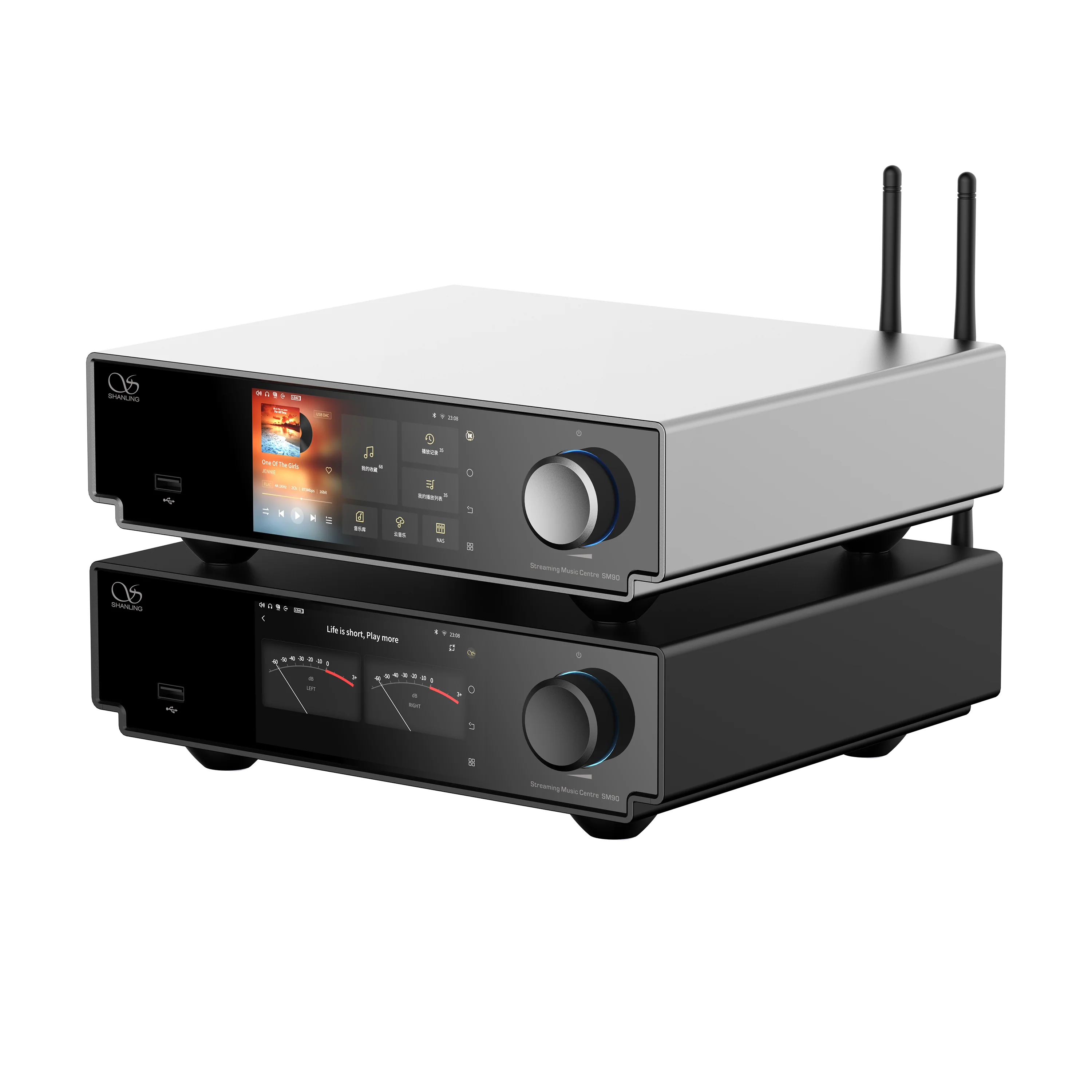

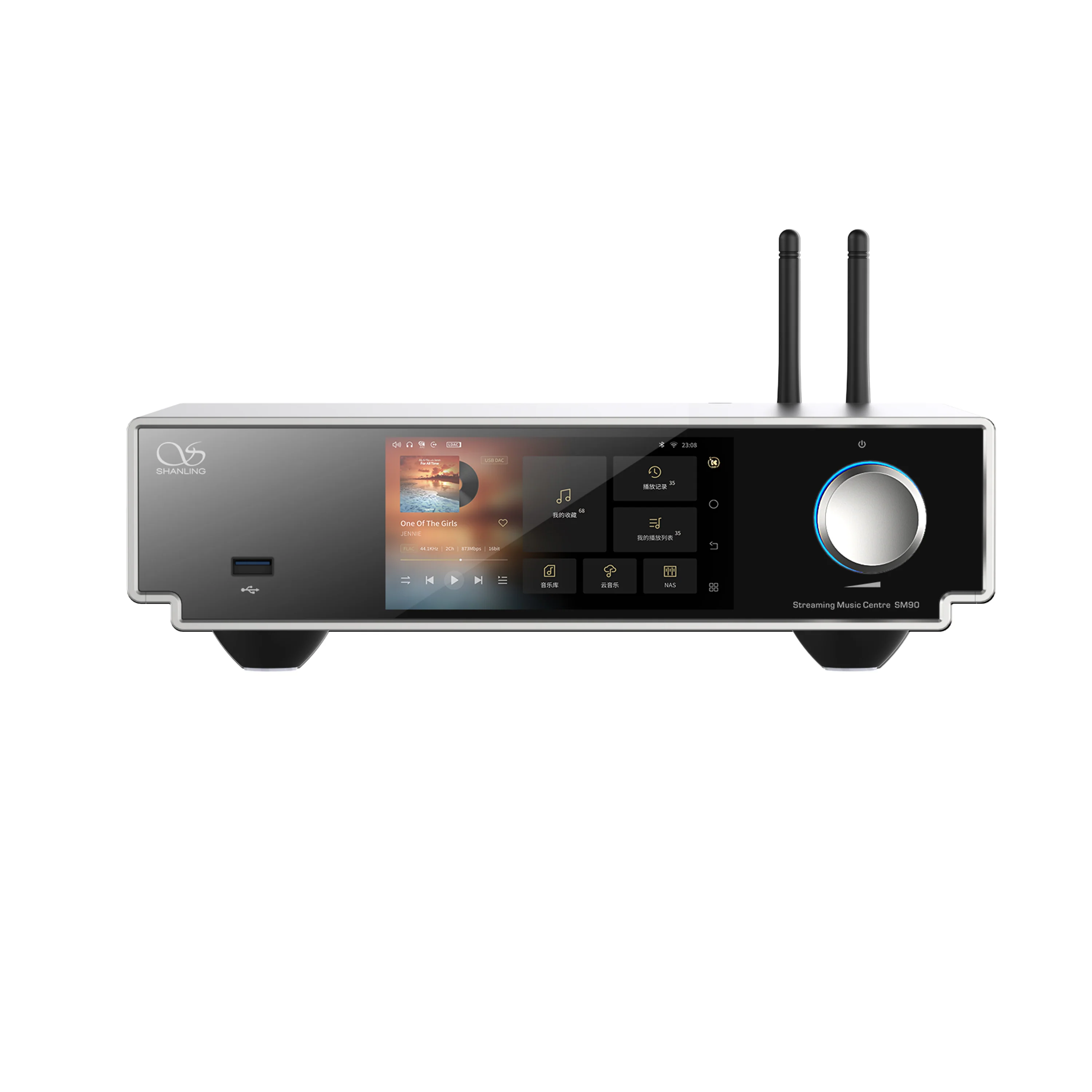

SM90 follows the design trend set by the latest Shanling releases, such as SCD3.3 and CT90. Packing the full streamer into the smaller aluminium chassis of the "90" line, with a 1080p 4.96-inch touch screen fitted into the front glass panel.

Touchscreen: 4.96-Inch 1080P Display
Construction: Aluminum Body, Glass Panel

Wi-Fi 6 & LAN Port - Increased Connectivity

Supporting both wired and wireless internet connections, offering a gigabit LAN port and a modern 2.4G/5.8G Wi-Fi 6 module. Providing a high-speed and stable connection for uninterrupted music streaming.

Wireless: Dual 2.4G/5.8G Wi-Fi 6 Module
Wired: Ethernet Port Gigabit LAN

Bluetooth Streaming - Simple Convenience

Thanks to its Bluetooth V5.2 module, SM90 can transform into a basic Bluetooth Receiver, providing the most streamlined connection between phones/tablets and its Hi-Fi DAC.

Supporting: LDAC, AAC, SBC

35W Linear Power Supply - High-Fidelity Foundation

Linear power supply is crucial for the sound quality of SM90, providing cleaner and more stable power than can be achieved with switching power supplies. And our engineers specially chose this high-quality 35W toroidal transformer, as it helped them to achieve a more analog sounding DAC.
