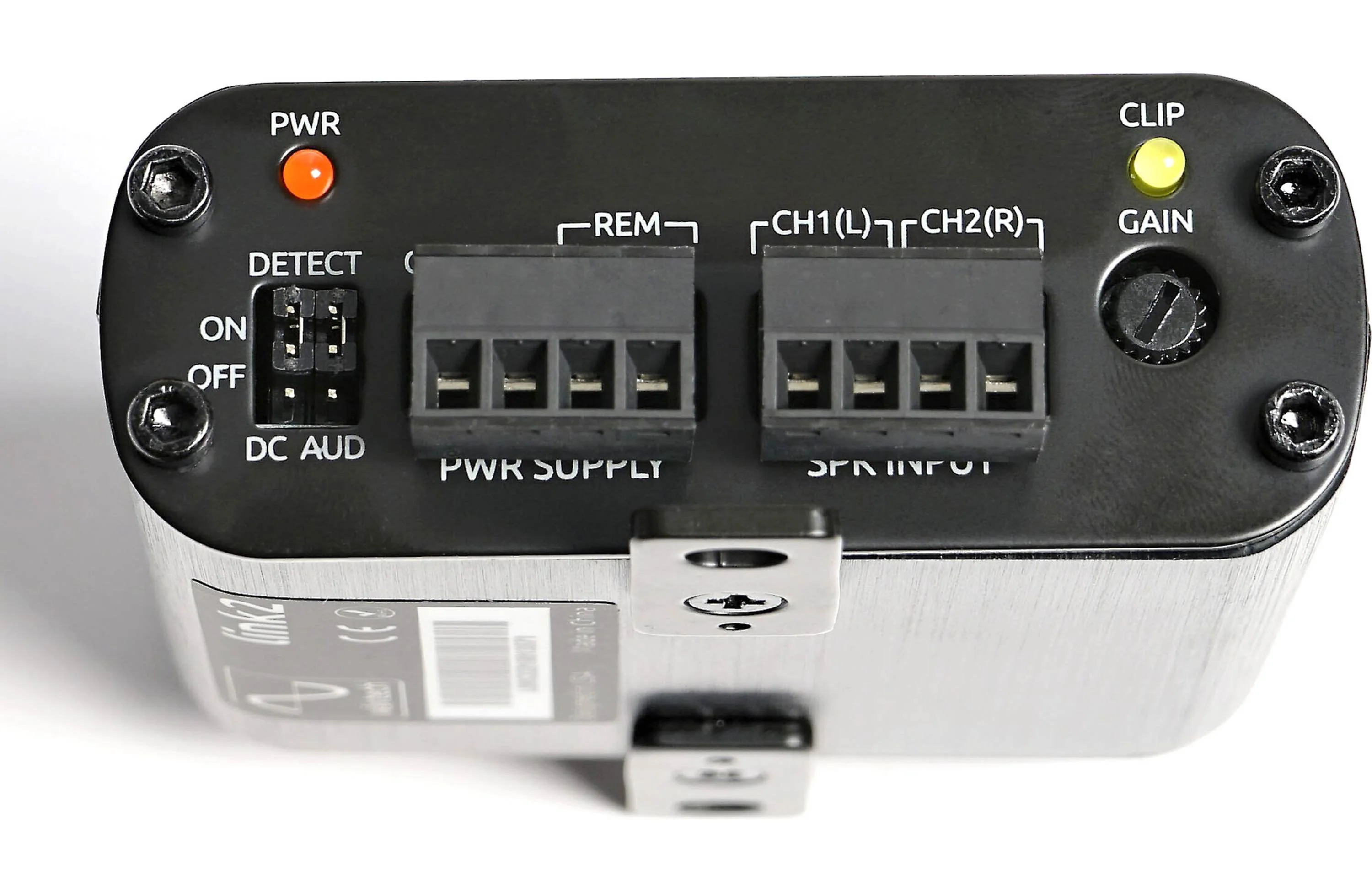

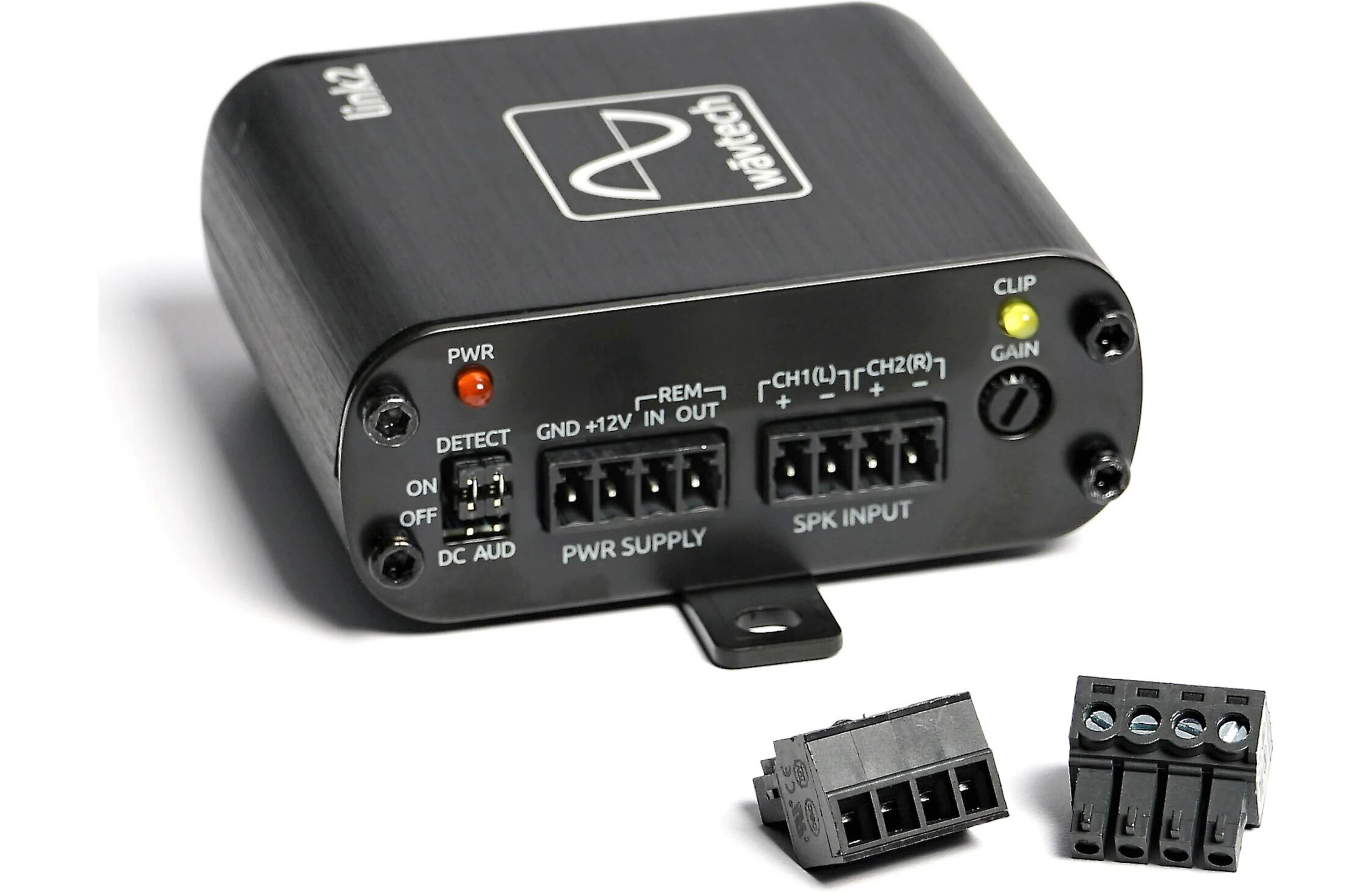

Wavtech link2 2 Channel Line Output Converter

If you need a high-quality 2-channel LOC, but don’t require additional features like summing or auxiliary inputs, the link2 is the perfect solution.   It is extremely small so it will fit almost anywhere, simplifying installations.

Like all our products, it has OEM load detect for factory systems that require resistance to function properly. The link2 will accept up to 40V RMS through its speaker inputs, while delivering up to 10V RMS of output at less than 50 ohms.

Specs

link2 Features

2-Channel Line Output Converter (LOC)

Differential Balanced Inputs

Low Impedance Outputs

Variable Gain Adjustments w/Clip LEDs

Auto-Turn On via DC-Offset or Audio Signal Detect

Generated +12V Remote Output

OEM Load Detect Compatible

Locking Detachable Power/Speaker Terminals

Professional Grade Panel Mount RCA’s

Compact Aluminum Chassis w/Detachable Mounting Tabs

link2 Specifications

Output Voltage (Max) ----------- >10Vrms

Output Impedance ---------------- <50Ω

Input Sensitivity -------------------- 2-20Vrms, 4-40Vrms

Max Input Voltage ----------------- 40Vrms

Frequency Response ------------- <10 Hz to >100kHz

THD+N SPK -------------------------- <0.01%

S/N SPK ------------------------------- >110dBA

Turn-On Trigger -------------------- +12V, DC-offset & Audio Detect

Generated +12V Output -------- >500mA

Chassis Dimensions --------------- 1.1”x2.9”x2.5” (29x75x63mm)
